5-10 — CAB MOUNTING; FRAME SIDE (#32623) — 184 parça

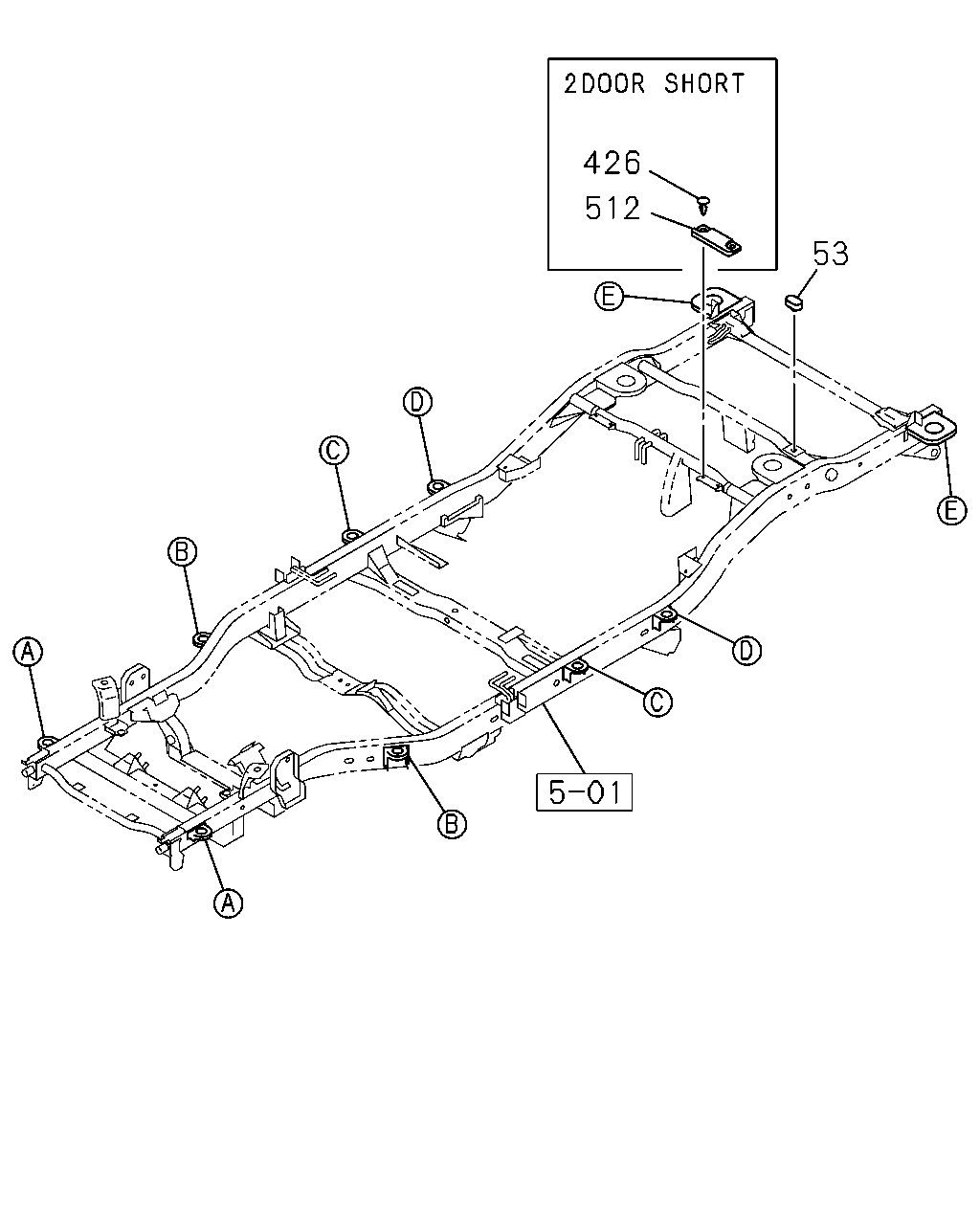

çizim 4729
426 512 53
BalonParca AdiParca NoAdetTipApplied Date A B
53 09.023 RUBBER; STOPPER
USA 		8-97170-247-2 02 1 9811-0012 ● ●
53 09.023 RUBBER; STOPPER
USA 		8-97170-247-2 02 1 0101- ●
426 09.003 CLIP 8-97180-351-0 04 1 9811-0012 ●
512 09.023 RUBBER; GASKET,RR FLOOR 8-97170-535-1 02 1 9811-0012 ●
çizim 36295
164 164 164 172 171 172 171 166 166 166 159 159 159 163 163 163 168 171 172 168 168 166 164 164 159 172 159 163 24 172 164 168
BalonParca AdiParca NoAdetTipApplied Date A B
24 09.003 WASHER; PL
USA 		8-97175-504-0 02 1 9811- ●
159 09.023 RUBBER; CUSHION,CAB MTG
(B) NO.2 MTG USA 		8-97166-160-2 02 1 9811-9906 ●
159 09.023 RUBBER; CUSHION,CAB MTG
(B) NO.2 MTG USA 		8-97215-408-0 02 1 9907-0012 ●
159 09.023 RUBBER; CUSHION,CAB MTG
(C) NO.3 MTG USA 		8-97180-662-0 02 1 9811-0012 ●
159 09.023 RUBBER; CUSHION,CAB MTG
(E) NO.5 MTG USA 		8-97165-543-1 01 1 9811-0012 ●
159 09.023 RUBBER; CUSHION,CAB MTG
(E) NO.5 MTG USA 		8-97165-542-1 01 1 9811-0012 ●
159 09.023 RUBBER; CUSHION,CAB MTG
(A) NO.1 MTG USA 		8-97125-323-1 02 1 9811-0012 ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(A) NO.1 MTG USA 		8-97125-323-1 02 1 0101-0103 ●
159 09.023 RUBBER; CUSHION,CAB MTG
(D) NO.4 MTG USA 		8-97310-061-0 02 1 0104- ●
159 09.023 RUBBER; CUSHION,CAB MTG
(C) NO.3 MTG USA 		8-97120-492-0 02 1 9811-0103 ●
159 09.023 RUBBER; CUSHION,CAB MTG
(A) NO.1 MTG USA 		8-97310-055-0 02 1 0104-0104 ●
159 09.023 RUBBER; CUSHION,CAB MTG
(B) NO.2 MTG USA 		8-97148-100-3 02 1 9811-9906 ●
159 09.023 RUBBER; CUSHION,CAB MTG
(B) NO.2 MTG USA 		8-97215-407-0 02 1 9907-0103 ●
159 09.023 RUBBER; CUSHION,CAB MTG
(C) NO.3 MTG USA 		8-97310-059-0 02 1 0104-0104 ●
159 09.023 RUBBER; CUSHION,CAB MTG
(D) NO.4 MTG USA 		8-97166-158-1 02 1 9811-0103 ●
159 09.023 RUBBER; CUSHION,CAB MTG
(B) NO.2 MTG USA 		8-97310-057-0 02 1 0104-0104 ●
159 09.023 RUBBER; CUSHION,CAB MTG
(E) NO.5 MTG USA 		8-97125-325-4 01 1 9811-9906 ●
159 09.023 RUBBER; CUSHION,CAB MTG
(E) NO.5 MTG USA 		8-97214-859-0 01 1 9907-0103 ●
159 09.023 RUBBER; CUSHION,CAB MTG
(E) NO.5 MTG USA 		8-97145-750-4 01 1 9811-9906 ●
159 09.023 RUBBER; CUSHION,CAB MTG
(E) NO.5 MTG USA 		8-97214-863-0 01 1 9907-0103 ●
159 09.023 RUBBER; CUSHION,CAB MTG
(F) NO.5 MTG USA 		8-97165-543-1 01 1 0104-0105 ●
159 09.023 RUBBER; CUSHION,CAB MTG
(F) NO.5 MTG USA 		8-97165-542-1 01 1 0104-0105 ●
159 09.023 RUBBER; CUSHION,CAB MTG
(A) NO.1 MTG USA 		8-97310-055-0 02 1 0105- ●
159 09.023 RUBBER; CUSHION,CAB MTG
(B) NO.2 MTG USA 		8-97310-057-0 02 1 0105- ●
159 09.023 RUBBER; CUSHION,CAB MTG
(C) NO.3 MTG USA 		8-97310-059-0 02 1 0105- ●
159 09.023 RUBBER; CUSHION,CAB MTG
(F) NO.5 MTG USA 		8-97165-543-1 01 1 0106-0108 ●
159 09.023 RUBBER; CUSHION,CAB MTG
(F) NO.5 MTG USA 		8-97312-753-0 01 1 0109- ●
159 09.023 RUBBER; CUSHION,CAB MTG
(F) NO.5 MTG USA 		8-97165-542-1 01 1 0106-0108 ●
159 09.023 RUBBER; CUSHION,CAB MTG
(F) NO.5 MTG USA 		8-97312-752-0 01 1 0109- ●
163 09.023 RUBBER; CUSHION,BODY MTG,REBOUND
(B) NO.2 MTG USA 		8-97166-161-2 02 1 9811-9906 ●
163 09.023 RUBBER; CUSHION,BODY MTG,REBOUND
(B) NO.2 MTG USA 		8-97215-410-0 02 1 9907-0012 ●
163 09.023 RUBBER; CUSHION,BODY MTG,REBOUND
(C) NO.3 MTG USA 		8-97180-663-0 02 1 9811-0012 ●
163 09.023 RUBBER; CUSHION,BODY MTG,REBOUND
(A) NO.1 MTG USA 		8-97125-324-0 02 1 9811-0012 ● ●
163 09.023 RUBBER; CUSHION,BODY MTG,REBOUND
(A) NO.1 MTG USA 		8-97125-324-0 02 1 0101-0103 ●
163 09.023 RUBBER; CUSHION,BODY MTG,REBOUND
(A) NO.1 MTG USA 		8-97310-056-0 02 1 0104-0104 ●
163 09.023 RUBBER; CUSHION,BODY MTG,REBOUND
(C) NO.3 MTG USA 		8-97120-493-0 02 1 9811-0103 ●
163 09.023 RUBBER; CUSHION,BODY MTG,REBOUND
(C) NO.3 MTG USA 		8-97310-060-0 02 1 0104-0104 ●
163 09.023 RUBBER; CUSHION,BODY MTG,REBOUND
(B) NO.2 MTG USA 		8-97148-101-2 02 1 9811-9906 ●
163 09.023 RUBBER; CUSHION,BODY MTG,REBOUND
(B) NO.2 MTG USA 		8-97215-409-0 02 1 9907-0103 ●
163 09.023 RUBBER; CUSHION,BODY MTG,REBOUND
(B) NO.2 MTG USA 		8-97310-058-0 02 1 0104-0104 ●
163 09.023 RUBBER; CUSHION,BODY MTG,REBOUND
(D) NO.4 MTG USA 		8-97166-159-1 02 1 9811-0103 ●
163 09.023 RUBBER; CUSHION,BODY MTG,REBOUND
(D) NO.4 MTG USA 		8-97310-062-0 02 1 0104- ●
163 09.023 RUBBER; CUSHION,BODY MTG,REBOUND
(A) NO.1 MTG USA 		8-97310-056-0 02 1 0105- ●
163 09.023 RUBBER; CUSHION,BODY MTG,REBOUND
(B) NO.2 MTG USA 		8-97310-058-0 02 1 0105- ●
163 09.023 RUBBER; CUSHION,BODY MTG,REBOUND
(C) NO.3 MTG USA 		8-97310-060-0 02 1 0105- ●
164 09.008 BOLT; CUSHION RUBBER,CAB MTG
(D) NO.5 MTG M10X20 FLANGE 		0-28481-020-0 08 1 9811-0012 ●
164 09.008 BOLT; CUSHION RUBBER,CAB MTG
(E) NO.5 MTG 		8-97164-886-0 01 1 9811-0012 ●
164 09.008 BOLT; CUSHION RUBBER,CAB MTG
(E) NO.5 MTG 		8-97164-885-1 01 1 9811-0012 ●
164 09.008 BOLT; CUSHION RUBBER,CAB MTG
(A) NO.1 MTG M10X120 USA 		8-97134-968-0 02 1 9811-0012 ● ●
164 09.008 BOLT; CUSHION RUBBER,CAB MTG
(A) NO.1 MTG M10X120 USA 		8-97134-968-0 02 1 0101- ●
164 09.008 BOLT; CUSHION RUBBER,CAB MTG
(B) NO.2,NO.3 MTG M10X105 		8-97142-724-0 04 1 9811-0012 ● ●
164 09.008 BOLT; CUSHION RUBBER,CAB MTG
(B) NO.2,NO.3 MTG M10X105 		8-97142-724-0 04 1 0101- ●
164 09.008 BOLT; CUSHION RUBBER,CAB MTG
(D) NO.5 MTG M10X20 FLANGE 		0-28481-020-0 04 1 9811-0103 ●
164 09.008 BOLT; CUSHION RUBBER,CAB MTG
(D) NO.5 MTG M10X20 FLANGE 		0-28481-020-0 08 1 0104-0104 ●
164 09.008 BOLT; CUSHION RUBBER,CAB MTG
(D) NO.5 MTG M10X20 FLANGE 		0-28481-020-0 08 1 0105-0105 ●
164 09.008 BOLT; CUSHION RUBBER,CAB MTG
(D) NO.5 MTG M10X20 FLANGE 		0-28481-020-0 08 1 0106-0108 ●
164 09.008 BOLT; CUSHION RUBBER,CAB MTG
M10X20 FLANGE 		0-28481-020-0 04 1 0109- ●
164 09.008 BOLT; CUSHION RUBBER,CAB MTG
(C) NO.4 MTG M10X102 USA 		8-97091-599-0 02 1 9811- ●
164 09.008 BOLT; CUSHION RUBBER,CAB MTG
(E) NO.5 MTG M10X120 USA 		8-97134-968-0 01 1 9811- ●
164 09.008 BOLT; CUSHION RUBBER,CAB MTG
(E) NO.5 MTG M10X105 		8-97164-882-0 01 1 9811- ●
166 09.009 PIECE; DIST,BODY MTG RUBBER
(B) NO.2 MTG L=70 		8-97148-063-2 02 1 9811-0012 ● ●
166 09.009 PIECE; DIST,BODY MTG RUBBER
(B) NO.2 MTG L=70 		8-97148-063-2 02 1 0101- ●
166 09.009 PIECE; DIST,BODY MTG RUBBER
(C) NO.3,NO.4 MTG L=70 USA 		8-97170-537-0 02 1 9811-0012 ● ●
166 09.009 PIECE; DIST,BODY MTG RUBBER
(C) NO.3,NO.4 MTG L=70 USA 		8-97170-537-0 02 1 9811-0012 ●
166 09.009 PIECE; DIST,BODY MTG RUBBER
(C) NO.3,NO.4 MTG L=70 USA 		8-97170-537-0 02 1 0101-0103 ●
166 09.009 PIECE; DIST,BODY MTG RUBBER
(C) NO.3,NO.4 MTG L=70 USA 		8-97170-537-0 02 1 0101-0103 ●
166 09.009 PIECE; DIST,BODY MTG RUBBER
(C) NO.3,NO.4 MTG L=70 USA 		8-97170-537-0 04 1 0104-0104 ●
166 09.009 PIECE; DIST,BODY MTG RUBBER
(A) NO.1 MTG L=70 USA 		8-97170-537-0 02 1 0105- ●
166 09.009 PIECE; DIST,BODY MTG RUBBER
(A) NO.1 MTG L=72 USA 		8-97175-336-0 02 1 9811-0012 ● ●
166 09.009 PIECE; DIST,BODY MTG RUBBER
(A) NO.1 MTG L=72 USA 		8-97175-336-0 02 1 0101-0103 ●
166 09.009 PIECE; DIST,BODY MTG RUBBER
(A) NO.1 MTG L=70 USA 		8-97170-537-0 02 1 0104-0104 ●
166 09.009 PIECE; DIST,BODY MTG RUBBER
(C) NO.3,NO.4 MTG L=70 USA 		8-97170-537-0 04 1 0105- ●
168 09.011 NUT; CUSHION RUBBER,BODY MTG
07.243 (B) NO.5 MTG M12 FLANGE 		0-91150-212-0 02 1 9811-0012 ●
168 09.011 NUT; CUSHION RUBBER,BODY MTG
08.917 (A) NO.1,NO.2,NO.3 MTG M10 FLANGE 		0-91150-210-0 06 1 9811-0012 ● ●
168 09.011 NUT; CUSHION RUBBER,BODY MTG
08.917 (A) NO.1,NO.2,NO.3 MTG M10 FLANGE 		0-91150-210-0 06 1 0101- ●
168 09.011 NUT; CUSHION RUBBER,BODY MTG
08.917 (B) NO.5 MTG M10 FLANGE 		0-91150-210-0 02 1 9811- ●
171 09.011 WASHER; BODY MTG RUBBER
(A) NO.3 MTG ID=11 OD=48 T=2.9 		8-94223-170-0 02 1 9811-0012 ● ●
171 09.011 WASHER; BODY MTG RUBBER
(A) NO.3 MTG ID=11 OD=48 T=2.9 		8-94223-170-0 02 1 0101- ●
171 09.011 WASHER; BODY MTG RUBBER
(B) NO.3 MTG ID=11 OD=62 T=2.9 		8-97037-993-0 02 1 9811-0003 ● ●
171 09.011 WASHER; BODY MTG RUBBER
(B) NO.3 MTG ID=11 OD=62 T=2.9 		8-97037-993-0 02 1 0004-0012 ●
171 09.011 WASHER; BODY MTG RUBBER
(B) NO.3 MTG ID=11 OD=62 T=2.9 		8-97037-993-0 04 1 0004-0103 ●
172 09.011 WASHER; BODY MTG RUBBER
(B) NO.5 MTG ID=13 OD=90 T=6.0 USA 		8-97165-198-0 02 1 9811-0012 ●
172 09.011 WASHER; BODY MTG RUBBER
(C) NO.5 MTG ID=13 OD=40 T=6.0 USA 		8-97165-199-0 01 1 9811-0012 ●
172 09.011 WASHER; BODY MTG RUBBER
(C) NO.5 MTG ID=16 OD=40 T=6.0 USA 		8-97165-200-0 01 1 9811-0012 ●
172 09.011 WASHER; BODY MTG RUBBER
(A) NO.2 MTG ID=11 OD=43 T=2.0 USA 		8-97148-064-0 02 1 9811-0012 ● ●
172 09.011 WASHER; BODY MTG RUBBER
(A) NO.2 MTG ID=11 OD=43 T=1.8 USA 		8-97303-854-0 02 1 0101- ●
172 09.011 WASHER; BODY MTG RUBBER
(B) NO.5 MTG ID=11 OD=75 T=6.0 		8-94338-455-0 02 1 9811-0103 ●
172 09.011 WASHER; BODY MTG RUBBER
(B) NO.5 MTG USA 		8-97303-964-0 02 1 0104-0104 ●
172 09.011 WASHER; BODY MTG RUBBER
(D) NO.2 MTG ID=11 OD=62 T=2.9 		8-97037-993-0 04 1 0004-0103 ●
172 09.011 WASHER; BODY MTG RUBBER
(B) NO.5 MTG USA 		8-97303-964-0 02 1 0105- ●
çizim 38260
164 164 164 166 166 166 159 159 159 163 163 163 171 172 168 168 168 166 164 164 159 159 163 172 24 168 164
BalonParca AdiParca NoAdetTipApplied Date A B
24 09.003 WASHER; PL
USA 		8-97175-504-0 02 1 9811- ●
159 09.023 RUBBER; CUSHION,CAB MTG
(B) NO.2 MTG USA 		8-97166-160-2 02 1 9811-9906 ●
159 09.023 RUBBER; CUSHION,CAB MTG
(B) NO.2 MTG USA 		8-97215-408-0 02 1 9907-0012 ●
159 09.023 RUBBER; CUSHION,CAB MTG
(C) NO.3 MTG USA 		8-97180-662-0 02 1 9811-0012 ●
159 09.023 RUBBER; CUSHION,CAB MTG
(E) NO.5 MTG USA 		8-97165-543-1 01 1 9811-0012 ●
159 09.023 RUBBER; CUSHION,CAB MTG
(E) NO.5 MTG USA 		8-97165-542-1 01 1 9811-0012 ●
159 09.023 RUBBER; CUSHION,CAB MTG
(A) NO.1 MTG USA 		8-97125-323-1 02 1 9811-0012 ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(A) NO.1 MTG USA 		8-97125-323-1 02 1 0101-0103 ●
159 09.023 RUBBER; CUSHION,CAB MTG
(D) NO.4 MTG USA 		8-97310-061-0 02 1 0104- ●
159 09.023 RUBBER; CUSHION,CAB MTG
(C) NO.3 MTG USA 		8-97120-492-0 02 1 9811-0103 ●
159 09.023 RUBBER; CUSHION,CAB MTG
(A) NO.1 MTG USA 		8-97310-055-0 02 1 0104-0104 ●
159 09.023 RUBBER; CUSHION,CAB MTG
(B) NO.2 MTG USA 		8-97148-100-3 02 1 9811-9906 ●
159 09.023 RUBBER; CUSHION,CAB MTG
(B) NO.2 MTG USA 		8-97215-407-0 02 1 9907-0103 ●
159 09.023 RUBBER; CUSHION,CAB MTG
(C) NO.3 MTG USA 		8-97310-059-0 02 1 0104-0104 ●
159 09.023 RUBBER; CUSHION,CAB MTG
(D) NO.4 MTG USA 		8-97166-158-1 02 1 9811-0103 ●
159 09.023 RUBBER; CUSHION,CAB MTG
(B) NO.2 MTG USA 		8-97310-057-0 02 1 0104-0104 ●
159 09.023 RUBBER; CUSHION,CAB MTG
(E) NO.5 MTG USA 		8-97125-325-4 01 1 9811-9906 ●
159 09.023 RUBBER; CUSHION,CAB MTG
(E) NO.5 MTG USA 		8-97214-859-0 01 1 9907-0103 ●
159 09.023 RUBBER; CUSHION,CAB MTG
(E) NO.5 MTG USA 		8-97145-750-4 01 1 9811-9906 ●
159 09.023 RUBBER; CUSHION,CAB MTG
(E) NO.5 MTG USA 		8-97214-863-0 01 1 9907-0103 ●
159 09.023 RUBBER; CUSHION,CAB MTG
(F) NO.5 MTG USA 		8-97165-543-1 01 1 0104-0105 ●
159 09.023 RUBBER; CUSHION,CAB MTG
(F) NO.5 MTG USA 		8-97165-542-1 01 1 0104-0105 ●
159 09.023 RUBBER; CUSHION,CAB MTG
(A) NO.1 MTG USA 		8-97310-055-0 02 1 0105- ●
159 09.023 RUBBER; CUSHION,CAB MTG
(B) NO.2 MTG USA 		8-97310-057-0 02 1 0105- ●
159 09.023 RUBBER; CUSHION,CAB MTG
(C) NO.3 MTG USA 		8-97310-059-0 02 1 0105- ●
159 09.023 RUBBER; CUSHION,CAB MTG
(F) NO.5 MTG USA 		8-97165-543-1 01 1 0106-0108 ●
159 09.023 RUBBER; CUSHION,CAB MTG
(F) NO.5 MTG USA 		8-97312-753-0 01 1 0109- ●
159 09.023 RUBBER; CUSHION,CAB MTG
(F) NO.5 MTG USA 		8-97165-542-1 01 1 0106-0108 ●
159 09.023 RUBBER; CUSHION,CAB MTG
(F) NO.5 MTG USA 		8-97312-752-0 01 1 0109- ●
163 09.023 RUBBER; CUSHION,BODY MTG,REBOUND
(B) NO.2 MTG USA 		8-97166-161-2 02 1 9811-9906 ●
163 09.023 RUBBER; CUSHION,BODY MTG,REBOUND
(B) NO.2 MTG USA 		8-97215-410-0 02 1 9907-0012 ●
163 09.023 RUBBER; CUSHION,BODY MTG,REBOUND
(C) NO.3 MTG USA 		8-97180-663-0 02 1 9811-0012 ●
163 09.023 RUBBER; CUSHION,BODY MTG,REBOUND
(A) NO.1 MTG USA 		8-97125-324-0 02 1 9811-0012 ● ●
163 09.023 RUBBER; CUSHION,BODY MTG,REBOUND
(A) NO.1 MTG USA 		8-97125-324-0 02 1 0101-0103 ●
163 09.023 RUBBER; CUSHION,BODY MTG,REBOUND
(A) NO.1 MTG USA 		8-97310-056-0 02 1 0104-0104 ●
163 09.023 RUBBER; CUSHION,BODY MTG,REBOUND
(C) NO.3 MTG USA 		8-97120-493-0 02 1 9811-0103 ●
163 09.023 RUBBER; CUSHION,BODY MTG,REBOUND
(C) NO.3 MTG USA 		8-97310-060-0 02 1 0104-0104 ●
163 09.023 RUBBER; CUSHION,BODY MTG,REBOUND
(B) NO.2 MTG USA 		8-97148-101-2 02 1 9811-9906 ●
163 09.023 RUBBER; CUSHION,BODY MTG,REBOUND
(B) NO.2 MTG USA 		8-97215-409-0 02 1 9907-0103 ●
163 09.023 RUBBER; CUSHION,BODY MTG,REBOUND
(B) NO.2 MTG USA 		8-97310-058-0 02 1 0104-0104 ●
163 09.023 RUBBER; CUSHION,BODY MTG,REBOUND
(D) NO.4 MTG USA 		8-97166-159-1 02 1 9811-0103 ●
163 09.023 RUBBER; CUSHION,BODY MTG,REBOUND
(D) NO.4 MTG USA 		8-97310-062-0 02 1 0104- ●
163 09.023 RUBBER; CUSHION,BODY MTG,REBOUND
(A) NO.1 MTG USA 		8-97310-056-0 02 1 0105- ●
163 09.023 RUBBER; CUSHION,BODY MTG,REBOUND
(B) NO.2 MTG USA 		8-97310-058-0 02 1 0105- ●
163 09.023 RUBBER; CUSHION,BODY MTG,REBOUND
(C) NO.3 MTG USA 		8-97310-060-0 02 1 0105- ●
164 09.008 BOLT; CUSHION RUBBER,CAB MTG
(D) NO.5 MTG M10X20 FLANGE 		0-28481-020-0 08 1 9811-0012 ●
164 09.008 BOLT; CUSHION RUBBER,CAB MTG
(E) NO.5 MTG 		8-97164-886-0 01 1 9811-0012 ●
164 09.008 BOLT; CUSHION RUBBER,CAB MTG
(E) NO.5 MTG 		8-97164-885-1 01 1 9811-0012 ●
164 09.008 BOLT; CUSHION RUBBER,CAB MTG
(A) NO.1 MTG M10X120 USA 		8-97134-968-0 02 1 9811-0012 ● ●
164 09.008 BOLT; CUSHION RUBBER,CAB MTG
(A) NO.1 MTG M10X120 USA 		8-97134-968-0 02 1 0101- ●
164 09.008 BOLT; CUSHION RUBBER,CAB MTG
(B) NO.2,NO.3 MTG M10X105 		8-97142-724-0 04 1 9811-0012 ● ●
164 09.008 BOLT; CUSHION RUBBER,CAB MTG
(B) NO.2,NO.3 MTG M10X105 		8-97142-724-0 04 1 0101- ●
164 09.008 BOLT; CUSHION RUBBER,CAB MTG
(D) NO.5 MTG M10X20 FLANGE 		0-28481-020-0 04 1 9811-0103 ●
164 09.008 BOLT; CUSHION RUBBER,CAB MTG
(D) NO.5 MTG M10X20 FLANGE 		0-28481-020-0 08 1 0104-0104 ●
164 09.008 BOLT; CUSHION RUBBER,CAB MTG
(D) NO.5 MTG M10X20 FLANGE 		0-28481-020-0 08 1 0105-0105 ●
164 09.008 BOLT; CUSHION RUBBER,CAB MTG
(D) NO.5 MTG M10X20 FLANGE 		0-28481-020-0 08 1 0106-0108 ●
164 09.008 BOLT; CUSHION RUBBER,CAB MTG
M10X20 FLANGE 		0-28481-020-0 04 1 0109- ●
164 09.008 BOLT; CUSHION RUBBER,CAB MTG
(C) NO.4 MTG M10X102 USA 		8-97091-599-0 02 1 9811- ●
164 09.008 BOLT; CUSHION RUBBER,CAB MTG
(E) NO.5 MTG M10X120 USA 		8-97134-968-0 01 1 9811- ●
164 09.008 BOLT; CUSHION RUBBER,CAB MTG
(E) NO.5 MTG M10X105 		8-97164-882-0 01 1 9811- ●
166 09.009 PIECE; DIST,BODY MTG RUBBER
(B) NO.2 MTG L=70 		8-97148-063-2 02 1 9811-0012 ● ●
166 09.009 PIECE; DIST,BODY MTG RUBBER
(B) NO.2 MTG L=70 		8-97148-063-2 02 1 0101- ●
166 09.009 PIECE; DIST,BODY MTG RUBBER
(C) NO.3,NO.4 MTG L=70 USA 		8-97170-537-0 02 1 9811-0012 ● ●
166 09.009 PIECE; DIST,BODY MTG RUBBER
(C) NO.3,NO.4 MTG L=70 USA 		8-97170-537-0 02 1 9811-0012 ●
166 09.009 PIECE; DIST,BODY MTG RUBBER
(C) NO.3,NO.4 MTG L=70 USA 		8-97170-537-0 02 1 0101-0103 ●
166 09.009 PIECE; DIST,BODY MTG RUBBER
(C) NO.3,NO.4 MTG L=70 USA 		8-97170-537-0 02 1 0101-0103 ●
166 09.009 PIECE; DIST,BODY MTG RUBBER
(C) NO.3,NO.4 MTG L=70 USA 		8-97170-537-0 04 1 0104-0104 ●
166 09.009 PIECE; DIST,BODY MTG RUBBER
(A) NO.1 MTG L=70 USA 		8-97170-537-0 02 1 0105- ●
166 09.009 PIECE; DIST,BODY MTG RUBBER
(A) NO.1 MTG L=72 USA 		8-97175-336-0 02 1 9811-0012 ● ●
166 09.009 PIECE; DIST,BODY MTG RUBBER
(A) NO.1 MTG L=72 USA 		8-97175-336-0 02 1 0101-0103 ●
166 09.009 PIECE; DIST,BODY MTG RUBBER
(A) NO.1 MTG L=70 USA 		8-97170-537-0 02 1 0104-0104 ●
166 09.009 PIECE; DIST,BODY MTG RUBBER
(C) NO.3,NO.4 MTG L=70 USA 		8-97170-537-0 04 1 0105- ●
168 09.011 NUT; CUSHION RUBBER,BODY MTG
07.243 (B) NO.5 MTG M12 FLANGE 		0-91150-212-0 02 1 9811-0012 ●
168 09.011 NUT; CUSHION RUBBER,BODY MTG
08.917 (A) NO.1,NO.2,NO.3 MTG M10 FLANGE 		0-91150-210-0 06 1 9811-0012 ● ●
168 09.011 NUT; CUSHION RUBBER,BODY MTG
08.917 (A) NO.1,NO.2,NO.3 MTG M10 FLANGE 		0-91150-210-0 06 1 0101- ●
168 09.011 NUT; CUSHION RUBBER,BODY MTG
08.917 (B) NO.5 MTG M10 FLANGE 		0-91150-210-0 02 1 9811- ●
171 09.011 WASHER; BODY MTG RUBBER
(A) NO.3 MTG ID=11 OD=48 T=2.9 		8-94223-170-0 02 1 9811-0012 ● ●
171 09.011 WASHER; BODY MTG RUBBER
(A) NO.3 MTG ID=11 OD=48 T=2.9 		8-94223-170-0 02 1 0101- ●
171 09.011 WASHER; BODY MTG RUBBER
(B) NO.3 MTG ID=11 OD=62 T=2.9 		8-97037-993-0 02 1 9811-0003 ● ●
171 09.011 WASHER; BODY MTG RUBBER
(B) NO.3 MTG ID=11 OD=62 T=2.9 		8-97037-993-0 02 1 0004-0012 ●
171 09.011 WASHER; BODY MTG RUBBER
(B) NO.3 MTG ID=11 OD=62 T=2.9 		8-97037-993-0 04 1 0004-0103 ●
172 09.011 WASHER; BODY MTG RUBBER
(B) NO.5 MTG ID=13 OD=90 T=6.0 USA 		8-97165-198-0 02 1 9811-0012 ●
172 09.011 WASHER; BODY MTG RUBBER
(C) NO.5 MTG ID=13 OD=40 T=6.0 USA 		8-97165-199-0 01 1 9811-0012 ●
172 09.011 WASHER; BODY MTG RUBBER
(C) NO.5 MTG ID=16 OD=40 T=6.0 USA 		8-97165-200-0 01 1 9811-0012 ●
172 09.011 WASHER; BODY MTG RUBBER
(A) NO.2 MTG ID=11 OD=43 T=2.0 USA 		8-97148-064-0 02 1 9811-0012 ● ●
172 09.011 WASHER; BODY MTG RUBBER
(A) NO.2 MTG ID=11 OD=43 T=1.8 USA 		8-97303-854-0 02 1 0101- ●
172 09.011 WASHER; BODY MTG RUBBER
(B) NO.5 MTG ID=11 OD=75 T=6.0 		8-94338-455-0 02 1 9811-0103 ●
172 09.011 WASHER; BODY MTG RUBBER
(B) NO.5 MTG USA 		8-97303-964-0 02 1 0104-0104 ●
172 09.011 WASHER; BODY MTG RUBBER
(D) NO.2 MTG ID=11 OD=62 T=2.9 		8-97037-993-0 04 1 0004-0103 ●
172 09.011 WASHER; BODY MTG RUBBER
(B) NO.5 MTG USA 		8-97303-964-0 02 1 0105- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
