◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UES ▶ 50807 - UES(AUSTRALIA) ▶ 5 - Frame, Cab Mounting ▶ 5-01 - FRAME AND OTHER PARTS ▶
5-01 — FRAME AND OTHER PARTS (#32622) — 78 parça

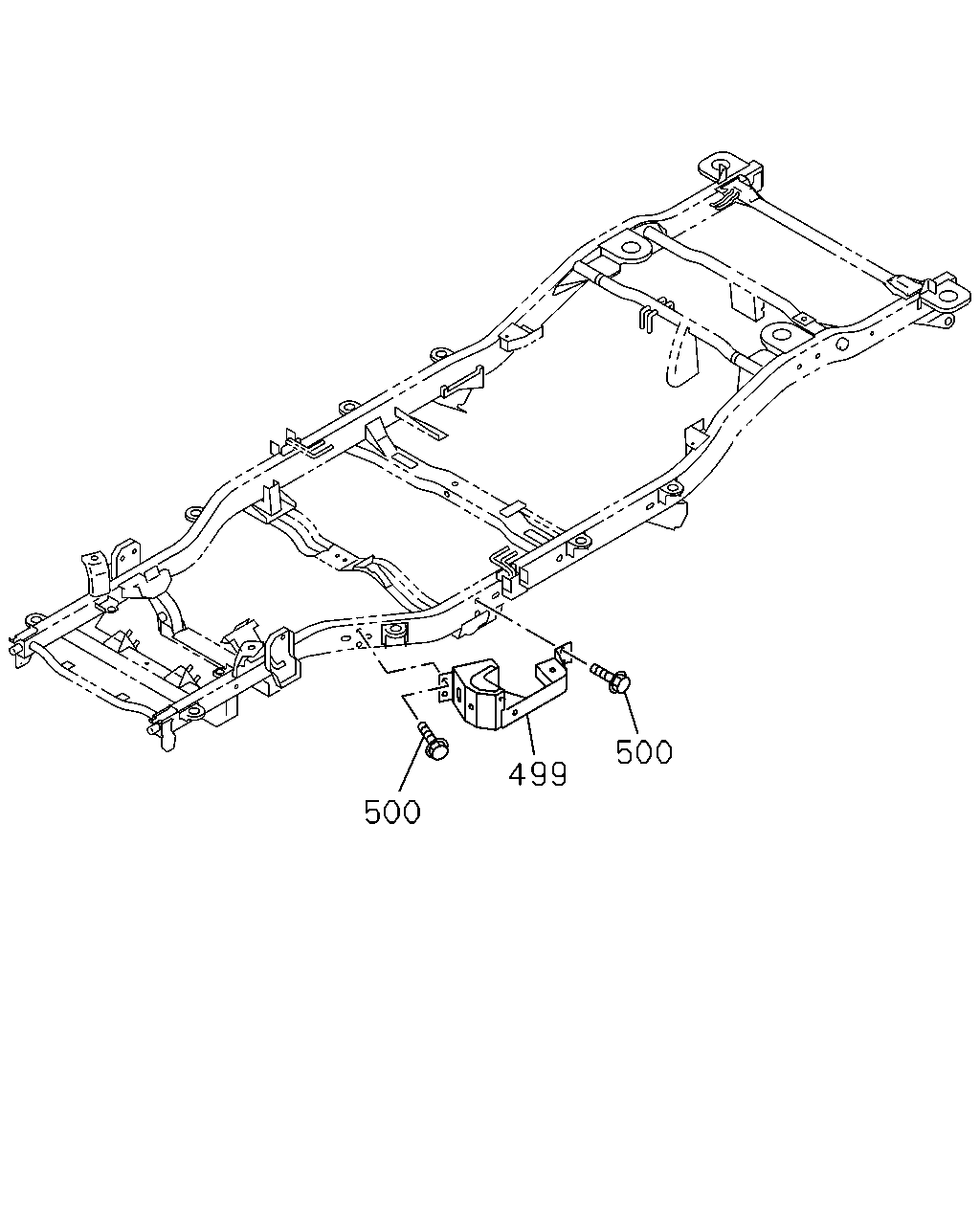

çizim 4013
500 499 500
BalonParca AdiParca NoAdetTipApplied Date A B
499 07.006 BRACKET; SAFETY,CRUSH CAGE
07.629 		8-97252-218-2 01 1 0101-0208 ●
499 07.006 BRACKET; SAFETY,CRUSH CAGE 8-97326-527-0 01 1 0209- ●
499 07.006 BRACKET; SAFETY,CRUSH CAGE
07.629 		8-97252-217-2 01 1 0101-0208 ●
499 07.006 BRACKET; SAFETY,CRUSH CAGE 8-97326-526-0 01 1 0209- ●
500 07.006 BOLT; BRKT,CRUSH CAGE SAFETY
00.002 M10X25 FLANGE 		0-28481-025-0 10 1 0101-0208 ●
500 07.006 BOLT; BRKT,CRUSH CAGE SAFETY
00.002 M10X25 FLANGE 		0-28481-025-0 08 1 0209- ●

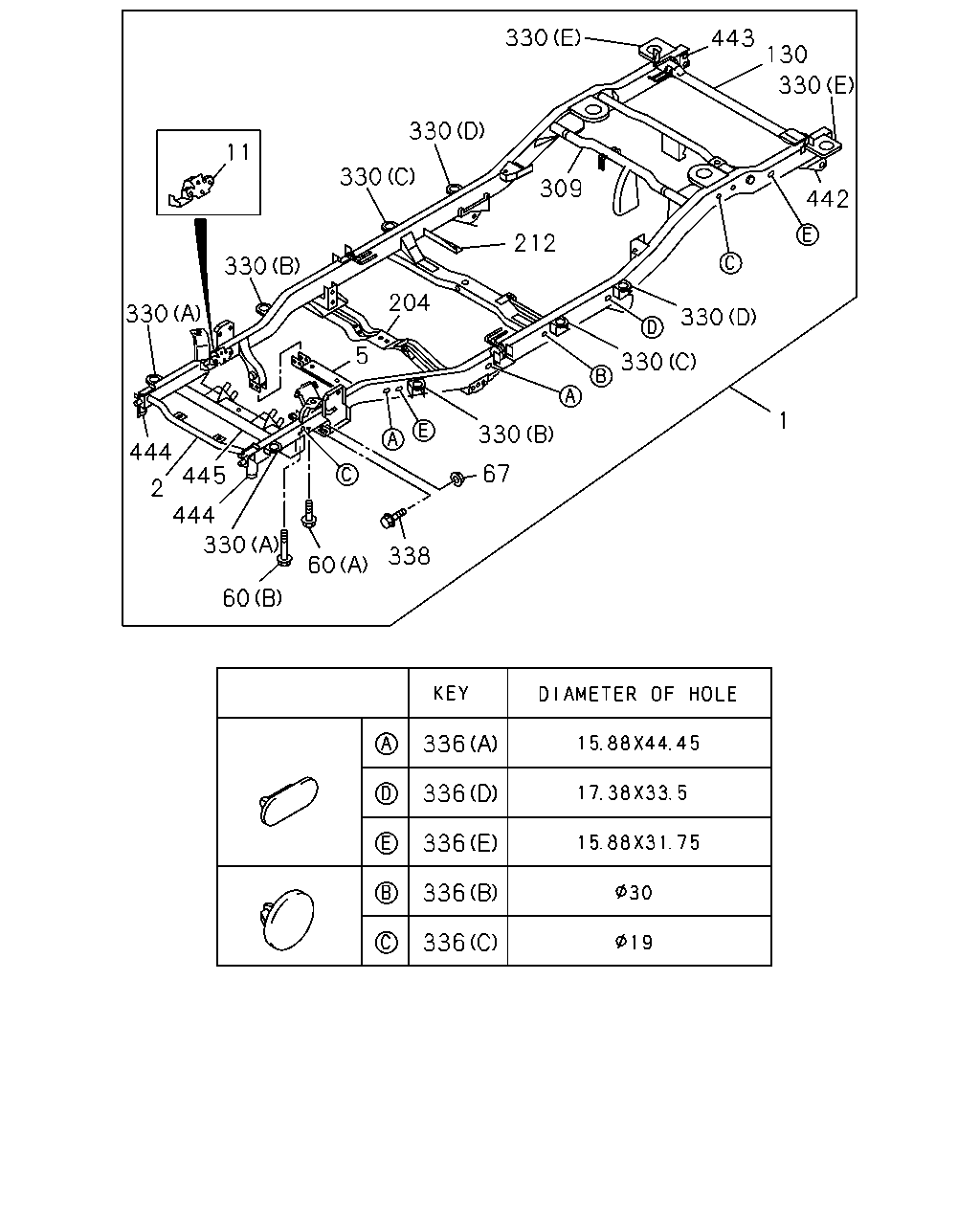

çizim 36618
330 443 130 330 330 11 330 309 442 212 330 204 330 330 5 330 1 330 444 445 67 2 444 330 338 60 60 336 336 336 336 336
BalonParca AdiParca NoAdetTipApplied Date A B
1 07.003 FRAME ASM
USA 		8-97184-290-0 01 1 9811-0012 ●
1 07.003 FRAME ASM
A/T THM 4 SPEED(RMQ) USA 		8-97184-289-0 01 1 9811-0012 ●
1 07.003 FRAME ASM
A/T THM 4 SPEED(RMQ) USA 		8-97222-430-0 01 1 0101-0108 ●
1 07.003 FRAME ASM
A/T THM 4 SPEED(RMQ) USA 		8-97302-290-0 01 1 0109-0201 ●
1 07.003 FRAME ASM
A/T THM 4 SPEED(RMQ) USA 		8-97327-002-1 01 1 0202- ●
1 07.003 FRAME ASM
M/T MUA 5 SPEED(RMN) USA 		8-97184-288-0 01 1 9811-0012 ●
1 07.003 FRAME ASM
M/T MUA 5 SPEED(RMN) USA 		8-97222-429-0 01 1 0101-0108 ●
1 07.003 FRAME ASM
M/T MUA 5 SPEED(RMN) USA 		8-97302-289-0 01 1 0109-0201 ●
1 07.003 FRAME ASM
M/T MUA 5 SPEED(RMN) USA 		8-97330-160-1 01 1 0202- ●
2 07.010 MEMBER; CROSS,1ST
USA 		8-97125-556-1 01 1 9811-0012 ● ●
2 07.010 MEMBER; CROSS,1ST
USA 		8-97125-556-2 01 1 0101- ●
5 07.010 MEMBER; CROSS,SUSPENSION
USA 		8-97125-557-1 01 1 9811-9912 ● ●
5 07.010 MEMBER; CROSS,SUSPENSION
USA 		8-97225-570-0 01 1 0001-0012 ● ●
5 07.010 MEMBER; CROSS,SUSPENSION
USA 		8-97225-570-1 01 1 0101- ●
11 00.029 BRACKET; ENG MTG
USA 		8-97139-283-3 01 1 9811-0012 ●
11 00.029 BRACKET; ENG MTG
USA 		8-97139-282-3 01 1 9811-0012 ●
60 05.601 BOLT; MBR
09.008 (A) M14X30 FLANGE 		0-28691-430-0 02 1 9811-0012 ● ●
60 05.601 BOLT; MBR
09.008 (A) M14X30 FLANGE 		0-28691-430-0 02 1 0101- ●
60 05.601 BOLT; MBR
07.242 (B) M14X106 FLANGE USA 		8-97022-753-2 02 1 9811-0012 ● ●
60 05.601 BOLT; MBR
07.242 (B) M14X106 FLANGE USA 		8-97022-753-3 02 1 0101- ●
67 07.011 NUT; C/MBR
07.039 M10 FLANGE USA 		8-94383-595-0 04 1 9811-0012 ● ●
67 07.011 NUT; C/MBR
07.039 M10 FLANGE USA 		8-94383-595-0 04 1 0101- ●
130 07.014 MEMBER; CROSS,END
USA 		8-97133-444-7 01 1 9811-0012 ●
130 07.014 MEMBER; CROSS,END
USA 		8-97125-565-6 01 1 9811-9912 ●
130 07.014 MEMBER; CROSS,END
USA 		8-97232-330-2 01 1 0001- ●
204 07.010 MEMBER; CROSS,TRANS MTG
USA 		8-97125-560-8 01 1 9811-0012 ●
204 07.010 MEMBER; CROSS,TRANS MTG
M/T MUA 5 SPEED(RMN) USA 		8-97125-560-8 01 1 9811-0012 ●
204 07.010 MEMBER; CROSS,TRANS MTG
M/T MUA 5 SPEED(RMN) USA 		8-97125-560-9 01 1 0101- ●
204 07.010 MEMBER; CROSS,TRANS MTG
A/T THM 4 SPEED(RMQ) USA 		8-97264-218-4 01 1 0101-0201 ●
204 07.010 MEMBER; CROSS,TRANS MTG
A/T THM 4 SPEED(RMQ) USA 		8-97320-870-3 01 1 0202- ●
212 03.704 BRACKET; EXH SILENCER
USA 		8-97126-894-1 01 1 9811-0012 ● ●
212 03.704 BRACKET; EXH SILENCER
USA 		8-97126-894-1 01 1 0101-0103 ●
212 03.704 BRACKET; EXH SILENCER
USA 		8-97312-587-0 01 1 0104- ●
309 07.012 MEMBER; CROSS
USA 		8-97168-197-4 01 1 9811-9912 ●
309 07.012 MEMBER; CROSS
USA 		8-97232-254-1 01 1 0001-0012 ●
309 07.012 MEMBER; CROSS
USA 		8-97125-563-4 01 1 9811-9912 ●
309 07.012 MEMBER; CROSS
USA 		8-97232-253-0 01 1 0001- ●
330 07.039 BRACKET; BODY MTG
(A) USA 		8-97125-689-0 02 1 9811-0012 ● ●
330 07.039 BRACKET; BODY MTG
(A) USA 		8-97125-689-0 02 1 0101- ●
330 07.039 BRACKET; BODY MTG
(C) USA 		8-97125-691-1 02 1 9811-0012 ● ●
330 07.039 BRACKET; BODY MTG
(C) USA 		8-97125-691-1 02 1 0101- ●
330 07.039 BRACKET; BODY MTG
(B) USA 		8-97254-582-0 02 1 9811-0012 ● ●
330 07.039 BRACKET; BODY MTG
(B) 		8-97301-829-0 02 1 0101- ●
330 07.039 BRACKET; BODY MTG
(E) USA 		8-97138-626-5 01 1 9811-0012 ● ●
330 07.039 BRACKET; BODY MTG
(E) USA 		8-97138-626-5 01 1 0101- ●
330 07.039 BRACKET; BODY MTG
(E) USA 		8-97138-625-5 01 1 9811-0012 ● ●
330 07.039 BRACKET; BODY MTG
(E) USA 		8-97138-625-5 01 1 0101- ●
330 07.039 BRACKET; BODY MTG
(D) USA 		8-97161-161-2 02 1 9811-0003 ●
330 07.039 BRACKET; BODY MTG
M/T MUA 5 SPEED(RMN),A/T THM 4 SPEED(RMQ) (D) USA 		8-97161-161-2 02 1 0004-0012 ●
330 07.039 BRACKET; BODY MTG
(D) USA 		8-97161-161-2 02 1 0101- ●
336 07.068 PLUG; HOLE
(A) USA 		8-97162-263-0 04 1 9811-0012 ● ●
336 07.068 PLUG; HOLE
(A) USA 		8-97162-263-0 04 1 0101- ●
336 07.068 PLUG; HOLE
(B) USA 		8-97175-883-0 02 1 9811-0012 ● ●
336 07.068 PLUG; HOLE
(B) USA 		8-97175-883-0 02 1 0101- ●
336 07.068 PLUG; HOLE
(C) USA 		8-97175-884-0 04 1 9811-0012 ● ●
336 07.068 PLUG; HOLE
(C) USA 		8-97175-884-0 04 1 0101- ●
336 07.068 PLUG; HOLE
(D) USA 		8-97175-885-0 02 1 9811-0012 ● ●
336 07.068 PLUG; HOLE
(D) USA 		8-97175-885-0 02 1 0101- ●
336 07.068 PLUG; HOLE
(E) USA 		8-97175-886-0 04 1 9811-0012 ● ●
336 07.068 PLUG; HOLE
(E) USA 		8-97175-886-0 04 1 0101- ●
338 04.085 BOLT; C/MBR,SUSPENSION
M10X80 FLANGE 		0-29291-080-0 04 1 9811-0012 ● ●
338 04.085 BOLT; C/MBR,SUSPENSION
M10X80 FLANGE 		0-29291-080-0 04 1 0101- ●
442 07.068 BRACKET; RR HOOK
USA 		8-97138-623-1 01 1 9811-0012 ● ●
442 07.068 BRACKET; RR HOOK
USA 		8-97138-623-1 01 1 0101- ●
443 07.068 BRACKET; TRAILER HITCH
USA 		8-97145-652-1 01 1 9811-0012 ● ●
443 07.068 BRACKET; TRAILER HITCH
USA 		8-97145-652-1 01 1 0101- ●
444 07.039 BRACKET; FRT BUMPER
USA 		8-97141-934-2 01 1 9811-0012 ● ●
444 07.039 BRACKET; FRT BUMPER
USA 		8-97141-934-2 01 1 0101- ●
444 07.039 BRACKET; FRT BUMPER
USA 		8-97141-933-2 01 1 9811-0012 ● ●
444 07.039 BRACKET; FRT BUMPER
USA 		8-97141-933-2 01 1 0101- ●
445 07.012 MEMBER; CROSS,STRG
USA 		8-97142-025-1 01 1 9811-0012 ● ●
445 07.012 MEMBER; CROSS,STRG
USA 		8-97142-025-1 01 1 0101- ●
