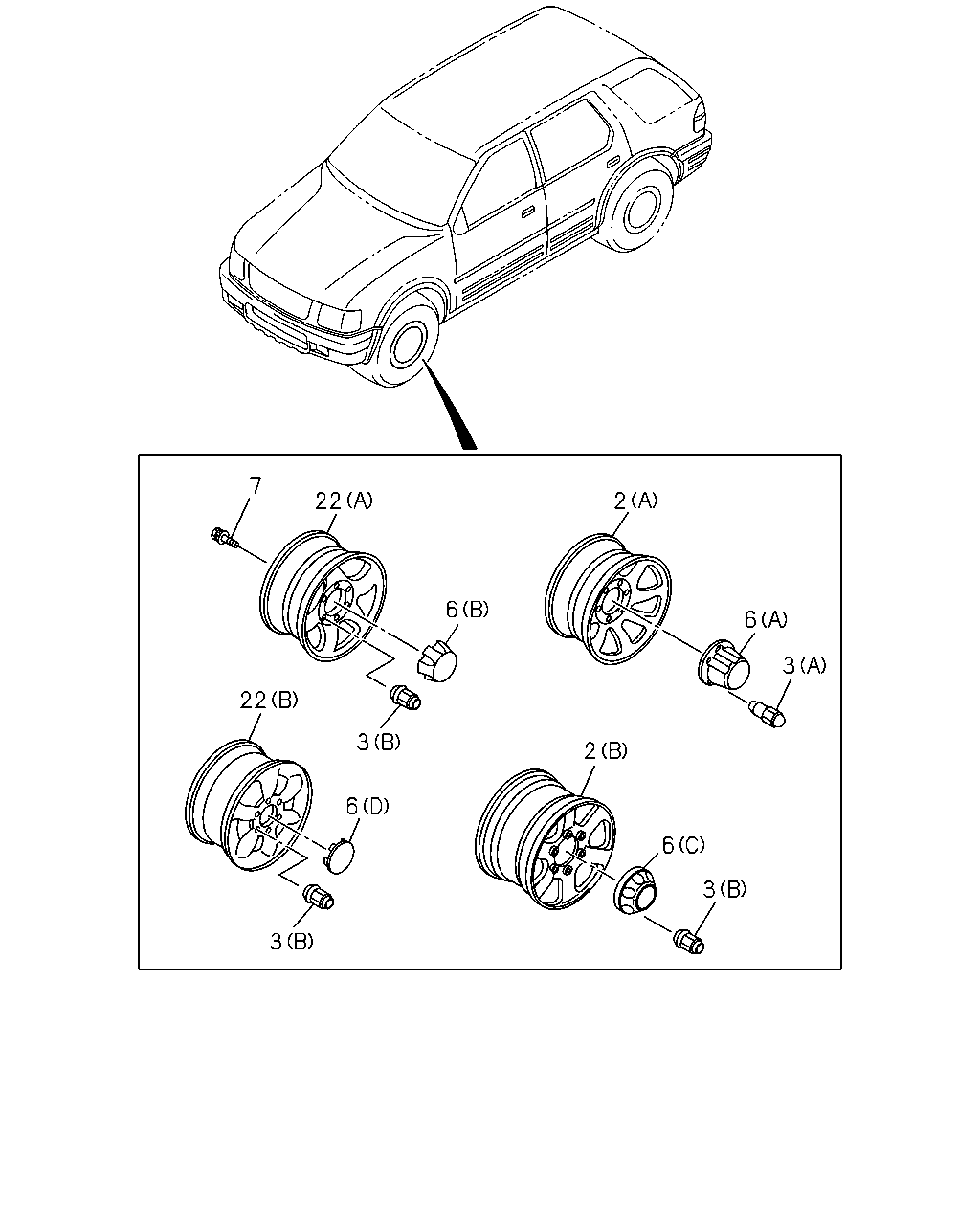

4-80 — ROAD WHEEL (#32621) — 23 parça

7 22 2 6 6 3 22 3 2 6 6 3 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	05.803 WHEEL; DISC FRT&RR P235/75R15 6.5JJX15 STEEL(AVV) (A) OFFSET=38 USA	8-97124-943-1	05	1	9811-0012	●	●
2	05.803 WHEEL; DISC FRT&RR P235/75R15 6.5JJX15 STEEL(AVV) (A) OFFSET=38 USA	8-97124-943-1	05	1	0101-0108		●
2	05.803 WHEEL; DISC FRT&RR 245/70R16 7JJX16 STEEL(BXW) (B) OFFSET=38 USA	8-97287-189-2	05	1	0109-		●
3	05.813 NUT; WHEEL,FRT AXLE FRT&RR P235/75R15 6.5JJX15 ALUMI(AVW) (B) M12 H=30.5 USA	8-97176-091-0	24	1	9811-9907	●	●
3	05.813 NUT; WHEEL,FRT AXLE FRT&RR P235/75R15 6.5JJX15 ALUMI(AVW) (B) M12 H=30.5	8-97229-212-0	24	1	9908-0012	●	●
3	05.813 NUT; WHEEL,FRT AXLE FRT&RR P235/75R15 6.5JJX15 ALUMI(AVW) (B) M12 H=30.5	8-97229-212-0	24	1	0101-0108		●
3	05.813 NUT; WHEEL,FRT AXLE FRT&RR P235/75R15 6.5JJX15 STEEL(AVV) (A) M12 H=40 USA	8-97129-440-1	24	1	9811-0012	●	●
3	05.813 NUT; WHEEL,FRT AXLE FRT&RR P235/75R15 6.5JJX15 STEEL(AVV) (A) M12 H=40 USA	8-97129-440-1	24	1	0101-0103		●
3	05.813 NUT; WHEEL,FRT AXLE FRT&RR P235/75R15 6.5JJX15 STEEL(AVV) (A) M12 H=40	8-97222-248-1	24	1	0104-0108		●
3	05.813 NUT; WHEEL,FRT AXLE (B) M12 H=30.5	8-97229-212-0	24	1	0109-0204		●
3	05.813 NUT; WHEEL,FRT AXLE (B) M12 H=30.5 THA	8-97333-108-0	24	1	0205-		●
6	05.858 CAP; WHEEL HUB CAP ALUMI WHEEL(6UY) (B)	8-97184-676-1	04	1	9811-0012	●	●
6	05.858 CAP; WHEEL HUB CAP ALUMI WHEEL(6UY) (B)	8-97184-676-2	04	1	0101-0108		●
6	05.858 CAP; WHEEL FRT&RR 245/70R16 7JJX16 ALUMI 6 SPOKE(BXX) (D) USA	8-97301-090-1	04	1	0109-		●
6	05.858 CAP; WHEEL HUB CAP STEEL WHEEL MARKLESS(6UX) (A) WO/HOLE USA	8-97038-978-0	04	1	9811-0012	●	●
6	05.858 CAP; WHEEL HUB CAP STEEL WHEEL MARKLESS(6UX) (A) WO/HOLE USA	8-97038-978-0	04	1	0101-0103		●
6	05.858 CAP; WHEEL HUB CAP STEEL WHEEL MARKLESS(6UX) (A)	8-97222-167-0	04	1	0104-0108		●
6	05.858 CAP; WHEEL FRT&RR 245/70R16 7JJX16 STEEL(BXW) (C) USA	8-97320-011-0	04	1	0109-		●
7	05.812 SCREW; HUB CAP HUB CAP ALUMI WHEEL(6UY) 06.500 M6X25	8-94279-204-0	12	1	9811-0012	●	●
7	05.812 SCREW; HUB CAP HUB CAP ALUMI WHEEL(6UY) 06.500 M6X25	8-94279-204-0	12	1	0101-0108		●
22	05.809 WHEEL; DISC,AL FRT&RR P235/75R15 6.5JJX15 ALUMI(AVW) (A) USA	8-97208-560-1	05	1	9811-0012	●	●
22	05.809 WHEEL; DISC,AL FRT&RR P235/75R15 6.5JJX15 ALUMI(AVW) (A) USA	8-97208-560-1	05	1	0101-0108		●
22	05.809 WHEEL; DISC,AL FRT&RR 245/70R16 7JJX16 ALUMI 6 SPOKE(BXX) (B) USA	8-97208-843-0	05	1	0109-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
