◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ MR ▶ 10663 - MR ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-60 - ENGINE ELECTRICAL CONTROL PARTS ▶
0-60 — ENGINE ELECTRICAL CONTROL PARTS (#3262) — 56 parça
çizim 36413
476 472 38 476 632 268 633 445 267 492 488 11 10 296
BalonParca AdiParca NoAdetTipApplied Date A B
10 RELAY; STARTER
VENEZUELA ENCAVAPACKAGE(WN4) 		1-81171-043-0 01 1 9101- ● ●
10 RELAY; STARTER
EXC. VENEZUELA ENCAVAPACKAGE(WN4) 		1-81171-055-0 01 1 9101- ● ●
11 BOLT; RELAY STARTER 9-01900-820-0 02 1 9101-9204 ● ●
11 BOLT; RELAY STARTER 0-50040-820-0 02 1 9205- ● ●
38 RESISTOR; CONT,GLOW PLUG
VENEZUELA ENCAVAPACKAGE(WN4) 		1-81402-006-0 01 1 9101- ● ●
38 RESISTOR; CONT,GLOW PLUG
EXC. VENEZUELA ENCAVAPACKAGE(WN4) 		1-81402-003-1 01 1 9101- ● ●
267 BRACKET; MAG VLV
RIGHT HAND DRIVE(MRR5FB) CRANK PULLEY 3 GROOVES<E1T> 		1-82569-107-0 01 1 9101-9111 ● ●
268 BOLT; BRKT,MAG VLV
RIGHT HAND DRIVE(MRR5FB) CRANK PULLEY 3 GROOVES<E1T> M8X20 W/LK WASHER 		9-01900-820-0 01 1 9101-9111 ● ●
296 NUT; RELAY,STARTER 9-09110-408-0 02 1 9101- ● ●
445 NUT; BRKT
RIGHT HAND DRIVE(MRR5FB) CRANK PULLEY 3 GROOVES<E1T> M8 		9-09110-408-0 01 1 9101-9111 ● ●
472 VALVE; MAG,IDLE UP
RIGHT HAND DRIVE(MRR5FB) CRANK PULLEY 3 GROOVES<E1T> 		1-82563-022-1 01 1 9101-9111 ● ●
476 CONNECTOR; MAG VLV,IDLE UP
RIGHT HAND DRIVE(MRR5FB) CRANK PULLEY 3 GROOVES<E1T> M12 & PT1/4 STRAIGHT 		1-09650-074-0 02 1 9101-9111 ● ●
488 STOPPER; ENG
RIGHT HAND DRIVE(MRR5FB) AUTO ENG SHUTOFF(KB6) 		1-82840-049-0 01 1 9101-9312 ● ●
488 STOPPER; ENG
RIGHT HAND DRIVE(MRR5FB) AUTO ENG SHUTOFF(KB6) 		1-82840-096-0 01 1 9401- ● ●
488 STOPPER; ENG
LEFT HAND DRIVE(MRR6FB) AUTO ENG SHUTOFF(KB6) 		1-82840-051-0 01 1 9101-9312 ● ●
488 STOPPER; ENG
LEFT HAND DRIVE(MRR6FB) AUTO ENG SHUTOFF(KB6) 		1-82840-097-0 01 1 9401- ● ●
492 BRACKET; ENG STOPPER
AUTO ENG SHUTOFF(KB6) 		1-82849-016-1 01 1 9101- ● ●
632 REGULATOR; VOLTAGE
GENERATOR NIKKO 24V-25A 600W(SB9) 		9-82250-129-1 01 1 9101-9105 ● ●
632 REGULATOR; VOLTAGE
GENERATOR NIKKO 24V-25A 600W(SB9) 		1-81251-048-0 01 1 9106- ● ●
632 REGULATOR; VOLTAGE
EXC. GENERATOR NIKKO 24V-25A 600W(SB9),VENEZUELA ENCAVAPACKAGE(WN4) 		1-81251-026-0 01 1 9101-9111 ● ●
632 REGULATOR; VOLTAGE
EXC. GENERATOR NIKKO 24V-25A 600W(SB9),GENERATOR NIKKO 24V-90A 2.5KW(SD2),VENEZUELA ENCAVAPACKAGE(WN4) 		1-81251-026-0 01 1 9112- ● ●
632 REGULATOR; VOLTAGE
GENERATOR NIKKO 24V-90A 2.5KW(SD2) NIKKO 		1-81251-042-2 01 1 9112- ● ●
633 BOLT; VOLTAGE REG
EXC. VENEZUELA ENCAVAPACKAGE(WN4) 		0-50040-616-0 02 1 9101- ● ●

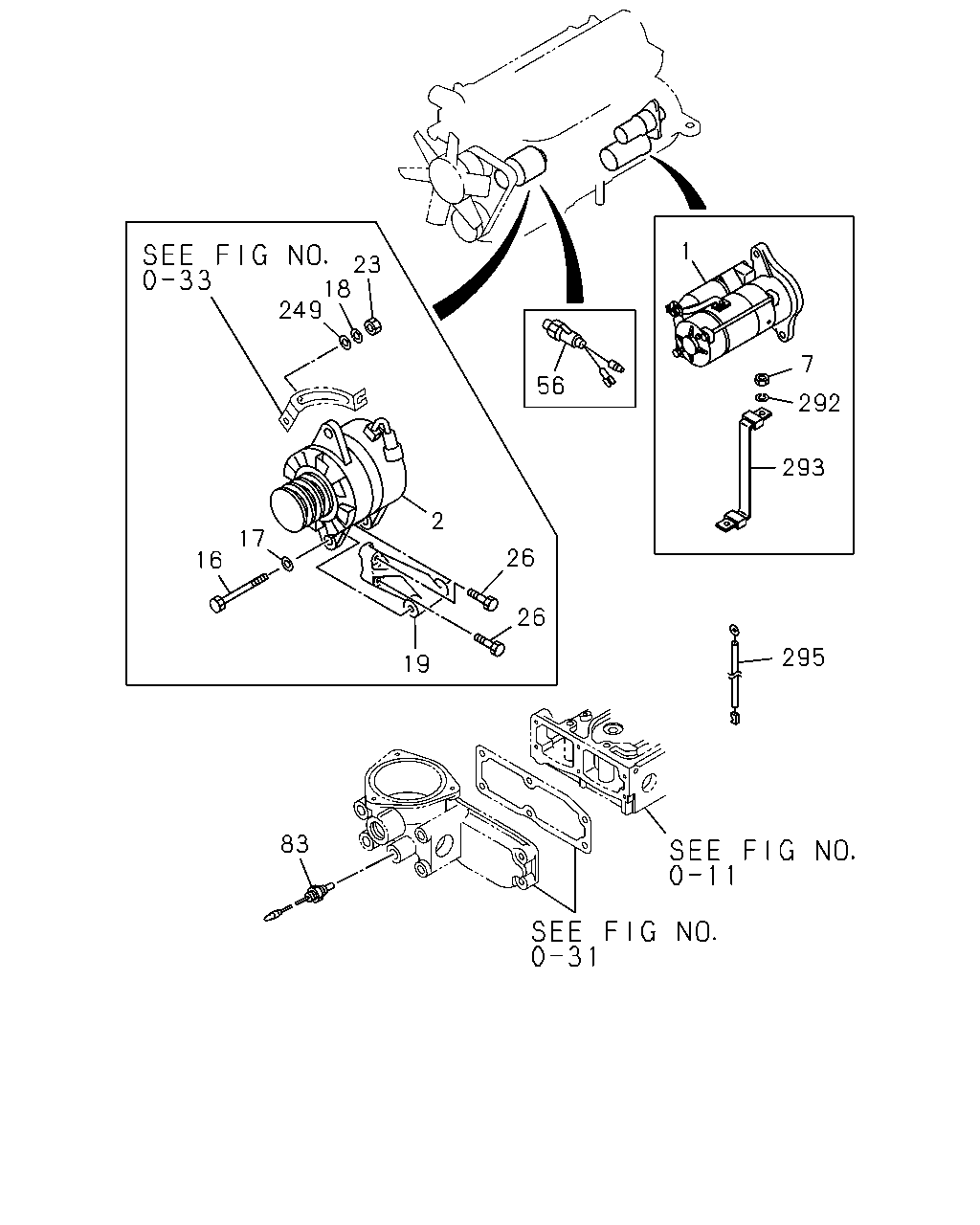

çizim 36990
1 23 18 249 7 56 292 293 2 17 26 16 26 295 19 83
BalonParca AdiParca NoAdetTipApplied Date A B
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. RIGHT HAND DRIVE(MRR5FB) 24V 4.5KW DENSO 		1-81100-141-1 01 1 9101- ● ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. LEFT HAND DRIVE(MRR6FB) EXC. GENERATOR DENSO 12V-65A 800W(K91) 24V 4.5KW DENSO 		1-81100-141-1 01 1 9101- ● ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. LEFT HAND DRIVE(MRR6FB) GENERATOR DENSO 12V-65A 800W(K91) 12V 3.0KW 		1-81100-234-1 01 1 9101-9409 ● ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. LEFT HAND DRIVE(MRR6FB) GENERATOR DENSO 12V-65A 800W(K91) 12V 3.0KW 		8-97119-749-0 01 1 9410-9701 ● ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. LEFT HAND DRIVE(MRR6FB) GENERATOR DENSO 12V-65A 800W(K91) 12V 3.0KW 		8-97174-043-0 01 1 9702- ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) GENERATOR DENSO 12V-65A 800W(K91) 		1-81200-287-2 01 1 9101- ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) GENERATOR NIKKO 24V-25A 600W(SB9) 		1-81200-203-0 01 1 9101- ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) GENERATOR DENSO 12V-65A 800W(K91) 		1-81200-328-1 01 1 9101- ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		1-81200-414-1 01 1 9112-9304 ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		1-81200-455-2 01 1 9305- ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) GENERATOR DENSO 24V-40A 1KW(SC4) 24V 40A DENSO 		5-81200-180-3 01 1 9101- ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) GENERATOR DENSO 24V-25A 600W(SB8) 		5-81200-235-1 01 1 9101- ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR DENSO 24V-40A 1KW(SC4) 		5-81200-165-2 01 1 9101- ● ●
7 NUT; STARTER 9-99110-412-0 03 1 9101- ● ●
16 BOLT; GEN
M14X135 		1-09000-133-1 01 1 9101-9111 ● ●
16 BOLT; GEN
EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) M14X135 		1-09000-133-1 01 1 9112- ● ●
16 BOLT; GEN
GENERATOR NIKKO 24V-90A 2.5KW(SD2) M14X157 		1-09000-071-1 01 1 9112- ● ●
17 WASHER; PL,GEN 9-09160-514-0 01 1 9101- ● ●
18 WASHER; LK,GEN 9-09150-514-0 01 1 9101- ● ●
19 BRACKET; GEN
GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		1-19711-030-0 01 1 9112- ● ●
19 BRACKET; GEN
EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		5-19711-031-2 01 1 9101- ● ●
23 NUT; GEN 9-99110-414-0 01 1 9101- ● ●
26 BOLT; GEN BRKT
GENERATOR NIKKO 24V-90A 2.5KW(SD2) M10X30 W/LK WASHER 		0-50041-030-0 01 1 9112- ● ●
26 BOLT; GEN BRKT
GENERATOR NIKKO 24V-90A 2.5KW(SD2) M10X60 W/LK WASHER 		0-50041-060-0 02 1 9112- ● ●
26 BOLT; GEN BRKT
EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) M10X25 W/LK WASHER 		0-50041-025-0 01 1 9101- ● ●
26 BOLT; GEN BRKT
EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) M10X35 W/LK WASHER 		0-50041-035-0 02 1 9101- ● ●
56 SWITCH; OIL PRESSURE WARNING 1-82410-091-2 01 1 9101-9502 ● ●
56 SWITCH; OIL PRESSURE WARNING
PT1/8 		1-82410-160-0 01 1 9503- ● ●
83 THERMOMETER UNIT 1-83161-019-1 01 1 9101- ● ●
249 WASHER; PIPE CLIP,GEN
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) 		9-09160-514-0 01 1 9101- ● ●
292 WASHER; LK,STARTER 9-09150-512-0 03 1 9101- ● ●
293 CABLE; STARTER EARTH 1-82650-241-0 01 1 9101- ● ●
295 HARNESS; STARTER 1-82640-130-0 01 1 9101- ● ●
