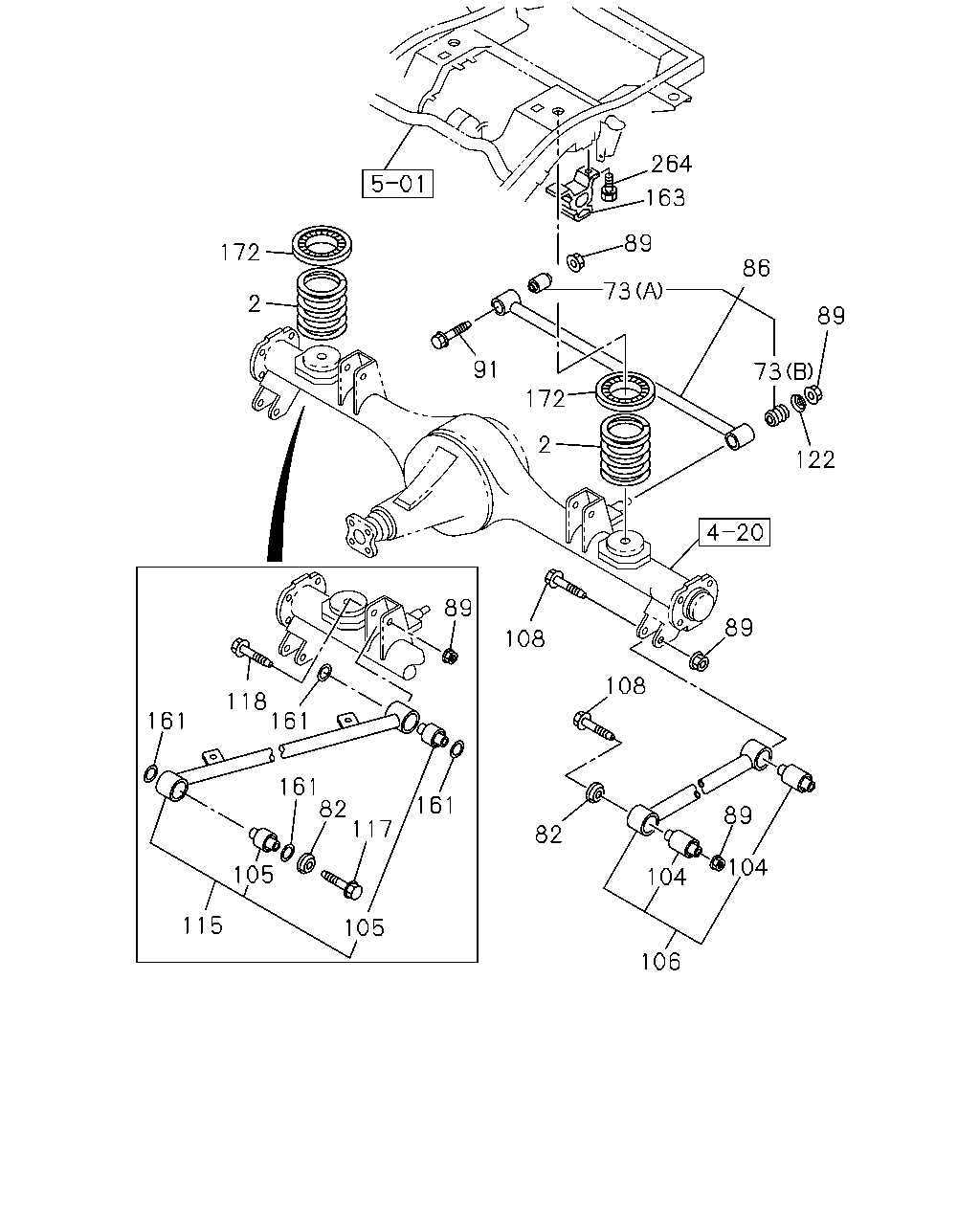

4-60 — REAR SUSPENSION (#32619) — 100 parça

264 163 89 172 86 73 2 89 91 73 172 2 122 89 89 108 108 118 161 161 161 82 117 161 89 82 105 104 104 115 105 106

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	07.503 SPRING; COIL,RR SUSP USA	8-97181-462-0	02	1	9811-0012	●
2	07.503 SPRING; COIL,RR SUSP USA	8-97211-777-0	02	1	9811-0101		●
2	07.503 SPRING; COIL,RR SUSP USA	8-97303-566-2	02	1	0102-0108		●
2	07.503 SPRING; COIL,RR SUSP USA	8-97303-566-2	02	1	0109-		●
73	07.243 BUSHING; LATERAL ROD,RR SUSP (A) USA	8-97134-706-0	01	1	9811-0012	●	●
73	07.243 BUSHING; LATERAL ROD,RR SUSP (A) USA	8-97134-706-0	01	1	0101-0304		●
73	07.243 BUSHING; LATERAL ROD,RR SUSP USA	8-97366-494-0	01	1	0305-		●
73	07.243 BUSHING; LATERAL ROD,RR SUSP (B) USA	8-97147-547-0	01	1	9811-0012	●	●
73	07.243 BUSHING; LATERAL ROD,RR SUSP (B) USA	8-97147-547-0	01	1	0101-0304		●
73	07.243 BUSHING; LATERAL ROD,RR SUSP USA	8-97366-495-0	01	1	0305-		●
82	07.243 PROTECTOR; LINK USA	8-97125-081-0	02	1	9811-0012	●	●
82	07.243 PROTECTOR; LINK USA	8-97125-081-0	02	1	0101-		●
86	07.241 ROD; LATERAL,RR SUSP USA	8-97124-898-0	01	1	9811-0012	●	●
86	07.241 ROD; LATERAL,RR SUSP USA	8-97124-898-0	01	1	0101-0304		●
86	07.241 ROD; LATERAL,RR SUSP USA	8-97366-493-0	01	1	0305-		●
89	07.242 NUT; LATERAL ROD TO RR AXLE 07.347 M14 FLANGE USA	8-97167-635-0	08	1	9811-0002	●	●
89	07.242 NUT; LATERAL ROD TO RR AXLE 07.347 M14 FLANGE USA	8-97254-121-0	08	1	0003-0012	●	●
89	07.242 NUT; LATERAL ROD TO RR AXLE 07.347 M14 FLANGE USA	8-97254-121-0	08	1	0101-		●
91	07.242 BOLT; LATERAL ROD TO BODY M14X85 FLANGE USA	8-97022-802-2	01	1	9811-0012	●	●
91	07.242 BOLT; LATERAL ROD TO BODY M14X85 FLANGE USA	8-97022-802-3	01	1	0101-		●
104	07.240 BUSHING; LWR LINK,RR USA	8-97134-705-0	04	1	9811-0012	●	●
104	07.240 BUSHING; LWR LINK,RR USA	8-97134-705-0	04	1	0101-0304		●
104	07.240 BUSHING; LWR LINK,RR USA	8-97366-504-0	04	1	0305-		●
105	07.240 BUSHING; UPR LINK USA	8-97125-086-1	04	1	9811-0012	●	●
105	07.240 BUSHING; UPR LINK USA	8-97125-086-1	04	1	0101-0304		●
105	07.240 BUSHING; UPR LINK USA	8-97366-502-0	04	1	0305-		●
106	07.240 LINK; LWR,W/BUSHING USA	8-97124-881-0	02	1	9811-0012	●	●
106	07.240 LINK; LWR,W/BUSHING USA	8-97124-881-0	02	1	0101-0304		●
106	07.240 LINK; LWR,W/BUSHING USA	8-97366-503-0	02	1	0305-		●
108	07.240 BOLT; LWR LINK TO BODY M14X100 FLANGE	0-29291-400-0	04	1	9811-0012	●	●
108	07.240 BOLT; LWR LINK TO BODY M14X100 FLANGE	0-29291-400-0	04	1	0101-		●
115	07.240 LINK; UPR,W/BUSHING USA	8-97124-885-1	01	1	9811-0012	●	●
115	07.240 LINK; UPR,W/BUSHING USA	8-97124-885-1	01	1	0101-0304		●
115	07.240 LINK; UPR,W/BUSHING USA	8-97366-500-0	01	1	0305-		●
115	07.240 LINK; UPR,W/BUSHING USA	8-97129-632-1	01	1	9811-0012	●	●
115	07.240 LINK; UPR,W/BUSHING USA	8-97129-632-1	01	1	0101-0304		●
115	07.240 LINK; UPR,W/BUSHING USA	8-97366-501-0	01	1	0305-		●
117	07.240 BOLT; UPR LINK TO BODY USA	8-97136-934-0	02	1	9811-0012	●	●
117	07.240 BOLT; UPR LINK TO BODY USA	8-97136-934-0	02	1	0101-		●
118	07.240 BOLT; UPR LINK TO AXLE M14X90 FLANGE	0-29291-490-0	02	1	9811-0012	●	●
118	07.240 BOLT; UPR LINK TO AXLE M14X90 FLANGE	0-29291-490-0	02	1	0101-		●
122	07.242 WASHER; LK,LATERAL ROD TO RR AXL	8-94379-596-1	01	1	9811-0012	●	●
122	07.242 WASHER; LK,LATERAL ROD TO RR AXL	8-94379-596-1	01	1	0101-		●
161	07.529 PLATE; CUSHION RUBBER,UPR USA	8-97166-503-1	08	1	9811-0012	●	●
161	07.529 PLATE; CUSHION RUBBER,UPR USA	8-97166-503-2	08	1	0101-		●
163	07.529 RUBBER; HELPER,RR SPR	8-94374-448-1	02	1	9811-0012	●	●
163	07.529 RUBBER; HELPER,RR SPR	8-94374-448-1	02	1	0101-0101		●
163	07.529 RUBBER; HELPER,RR SPR	8-97254-246-1	02	1	0102-0108		●
163	07.529 RUBBER; HELPER,RR SPR	8-97254-246-1	02	1	0109-		●
172	07.545 INSULATOR; RR SPR UPR USA	8-97140-088-1	02	1	9811-0012	●	●
172	07.545 INSULATOR; RR SPR UPR USA	8-97140-088-1	02	1	0101-		●
264	07.529 BOLT; CUSHION RUBBER TO BRKT 00.002 M10X25 FLANGE	0-28481-025-0	04	1	9811-0012	●	●
264	07.529 BOLT; CUSHION RUBBER TO BRKT 00.002 M10X25 FLANGE	0-28481-025-0	04	1	0101-		●

345 324 283 283 16 293 27 372 244 283 294 297 283 229 372 25 27 25 26 274 274 274 26 274

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	07.524 BUSHING; SHACKLE,RR SPR 07.243 USA	8-97140-089-1	02	1	9811-0012	●	●
16	07.524 BUSHING; SHACKLE,RR SPR 07.243 USA	8-97140-089-1	02	1	0101-0108		●
25	07.241 BAR ASM; STAB,RR SUSP USA	8-97162-340-1	01	1	9811-0012	●	●
25	07.241 BAR ASM; STAB,RR SUSP USA	8-97162-340-1	01	1	0101-0108		●
25	07.241 BAR ASM; STAB,RR SUSP USA	8-97253-707-0	01	1	0109-		●
26	07.242 TUBE; DIST RR STAB 07.243 USA	8-97167-166-0	02	1	9811-0012	●	●
26	07.242 TUBE; DIST RR STAB 07.243 USA	8-97167-166-0	02	1	0101-0108		●
27	07.242 BOLT; STAB 07.535 M8X50 FLANGE	0-29290-850-0	02	1	9811-0012	●	●
27	07.242 BOLT; STAB 07.535 M8X50 FLANGE	0-29290-850-0	02	1	0101-0108		●
229	07.535 BOLT; BRKT M8X50 FLANGE	0-29290-850-0	02	1	9811-0012	●	●
229	07.535 BOLT; BRKT M8X50 FLANGE	0-29290-850-0	02	1	0101-0108		●
244	07.242 NUT; BRKT 01.540 M8 FLANGE	0-91150-208-0	02	1	9811-0001	●	●
244	07.242 NUT; BRKT 07.529 M8 FLANGE USA	8-97254-437-0	02	1	0002-0012	●	●
244	07.242 NUT; BRKT 07.529 M8 FLANGE USA	8-97254-437-0	02	1	0101-0108		●
274	07.243 BUSHING; RR STAB BAR TO LINK (A) USA	8-97140-089-1	02	1	9811-0012	●	●
274	07.243 BUSHING; RR STAB BAR TO LINK (A) USA	8-97140-089-1	02	1	0101-0108		●
274	07.243 BUSHING; RR STAB BAR TO LINK (B) USA	8-97162-970-0	02	1	9811-0012	●	●
274	07.243 BUSHING; RR STAB BAR TO LINK (B) USA	8-97162-970-0	02	1	0101-		●
283	07.242 SHACKLE; STAB BAR TO RR AXLE USA	8-97124-914-0	04	1	9811-0012	●	●
283	07.242 SHACKLE; STAB BAR TO RR AXLE USA	8-97124-914-0	04	1	0101-0108		●
293	07.243 COLLAR; STAB BAR TO RR AXLE USA	8-97167-166-0	02	1	9811-0012	●	●
293	07.243 COLLAR; STAB BAR TO RR AXLE USA	8-97167-166-0	02	1	0101-0108		●
294	07.242 BOLT; STAB BAR TO RR AXLE 04.595 M8X20 FLANGE	0-28480-820-0	04	1	9811-0012	●	●
294	07.242 BOLT; STAB BAR TO RR AXLE 04.595 M8X20 FLANGE	0-28480-820-0	04	1	0101-		●
297	07.242 CAP; STAB BAR ID=36	8-97032-869-0	02	1	9811-0012	●	●
297	07.242 CAP; STAB BAR ID=36	8-97032-869-0	02	1	0101-		●
324	07.242 BRACKET; STAB BAR TO FRAME USA	8-97124-918-0	02	1	9811-0012	●	●
324	07.242 BRACKET; STAB BAR TO FRAME USA	8-97124-918-0	02	1	0101-0108		●
345	07.242 BOLT; BRKT 04.595 M8X20 FLANGE	0-28480-820-0	04	1	9811-0012	●	●
345	07.242 BOLT; BRKT 04.595 M8X20 FLANGE	0-28480-820-0	04	1	0101-0108		●
372	07.529 NUT; SHACKLE 01.540 M8 FLANGE	0-91150-208-0	02	1	9811-0001	●	●
372	07.529 NUT; SHACKLE M8 FLANGE USA	8-97254-437-0	02	1	0002-0012	●	●
372	07.529 NUT; SHACKLE M8 FLANGE USA	8-97254-437-0	02	1	0101-0108		●

294 297 428 280 28 25 28 25 274 274

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
25	07.241 BAR ASM; STAB,RR SUSP USA	8-97162-340-1	01	1	9811-0012	●	●
25	07.241 BAR ASM; STAB,RR SUSP USA	8-97162-340-1	01	1	0101-0108		●
25	07.241 BAR ASM; STAB,RR SUSP USA	8-97253-707-0	01	1	0109-		●
28	07.242 NUT; STAB BAR	8-97035-383-0	04	1	0109-		●
274	07.243 BUSHING; RR STAB BAR TO LINK (A) USA	8-97140-089-1	02	1	9811-0012	●	●
274	07.243 BUSHING; RR STAB BAR TO LINK (A) USA	8-97140-089-1	02	1	0101-0108		●
274	07.243 BUSHING; RR STAB BAR TO LINK (B) USA	8-97162-970-0	02	1	9811-0012	●	●
274	07.243 BUSHING; RR STAB BAR TO LINK (B) USA	8-97162-970-0	02	1	0101-		●
280	07.242 WASHER; PL,STAB BAR	8-97049-475-0	02	1	0109-		●
294	07.242 BOLT; STAB BAR TO RR AXLE 04.595 M8X20 FLANGE	0-28480-820-0	04	1	9811-0012	●	●
294	07.242 BOLT; STAB BAR TO RR AXLE 04.595 M8X20 FLANGE	0-28480-820-0	04	1	0101-		●
297	07.242 CAP; STAB BAR ID=36	8-97032-869-0	02	1	9811-0012	●	●
297	07.242 CAP; STAB BAR ID=36	8-97032-869-0	02	1	0101-		●
428	07.240 LINK; RR STABILIZER	8-97253-956-1	02	1	0109-		●
