4-50 — FRONT SUSPENSION (#32618) — 117 parça
çizim 2867
173 401 400 400 401 62 60 103
BalonParca AdiParca NoAdetTipApplied Date A B
60 07.347 BOLT; S/ABS TO LWR LINK
M12X60 FLANGE 		0-29291-260-0 02 1 9811-0012 ● ●
60 07.347 BOLT; S/ABS TO LWR LINK
M12X60 FLANGE 		0-29291-260-0 02 1 0101- ●
62 07.345 ABSORBER ASM; SHOCK,FRT
(A) USA 		8-97179-443-1 02 1 9811-0012 ●
62 07.345 ABSORBER ASM; SHOCK,FRT
ACTIVE RIDE CONTROL(7WD) (B) 		8-97254-997-2 02 1 0101- ●
62 07.345 ABSORBER ASM; SHOCK,FRT
(A) USA 		8-97211-772-1 02 1 9811-0012 ●
62 07.345 ABSORBER ASM; SHOCK,FRT
EXC. ACTIVE RIDE CONTROL(7WD) (A) USA 		8-97211-772-1 02 1 0101- ●
103 07.347 NUT; S/ABS TO LWR LINK
07.243 M12 FLANGE 		0-91150-212-0 02 1 9811-0012 ● ●
103 07.347 NUT; S/ABS TO LWR LINK
07.243 M12 FLANGE 		0-91150-212-0 02 1 0101- ●
173 07.395 NUT; S/ABS
04.785 M10 FLANGE USA 		0-91150-110-0 02 1 9811-0012 ● ●
173 07.395 NUT; S/ABS
EXC. ACTIVE RIDE CONTROL(7WD) 04.785 M10 FLANGE USA 		0-91150-110-0 02 1 0101- ●
400 07.244 RUBBER; CUSHION,S/ABS
07.347 UPPER USA 		8-97135-978-0 02 1 9811-0012 ● ●
400 07.244 RUBBER; CUSHION,S/ABS
EXC. ACTIVE RIDE CONTROL(7WD) 07.347 UPPER USA 		8-97135-978-0 02 1 0101- ●
400 07.244 RUBBER; CUSHION,S/ABS
07.347 LOWER USA 		8-97139-099-0 02 1 9811-0012 ● ●
400 07.244 RUBBER; CUSHION,S/ABS
EXC. ACTIVE RIDE CONTROL(7WD) 07.347 LOWER USA 		8-97139-099-0 02 1 0101- ●
401 07.244 RETAINER; S/ABS
07.347 USA 		8-97135-980-0 04 1 9811-0012 ● ●
401 07.244 RETAINER; S/ABS
EXC. ACTIVE RIDE CONTROL(7WD) 07.347 USA 		8-97135-980-0 04 1 0101- ●

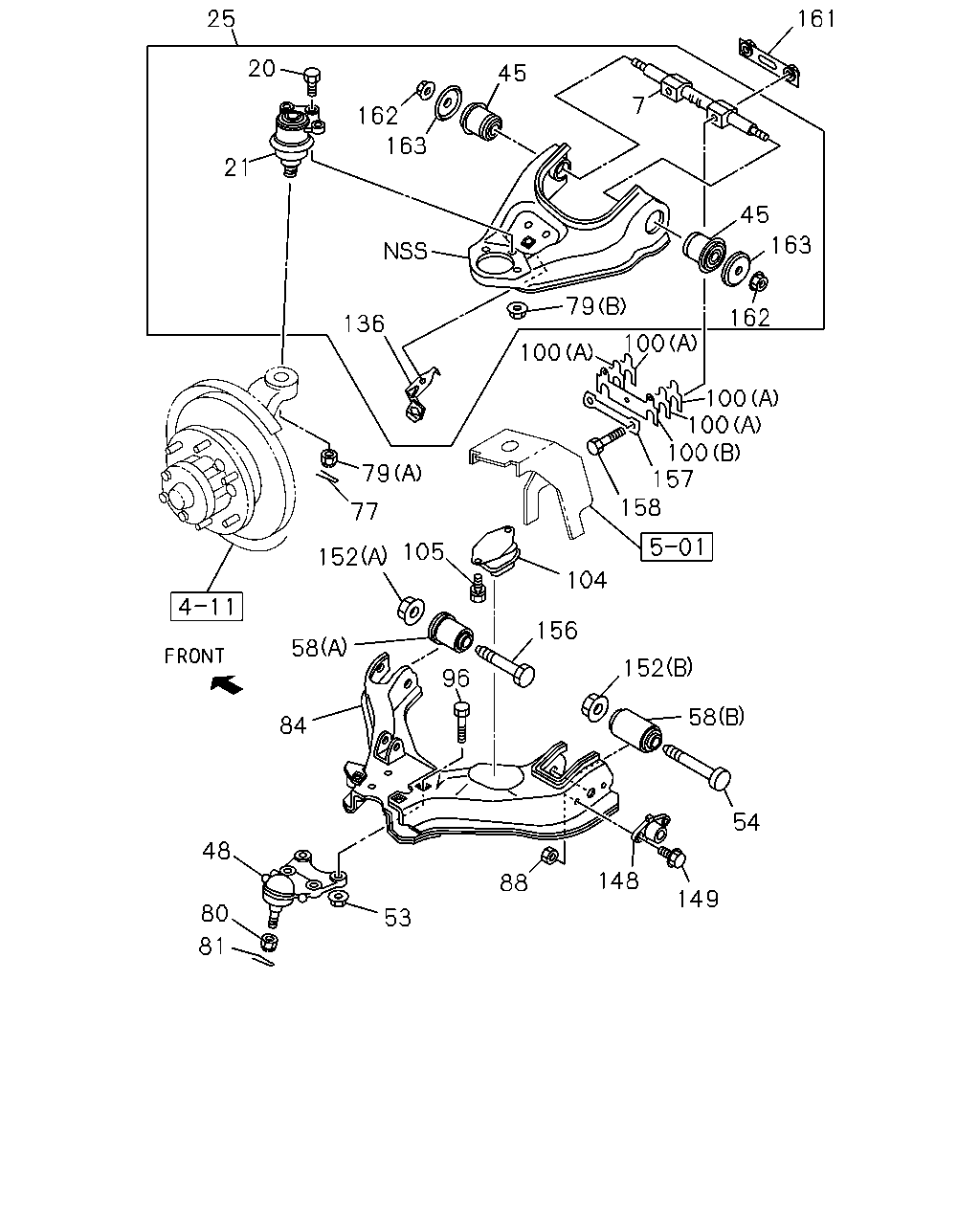

çizim 3784
25 161 20 45 7 162 163 21 45 163 162 79 136 100 100 100 100 100 157 158 79 77 105 152 104 156 58 96 152 58 84 54 48 148 88 149 80 81 53
BalonParca AdiParca NoAdetTipApplied Date A B
7 06.174 PIN; FULCRUM,UPR LINK
USA 		8-94381-234-3 02 1 9811-0012 ● ●
7 06.174 PIN; FULCRUM,UPR LINK
USA 		8-94381-234-3 02 1 0101- ●
20 06.174 BOLT; UPR LINK END TO UPR LINK
16.674 M10X30 USA 		8-97010-129-0 06 1 9811-0012 ● ●
20 06.174 BOLT; UPR LINK END TO UPR LINK
16.674 M10X30 USA 		8-97010-129-0 06 1 0101- ●
21 06.168 JOINT ASM; BALL,UPR CONT ARM
USA 		8-94374-424-0 02 1 9811-0012 ● ●
21 06.168 JOINT ASM; BALL,UPR CONT ARM
USA 		8-94374-424-0 02 1 0101- ●
25 06.168 ARM; UPR CONT
USA 		8-97125-005-1 01 1 9811-0012 ● ●
25 06.168 ARM; UPR CONT
USA 		8-97125-005-1 01 1 0101-0108 ●
25 06.168 ARM; UPR CONT
USA 		8-97232-621-2 01 1 0109- ●
25 06.168 ARM; UPR CONT
USA 		8-97125-004-1 01 1 9811-0012 ● ●
25 06.168 ARM; UPR CONT
USA 		8-97125-004-1 01 1 0101-0108 ●
25 06.168 ARM; UPR CONT
USA 		8-97232-620-2 01 1 0109- ●
45 06.164 BUSHING; UPR LINK,FRT
USA 		8-97138-388-1 04 1 9811-0012 ● ●
45 06.164 BUSHING; UPR LINK,FRT
USA 		8-97138-388-1 04 1 0101-0210 ●
45 06.164 BUSHING; UPR LINK,FRT
USA 		8-97356-051-0 04 1 0211-0303 ●
45 06.164 BUSHING; UPR LINK,FRT 8-97366-488-0 04 1 0304- ●
48 06.174 JOINT ASM; BALL,LWR CONT ARM 8-94459-465-2 02 1 9811-0012 ● ●
48 06.174 JOINT ASM; BALL,LWR CONT ARM 8-94459-465-2 02 1 0101- ●
53 06.174 NUT; LWR LINK
07.243 M12 FLANGE 		0-91150-212-0 08 1 9811-0012 ● ●
53 06.174 NUT; LWR LINK
07.243 M12 FLANGE 		0-91150-212-0 08 1 0101- ●
54 06.174 PIN; FULCRUM,LWR LINK
USA 		8-97140-724-0 02 1 9811-0012 ● ●
54 06.174 PIN; FULCRUM,LWR LINK
USA 		8-97140-724-0 02 1 0101- ●
58 06.170 BUSHING; LWR LINK
(B) ID=18.2 OD=44.1 L=85.2 		8-97018-166-1 02 1 9811-0012 ● ●
58 06.170 BUSHING; LWR LINK
(B) ID=18.2 OD=44.1 L=85.2 		8-97018-166-1 02 1 0101- ●
58 06.170 BUSHING; LWR LINK
(A) USA 		8-97138-389-1 02 1 9811-0012 ● ●
58 06.170 BUSHING; LWR LINK
(A) USA 		8-97138-389-1 02 1 0101-0210 ●
58 06.170 BUSHING; LWR LINK
(A) USA 		8-97356-052-0 02 1 0211-0303 ●
58 06.170 BUSHING; LWR LINK
(A) 		8-97366-491-0 02 1 0304- ●
77 06.174 PIN; SPLIT,LINK END TO KNUCKLE
08.938 OD=2.8 L=28 		9-08113-028-0 02 1 9811-0012 ● ●
77 06.174 PIN; SPLIT,LINK END TO KNUCKLE
08.938 OD=2.8 L=28 		9-08113-028-0 02 1 0101- ●
79 06.174 NUT; UPR LINK END TO KNUCKLE
06.164 (A) M14 SLOTTED USA 		8-94124-556-0 02 1 9811-0012 ● ●
79 06.174 NUT; UPR LINK END TO KNUCKLE
06.164 (A) M14 SLOTTED USA 		8-94124-556-0 02 1 0101- ●
79 06.174 NUT; UPR LINK END TO KNUCKLE
07.039 (B) M10 FLANGE USA 		8-94383-595-0 06 1 9811-0012 ● ●
79 06.174 NUT; UPR LINK END TO KNUCKLE
07.039 (B) M10 FLANGE USA 		8-94383-595-0 06 1 0101- ●
80 06.174 NUT; LWR LINK END TO KNUCKLE
M18 SLOTTED 		9-99116-418-0 02 1 9811-0012 ● ●
80 06.174 NUT; LWR LINK END TO KNUCKLE
M18 SLOTTED 		9-99116-418-0 02 1 0101- ●
81 06.174 PIN; SPLIT,LWR LINK TO KNUCKLE
09.023 OD=3.7 L=30 		9-08114-030-0 02 1 9811-0012 ● ●
81 06.174 PIN; SPLIT,LWR LINK TO KNUCKLE
09.023 OD=3.7 L=30 		9-08114-030-0 02 1 0101- ●
84 06.168 ARM; LWR CONT
USA 		8-97125-020-0 01 1 9811-0012 ● ●
84 06.168 ARM; LWR CONT
USA 		8-97125-020-1 01 1 0101-0303 ●
84 06.168 ARM; LWR CONT
06.186 USA 		8-97366-490-0 01 1 0304- ●
84 06.168 ARM; LWR CONT
USA 		8-97125-019-0 01 1 9811-0012 ● ●
84 06.168 ARM; LWR CONT
USA 		8-97125-019-1 01 1 0101-0303 ●
84 06.168 ARM; LWR CONT
USA 		8-97366-489-0 01 1 0304- ●
88 06.174 NUT; LWR LINK
07.243 M12 FLANGE 		0-91150-212-0 04 1 9811-0012 ● ●
88 06.174 NUT; LWR LINK
07.243 M12 FLANGE 		0-91150-212-0 04 1 0101- ●
96 06.174 BOLT; LWR LINK
M12X45 FLANGE 		0-29291-245-0 08 1 9811-0012 ● ●
96 06.174 BOLT; LWR LINK
M12X45 FLANGE 		0-29291-245-0 08 1 0101- ●
100 06.164 SHIM; UPR LINK TO FRAME
(A) T=0.40 USA 		8-94227-053-1 AR 1 9811-0012 ● ●
100 06.164 SHIM; UPR LINK TO FRAME
(A) T=0.40 USA 		8-94227-053-1 AR 1 0101- ●
100 06.164 SHIM; UPR LINK TO FRAME
(A) T=1.60 USA 		8-94227-054-2 AR 1 9811-0012 ● ●
100 06.164 SHIM; UPR LINK TO FRAME
(A) T=1.60 USA 		8-94227-054-2 AR 1 0101- ●
100 06.164 SHIM; UPR LINK TO FRAME
(A) T=3.20 USA 		8-94241-885-3 AR 1 9811-0012 ● ●
100 06.164 SHIM; UPR LINK TO FRAME
(A) T=3.20 USA 		8-94241-885-3 AR 1 0101- ●
100 06.164 SHIM; UPR LINK TO FRAME
(B) T=3.20 USA 		8-94381-376-1 AR 1 9811-0012 ● ●
100 06.164 SHIM; UPR LINK TO FRAME
(B) T=3.20 USA 		8-94381-376-1 AR 1 0101- ●
100 06.164 SHIM; UPR LINK TO FRAME
(B) T=1.60 USA 		8-94381-377-1 AR 1 9811-0012 ● ●
100 06.164 SHIM; UPR LINK TO FRAME
(B) T=1.60 USA 		8-94381-377-1 AR 1 0101- ●
104 07.170 RUBBER; BUMPER,STRUT
USA 		8-97125-102-0 01 1 9811-0012 ● ●
104 07.170 RUBBER; BUMPER,STRUT
USA 		8-97125-102-0 01 1 0101- ●
104 07.170 RUBBER; BUMPER,STRUT
USA 		8-97125-099-0 01 1 9811-0012 ● ●
104 07.170 RUBBER; BUMPER,STRUT
USA 		8-97125-099-0 01 1 0101- ●
105 07.172 BOLT; STRUT BAR TO LWR LINK
00.002 M10X25 FLANGE 		0-28481-025-0 04 1 9811-0012 ● ●
105 07.172 BOLT; STRUT BAR TO LWR LINK
00.002 M10X25 FLANGE 		0-28481-025-0 04 1 0101- ●
136 04.686 BRACKET; FLEX HOSE,FRT BRAKE
USA 		8-97125-436-1 02 1 9811-0012 ● ●
136 04.686 BRACKET; FLEX HOSE,FRT BRAKE
USA 		8-97125-436-1 02 1 0101- ●
148 06.170 ARM; LWR LINK
USA 		8-97139-638-0 02 1 9811-0012 ● ●
148 06.170 ARM; LWR LINK
USA 		8-97139-638-0 02 1 0101- ●
149 06.172 BOLT; ARM TO LWR CONT ARM
07.874 M12X30 FLANGE 		0-28691-230-0 04 1 9811-0012 ● ●
149 06.172 BOLT; ARM TO LWR CONT ARM
07.874 M12X30 FLANGE 		0-28691-230-0 04 1 0101- ●
152 06.172 NUT; LWR LINK TO FRT C/MBR
(A) M16 USA 		8-97141-153-0 02 1 9811-0012 ● ●
152 06.172 NUT; LWR LINK TO FRT C/MBR
(A) M16 USA 		8-97141-153-0 02 1 0101- ●
152 06.172 NUT; LWR LINK TO FRT C/MBR
(B) M18 USA 		8-97141-154-0 02 1 9811-0012 ● ●
152 06.172 NUT; LWR LINK TO FRT C/MBR
(B) M18 USA 		8-97141-154-0 02 1 0101- ●
156 06.172 PIN; FULCRUM,FRT SUSPENSION
M16X90 FLANGE 		0-29291-690-0 02 1 9811-0012 ● ●
156 06.172 PIN; FULCRUM,FRT SUSPENSION
M16X90 FLANGE 		0-29291-690-0 02 1 0101- ●
157 06.176 PLATE; UPR LINK TO FRAME
USA 		8-94382-920-1 02 1 9811-0012 ● ●
157 06.176 PLATE; UPR LINK TO FRAME
USA 		8-94382-920-1 02 1 0101- ●
158 06.178 BOLT; UPR LINK TO FRAME
M14X70 USA 		8-97072-665-0 04 1 9811-0012 ● ●
158 06.178 BOLT; UPR LINK TO FRAME
M14X70 USA 		8-97072-665-1 04 1 0101- ●
161 06.178 NUT ASM; UPR LINK TO FRAME 8-94381-235-0 02 1 9811-0012 ● ●
161 06.178 NUT ASM; UPR LINK TO FRAME 8-94381-235-0 02 1 0101-0210 ●
161 06.178 NUT ASM; UPR LINK TO FRAME 8-97327-725-0 02 1 0211- ●
162 04.686 NUT; FULCRUM PIN TO UPR ARM
07.417 M14 FLANGE USA 		8-94137-483-0 04 1 9811-0012 ● ●
162 04.686 NUT; FULCRUM PIN TO UPR ARM
07.417 M14 FLANGE USA 		8-94137-483-0 04 1 0101- ●
163 06.163 PLATE; FULCRUM PIN,UPR LINK
USA 		8-94407-707-0 04 1 9811-0012 ● ●
163 06.163 PLATE; FULCRUM PIN,UPR LINK
USA 		8-94407-707-0 04 1 0101- ●
çizim 3785
62 14 65 17 18 18 17 65 60 103
BalonParca AdiParca NoAdetTipApplied Date A B
14 07.389 NUT; S/ABS,UPR
ACTIVE RIDE CONTROL(7WD) 		8-97223-689-0 02 1 0101- ●
17 07.388 BUSHING; RUBBER,S/ABS
ACTIVE RIDE CONTROL(7WD) 		8-97223-688-0 04 1 0101-0109 ●
17 07.388 BUSHING; RUBBER,S/ABS
ACTIVE RIDE CONTROL(7WD) 		8-97306-585-0 04 1 0110- ●
18 07.347 WASHER; CENTERING,S/ABS
ACTIVE RIDE CONTROL(7WD) 		8-97223-690-0 04 1 0101- ●
60 07.347 BOLT; S/ABS TO LWR LINK
M12X60 FLANGE 		0-29291-260-0 02 1 9811-0012 ● ●
60 07.347 BOLT; S/ABS TO LWR LINK
M12X60 FLANGE 		0-29291-260-0 02 1 0101- ●
62 07.345 ABSORBER ASM; SHOCK,FRT
(A) USA 		8-97179-443-1 02 1 9811-0012 ●
62 07.345 ABSORBER ASM; SHOCK,FRT
ACTIVE RIDE CONTROL(7WD) (B) 		8-97254-997-2 02 1 0101- ●
62 07.345 ABSORBER ASM; SHOCK,FRT
(A) USA 		8-97211-772-1 02 1 9811-0012 ●
62 07.345 ABSORBER ASM; SHOCK,FRT
EXC. ACTIVE RIDE CONTROL(7WD) (A) USA 		8-97211-772-1 02 1 0101- ●
65 07.347 WASHER; S/ABS
ACTIVE RIDE CONTROL(7WD) (A) 		8-97219-822-1 02 1 0101- ●
65 07.347 WASHER; S/ABS
ACTIVE RIDE CONTROL(7WD) (B) 		8-97223-687-0 02 1 0101- ●
103 07.347 NUT; S/ABS TO LWR LINK
07.243 M12 FLANGE 		0-91150-212-0 02 1 9811-0012 ● ●
103 07.347 NUT; S/ABS TO LWR LINK
07.243 M12 FLANGE 		0-91150-212-0 02 1 0101- ●
