◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UES ▶ 50807 - UES(AUSTRALIA) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-40 - STEERING UNIT ▶
4-40 — STEERING UNIT (#32615) — 10 parça

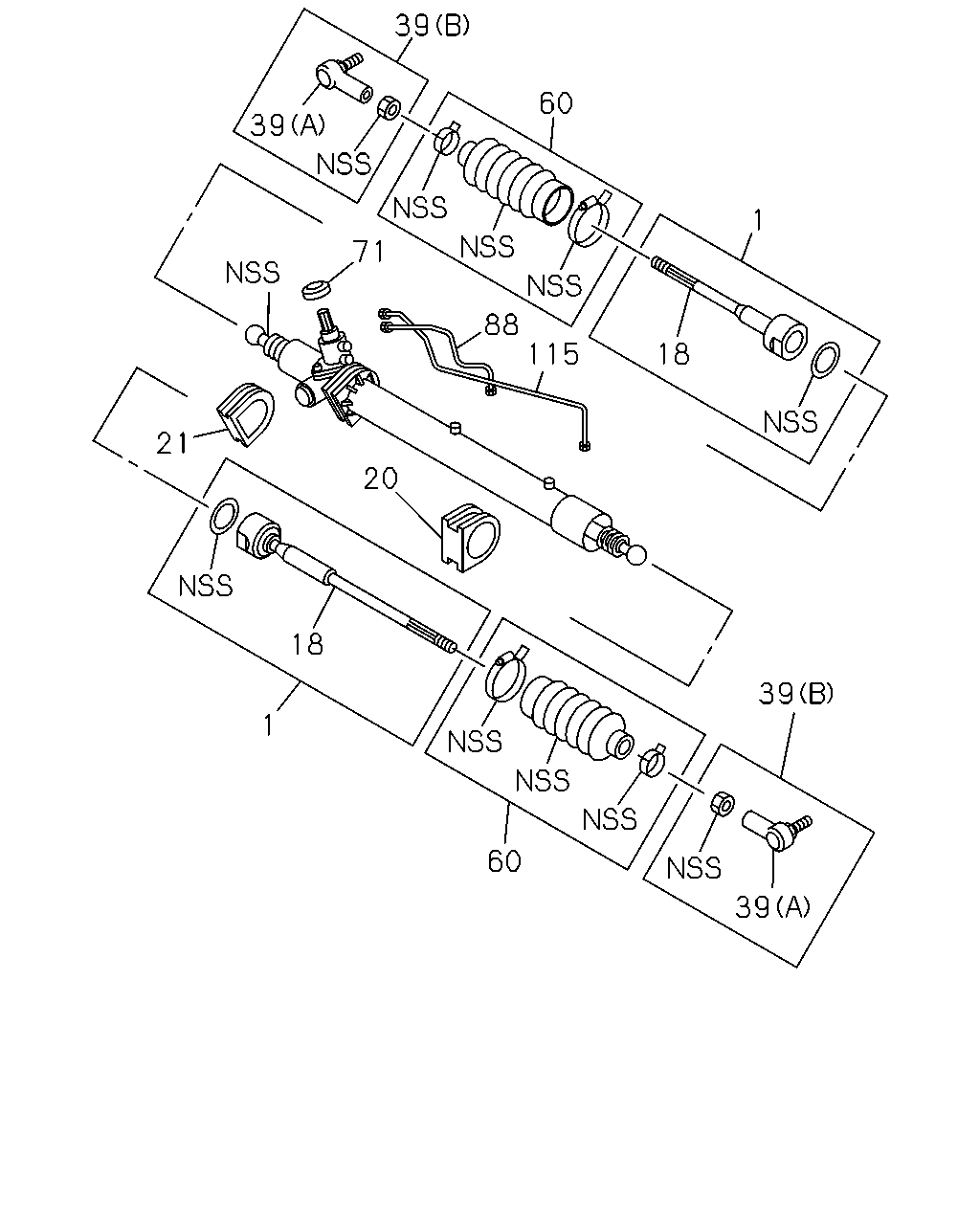

çizim 38870
39 60 39 1 71 88 115 18 21 20 18 39 1 60 39
BalonParca AdiParca NoAdetTipApplied Date
1 06.507 REPAIR KIT; STRG UNIT,1 YEAR
USA ASM PART: A = 8-97220-778-2, 97220778 		8-97184-819-0 02 1 -
18 06.230 ROD ASM; INNER
USA ASM PART: A = 8-97220-778-2, 97220778 		8-97126-168-0 02 1 -
20 06.509 RUBBER; MTG
USA ASM PART: A = 8-97220-778-2, 97220778 		8-97184-815-0 01 1 -
21 06.509 RUBBER; MTG,PINION SIDE
USA ASM PART: A = 8-97220-778-2, 97220778 		8-97184-814-0 01 1 -
39 06.233 ROD END ASM; OUTER
(A), USA ASM PART: A = 8-97220-778-2, 97220778 		8-97160-395-0 02 1 -
39 06.233 ROD END ASM; OUTER
(B), USA ASM PART: A = 8-97220-778-2, 97220778 		8-97184-821-0 02 1 -
60 06.242 BOOT KIT; STRG HSG
USA ASM PART: A = 8-97220-778-2, 97220778 		8-97184-820-0 02 1 -
71 06.242 COVER; DUST,STRG UNIT
USA ASM PART: A = 8-97220-778-2, 97220778 		8-97184-817-0 01 1 -
88 06.671 PIPE; HSG TO VLV
USA ASM PART: A = 8-97220-778-2, 97220778 		8-97184-812-0 01 1 -
115 06.671 PIPE; HSG TO VLV
USA ASM PART: A = 8-97220-778-2, 97220778 		8-97184-813-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
