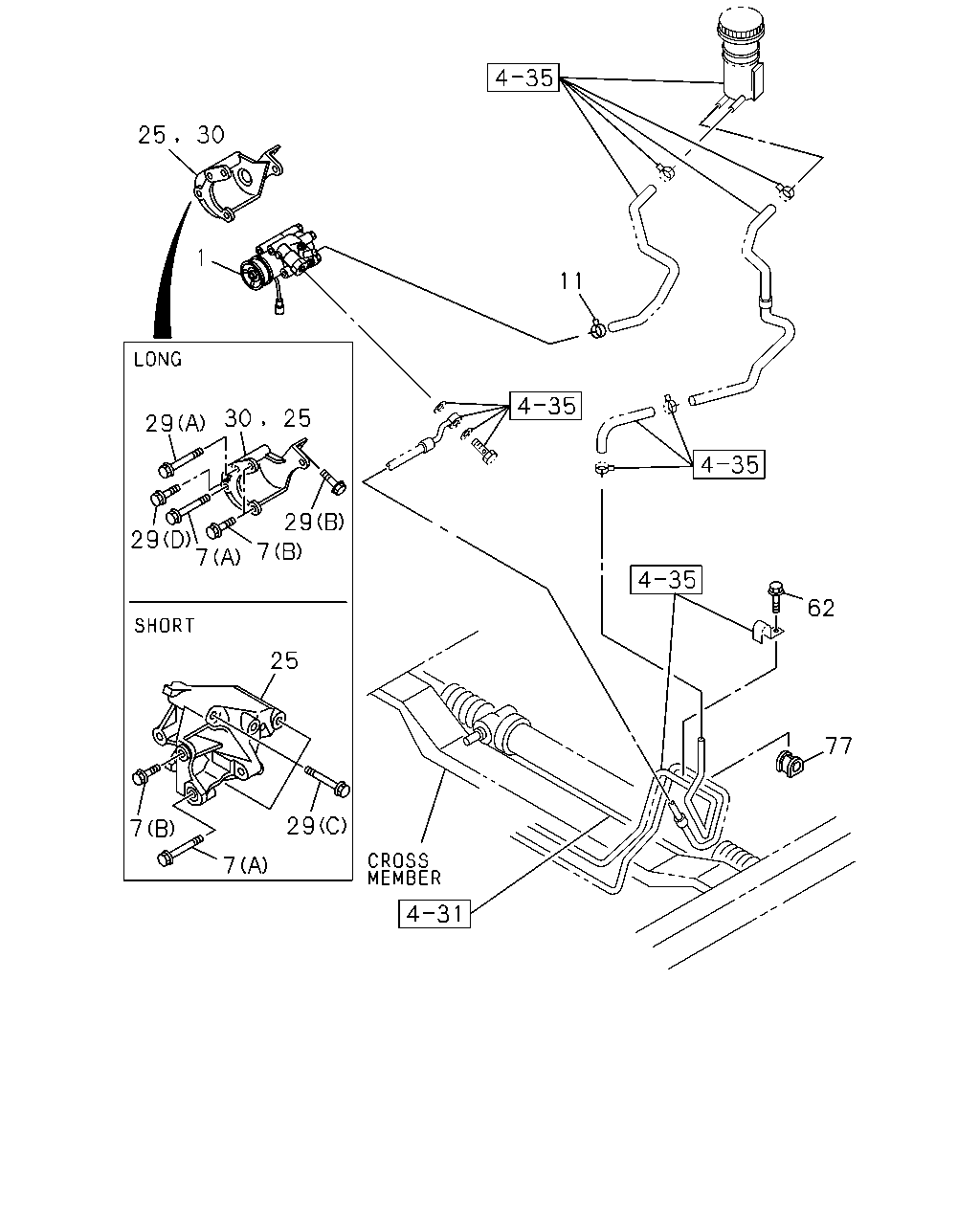

4-36 — POWER STEERING CONTROL; ENGINE SIDE (#32614) — 26 parça

25 30 1 11 30 25 29 29 29 7 7 62 25 77 29 7 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT.	8-97201-545-1	01	1	9811-0002	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT.	8-97201-545-1	01	1	0003-0012	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT.	8-97249-873-0	01	1	0003-0112		●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT.	8-97325-733-0	01	1	0201-0204		●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT.	8-97325-734-0	01	1	0205-		●
7	09.181 BOLT; OIL PUMP,P/S 02.559 (B) M8X25 FLANGE USA	0-28680-825-0	01	1	9811-0012	●
7	09.181 BOLT; OIL PUMP,P/S 09.198 (A) M10X100 FLANGE	0-28081-000-0	01	1	9811-0012	●	●
7	09.181 BOLT; OIL PUMP,P/S 09.198 (A) M10X100 FLANGE	0-28081-000-0	01	1	0101-		●
7	09.181 BOLT; OIL PUMP,P/S 02.559 (B) M8X25 FLANGE USA	0-28680-825-0	02	1	9811-		●
11	06.672 CLIP; FLEX HOSE ID=21 USA	8-94242-034-0	01	1	9811-0012	●	●
11	06.672 CLIP; FLEX HOSE ID=21 USA	8-94242-034-0	01	1	0101-		●
25	06.606 BRACKET; P/S PUMP AUS	8-92063-185-0	01	1	9811-0012	●
25	06.606 BRACKET; P/S PUMP USA	8-97130-369-1	01	1	9811-0102		●
29	09.171 BOLT; BRKT,POWER STRG (C) AUS	8-11096-281-0	03	1	9811-0012	●
29	09.171 BOLT; BRKT,POWER STRG 03.278 (A) M8X100 FLANGE	0-28080-800-0	01	1	9811-0101		●
29	09.171 BOLT; BRKT,POWER STRG 03.330 (D) M10X60 FLANGE	0-28181-060-0	01	1	0102-		●
29	09.171 BOLT; BRKT,POWER STRG 03.704 (B) M8X40 FLANGE	0-28680-840-0	02	1	9811-0102		●
29	09.171 BOLT; BRKT,POWER STRG 03.278 (A) M8X100 FLANGE	0-28080-800-0	01	1	0103-		●
29	09.171 BOLT; BRKT,POWER STRG 03.278 (A) M8X100 FLANGE	0-28080-800-0	01	1	0102-0102		●
29	09.171 BOLT; BRKT,POWER STRG 03.278 (A) M8X100 FLANGE	0-28080-800-0	01	1	0102-0102		●
29	09.171 BOLT; BRKT,POWER STRG 16.545 (B) M8X40 FLANGE	0-28690-840-0	02	1	0102-		●
30	06.672 BRACKET; FLEX HOSE	8-97941-396-1	01	1	0102-		●
62	06.635 BOLT; CLIP M6X16 FLANGE	0-28480-616-0	02	1	9811-0012	●	●
62	06.635 BOLT; CLIP M6X16 FLANGE	0-28480-616-0	02	1	0101-		●
77	06.655 RUBBER; MOUNTING USA	8-97176-283-0	02	1	9811-0012	●	●
77	06.655 RUBBER; MOUNTING USA	8-97176-283-0	02	1	0101-		●
