4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#32613) — 47 parça

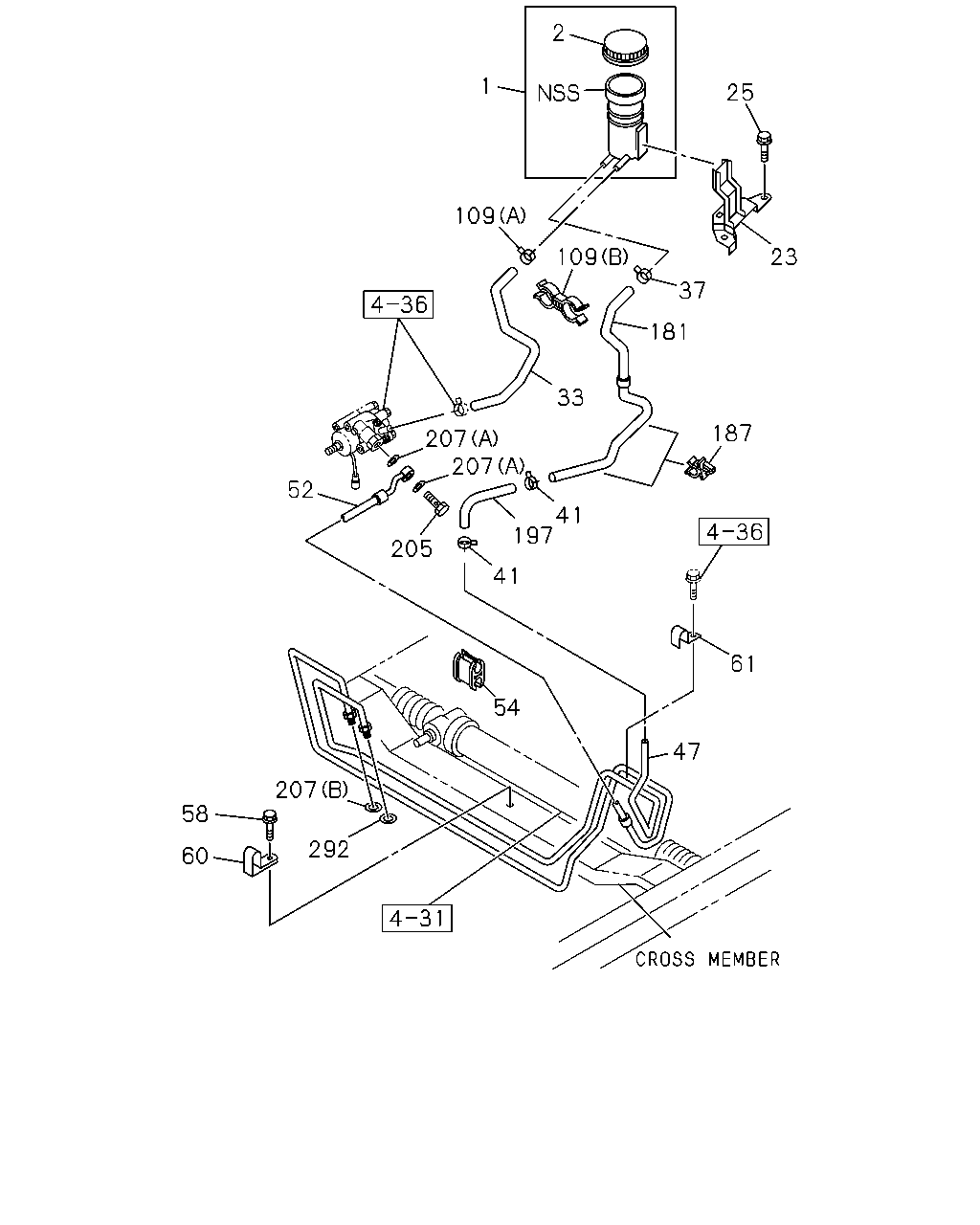

çizim 36437
2 1 25 109 109 23 37 181 33 187 207 207 52 41 197 205 41 61 54 47 207 58 292 60
BalonParca AdiParca NoAdetTipApplied Date A B
1 06.635 TANK ASM; OIL,P/S
USA 		8-97125-158-2 01 1 9811-0012 ● ●
1 06.635 TANK ASM; OIL,P/S
USA 		8-97125-158-2 01 1 0101- ●
2 06.672 CAP; OIL TANK,P/S
USA 		8-97177-825-1 01 1 9811-0012 ● ●
2 06.672 CAP; OIL TANK,P/S
USA 		8-97177-825-1 01 1 0101- ●
23 06.672 BRACKET; OIL TANK,P/S 8-97124-931-1 01 1 9811-9904 ● ●
23 06.672 BRACKET; OIL TANK,P/S 8-97222-453-0 01 1 9905-0012 ● ●
23 06.672 BRACKET; OIL TANK,P/S 8-97230-006-1 01 1 0101- ●
25 06.635 BOLT; OIL TANK BRKT
M6X16 FLANGE 		0-28480-616-0 02 1 9811-0012 ● ●
25 06.635 BOLT; OIL TANK BRKT
M6X16 FLANGE 		0-28480-616-0 02 1 0101- ●
33 06.672 HOSE; RUBBER,POWER STRG
USA 		8-97130-353-3 01 1 9811-0012 ●
33 06.672 HOSE; RUBBER,POWER STRG
USA 		8-97130-352-4 01 1 9811- ●
37 01.762 CLIP; HOSE,P/S
04.930 ID=16 		8-94238-568-0 01 1 9811-0012 ● ●
37 01.762 CLIP; HOSE,P/S
04.930 ID=16 		8-94238-568-0 01 1 0101- ●
41 06.672 CLIP; HOSE,P/S
04.930 ID=16 		8-94238-568-0 02 1 9811-0012 ● ●
41 06.672 CLIP; HOSE,P/S
04.930 ID=16 		8-94238-568-0 02 1 0101- ●
47 06.671 PIPE; RETURN
USA 		8-97136-884-2 01 1 9811-0012 ● ●
47 06.671 PIPE; RETURN
USA 		8-97136-884-2 01 1 0101- ●
52 06.673 HOSE; FLEX,P/S CONT VLV
USA 		8-97208-312-0 01 1 9811-0012 ●
52 06.673 HOSE; FLEX,P/S CONT VLV
USA 		8-97143-981-2 01 1 9811-0112 ●
52 06.673 HOSE; FLEX,P/S CONT VLV
USA 		8-97325-539-0 01 1 0201- ●
54 06.672 CLIP; OIL PIPE
USA 		8-97164-013-2 01 1 9811-0012 ● ●
54 06.672 CLIP; OIL PIPE
USA 		8-97164-013-2 01 1 0101- ●
58 06.672 BOLT; CLIP
06.635 M6X16 FLANGE 		0-28480-616-0 01 1 9811-0012 ● ●
58 06.672 BOLT; CLIP
06.635 M6X16 FLANGE 		0-28480-616-0 01 1 0101- ●
60 06.672 CLAMP; PIPE,RETURN
ID=10X2 H=22 THA 		8-94252-455-2 01 1 9811-0012 ● ●
60 06.672 CLAMP; PIPE,RETURN
ID=10X2 H=22 THA 		8-94252-455-2 01 1 0101- ●
61 06.672 CLIP; OIL PIPE
USA 		8-97176-281-0 02 1 9811-0012 ● ●
61 06.672 CLIP; OIL PIPE
USA 		8-97176-281-0 02 1 0101- ●
109 06.672 CLIP; RUBBER HOSE
(A) ID=21 USA 		8-94242-034-0 01 1 9811-0012 ● ●
109 06.672 CLIP; RUBBER HOSE
(A) ID=21 USA 		8-94242-034-0 01 1 0101- ●
109 06.672 CLIP; RUBBER HOSE
(B) ID=17.5 & 21 USA 		8-97177-580-0 01 1 9811-0012 ● ●
181 06.670 PIPE ASM; P/S RETURN
USA 		8-97189-296-0 01 1 9811-0012 ● ●
181 06.670 PIPE ASM; P/S RETURN
USA 		8-97230-274-0 01 1 0101- ●
187 03.162 CLIP; P/S OIL PIPE 8-94253-984-0 02 1 9811-0012 ● ●
187 03.162 CLIP; P/S OIL PIPE 8-94253-984-0 02 1 0101- ●
197 06.671 HOSE; FLEX,P/S,RETURN
USA 		8-97130-354-1 01 1 9811-0012 ● ●
197 06.671 HOSE; FLEX,P/S,RETURN
USA 		8-97130-354-1 01 1 0101- ●
205 06.673 BOLT; EYE,FLEX HOSE,P/S
M16X28 		8-94383-489-0 01 1 9811-0012 ● ●
205 06.673 BOLT; EYE,FLEX HOSE,P/S
M16X28 		8-94383-489-0 01 1 0101- ●
207 06.673 GASKET; FLEX HOSE,P/S PUMP
01.252 (A) ID=16.2 OD=24 		9-09571-416-0 02 1 9811-0012 ● ●
207 06.673 GASKET; FLEX HOSE,P/S PUMP
01.252 (A) ID=16.2 OD=24 		9-09571-416-0 02 1 0101- ●
207 06.673 GASKET; FLEX HOSE,P/S PUMP
(B) USA 		8-97307-253-0 01 1 0012-0012 ● ●
207 06.673 GASKET; FLEX HOSE,P/S PUMP
(B) USA 		8-97307-253-0 01 1 0101-0112 ●
207 06.673 GASKET; FLEX HOSE,P/S PUMP
(B) USA 		8-97307-253-0 01 1 0210- ●
292 06.673 GASKET; P/S OIL PIPE
USA 		8-97307-253-0 01 1 0012-0012 ● ●
292 06.673 GASKET; P/S OIL PIPE
USA 		8-97307-253-0 01 1 0101-0108 ●
292 06.673 GASKET; P/S OIL PIPE
USA 		8-97307-253-0 01 1 0109- ●
