◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UES ▶ 50807 - UES(AUSTRALIA) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-31 - STEERING COLUMN AND SHAFT ▶
4-31 — STEERING COLUMN AND SHAFT (#32611) — 70 parça

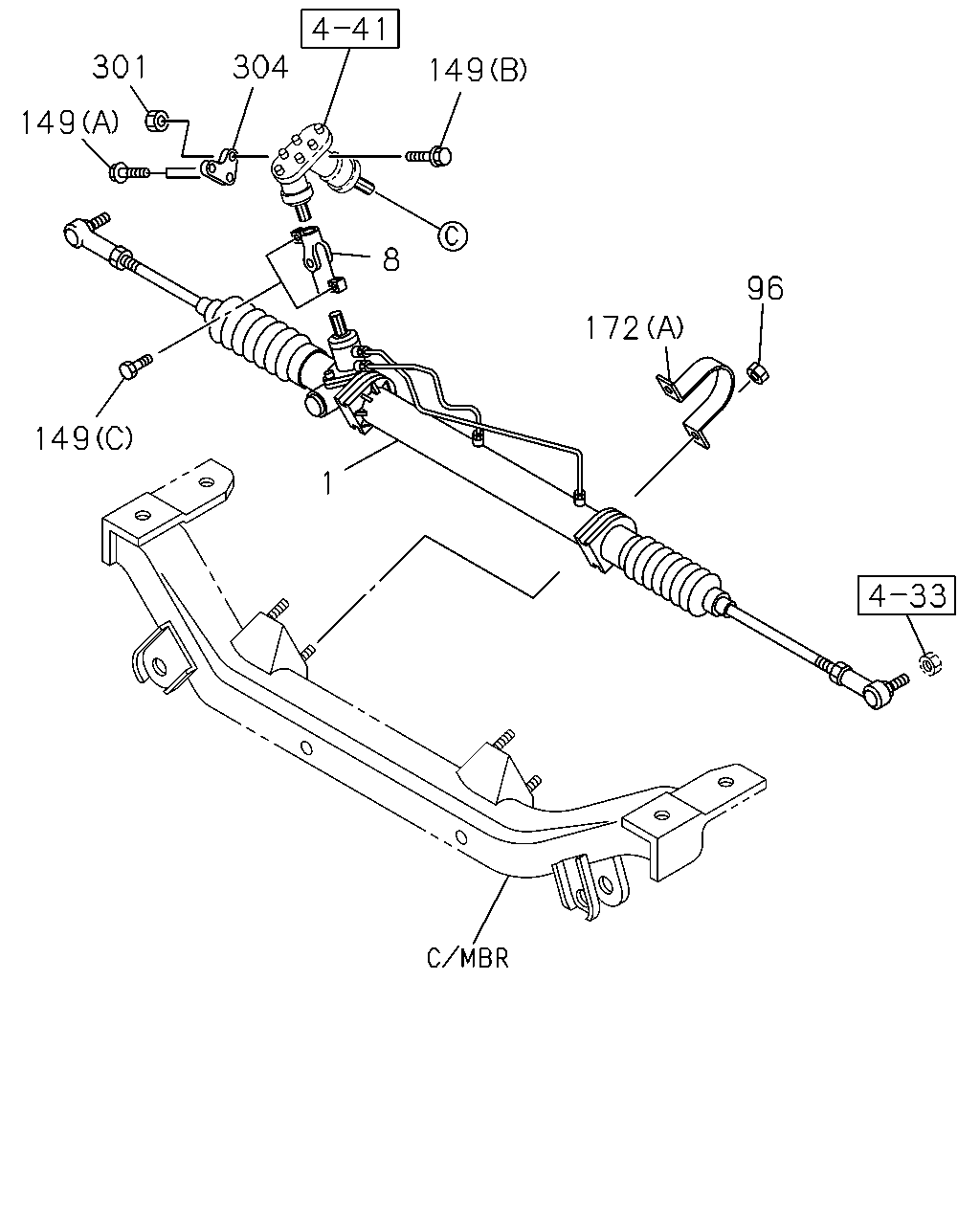

çizim 36480
301 304 149 149 8 96 172 149 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 06.508 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. ERP 		8-97220-778-0 01 1 9811-0012 ● ●
1 06.508 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. USA 		8-97220-778-2 01 1 0101- ●
8 06.525 JOINT; UNIVERSAL
USA 		8-97124-927-2 01 1 9811-0012 ● ●
8 06.525 JOINT; UNIVERSAL
USA 		8-97124-927-2 01 1 0101- ●
96 06.509 NUT; STRG UNIT
07.243 M12 FLANGE 		0-91150-212-0 04 1 9811-0012 ● ●
96 06.509 NUT; STRG UNIT
07.243 M12 FLANGE 		0-91150-212-0 04 1 0101- ●
149 06.525 BOLT; GEAR BOX
(A) M10X95 FLANGE USA 		8-97136-307-0 02 1 9811-0012 ● ●
149 06.525 BOLT; GEAR BOX
(A) M10X95 FLANGE USA 		8-97136-307-0 02 1 0101- ●
149 06.525 BOLT; GEAR BOX
(B) M10X110 FLANGE USA 		8-97136-933-0 01 1 9811-0012 ● ●
149 06.525 BOLT; GEAR BOX
(B) M10X110 FLANGE USA 		8-97136-933-0 01 1 0101- ●
149 06.525 BOLT; GEAR BOX
03.670 (C) M8X35 FLANGE USA 		8-97136-974-0 02 1 9811-0012 ● ●
149 06.525 BOLT; GEAR BOX
03.670 (C) M8X35 FLANGE USA 		8-97136-974-0 02 1 0101- ●
172 06.509 BRACKET; STRG
(A) USA 		8-97139-098-1 02 1 9811-0012 ● ●
172 06.509 BRACKET; STRG
(A) USA 		8-97139-098-1 02 1 0101- ●
172 06.509 BRACKET; STRG
(B) USA 		8-97171-944-0 01 1 9811-0003 ● ●
301 06.509 NUT; GEAR BOX
08.917 M10 FLANGE 		0-91150-210-0 01 1 9811-0012 ● ●
301 06.509 NUT; GEAR BOX
08.917 M10 FLANGE 		0-91150-210-0 01 1 0101- ●
304 06.514 SHIM
USA 		8-97174-267-1 01 1 9811-0012 ● ●
304 06.514 SHIM
USA 		8-97174-267-2 01 1 0101- ●

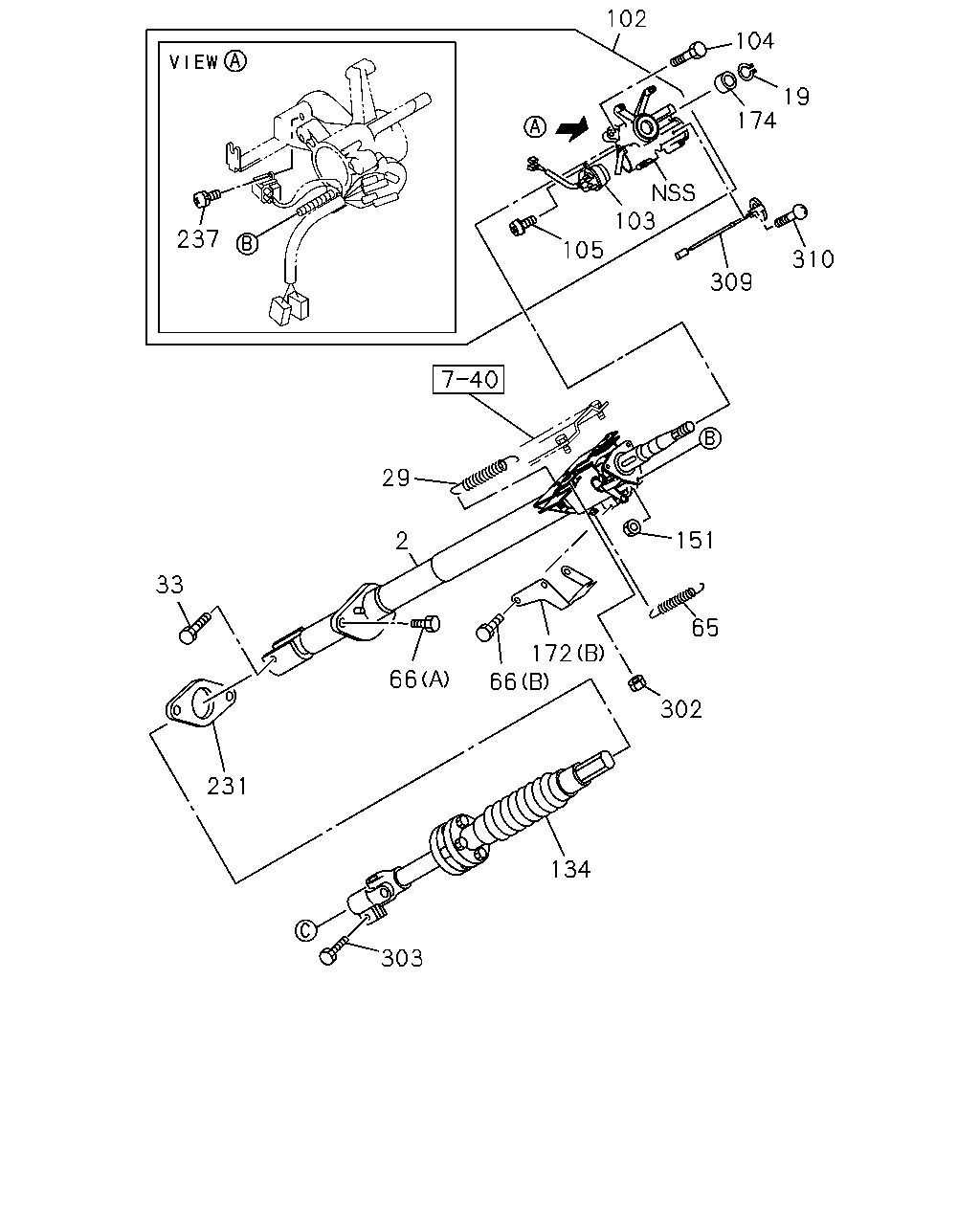

çizim 38841
102 104 19 174 103 105 237 310 309 29 151 2 33 65 172 66 66 302 231 134 303
BalonParca AdiParca NoAdetTipApplied Date A B
2 06.518 SHAFT ASM; STRG
USA 		8-97124-949-1 01 1 9811-0003 ● ●
2 06.518 SHAFT ASM; STRG
USA 		8-97208-686-3 01 1 0004-0012 ● ●
2 06.518 SHAFT ASM; STRG
USA 		8-97208-686-3 01 1 0101-0202 ●
2 06.518 SHAFT ASM; STRG 8-97333-405-1 01 1 0203- ●
19 06.515 RING; SNAP,STRG SHAFT
06.525 ID=20.5 		9-09180-022-0 01 1 9811-0012 ● ●
19 06.515 RING; SNAP,STRG SHAFT
06.525 ID=20.5 		9-09180-022-0 01 1 0101- ●
29 06.514 SPRING; COLUMN
USA 		8-97171-943-0 01 1 9811-0003 ● ●
29 06.514 SPRING; COLUMN 8-97069-501-1 01 1 0004-0012 ● ●
29 06.514 SPRING; COLUMN 8-97069-501-1 01 1 0101- ●
33 06.525 BOLT; STRG SHAFT TO UNIT
03.670 M8X35 FLANGE USA 		8-97136-974-0 01 1 9811-0012 ● ●
33 06.525 BOLT; STRG SHAFT TO UNIT
03.670 M8X35 FLANGE USA 		8-97136-974-0 01 1 0101- ●
65 06.521 SPRING; STRG COLUMN
USA 		8-97171-942-0 01 1 9811-0003 ● ●
65 06.521 SPRING; STRG COLUMN
USA 		8-97229-382-0 01 1 0004-0012 ● ●
65 06.521 SPRING; STRG COLUMN
USA 		8-97229-382-0 01 1 0101- ●
66 06.514 BOLT; STRG COLUMN
03.417 (A) M8X35 USA 		8-97100-457-0 02 1 9811-0012 ● ●
66 06.514 BOLT; STRG COLUMN
03.417 (A) M8X35 USA 		8-97100-457-0 02 1 0101-0108 ●
66 06.514 BOLT; STRG COLUMN
06.760 M8X25 W/LK&PL WASHER USA 		8-94331-747-1 02 1 0109- ●
66 06.514 BOLT; STRG COLUMN
(B) USA 		8-97171-945-0 03 1 9811-0003 ● ●
102 06.500 LOCK ASM; STRG
USA 		8-97125-122-4 01 1 9811-0012 ●
102 06.500 LOCK ASM; STRG
M/T MUA 5 SPEED(RMN) USA 		8-97125-122-4 01 1 9811-0012 ●
102 06.500 LOCK ASM; STRG
M/T MUA 5 SPEED(RMN) USA 		8-97125-122-4 01 1 0101-0102 ●
102 06.500 LOCK ASM; STRG
M/T MUA 5 SPEED(RMN) USA 		8-97310-409-0 01 1 0103- ●
102 06.500 LOCK ASM; STRG
A/T THM 4 SPEED(RMQ) USA 		8-97125-089-5 01 1 9811-0102 ●
102 06.500 LOCK ASM; STRG
A/T THM 4 SPEED(RMQ) USA 		8-97310-408-0 01 1 0103-0109 ●
102 06.500 LOCK ASM; STRG
A/T THM 4 SPEED(RMQ) USA 		8-97320-191-0 01 1 0110- ●
103 02.188 SWITCH; IGNITION
USA 		8-97170-975-0 01 1 9811-0012 ● ●
103 02.188 SWITCH; IGNITION
USA 		8-97170-975-0 01 1 0101- ●
104 06.500 BOLT; STRG LOCK TO COLUMN
M6X25 W/LK&PL WASHER USA 		8-97122-790-0 02 1 9811-0003 ● ●
104 06.500 BOLT; STRG LOCK TO COLUMN
M6X30 W/LK&PL WASHER USA 		8-97222-413-0 02 1 0004-0012 ● ●
104 06.500 BOLT; STRG LOCK TO COLUMN
M6X30 W/LK&PL WASHER USA 		8-97222-413-0 02 1 0101- ●
105 06.500 SCREW; IGN SW
USA 		8-97170-977-0 01 1 9811-0012 ● ●
105 06.500 SCREW; IGN SW
USA 		8-97170-977-0 01 1 0101- ●
134 06.524 SHAFT; STRG,2ND
USA 		8-97124-924-1 01 1 9811-0012 ● ●
134 06.524 SHAFT; STRG,2ND
USA 		8-97124-924-2 01 1 0101- ●
151 06.521 NUT; FLANGE
04.594 M6 FLANGE 		0-91150-106-0 01 1 9811-0012 ● ●
151 06.521 NUT; FLANGE
04.594 M6 FLANGE 		0-91150-106-0 01 1 0101- ●
172 06.509 BRACKET; STRG
(A) USA 		8-97139-098-1 02 1 9811-0012 ● ●
172 06.509 BRACKET; STRG
(A) USA 		8-97139-098-1 02 1 0101- ●
172 06.509 BRACKET; STRG
(B) USA 		8-97171-944-0 01 1 9811-0003 ● ●
174 06.521 RUBBER; CUSHION,STRG COLUMN 8-97176-325-0 01 1 9811-0012 ● ●
174 06.521 RUBBER; CUSHION,STRG COLUMN 8-97176-325-0 01 1 0101- ●
231 06.525 SEAL; RUBBER,STRG COLUMN
USA 		8-97171-941-0 01 1 9811-0012 ● ●
231 06.525 SEAL; RUBBER,STRG COLUMN
USA 		8-97171-941-0 01 1 0101- ●
237 02.195 SCREW; DOOR WARNING SW
USA 		8-97170-976-0 01 1 9811-0012 ● ●
237 02.195 SCREW; DOOR WARNING SW
USA 		8-97170-976-0 01 1 0101- ●
302 06.518 NUT; CROSS BEAM
07.633 M8 FLANGE USA 		0-91150-108-0 02 1 9811-0012 ● ●
302 06.518 NUT; CROSS BEAM
07.633 M8 FLANGE USA 		0-91150-108-0 02 1 0101- ●
303 03.670 BOLT; SHAFT TO GEAR
M8X35 FLANGE USA 		8-97136-974-0 01 1 9811-0012 ● ●
303 03.670 BOLT; SHAFT TO GEAR
M8X35 FLANGE USA 		8-97136-974-0 01 1 0101- ●
309 06.500 COIL; IMMOBILIZER
USA 		8-97251-755-0 01 1 0101- ●
310 06.500 SCREW; COIL
02.819 M4X12 W/LK&PL WASHER 		9-03920-412-0 01 1 0101- ●
