4-30 — STEERING WHEEL AND COWL (#32610) — 21 parça

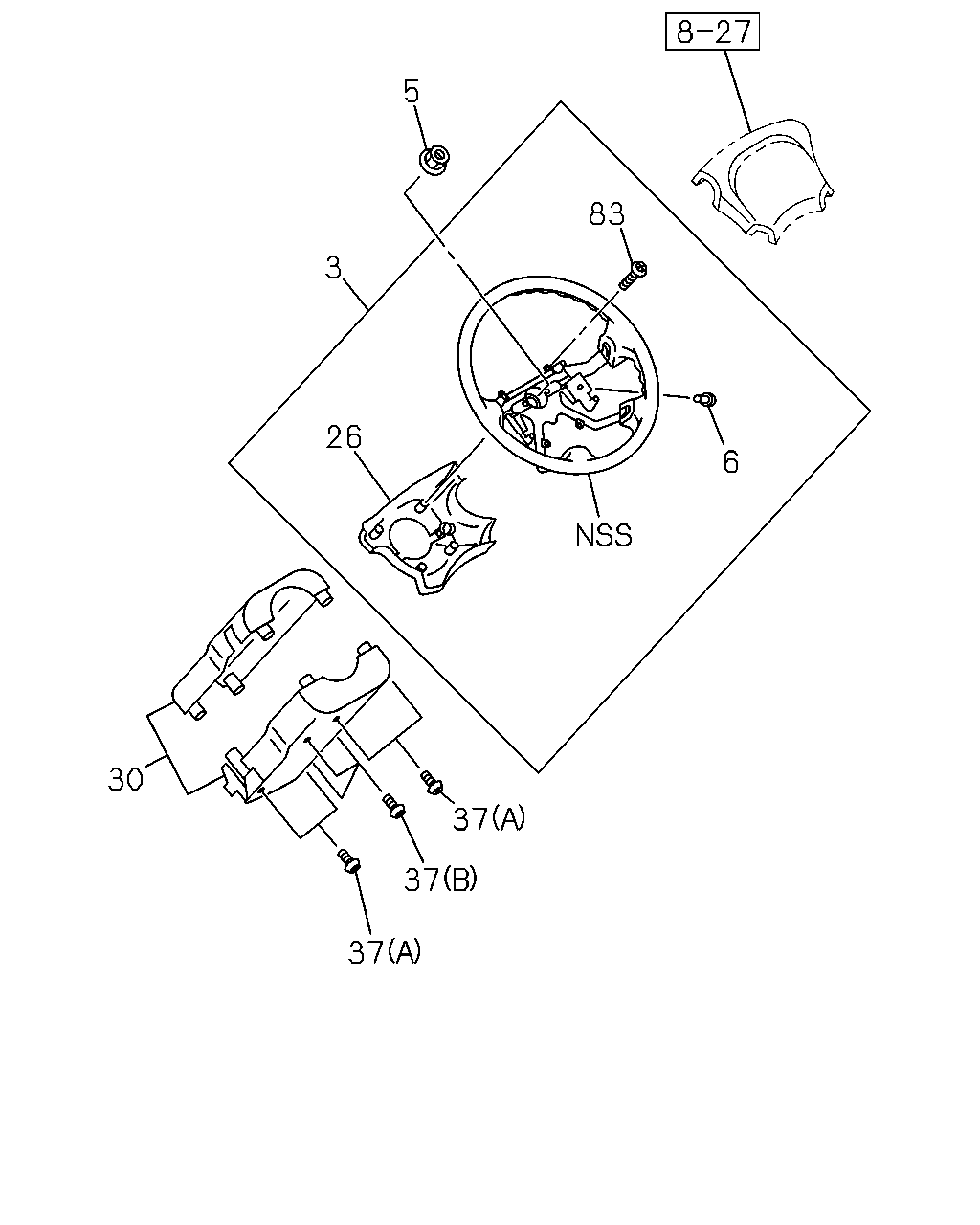

çizim 36625
5 83 3 26 6 30 37 37 37
BalonParca AdiParca NoAdetTipApplied Date A B
3 06.513 WHEEL; STRG
BLACK USA 		8-97157-409-1 01 1 9811-0003 ●
3 06.513 WHEEL; STRG
STRG WHEEL URETHANE<NK4> BLACK USA 		8-97157-409-1 01 1 9811-0003 ●
3 06.513 WHEEL; STRG
BLACK USA 		8-97292-217-0 01 1 0004-0012 ●
3 06.513 WHEEL; STRG
STRG WHEEL URETHANE<NK4> BLACK USA 		8-97292-217-0 01 1 0004-0012 ●
3 06.513 WHEEL; STRG
STRG WHEEL URETHANE<NK4> BLACK USA 		8-97292-217-0 01 1 0101- ●
3 06.513 WHEEL; STRG
STRG WHEEL LEATHER<NK3> BLACK USA 		8-97395-549-0 01 1 9811-0003 ●
3 06.513 WHEEL; STRG
STRG WHEEL LEATHER<NK3> BLACK USA 		8-97394-791-0 01 1 0004- ●
5 06.515 NUT; STRG WHEEL TO SHAFT
M12 W/TOOTH WASHER 		8-94455-487-1 01 1 9811-0012 ● ●
5 06.515 NUT; STRG WHEEL TO SHAFT
M12 W/TOOTH WASHER 		8-94455-487-1 01 1 0101- ●
6 02.820 SCREW; HORN SPR CONTACT
USA 		8-97134-780-0 02 1 9811-0012 ● ●
6 02.820 SCREW; HORN SPR CONTACT
USA 		8-97134-780-0 02 1 0101- ●
26 06.514 COVER; STRG WHEEL,LWR
BLACK USA 		8-97159-437-1 01 1 9811-0012 ● ●
26 06.514 COVER; STRG WHEEL,LWR
BLACK USA 		8-97159-437-1 01 1 0101- ●
30 06.518 COWL; STEERING
BLACK 		8-97195-721-1 01 1 9811-0012 ● ●
30 06.518 COWL; STEERING
BLACK 		8-97195-722-3 01 1 0101- ●
37 06.518 SCREW; STRG COWL UPR
16.085 (A) M5X16 USA 		5-09981-053-0 04 1 9811-0012 ● ●
37 06.518 SCREW; STRG COWL UPR
16.085 (A) M5X16 USA 		5-09981-053-0 04 1 0101- ●
37 06.518 SCREW; STRG COWL UPR
(B) M4X12 W/PL WASHER 		9-03900-412-0 03 1 9811-0012 ● ●
37 06.518 SCREW; STRG COWL UPR
(B) M4X12 W/PL WASHER 		9-03900-412-0 03 1 0101- ●
83 06.514 SCREW; LWR COVER TO WHEEL
USA 		8-97122-619-0 04 1 9811-0012 ● ●
83 06.514 SCREW; LWR COVER TO WHEEL
USA 		8-97122-619-0 04 1 0101- ●
