0-52 — OIL AND VACUUM PIPING; ENGINE (#3261) — 27 parça

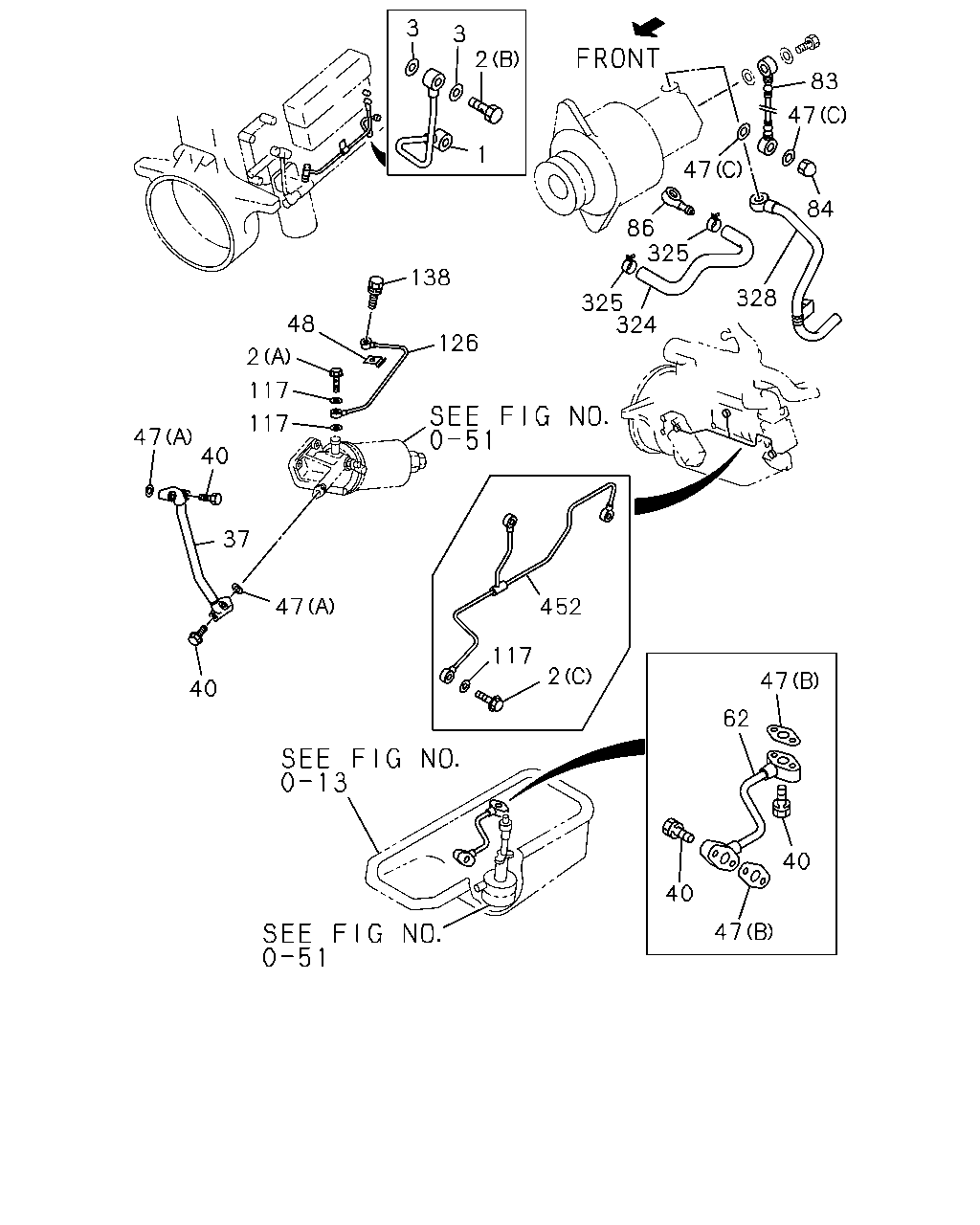

çizim 35181
3 3 2 83 47 47 1 84 86 325 138 328 325 324 48 126 2 117 117 47 40 37 47 452 117 2 47 40 62 40 40 47
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; OIL,INJ PUMP TO C/BL 1-13311-765-0 01 1 9101- ● ●
2 BOLT; EYE,OIL PIPE
(B) M12X24 EYE-BOLT 		1-09675-081-0 01 1 9101- ● ●
2 BOLT; EYE,OIL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) M10X21 FLANGE 		1-09675-077-0 02 1 9101- ● ●
2 BOLT; EYE,OIL PIPE
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) (A) M10X21 FLANGE 		1-09675-077-0 01 1 9101- ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09630-084-0 02 1 9101- ● ●
37 PIPE; OIL,FILTER TO COOLER 5-13311-119-0 01 1 9101- ● ●
40 BOLT; OIL PIPE 0-50040-840-0 08 1 9101-9707 ● ●
40 BOLT; OIL PIPE
M8X40 FLANGE 		0-28080-840-0 04 1 9708- ● ●
40 BOLT; OIL PIPE
M8X40 FLANGE 		0-28680-840-0 04 1 9708- ● ●
47 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=22.8 		1-09623-462-0 02 1 9101- ● ●
47 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=18 		9-09921-188-0 02 1 9101- ● ●
47 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) (C) ID=10.2 OD=16.0 		9-09571-410-0 02 1 9101- ● ●
48 CLIP; OIL PIPE
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) 		1-09700-960-0 02 1 9101- ● ●
62 PIPE; OIL,PUMP TO C/BL 1-13311-532-2 01 1 9101- ● ●
83 PIPE; OIL,C/BL TO VAC PUMP
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) 		5-13311-191-0 01 1 9101- ● ●
84 NUT; CAP,OIL PIPE
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) 		9-09844-022-0 01 1 9101- ● ●
86 PIPE; OIL,VAC PUMP RETURN
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) 		8-94221-270-1 01 1 9101- ● ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-09630-083-0 04 1 9101- ● ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) 		1-09630-083-0 02 1 9101- ● ●
126 PIPE; OIL,FILTER TO PUMP
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) 		1-13311-796-1 01 1 9101- ● ●
138 BOLT; CLIP FIX
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		0-50140-820-0 02 1 9101- ● ●
324 HOSE; RUBBER,OIL RETURN
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) 		1-13312-761-0 01 1 9101- ● ●
325 CLIP; RUBBER HOSE,OIL RETURN
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) ID=17.1 		8-94122-679-0 02 1 9101- ● ●
328 PIPE; VAC,GEN
GENERATOR DENSO 24V-40A 1KW(SC4) 		1-47441-425-1 01 1 9101- ● ●
328 PIPE; VAC,GEN
EXC. GENERATOR DENSO 24V-40A 1KW(SC4) 		1-47441-424-1 01 1 9101- ● ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-13312-962-0 01 1 9101-9106 ● ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-13313-090-0 01 1 9107- ● ●
