4-25 — REAR FINAL DRIVE (#32609) — 63 parça

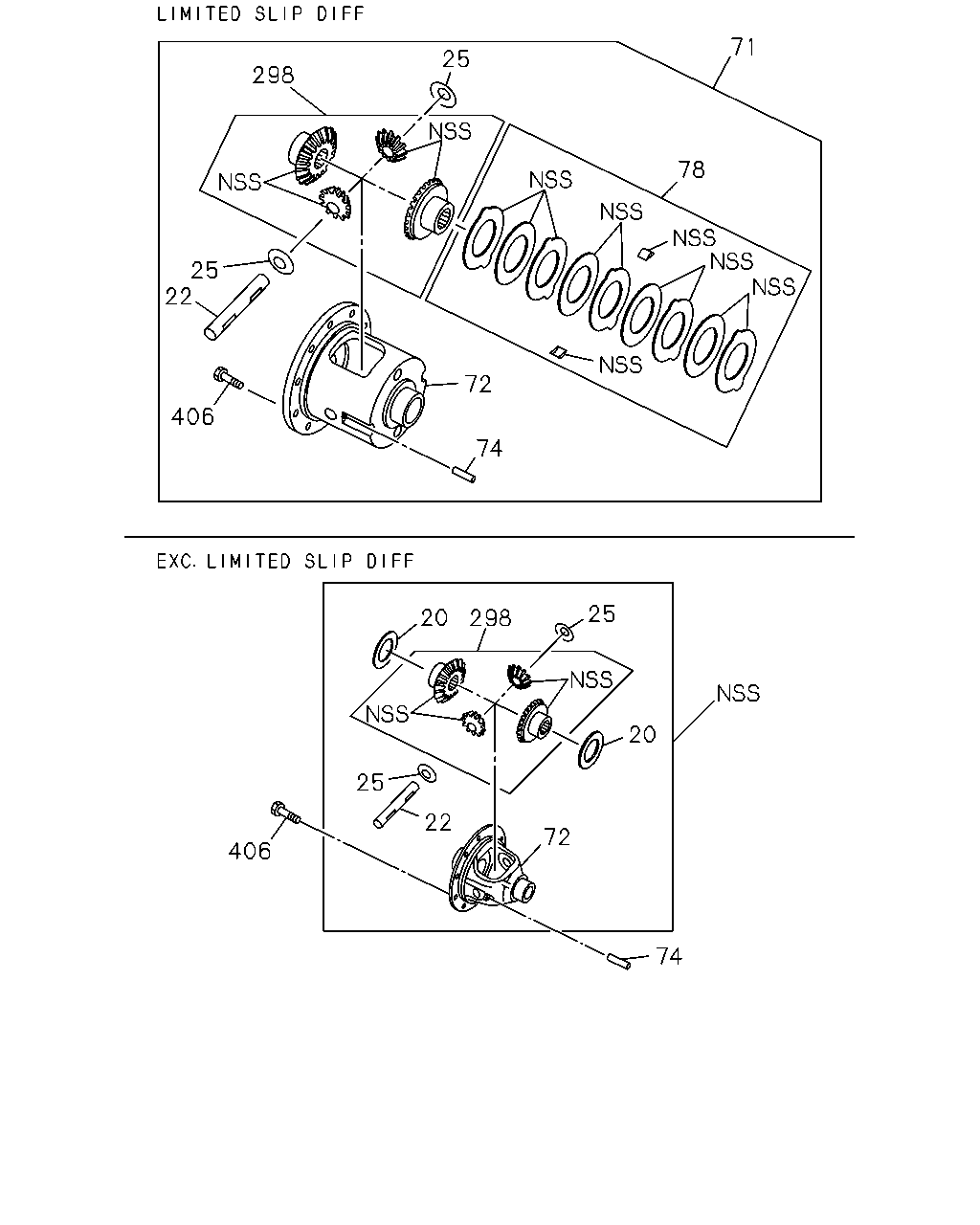

71 25 298 78 25 22 72 406 74 25 20 298 20 25 22 72 406 74

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
20	05.543 WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G80) USA	8-97084-418-0	02	1	9811-0012	●	●
20	05.543 WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G80) USA	8-97084-418-0	02	1	0101-		●
22	05.520 SPIDER; DIFF PINION USA	8-97179-926-0	01	1	9811-0012	●	●
22	05.520 SPIDER; DIFF PINION USA	8-97179-926-0	01	1	0101-		●
25	05.528 WASHER; THRUST,PINION LIMITED SLIP DIFF(G80) USA	8-97211-297-0	02	1	9811-0012	●	●
25	05.528 WASHER; THRUST,PINION LIMITED SLIP DIFF(G80) USA	8-97211-297-0	02	1	0101-		●
25	05.528 WASHER; THRUST,PINION EXC. LIMITED SLIP DIFF(G80) USA	8-97179-925-0	02	1	9811-0012	●	●
25	05.528 WASHER; THRUST,PINION EXC. LIMITED SLIP DIFF(G80) USA	8-97179-925-0	02	1	0101-		●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF(G80) USA	8-97214-525-0	01	1	9811-0012	●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF(G80) USA	8-97214-525-0	01	1	0101-0108		●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF(G80) USA	8-97354-081-0	01	1	0109-		●
72	05.510 CAGE; DIFF LIMITED SLIP DIFF(G80) USA	8-97179-965-0	01	1	9811-0012	●	●
72	05.510 CAGE; DIFF LIMITED SLIP DIFF(G80) USA	8-97179-965-0	01	1	0101-0108		●
72	05.510 CAGE; DIFF LIMITED SLIP DIFF(G80) USA	8-97354-080-0	01	1	0109-		●
72	05.510 CAGE; DIFF EXC. LIMITED SLIP DIFF(G80) USA	8-97179-923-0	01	1	9811-0012	●	●
72	05.510 CAGE; DIFF EXC. LIMITED SLIP DIFF(G80) USA	8-97179-923-0	01	1	0101-		●
74	05.518 PIN; LK,CROSS PIN USA	8-97084-421-0	01	1	9811-0012	●	●
74	05.518 PIN; LK,CROSS PIN USA	8-97084-421-0	01	1	0101-		●
78	05.511 DISC; FRICTION LIMITED SLIP DIFF(G80) USA	8-97084-434-0	01	1	9811-0012	●	●
78	05.511 DISC; FRICTION LIMITED SLIP DIFF(G80) USA	8-97084-434-0	01	1	0101-		●
298	05.515 GEAR KIT; DIFF,RR AXLE LIMITED SLIP DIFF(G80) USA	8-97179-958-0	01	1	9811-0012	●	●
298	05.515 GEAR KIT; DIFF,RR AXLE LIMITED SLIP DIFF(G80) USA	8-97179-958-0	01	1	0101-0108		●
298	05.515 GEAR KIT; DIFF,RR AXLE LIMITED SLIP DIFF(G80) USA	8-97354-079-0	01	1	0109-		●
298	05.515 GEAR KIT; DIFF,RR AXLE EXC. LIMITED SLIP DIFF(G80) USA	8-97179-924-0	01	1	9811-0012	●	●
298	05.515 GEAR KIT; DIFF,RR AXLE EXC. LIMITED SLIP DIFF(G80) USA	8-97179-924-0	01	1	0101-0108		●
298	05.515 GEAR KIT; DIFF,RR AXLE EXC. LIMITED SLIP DIFF(G80) USA	8-97354-078-0	01	1	0109-		●
406	05.531 BOLT SET; FINAL DRIVE GEAR USA	8-97084-422-0	01	1	9811-0012	●	●
406	05.531 BOLT SET; FINAL DRIVE GEAR USA	8-97084-422-0	01	1	0101-		●

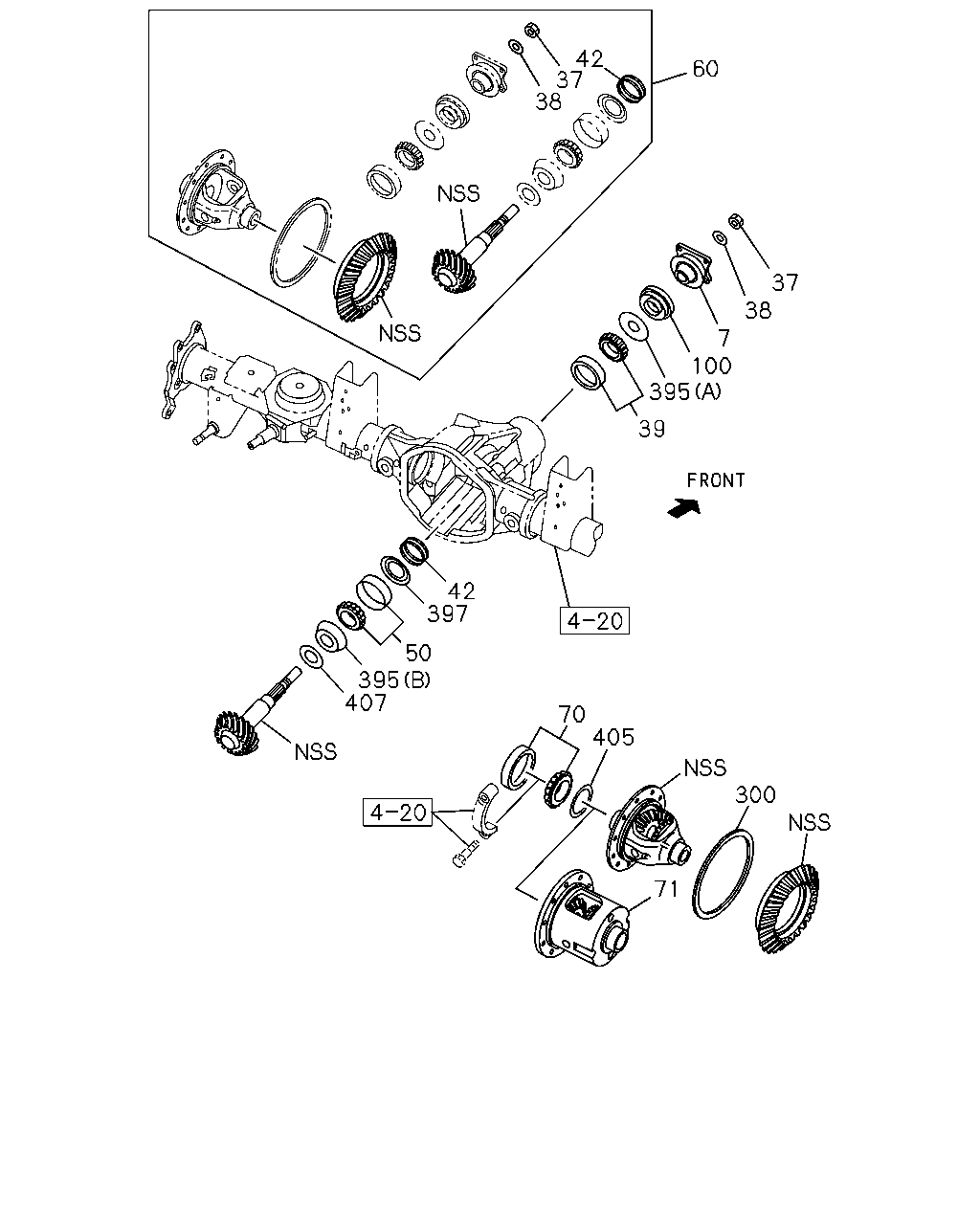

42 37 38 60 37 38 7 100 395 39 42 397 50 395 407 70 405 300 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
7	05.545 FLANGE; FINAL USA	8-97179-950-0	01	1	9811-0012	●	●
7	05.545 FLANGE; FINAL USA	8-97179-950-0	01	1	0101-		●
37	05.595 NUT; DRIVING PINION USA	8-97179-932-0	01	1	9811-0012	●	●
37	05.595 NUT; DRIVING PINION USA	8-97179-932-0	01	1	0101-		●
38	05.595 WASHER; PL,DRIVING PINION USA	8-97179-933-0	01	1	9811-0012	●	●
38	05.595 WASHER; PL,DRIVING PINION USA	8-97179-933-0	01	1	0101-		●
39	05.484 BEARING; FINAL PINION USA	8-97179-939-0	01	1	9811-0012	●	●
39	05.484 BEARING; FINAL PINION USA	8-97179-939-0	01	1	0101-		●
42	05.453 COLLAR; DIST,COLLAPSIBLE USA	8-97179-934-0	01	1	9811-0012	●	●
42	05.453 COLLAR; DIST,COLLAPSIBLE USA	8-97179-934-0	01	1	0101-		●
50	05.447 BEARING; FINAL PINION USA	8-97179-938-0	01	1	9811-0012	●	●
50	05.447 BEARING; FINAL PINION USA	8-97179-938-0	01	1	0101-		●
60	05.529 GEAR SET; FINAL DRIVE,RR 43/9 USA	8-97179-931-0	01	1	9811-0012	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/10(GT5) 41/10 USA	8-97179-928-0	01	1	9811-0012		●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/10(GT5) 41/10 USA	8-97179-928-0	01	1	0101-		●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/10(S7C) 43/10 USA	8-97179-929-0	01	1	9811-		●
70	05.536 BEARING; DIFF CAGE USA	8-97084-429-0	01	1	9811-0012	●	●
70	05.536 BEARING; DIFF CAGE USA	8-97084-429-0	01	1	0101-		●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF(G80) USA	8-97214-525-0	01	1	9811-0012	●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF(G80) USA	8-97214-525-0	01	1	0101-0108		●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF(G80) USA	8-97354-081-0	01	1	0109-		●
100	05.469 SEAL; OIL,FINAL PINION USA	8-97179-937-0	01	1	9811-0012	●	●
100	05.469 SEAL; OIL,FINAL PINION USA	8-97179-937-0	01	1	0101-		●
300	05.537 RING; EXCITER,SPD SENSOR USA	8-97084-474-0	01	1	9811-0012	●	●
300	05.537 RING; EXCITER,SPD SENSOR USA	8-97084-474-0	01	1	0101-		●
395	05.453 SLINGER; OIL SEAL (A) USA	8-97179-936-0	01	1	9811-0012	●	●
395	05.453 SLINGER; OIL SEAL (A) USA	8-97179-936-0	01	1	0101-		●
395	05.453 SLINGER; OIL SEAL (B) USA	8-97179-957-0	01	1	9811-0012	●	●
395	05.453 SLINGER; OIL SEAL (B) USA	8-97179-957-0	01	1	0101-		●
397	05.510 BAFFLE; OIL USA	8-97179-956-0	01	1	9811-0012	●	●
397	05.510 BAFFLE; OIL USA	8-97179-956-0	01	1	0101-		●
405	05.537 SHIM SET; DIFF SIDE BRG USA	8-97084-424-0	01	1	9811-0012	●	●
405	05.537 SHIM SET; DIFF SIDE BRG USA	8-97084-424-0	01	1	0101-		●
407	05.511 SHIM SET; PINION,FINAL DRIVE 05.586 USA	8-97179-935-0	01	1	9811-0012	●	●
407	05.511 SHIM SET; PINION,FINAL DRIVE 05.586 USA	8-97179-935-0	01	1	0101-		●
