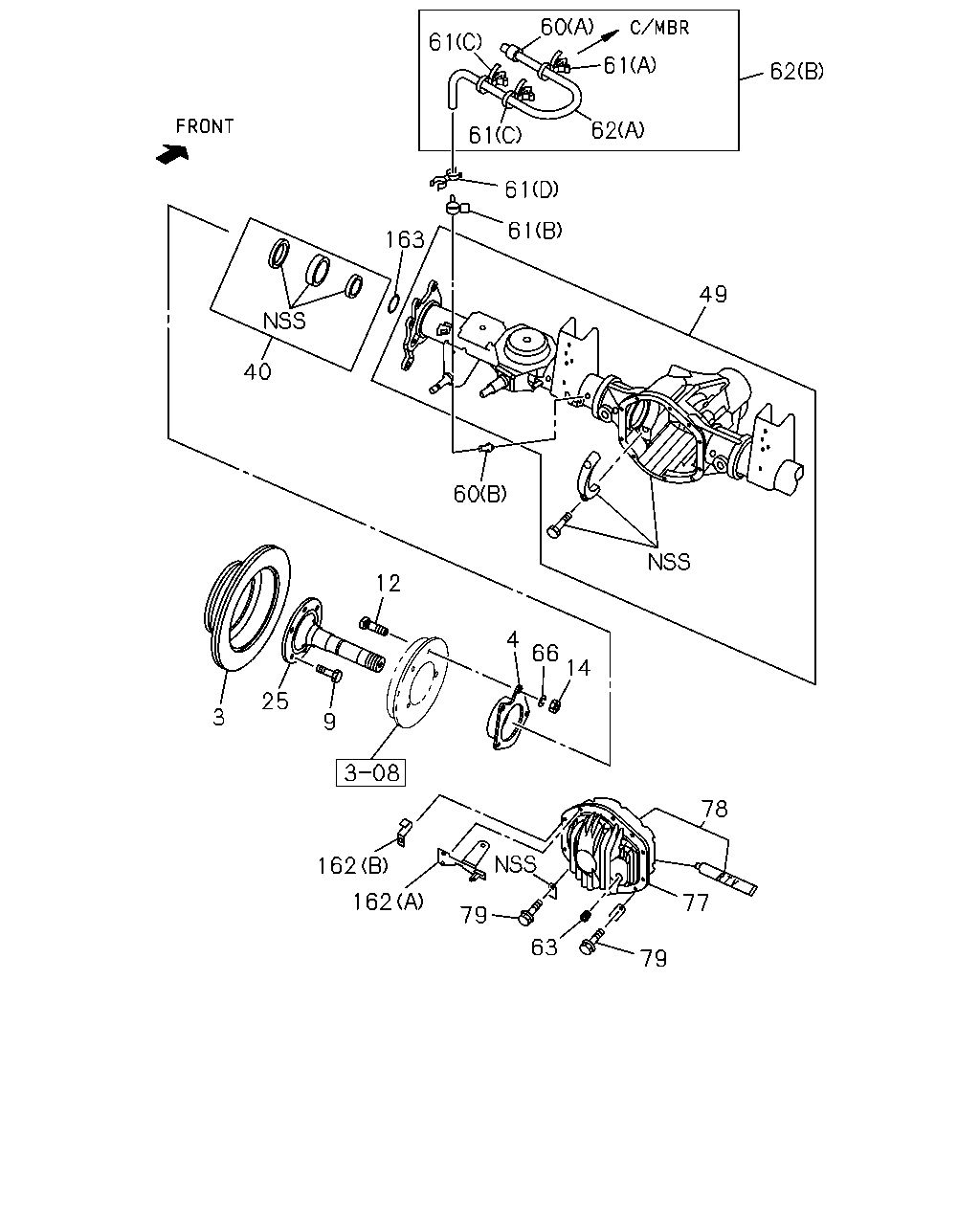

3 |
05.809 ROTOR; DISC BRK,RR
USA
|
8-97207-702-0 |
02 |
1 |
9811-0012 |
● |
● |
| |
3 |
05.809 ROTOR; DISC BRK,RR
USA
|
8-97207-702-0 |
02 |
1 |
0101- |
|
● |
| |
4 |
05.816 HOLDER; BRG,AXLE SHAFT
USA
|
8-97228-255-0 |
02 |
1 |
9811-0012 |
● |
● |
| |
4 |
05.816 HOLDER; BRG,AXLE SHAFT
USA
|
8-97228-255-0 |
02 |
1 |
0101- |
|
● |
| |
9 |
05.812 PIN; WHEEL,RR AXLE
USA
|
8-97081-943-0 |
12 |
1 |
9811-0012 |
● |
● |
| |
9 |
05.812 PIN; WHEEL,RR AXLE
USA
|
8-97081-943-0 |
12 |
1 |
0101- |
|
● |
| |
12 |
05.816 BOLT; BRG HOLDER TO CASE
USA
|
8-97134-271-0 |
08 |
1 |
0004-0012 |
● |
● |
| |
12 |
05.816 BOLT; BRG HOLDER TO CASE
USA
|
8-97134-271-0 |
08 |
1 |
0101- |
|
● |
| |
14 |
05.816 NUT; BRG HOLDER TO CASE
M12
|
9-99110-412-0 |
08 |
1 |
9811-0012 |
● |
● |
| |
14 |
05.816 NUT; BRG HOLDER TO CASE
M12
|
9-99110-412-0 |
08 |
1 |
0101- |
|
● |
| |
25 |
05.420 SHAFT; AXLE,RR
USA
|
8-97213-937-0 |
02 |
1 |
9811-0012 |
● |
● |
| |
25 |
05.420 SHAFT; AXLE,RR
USA
|
8-97213-937-0 |
02 |
1 |
0101- |
|
● |
| |
40 |
05.387 SEAL; OIL,REAR AXLE
USA
|
8-97081-945-0 |
02 |
1 |
9811-0012 |
● |
● |
| |
40 |
05.387 SEAL; OIL,REAR AXLE
USA
|
8-97081-945-0 |
02 |
1 |
0101- |
|
● |
| |
49 |
05.387 CASE; RR AXLE
USA
|
8-97189-375-0 |
01 |
1 |
9811-0012 |
● |
● |
| |
49 |
05.387 CASE; RR AXLE
ACTIVE RIDE CONTROL(7WD)
USA
|
8-97231-604-0 |
01 |
1 |
0101-0108 |
|
● |
| |
49 |
05.387 CASE; RR AXLE
ACTIVE RIDE CONTROL(7WD)
USA
|
8-97354-077-0 |
01 |
1 |
0109- |
|
● |
| |
49 |
05.387 CASE; RR AXLE
EXC. ACTIVE RIDE CONTROL(7WD)
USA
|
8-97189-375-0 |
01 |
1 |
0101-0108 |
|
● |
| |
49 |
05.387 CASE; RR AXLE
EXC. ACTIVE RIDE CONTROL(7WD)
USA
|
8-97354-076-0 |
01 |
1 |
0109- |
|
● |
| |
49 |
05.387 CASE; RR AXLE
FINAL GEAR RATIO 43/10(S7C)
ACTIVE RIDE CONTROL(7WD)
EXC. LIMITED SLIP DIFF(G80)
USA
|
8-97365-410-0 |
01 |
1 |
0301- |
|
● |
| |
49 |
05.387 CASE; RR AXLE
FINAL GEAR RATIO 43/10(S7C)
LIMITED SLIP DIFF(G80)
ACTIVE RIDE CONTROL(7WD)
USA
|
8-97365-411-0 |
01 |
1 |
0301- |
|
● |
| |
49 |
05.387 CASE; RR AXLE
FINAL GEAR RATIO 43/10(S7C)
LIMITED SLIP DIFF(G80)
EXC. ACTIVE RIDE CONTROL(7WD)
USA
|
8-97365-409-0 |
01 |
1 |
0301- |
|
● |
| |
49 |
05.387 CASE; RR AXLE
FINAL GEAR RATIO 43/10(S7C)
EXC. LIMITED SLIP DIFF(G80),ACTIVE RIDE
CONTROL(7WD)
USA
|
8-97365-408-0 |
01 |
1 |
0301- |
|
● |
| |
58 |
05.508 PLUG; DRAIN,AXLE CASE
05.400
USA
|
8-97084-563-0 |
01 |
1 |
0109- |
|
● |
| |
60 |
05.387 BREATHER; RR AXLE CASE
(B)
USA
|
8-97084-565-0 |
01 |
1 |
9811-0012 |
● |
● |
| |
60 |
05.387 BREATHER; RR AXLE CASE
(B)
USA
|
8-97084-565-0 |
01 |
1 |
0101- |
|
● |
| |
60 |
05.387 BREATHER; RR AXLE CASE
(A)
USA
|
8-97188-210-0 |
01 |
1 |
9811-9906 |
● |
● |
| |
60 |
05.387 BREATHER; RR AXLE CASE
(A)
USA
|
8-97228-909-0 |
01 |
1 |
9907- |
|
● |
| |
61 |
05.387 CLIP; BREATHER HOSE,RR AXLE
02.587
(A)
L=112
USA
|
8-94232-618-0 |
01 |
1 |
9811-0012 |
● |
● |
| |
61 |
05.387 CLIP; BREATHER HOSE,RR AXLE
02.587
(A)
L=112
USA
|
8-94232-618-0 |
01 |
1 |
0101- |
|
● |
| |
61 |
05.387 CLIP; BREATHER HOSE,RR AXLE
03.163
(B)
ID=11
USA
|
8-94238-570-0 |
01 |
1 |
9811-0012 |
● |
● |
| |
61 |
05.387 CLIP; BREATHER HOSE,RR AXLE
03.163
(B)
ID=11
USA
|
8-94238-570-0 |
01 |
1 |
0101- |
|
● |
| |
61 |
05.387 CLIP; BREATHER HOSE,RR AXLE
02.559
(C)
L=145
USA
|
8-94257-575-1 |
02 |
1 |
9811-0012 |
● |
● |
| |
61 |
05.387 CLIP; BREATHER HOSE,RR AXLE
02.559
(C)
L=145
USA
|
8-94257-575-1 |
02 |
1 |
0101- |
|
● |
| |
61 |
05.387 CLIP; BREATHER HOSE,RR AXLE
02.559
(D)
ID=10 & 11
USA
|
8-94438-996-0 |
01 |
1 |
0001-0012 |
● |
● |
| |
61 |
05.387 CLIP; BREATHER HOSE,RR AXLE
02.559
(D)
ID=10 & 11
USA
|
8-94438-996-0 |
01 |
1 |
0101- |
|
● |
| |
62 |
05.387 HOSE; RUBBER,BREATHER,RR AXLE
08.962
(A)
L=560
SERVICED BY L=3000
|
0-04750-300-0 |
01 |
1 |
9811-0012 |
● |
● |
| |
62 |
05.387 HOSE; RUBBER,BREATHER,RR AXLE
08.962
(A)
L=560
SERVICED BY L=3000
|
0-04750-300-0 |
01 |
1 |
0101- |
|
● |
| |
62 |
05.387 HOSE; RUBBER,BREATHER,RR AXLE
(B)
|
8-97180-765-1 |
01 |
1 |
9811-9906 |
● |
● |
| |
62 |
05.387 HOSE; RUBBER,BREATHER,RR AXLE
(B)
USA
|
8-97229-435-0 |
01 |
1 |
9907-0012 |
● |
● |
| |
62 |
05.387 HOSE; RUBBER,BREATHER,RR AXLE
(B)
USA
|
8-97229-435-0 |
01 |
1 |
0101- |
|
● |
| |
63 |
05.400 PLUG; OIL FILLER,AXLE CASE
USA
|
8-97084-563-0 |
01 |
1 |
9811-0012 |
● |
● |
| |
63 |
05.400 PLUG; OIL FILLER,AXLE CASE
USA
|
8-97084-563-0 |
01 |
1 |
0101- |
|
● |
| |
66 |
05.387 WASHER; LK
04.634
ID=12.2
|
9-09150-512-0 |
08 |
1 |
9811-0012 |
● |
● |
| |
66 |
05.387 WASHER; LK
04.634
ID=12.2
|
9-09150-512-0 |
08 |
1 |
0101- |
|
● |
| |
77 |
05.387 COVER; RR AXLE CASE
USA
|
8-97161-128-0 |
01 |
1 |
9811-0012 |
● |
● |
| |
77 |
05.387 COVER; RR AXLE CASE
USA
|
8-97161-128-0 |
01 |
1 |
0101- |
|
● |
| |
78 |
05.387 GASKET; COVER TO RR AXLE CASE
USA
|
8-97179-955-0 |
01 |
1 |
9811-0012 |
● |
● |
| |
78 |
05.387 GASKET; COVER TO RR AXLE CASE
USA
|
8-97179-955-0 |
01 |
1 |
0101- |
|
● |
| |
79 |
05.387 BOLT; COVER TO CASE
USA
|
8-97179-949-0 |
10 |
1 |
9811-0012 |
● |
● |
| |
79 |
05.387 BOLT; COVER TO CASE
USA
|
8-97179-949-0 |
10 |
1 |
0101- |
|
● |
| |
162 |
05.511 BRACKET; SENSOR HARNESS,RR AXLE
(A)
USA
|
8-97160-374-3 |
01 |
1 |
9811-0012 |
● |
● |
| |
162 |
05.511 BRACKET; SENSOR HARNESS,RR AXLE
(A)
USA
|
8-97160-374-3 |
01 |
1 |
0101- |
|
● |
| |
162 |
05.511 BRACKET; SENSOR HARNESS,RR AXLE
(B)
USA
|
8-97134-272-0 |
01 |
1 |
9908-0012 |
● |
● |
| |
162 |
05.511 BRACKET; SENSOR HARNESS,RR AXLE
(B)
USA
|
8-97134-272-0 |
01 |
1 |
0101- |
|
● |
| |
163 |
05.422 RING; SNAP,AXLE SHAFT
USA
|
8-97081-946-0 |
02 |
1 |
9811-0012 |
● |
● |
| |
163 |
05.422 RING; SNAP,AXLE SHAFT
USA
|
8-97081-946-0 |
02 |
1 |
0101- |
|
● |
