4-15 — FRONT FINAL DRIVE (#32606) — 207 parça

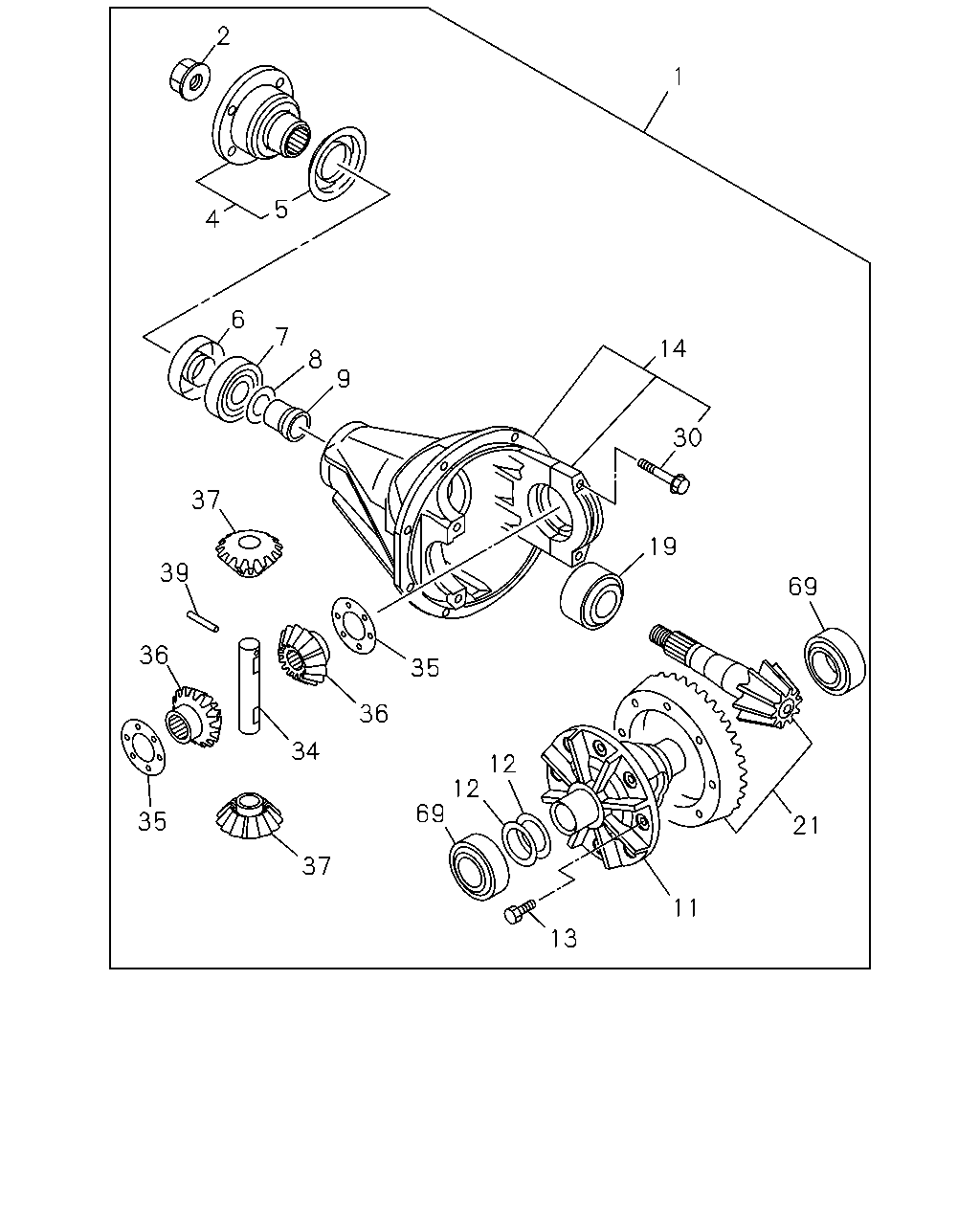

çizim 36624
2 1 5 4 6 7 14 8 9 30 37 19 39 69 36 35 36 34 12 12 69 35 21 37 11 13
BalonParca AdiParca NoAdetTipApplied Date A B
1 05.505 DRIVE ASM; FINAL,FRT
USA 		8-97039-254-0 01 1 9811-0012 ●
1 05.505 DRIVE ASM; FINAL,FRT
TORQUE ON DEMAND(7HA) 41/10 		8-97200-744-1 01 1 0101- ●
1 05.505 DRIVE ASM; FINAL,FRT
FINAL GEAR RATIO 41/10(GT5) USA 		8-97044-727-0 01 1 9811-0012 ●
1 05.505 DRIVE ASM; FINAL,FRT
FINAL GEAR RATIO 41/10(GT5) EXC. TORQUE ON DEMAND(7HA) 41/10 USA 		8-97044-727-0 01 1 0101- ●
1 05.505 DRIVE ASM; FINAL,FRT
FINAL GEAR RATIO 43/10(S7C) USA 		8-97039-250-0 01 1 9811-0012 ●
1 05.505 DRIVE ASM; FINAL,FRT
FINAL GEAR RATIO 43/10(S7C) EXC. TORQUE ON DEMAND(7HA) 43/10 USA 		8-97039-250-0 01 1 0101- ●
2 05.595 NUT; FINAL DRIVE PINION
M18 LOCK NUT 		8-94376-262-0 01 1 9811-0012 ● ●
2 05.595 NUT; FINAL DRIVE PINION
M18 LOCK NUT 		8-94376-262-0 01 1 0101- ●
4 05.545 COUPLING; FINAL DRIVE PINION 8-94318-527-5 01 1 9811-0012 ● ●
4 05.545 COUPLING; FINAL DRIVE PINION
EXC. TORQUE ON DEMAND(7HA) 		8-94318-527-6 01 1 0101- ●
4 05.545 COUPLING; FINAL DRIVE PINION
TORQUE ON DEMAND(7HA) 		8-97200-742-0 01 1 0101- ●
5 05.545 COVER; DUST,PINION,FINAL DRIVE 8-94318-409-0 01 1 9811-0012 ● ●
5 05.545 COVER; DUST,PINION,FINAL DRIVE 8-94318-409-1 01 1 0101- ●
6 05.469 SEAL; OIL,FINAL PINION 8-94318-520-2 01 1 9811-0012 ● ●
6 05.469 SEAL; OIL,FINAL PINION 8-94318-520-2 01 1 0101- ●
7 05.447 BEARING; PINION,OUTER
05.484 NSK 		8-94472-099-0 01 1 9811-0012 ● ●
7 05.447 BEARING; PINION,OUTER
05.484 NSK 		8-94472-099-0 01 1 0101- ●
7 05.447 BEARING; PINION,OUTER
05.484 KOYO 		8-94472-100-1 01 1 0101- ●
8 05.460 SHIM; PINION,FINAL DRIVE
T=2.18 		9-41519-153-1 01 1 9811-0012 ● ●
8 05.460 SHIM; PINION,FINAL DRIVE
T=2.18 		9-41519-153-1 01 1 0101- ●
8 05.460 SHIM; PINION,FINAL DRIVE
T=2.20 		9-41519-154-1 01 1 9811-0012 ● ●
8 05.460 SHIM; PINION,FINAL DRIVE
T=2.20 		9-41519-154-1 01 1 0101- ●
8 05.460 SHIM; PINION,FINAL DRIVE
T=2.22 		9-41519-155-1 01 1 9811-0012 ● ●
8 05.460 SHIM; PINION,FINAL DRIVE
T=2.22 		9-41519-155-1 01 1 0101- ●
8 05.460 SHIM; PINION,FINAL DRIVE
T=2.24 		9-41519-156-1 01 1 9811-0012 ● ●
8 05.460 SHIM; PINION,FINAL DRIVE
T=2.24 		9-41519-156-1 01 1 0101- ●
8 05.460 SHIM; PINION,FINAL DRIVE
T=2.26 		9-41519-157-1 01 1 9811-0012 ● ●
8 05.460 SHIM; PINION,FINAL DRIVE
T=2.26 		9-41519-157-1 01 1 0101- ●
8 05.460 SHIM; PINION,FINAL DRIVE
T=2.28 		9-41519-158-1 01 1 9811-0012 ● ●
8 05.460 SHIM; PINION,FINAL DRIVE
T=2.28 		9-41519-158-1 01 1 0101- ●
8 05.460 SHIM; PINION,FINAL DRIVE
T=2.30 		9-41519-159-1 01 1 9811-0012 ● ●
8 05.460 SHIM; PINION,FINAL DRIVE
T=2.30 		9-41519-159-1 01 1 0101- ●
8 05.460 SHIM; PINION,FINAL DRIVE
T=2.32 		9-41519-160-1 01 1 9811-0012 ● ●
8 05.460 SHIM; PINION,FINAL DRIVE
T=2.32 		9-41519-160-1 01 1 0101- ●
8 05.460 SHIM; PINION,FINAL DRIVE
T=2.34 		9-41519-161-1 01 1 9811-0012 ● ●
8 05.460 SHIM; PINION,FINAL DRIVE
T=2.34 		9-41519-161-1 01 1 0101- ●
8 05.460 SHIM; PINION,FINAL DRIVE
T=2.36 		9-41519-162-1 01 1 9811-0012 ● ●
8 05.460 SHIM; PINION,FINAL DRIVE
T=2.36 		9-41519-162-1 01 1 0101- ●
8 05.460 SHIM; PINION,FINAL DRIVE
T=2.38 		9-41519-163-1 01 1 9811-0012 ● ●
8 05.460 SHIM; PINION,FINAL DRIVE
T=2.38 		9-41519-163-1 01 1 0101- ●
8 05.460 SHIM; PINION,FINAL DRIVE
T=2.40 		9-41519-164-1 01 1 9811-0012 ● ●
8 05.460 SHIM; PINION,FINAL DRIVE
T=2.40 		9-41519-164-1 01 1 0101- ●
8 05.460 SHIM; PINION,FINAL DRIVE
T=2.42 		9-41519-165-1 01 1 9811-0012 ● ●
8 05.460 SHIM; PINION,FINAL DRIVE
T=2.42 		9-41519-165-1 01 1 0101- ●
8 05.460 SHIM; PINION,FINAL DRIVE
T=2.44 		9-41519-166-1 01 1 9811-0012 ● ●
8 05.460 SHIM; PINION,FINAL DRIVE
T=2.44 		9-41519-166-1 01 1 0101- ●
8 05.460 SHIM; PINION,FINAL DRIVE
T=2.46 		9-41519-167-1 01 1 9811-0012 ● ●
8 05.460 SHIM; PINION,FINAL DRIVE
T=2.46 		9-41519-167-1 01 1 0101- ●
8 05.460 SHIM; PINION,FINAL DRIVE
T=2.48 		9-41519-168-1 01 1 9811-0012 ● ●
8 05.460 SHIM; PINION,FINAL DRIVE
T=2.48 		9-41519-168-1 01 1 0101- ●
8 05.460 SHIM; PINION,FINAL DRIVE
T=2.50 		9-41519-169-1 01 1 9811-0012 ● ●
8 05.460 SHIM; PINION,FINAL DRIVE
T=2.50 		9-41519-169-1 01 1 0101- ●
8 05.460 SHIM; PINION,FINAL DRIVE
T=2.52 		9-41519-170-1 01 1 9811-0012 ● ●
8 05.460 SHIM; PINION,FINAL DRIVE
T=2.52 		9-41519-170-1 01 1 0101- ●
8 05.460 SHIM; PINION,FINAL DRIVE
T=2.54 		9-41519-171-1 01 1 9811-0012 ● ●
8 05.460 SHIM; PINION,FINAL DRIVE
T=2.54 		9-41519-171-1 01 1 0101- ●
8 05.460 SHIM; PINION,FINAL DRIVE
T=2.56 		9-41519-172-1 01 1 9811-0012 ● ●
8 05.460 SHIM; PINION,FINAL DRIVE
T=2.56 		9-41519-172-1 01 1 0101- ●
9 05.453 COLLAR; DIST,PINION 8-94472-118-0 01 1 9811-0012 ● ●
9 05.453 COLLAR; DIST,PINION 8-94472-118-0 01 1 0101- ●
11 05.453 CAGE; FINAL PINION 8-97038-515-1 01 1 9811-0012 ● ●
11 05.453 CAGE; FINAL PINION 8-97038-515-1 01 1 0101- ●
12 05.537 SHIM; FINAL PINION CAGE
T=0.10 		8-97130-386-0 AR 1 9811-0012 ● ●
12 05.537 SHIM; FINAL PINION CAGE
T=0.10 		8-97130-386-0 AR 1 0101- ●
12 05.537 SHIM; FINAL PINION CAGE
T=0.50 		8-97130-387-0 AR 1 9811-0012 ● ●
12 05.537 SHIM; FINAL PINION CAGE
T=0.50 		8-97130-387-0 AR 1 0101- ●
12 05.537 SHIM; FINAL PINION CAGE
T=0.24 		9-41519-109-0 AR 1 9811-0012 ● ●
12 05.537 SHIM; FINAL PINION CAGE
T=0.24 		9-41519-109-0 AR 1 0101- ●
12 05.537 SHIM; FINAL PINION CAGE
T=0.15 		9-41519-111-0 AR 1 9811-0012 ● ●
12 05.537 SHIM; FINAL PINION CAGE
T=0.15 		9-41519-111-0 AR 1 0101- ●
13 05.531 BOLT; FINAL PINION CAGE
M10X17 		8-97038-065-0 10 1 9811-0012 ● ●
13 05.531 BOLT; FINAL PINION CAGE
M10X17 		8-97038-065-0 10 1 0101- ●
14 05.505 CARRIER ASM; FINAL DRIVE,FRT AXL 8-94376-231-3 01 1 9811-0012 ● ●
14 05.505 CARRIER ASM; FINAL DRIVE,FRT AXL
EXC. TORQUE ON DEMAND(7HA) 		8-94376-231-3 01 1 0101-0111 ●
14 05.505 CARRIER ASM; FINAL DRIVE,FRT AXL 8-94376-231-3 01 1 0112- ●
14 05.505 CARRIER ASM; FINAL DRIVE,FRT AXL
TORQUE ON DEMAND(7HA) 		8-97183-890-1 01 1 0101-0111 ●
19 05.484 BEARING; PINION,INNER
NSK 		9-00093-621-0 01 1 9811-0012 ● ●
19 05.484 BEARING; PINION,INNER
NSK 		9-00093-621-0 01 1 0101- ●
21 05.529 GEAR SET; FINAL DRIVE,FRT
USA 		8-97039-255-1 01 1 9811-0012 ●
21 05.529 GEAR SET; FINAL DRIVE,FRT
FINAL GEAR RATIO 41/10(GT5) 		8-97044-728-0 01 1 9811- ●
21 05.529 GEAR SET; FINAL DRIVE,FRT
FINAL GEAR RATIO 43/10(S7C) USA 		8-97039-251-1 01 1 9811-0012 ●
21 05.529 GEAR SET; FINAL DRIVE,FRT
FINAL GEAR RATIO 43/10(S7C) EXC. TORQUE ON DEMAND(7HA) USA 		8-97039-251-1 01 1 0101- ●
30 05.506 BOLT; DIFF CAGE SETTING
05.387 M12X62 		8-94376-322-0 04 1 9811-0012 ● ●
30 05.506 BOLT; DIFF CAGE SETTING
05.387 M12X62 		8-94376-322-0 04 1 0101- ●
34 05.520 PIN; CROSS,DIFF PINION
05.517 		9-41521-044-1 01 1 9811-0012 ● ●
34 05.520 PIN; CROSS,DIFF PINION
05.517 		9-41521-044-1 01 1 0101- ●
35 05.543 WASHER; THRUST,SIDE GEAR
T=1.00 		5-41562-005-1 02 1 9811-0012 ● ●
35 05.543 WASHER; THRUST,SIDE GEAR
T=1.00 		5-41562-005-1 02 1 0101- ●
35 05.543 WASHER; THRUST,SIDE GEAR
T=1.05 		5-41562-006-1 02 1 9811-0012 ● ●
35 05.543 WASHER; THRUST,SIDE GEAR
T=1.05 		5-41562-006-1 02 1 0101- ●
35 05.543 WASHER; THRUST,SIDE GEAR
T=1.10 		5-41562-007-1 02 1 9811-0012 ● ●
35 05.543 WASHER; THRUST,SIDE GEAR
T=1.10 		5-41562-007-1 02 1 0101- ●
36 05.528 GEAR; SIDE,DIFF
Z=17 		8-97079-519-1 02 1 9811-0012 ● ●
36 05.528 GEAR; SIDE,DIFF
Z=17 		8-97079-519-1 02 1 0101- ●
37 05.527 GEAR; PINION DIFF
Z=10 		8-97079-518-0 02 1 9811-0012 ● ●
37 05.527 GEAR; PINION DIFF
Z=10 		8-97079-518-0 02 1 0101- ●
39 05.518 PIN; LK,CROSS PIN
OD=5 L=35 		9-09878-096-0 01 1 9811-0012 ● ●
39 05.518 PIN; LK,CROSS PIN
OD=5 L=35 		9-09878-096-0 01 1 0101- ●
69 05.453 BEARING; DIFF SIDE
05.536 NSK 		9-00093-074-0 02 1 9811-0012 ● ●
69 05.453 BEARING; DIFF SIDE
FINAL GEAR RATIO 41/10(GT5) 05.536 NSK 		9-00093-074-0 02 1 0101-0108 ●
69 05.453 BEARING; DIFF SIDE
05.536 NSK 		9-00093-074-0 02 1 0109- ●
69 05.453 BEARING; DIFF SIDE
FINAL GEAR RATIO 43/10(S7C) EXC. TORQUE ON DEMAND(7HA) 05.536 NSK 		9-00093-074-0 02 1 0101-0108 ●

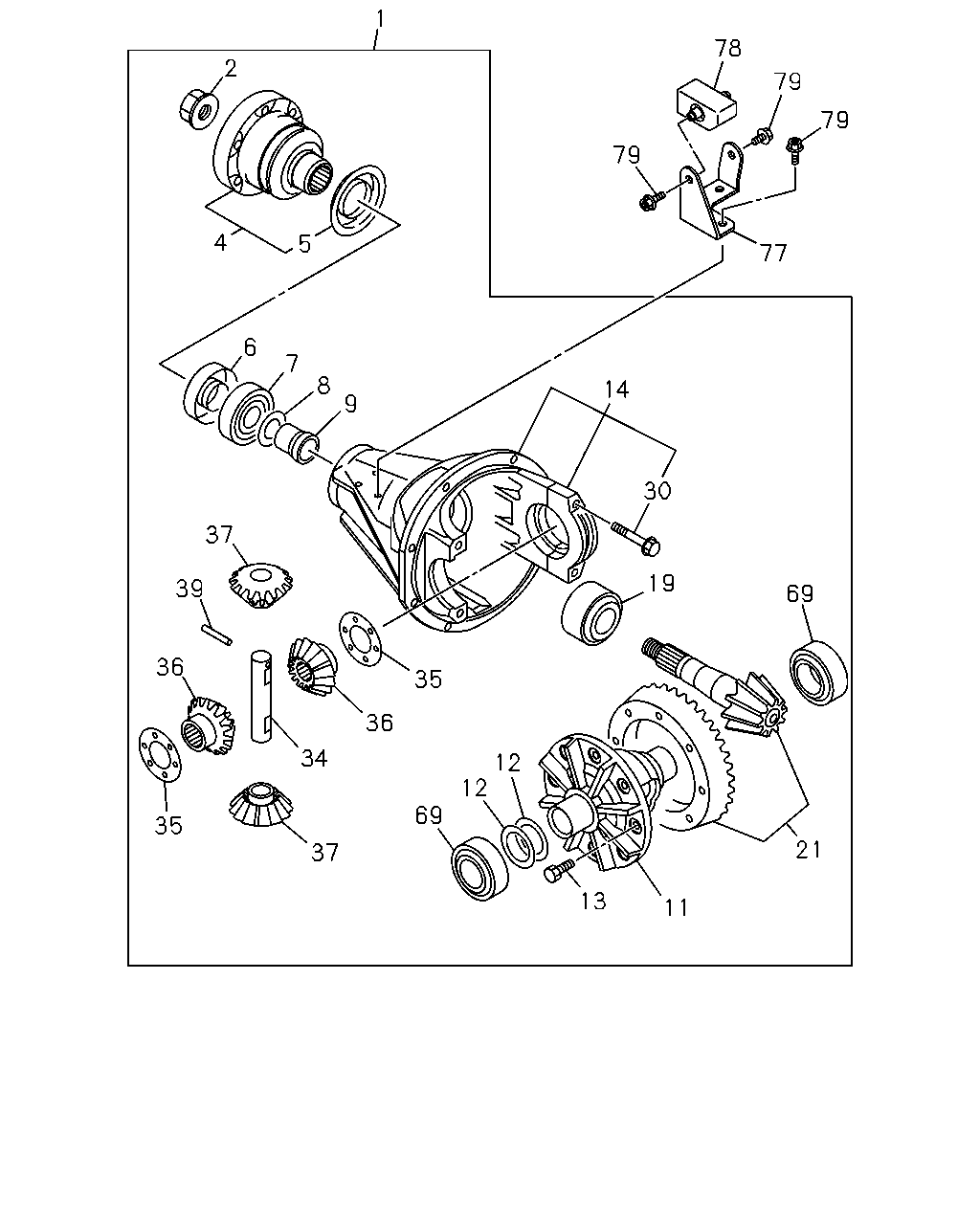

çizim 39251
1 78 2 79 79 79 4 5 77 6 7 8 9 14 30 37 19 39 69 36 35 36 34 12 12 69 35 21 37 13 11
BalonParca AdiParca NoAdetTipApplied Date A B
1 05.505 DRIVE ASM; FINAL,FRT
USA 		8-97039-254-0 01 1 9811-0012 ●
1 05.505 DRIVE ASM; FINAL,FRT
TORQUE ON DEMAND(7HA) 41/10 		8-97200-744-1 01 1 0101- ●
1 05.505 DRIVE ASM; FINAL,FRT
FINAL GEAR RATIO 41/10(GT5) USA 		8-97044-727-0 01 1 9811-0012 ●
1 05.505 DRIVE ASM; FINAL,FRT
FINAL GEAR RATIO 41/10(GT5) EXC. TORQUE ON DEMAND(7HA) 41/10 USA 		8-97044-727-0 01 1 0101- ●
1 05.505 DRIVE ASM; FINAL,FRT
FINAL GEAR RATIO 43/10(S7C) USA 		8-97039-250-0 01 1 9811-0012 ●
1 05.505 DRIVE ASM; FINAL,FRT
FINAL GEAR RATIO 43/10(S7C) EXC. TORQUE ON DEMAND(7HA) 43/10 USA 		8-97039-250-0 01 1 0101- ●
2 05.595 NUT; FINAL DRIVE PINION
M18 LOCK NUT 		8-94376-262-0 01 1 9811-0012 ● ●
2 05.595 NUT; FINAL DRIVE PINION
M18 LOCK NUT 		8-94376-262-0 01 1 0101- ●
4 05.545 COUPLING; FINAL DRIVE PINION 8-94318-527-5 01 1 9811-0012 ● ●
4 05.545 COUPLING; FINAL DRIVE PINION
EXC. TORQUE ON DEMAND(7HA) 		8-94318-527-6 01 1 0101- ●
4 05.545 COUPLING; FINAL DRIVE PINION
TORQUE ON DEMAND(7HA) 		8-97200-742-0 01 1 0101- ●
5 05.545 COVER; DUST,PINION,FINAL DRIVE 8-94318-409-0 01 1 9811-0012 ● ●
5 05.545 COVER; DUST,PINION,FINAL DRIVE 8-94318-409-1 01 1 0101- ●
6 05.469 SEAL; OIL,FINAL PINION 8-94318-520-2 01 1 9811-0012 ● ●
6 05.469 SEAL; OIL,FINAL PINION 8-94318-520-2 01 1 0101- ●
7 05.447 BEARING; PINION,OUTER
05.484 NSK 		8-94472-099-0 01 1 9811-0012 ● ●
7 05.447 BEARING; PINION,OUTER
05.484 NSK 		8-94472-099-0 01 1 0101- ●
7 05.447 BEARING; PINION,OUTER
05.484 KOYO 		8-94472-100-1 01 1 0101- ●
8 05.460 SHIM; PINION,FINAL DRIVE
T=2.18 		9-41519-153-1 01 1 9811-0012 ● ●
8 05.460 SHIM; PINION,FINAL DRIVE
T=2.18 		9-41519-153-1 01 1 0101- ●
8 05.460 SHIM; PINION,FINAL DRIVE
T=2.20 		9-41519-154-1 01 1 9811-0012 ● ●
8 05.460 SHIM; PINION,FINAL DRIVE
T=2.20 		9-41519-154-1 01 1 0101- ●
8 05.460 SHIM; PINION,FINAL DRIVE
T=2.22 		9-41519-155-1 01 1 9811-0012 ● ●
8 05.460 SHIM; PINION,FINAL DRIVE
T=2.22 		9-41519-155-1 01 1 0101- ●
8 05.460 SHIM; PINION,FINAL DRIVE
T=2.24 		9-41519-156-1 01 1 9811-0012 ● ●
8 05.460 SHIM; PINION,FINAL DRIVE
T=2.24 		9-41519-156-1 01 1 0101- ●
8 05.460 SHIM; PINION,FINAL DRIVE
T=2.26 		9-41519-157-1 01 1 9811-0012 ● ●
8 05.460 SHIM; PINION,FINAL DRIVE
T=2.26 		9-41519-157-1 01 1 0101- ●
8 05.460 SHIM; PINION,FINAL DRIVE
T=2.28 		9-41519-158-1 01 1 9811-0012 ● ●
8 05.460 SHIM; PINION,FINAL DRIVE
T=2.28 		9-41519-158-1 01 1 0101- ●
8 05.460 SHIM; PINION,FINAL DRIVE
T=2.30 		9-41519-159-1 01 1 9811-0012 ● ●
8 05.460 SHIM; PINION,FINAL DRIVE
T=2.30 		9-41519-159-1 01 1 0101- ●
8 05.460 SHIM; PINION,FINAL DRIVE
T=2.32 		9-41519-160-1 01 1 9811-0012 ● ●
8 05.460 SHIM; PINION,FINAL DRIVE
T=2.32 		9-41519-160-1 01 1 0101- ●
8 05.460 SHIM; PINION,FINAL DRIVE
T=2.34 		9-41519-161-1 01 1 9811-0012 ● ●
8 05.460 SHIM; PINION,FINAL DRIVE
T=2.34 		9-41519-161-1 01 1 0101- ●
8 05.460 SHIM; PINION,FINAL DRIVE
T=2.36 		9-41519-162-1 01 1 9811-0012 ● ●
8 05.460 SHIM; PINION,FINAL DRIVE
T=2.36 		9-41519-162-1 01 1 0101- ●
8 05.460 SHIM; PINION,FINAL DRIVE
T=2.38 		9-41519-163-1 01 1 9811-0012 ● ●
8 05.460 SHIM; PINION,FINAL DRIVE
T=2.38 		9-41519-163-1 01 1 0101- ●
8 05.460 SHIM; PINION,FINAL DRIVE
T=2.40 		9-41519-164-1 01 1 9811-0012 ● ●
8 05.460 SHIM; PINION,FINAL DRIVE
T=2.40 		9-41519-164-1 01 1 0101- ●
8 05.460 SHIM; PINION,FINAL DRIVE
T=2.42 		9-41519-165-1 01 1 9811-0012 ● ●
8 05.460 SHIM; PINION,FINAL DRIVE
T=2.42 		9-41519-165-1 01 1 0101- ●
8 05.460 SHIM; PINION,FINAL DRIVE
T=2.44 		9-41519-166-1 01 1 9811-0012 ● ●
8 05.460 SHIM; PINION,FINAL DRIVE
T=2.44 		9-41519-166-1 01 1 0101- ●
8 05.460 SHIM; PINION,FINAL DRIVE
T=2.46 		9-41519-167-1 01 1 9811-0012 ● ●
8 05.460 SHIM; PINION,FINAL DRIVE
T=2.46 		9-41519-167-1 01 1 0101- ●
8 05.460 SHIM; PINION,FINAL DRIVE
T=2.48 		9-41519-168-1 01 1 9811-0012 ● ●
8 05.460 SHIM; PINION,FINAL DRIVE
T=2.48 		9-41519-168-1 01 1 0101- ●
8 05.460 SHIM; PINION,FINAL DRIVE
T=2.50 		9-41519-169-1 01 1 9811-0012 ● ●
8 05.460 SHIM; PINION,FINAL DRIVE
T=2.50 		9-41519-169-1 01 1 0101- ●
8 05.460 SHIM; PINION,FINAL DRIVE
T=2.52 		9-41519-170-1 01 1 9811-0012 ● ●
8 05.460 SHIM; PINION,FINAL DRIVE
T=2.52 		9-41519-170-1 01 1 0101- ●
8 05.460 SHIM; PINION,FINAL DRIVE
T=2.54 		9-41519-171-1 01 1 9811-0012 ● ●
8 05.460 SHIM; PINION,FINAL DRIVE
T=2.54 		9-41519-171-1 01 1 0101- ●
8 05.460 SHIM; PINION,FINAL DRIVE
T=2.56 		9-41519-172-1 01 1 9811-0012 ● ●
8 05.460 SHIM; PINION,FINAL DRIVE
T=2.56 		9-41519-172-1 01 1 0101- ●
9 05.453 COLLAR; DIST,PINION 8-94472-118-0 01 1 9811-0012 ● ●
9 05.453 COLLAR; DIST,PINION 8-94472-118-0 01 1 0101- ●
11 05.453 CAGE; FINAL PINION 8-97038-515-1 01 1 9811-0012 ● ●
11 05.453 CAGE; FINAL PINION 8-97038-515-1 01 1 0101- ●
12 05.537 SHIM; FINAL PINION CAGE
T=0.10 		8-97130-386-0 AR 1 9811-0012 ● ●
12 05.537 SHIM; FINAL PINION CAGE
T=0.10 		8-97130-386-0 AR 1 0101- ●
12 05.537 SHIM; FINAL PINION CAGE
T=0.50 		8-97130-387-0 AR 1 9811-0012 ● ●
12 05.537 SHIM; FINAL PINION CAGE
T=0.50 		8-97130-387-0 AR 1 0101- ●
12 05.537 SHIM; FINAL PINION CAGE
T=0.24 		9-41519-109-0 AR 1 9811-0012 ● ●
12 05.537 SHIM; FINAL PINION CAGE
T=0.24 		9-41519-109-0 AR 1 0101- ●
12 05.537 SHIM; FINAL PINION CAGE
T=0.15 		9-41519-111-0 AR 1 9811-0012 ● ●
12 05.537 SHIM; FINAL PINION CAGE
T=0.15 		9-41519-111-0 AR 1 0101- ●
13 05.531 BOLT; FINAL PINION CAGE
M10X17 		8-97038-065-0 10 1 9811-0012 ● ●
13 05.531 BOLT; FINAL PINION CAGE
M10X17 		8-97038-065-0 10 1 0101- ●
14 05.505 CARRIER ASM; FINAL DRIVE,FRT AXL 8-94376-231-3 01 1 9811-0012 ● ●
14 05.505 CARRIER ASM; FINAL DRIVE,FRT AXL
EXC. TORQUE ON DEMAND(7HA) 		8-94376-231-3 01 1 0101-0111 ●
14 05.505 CARRIER ASM; FINAL DRIVE,FRT AXL 8-94376-231-3 01 1 0112- ●
14 05.505 CARRIER ASM; FINAL DRIVE,FRT AXL
TORQUE ON DEMAND(7HA) 		8-97183-890-1 01 1 0101-0111 ●
19 05.484 BEARING; PINION,INNER
NSK 		9-00093-621-0 01 1 9811-0012 ● ●
19 05.484 BEARING; PINION,INNER
NSK 		9-00093-621-0 01 1 0101- ●
21 05.529 GEAR SET; FINAL DRIVE,FRT
USA 		8-97039-255-1 01 1 9811-0012 ●
21 05.529 GEAR SET; FINAL DRIVE,FRT
FINAL GEAR RATIO 41/10(GT5) 		8-97044-728-0 01 1 9811- ●
21 05.529 GEAR SET; FINAL DRIVE,FRT
FINAL GEAR RATIO 43/10(S7C) USA 		8-97039-251-1 01 1 9811-0012 ●
21 05.529 GEAR SET; FINAL DRIVE,FRT
FINAL GEAR RATIO 43/10(S7C) EXC. TORQUE ON DEMAND(7HA) USA 		8-97039-251-1 01 1 0101- ●
30 05.506 BOLT; DIFF CAGE SETTING
05.387 M12X62 		8-94376-322-0 04 1 9811-0012 ● ●
30 05.506 BOLT; DIFF CAGE SETTING
05.387 M12X62 		8-94376-322-0 04 1 0101- ●
34 05.520 PIN; CROSS,DIFF PINION
05.517 		9-41521-044-1 01 1 9811-0012 ● ●
34 05.520 PIN; CROSS,DIFF PINION
05.517 		9-41521-044-1 01 1 0101- ●
35 05.543 WASHER; THRUST,SIDE GEAR
T=1.00 		5-41562-005-1 02 1 9811-0012 ● ●
35 05.543 WASHER; THRUST,SIDE GEAR
T=1.00 		5-41562-005-1 02 1 0101- ●
35 05.543 WASHER; THRUST,SIDE GEAR
T=1.05 		5-41562-006-1 02 1 9811-0012 ● ●
35 05.543 WASHER; THRUST,SIDE GEAR
T=1.05 		5-41562-006-1 02 1 0101- ●
35 05.543 WASHER; THRUST,SIDE GEAR
T=1.10 		5-41562-007-1 02 1 9811-0012 ● ●
35 05.543 WASHER; THRUST,SIDE GEAR
T=1.10 		5-41562-007-1 02 1 0101- ●
36 05.528 GEAR; SIDE,DIFF
Z=17 		8-97079-519-1 02 1 9811-0012 ● ●
36 05.528 GEAR; SIDE,DIFF
Z=17 		8-97079-519-1 02 1 0101- ●
37 05.527 GEAR; PINION DIFF
Z=10 		8-97079-518-0 02 1 9811-0012 ● ●
37 05.527 GEAR; PINION DIFF
Z=10 		8-97079-518-0 02 1 0101- ●
39 05.518 PIN; LK,CROSS PIN
OD=5 L=35 		9-09878-096-0 01 1 9811-0012 ● ●
39 05.518 PIN; LK,CROSS PIN
OD=5 L=35 		9-09878-096-0 01 1 0101- ●
69 05.453 BEARING; DIFF SIDE
05.536 NSK 		9-00093-074-0 02 1 9811-0012 ● ●
69 05.453 BEARING; DIFF SIDE
FINAL GEAR RATIO 41/10(GT5) 05.536 NSK 		9-00093-074-0 02 1 0101-0108 ●
69 05.453 BEARING; DIFF SIDE
05.536 NSK 		9-00093-074-0 02 1 0109- ●
69 05.453 BEARING; DIFF SIDE
FINAL GEAR RATIO 43/10(S7C) EXC. TORQUE ON DEMAND(7HA) 05.536 NSK 		9-00093-074-0 02 1 0101-0108 ●
77 05.510 BRACKET; DAMPER
TORQUE ON DEMAND(7HA) 		8-97183-627-0 01 1 0101-0106 ●
78 05.500 DAMPER; FINAL DRIVE
TORQUE ON DEMAND(7HA) 		8-97183-891-0 01 1 0101-0106 ●
79 05.510 BOLT; BRKT
TORQUE ON DEMAND(7HA) M8X16 		8-97138-666-0 05 1 0101-0106 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
