Sayfa 4-12 - Isuzu EPC

4-12 — FRONT DRIVE SHAFT (#32605) — 307 parça

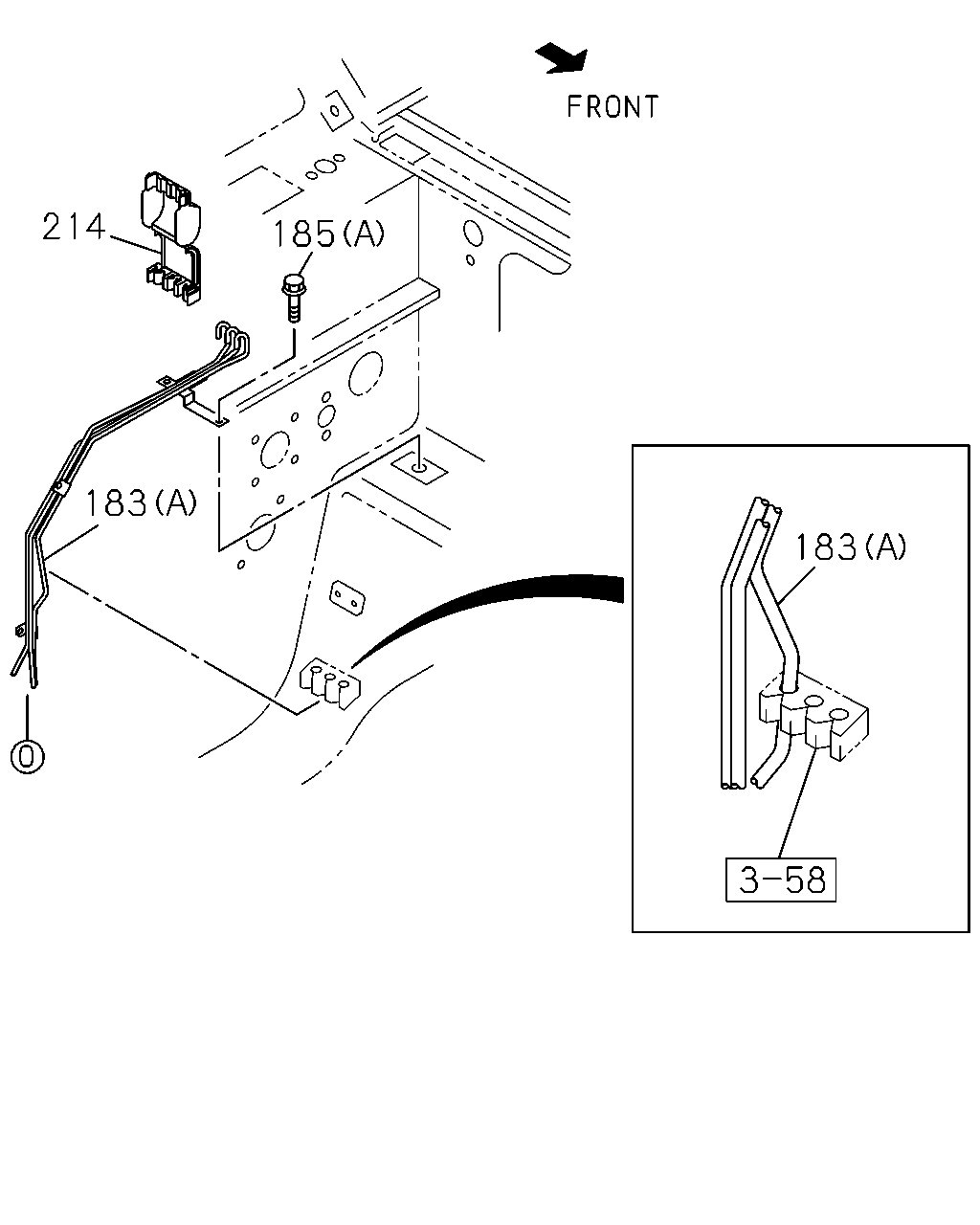

214 185 183 183

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
183	06.008 PIPE; BREATHER (B) USA	8-97208-684-2	01	1	0101-	●
183	06.008 PIPE; BREATHER (A) USA	8-97208-685-0	01	1	0101-	●
185	06.008 BOLT; PIPE,BREATHER 06.635 (A) M6X16 FLANGE	0-28480-616-0	01	1	0101-	●
185	06.008 BOLT; PIPE,BREATHER 08.155 (B) M8X16 FLANGE	0-28480-816-0	01	1	0101-	●
214	06.008 COVER; BREATHER THA	8-97261-746-0	01	1	0101-	●

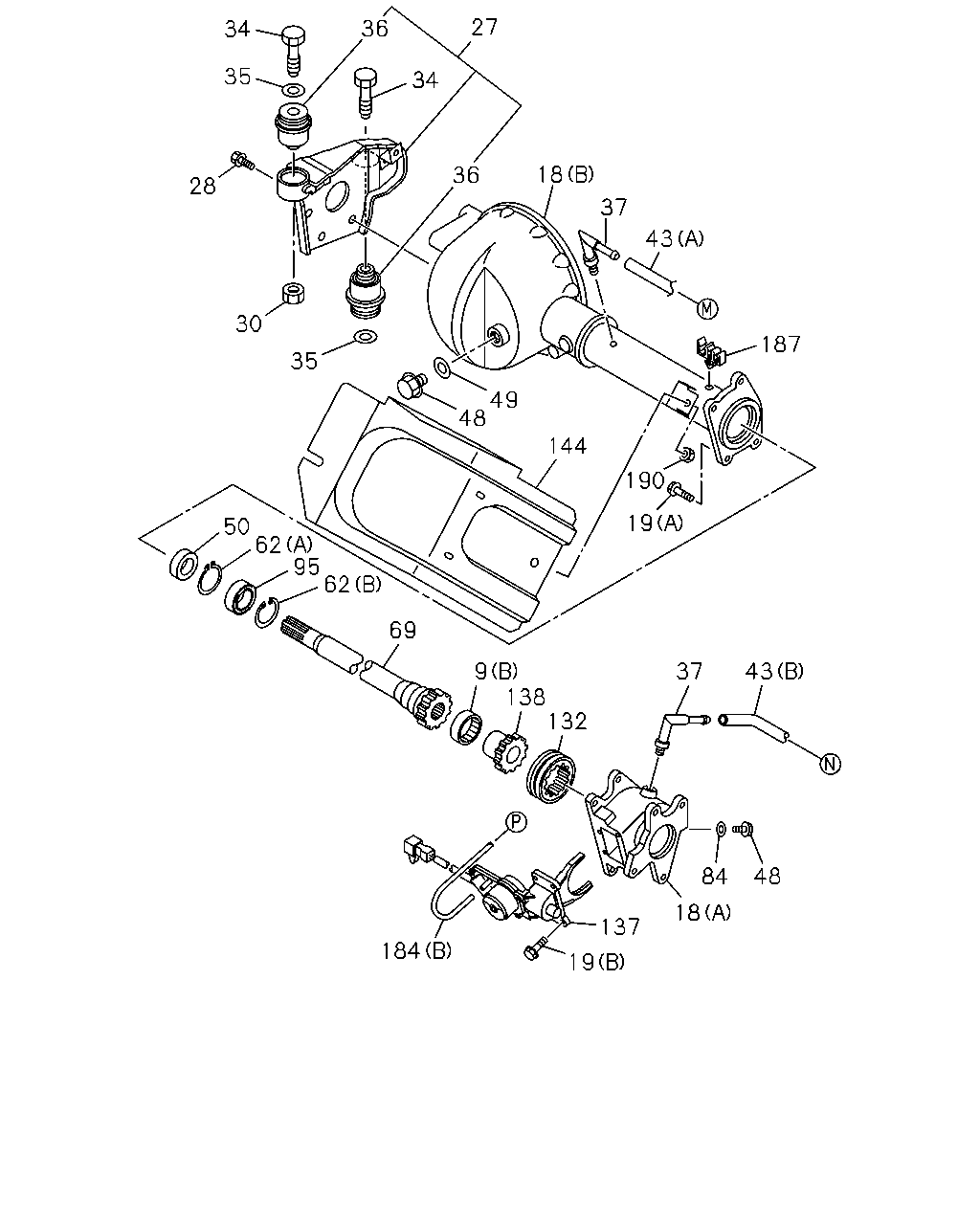

27 36 34 35 34 18 36 28 37 43 30 187 35 49 48 144 190 19 50 62 95 62 69 37 43 9 138 132 84 48 18 137 184 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	06.056 BEARING; AXLE SHAFT,INNER (B)	8-97101-878-0	01	1	9811-0012	●	●
9	06.056 BEARING; AXLE SHAFT,INNER (B)	8-97101-878-0	01	1	0101-	●
9	06.056 BEARING; AXLE SHAFT,INNER (A) USA	8-97124-188-0	02	1	9811-0012	●	●
9	06.056 BEARING; AXLE SHAFT,INNER (A) USA	8-97124-188-0	02	1	0101-	●
18	06.008 CASE; FRT AXLE (A)	8-97081-658-2	01	1	9811-0012	●	●
18	06.008 CASE; FRT AXLE (A)	8-97081-658-3	01	1	0101-	●
18	06.008 CASE; FRT AXLE (B)	8-97125-439-1	01	1	9811-0012	●	●
18	06.008 CASE; FRT AXLE (B)	8-97125-439-1	01	1	0101-	●
19	06.156 BOLT; FRT AXLE 06.056 (A) M12X22 FLANGE	0-28081-222-0	04	1	9811-0012	●	●
19	06.156 BOLT; FRT AXLE 06.056 (A) M12X22 FLANGE	0-28081-222-0	04	1	0101-	●
19	06.156 BOLT; FRT AXLE 16.335 (B) M8X20 FLANGE	0-28280-820-0	04	1	9811-0012	●	●
19	06.156 BOLT; FRT AXLE 16.335 (B) M8X20 FLANGE	0-28280-820-0	04	1	0101-	●
19	06.156 BOLT; FRT AXLE 06.635 (G) M6X16 FLANGE	0-28480-616-0	01	1	9811-0012	●	●
19	06.156 BOLT; FRT AXLE 08.155 (C) M8X16 FLANGE	0-28480-816-0	01	1	9811-0012	●	●
19	06.156 BOLT; FRT AXLE 04.595 (H) M8X20 FLANGE	0-28480-820-0	02	1	9811-0012	●	●
19	06.156 BOLT; FRT AXLE (E) M8X25 W/LK WASHER	8-97093-664-0	06	1	9811-0012	●	●
19	06.156 BOLT; FRT AXLE (E) M8X25 W/LK WASHER	8-97093-664-1	06	1	0101-	●
19	06.156 BOLT; FRT AXLE (D) M8X30 W/LK WASHER	8-97093-665-0	02	1	9811-0012	●	●
19	06.156 BOLT; FRT AXLE (D) M8X30 W/LK WASHER	8-97093-665-1	02	1	0101-	●
19	06.156 BOLT; FRT AXLE (F) M8X90 W/LK WASHER	8-97093-666-0	02	1	9811-0012	●	●
19	06.156 BOLT; FRT AXLE (F) M8X90 W/LK WASHER	8-97093-666-1	02	1	0101-	●
27	06.056 BRACKET; AXLE CASE USA	8-97125-450-0	01	1	9811-0012		●
27	06.056 BRACKET; AXLE CASE TORQUE ON DEMAND(7HA) USA	8-97218-222-2	01	1	0101-	●
27	06.056 BRACKET; AXLE CASE USA	8-97125-449-0	01	1	9811-0012		●
27	06.056 BRACKET; AXLE CASE TORQUE ON DEMAND(7HA) USA	8-97218-221-2	01	1	0101-	●
27	06.056 BRACKET; AXLE CASE USA	8-97125-443-0	01	1	9811-0012	●
27	06.056 BRACKET; AXLE CASE EXC. TORQUE ON DEMAND(7HA) USA	8-97125-443-0	01	1	0101-0304	●
27	06.056 BRACKET; AXLE CASE EXC. TORQUE ON DEMAND(7HA) USA	8-97366-506-0	01	1	0305-	●
27	06.056 BRACKET; AXLE CASE USA	8-97125-442-0	01	1	9811-0012	●
27	06.056 BRACKET; AXLE CASE EXC. TORQUE ON DEMAND(7HA) USA	8-97125-442-0	01	1	0101-0304	●
27	06.056 BRACKET; AXLE CASE EXC. TORQUE ON DEMAND(7HA) USA	8-97366-505-0	01	1	0305-	●
28	06.056 BOLT; BRKT TO AXLE CASE M12X22 FLANGE	0-28081-222-0	08	1	9811-0012	●	●
28	06.056 BOLT; BRKT TO AXLE CASE M12X22 FLANGE	0-28081-222-0	08	1	0101-0105	●
28	06.056 BOLT; BRKT TO AXLE CASE M12X20 FLANGE	0-28091-220-0	08	1	0106-	●
30	06.008 NUT; FRT AXLE MTG 06.170 M14 FLANGE	0-91150-214-0	02	1	9811-0012	●	●
30	06.008 NUT; FRT AXLE MTG 06.170 M14 FLANGE	0-91150-214-0	02	1	0101-	●
34	06.008 BOLT; FRT AXLE MTG M14X80 FLANGE	0-29291-480-0	04	1	9811-0012	●	●
34	06.008 BOLT; FRT AXLE MTG M14X80 FLANGE	0-29291-480-0	04	1	0101-	●
35	06.008 WASHER; FRT AXLE MTG ID=14 OD=50	8-97093-581-0	04	1	9811-0012	●	●
35	06.008 WASHER; FRT AXLE MTG ID=14 OD=50	8-97093-581-0	04	1	0101-	●
36	06.008 BUSHING; RUBBER,FRT AXLE MTG USA	8-97139-268-0	02	1	9811-0012	●	●
36	06.008 BUSHING; RUBBER,FRT AXLE MTG USA	8-97139-268-0	02	1	0101-0304	●
36	06.008 BUSHING; RUBBER,FRT AXLE MTG USA	8-97366-511-0	02	1	0305-	●
36	06.008 BUSHING; RUBBER,FRT AXLE MTG USA	8-97149-540-0	02	1	9811-0012	●	●
36	06.008 BUSHING; RUBBER,FRT AXLE MTG USA	8-97149-540-0	02	1	0101-0304	●
36	06.008 BUSHING; RUBBER,FRT AXLE MTG USA	8-97366-510-0	02	1	0305-	●
37	06.008 BREATHER; FRT AXLE CASE	8-94226-943-0	02	1	9811-0012	●	●
37	06.008 BREATHER; FRT AXLE CASE	8-94226-943-0	02	1	0101-	●
43	06.008 HOSE; RUBBER,AIR BREATHER 08.962 (C) L=150 SERVICED BY L=3000	0-04740-300-0	02	1	9811-9903	●	●
43	06.008 HOSE; RUBBER,AIR BREATHER 08.962 (C) L=140 SERVICED BY L=3000	0-04740-300-0	02	1	9904-0012	●	●
43	06.008 HOSE; RUBBER,AIR BREATHER 08.962 (A) L=100 SERVICED BY L=3000	0-04750-300-0	01	1	9811-0012	●	●
43	06.008 HOSE; RUBBER,AIR BREATHER 08.962 (A) L=100 SERVICED BY L=3000	0-04750-300-0	01	1	0101-	●
43	06.008 HOSE; RUBBER,AIR BREATHER 08.962 (B) L=50 SERVICED BY L=3000	0-04750-300-0	01	1	9811-0012	●	●
43	06.008 HOSE; RUBBER,AIR BREATHER 08.962 (B) L=50 SERVICED BY L=3000	0-04750-300-0	01	1	0101-	●
48	05.400 PLUG; DRAIN,AXLE CASE 04.103 M20X10.5	9-09662-005-0	02	1	9811-0012	●	●
48	05.400 PLUG; DRAIN,AXLE CASE 04.103 M20X10.5	9-09662-005-0	02	1	0101-	●
49	05.400 GASKET; DRAIN PLUG ID=20 OD=30	8-94462-734-0	01	1	9811-0012	●	●
49	05.400 GASKET; DRAIN PLUG ID=20 OD=30	8-94462-734-0	01	1	0101-	●
50	06.061 SEAL; OIL,SHAFT,FRT AXLE	8-97084-507-0	01	1	9811-0012	●	●
50	06.061 SEAL; OIL,SHAFT,FRT AXLE	8-97084-507-0	01	1	0101-	●
62	06.061 RING; SNAP,AXLE SHAFT 08.934 (A) ID=37.0	9-09180-040-0	01	1	9811-0012	●	●
62	06.061 RING; SNAP,AXLE SHAFT 08.934 (A) ID=37.0	9-09180-040-0	01	1	0101-	●
62	06.061 RING; SNAP,AXLE SHAFT 01.105 (B) ID=57.9	9-09180-162-0	01	1	9811-0012	●	●
62	06.061 RING; SNAP,AXLE SHAFT 01.105 (B) ID=57.9	9-09180-162-0	01	1	0101-	●
69	06.055 SHAFT; AXLE,FRT INNER	8-97188-174-0	01	1	9811-0012	●	●
69	06.055 SHAFT; AXLE,FRT INNER	8-97188-174-1	01	1	0101-	●
84	06.326 GASKET; PLUG,OIL FILLER 05.400 ID=20 OD=30	8-94462-734-0	01	1	9811-0012	●	●
84	06.326 GASKET; PLUG,OIL FILLER 05.400 ID=20 OD=30	8-94462-734-0	01	1	0101-	●
95	06.008 BEARING; AXLE SHAFT,FRT	8-97103-392-0	01	1	9811-0012	●	●
95	06.008 BEARING; AXLE SHAFT,FRT	8-97103-392-0	01	1	0101-	●
132	06.008 SLEEVE; RUBBER,HOSE	8-97130-567-1	01	1	9811-0012	●	●
132	06.008 SLEEVE; RUBBER,HOSE	8-97130-567-1	01	1	0101-	●
137	06.008 ACTUATOR; AXLE USA	8-97101-856-3	01	1	9811-0012	●	●
137	06.008 ACTUATOR; AXLE	8-97208-683-8	01	1	0101-	●
138	06.008 GEAR; CLUTCH Z=17	8-97134-857-1	01	1	9811-0012	●	●
138	06.008 GEAR; CLUTCH Z=17	8-97134-857-1	01	1	0101-	●
144	06.008 PROTECTOR 02.440	8-97223-626-2	01	1	0101-	●
184	06.008 HOSE; BREATHER 08.962 (B) L=180 SERVICED BY L=3000	0-04745-300-0	01	1	0101-	●
184	06.008 HOSE; BREATHER (A) USA	8-97260-489-0	01	1	0101-	●
187	06.008 CLIP; HOSE,BREATHER 04.686 THA	8-94442-883-1	01	1	0101-	●
190	06.008 NUT; PROTECTOR 03.023 M10 FLANGE USA	8-97142-595-0	01	1	0101-	●

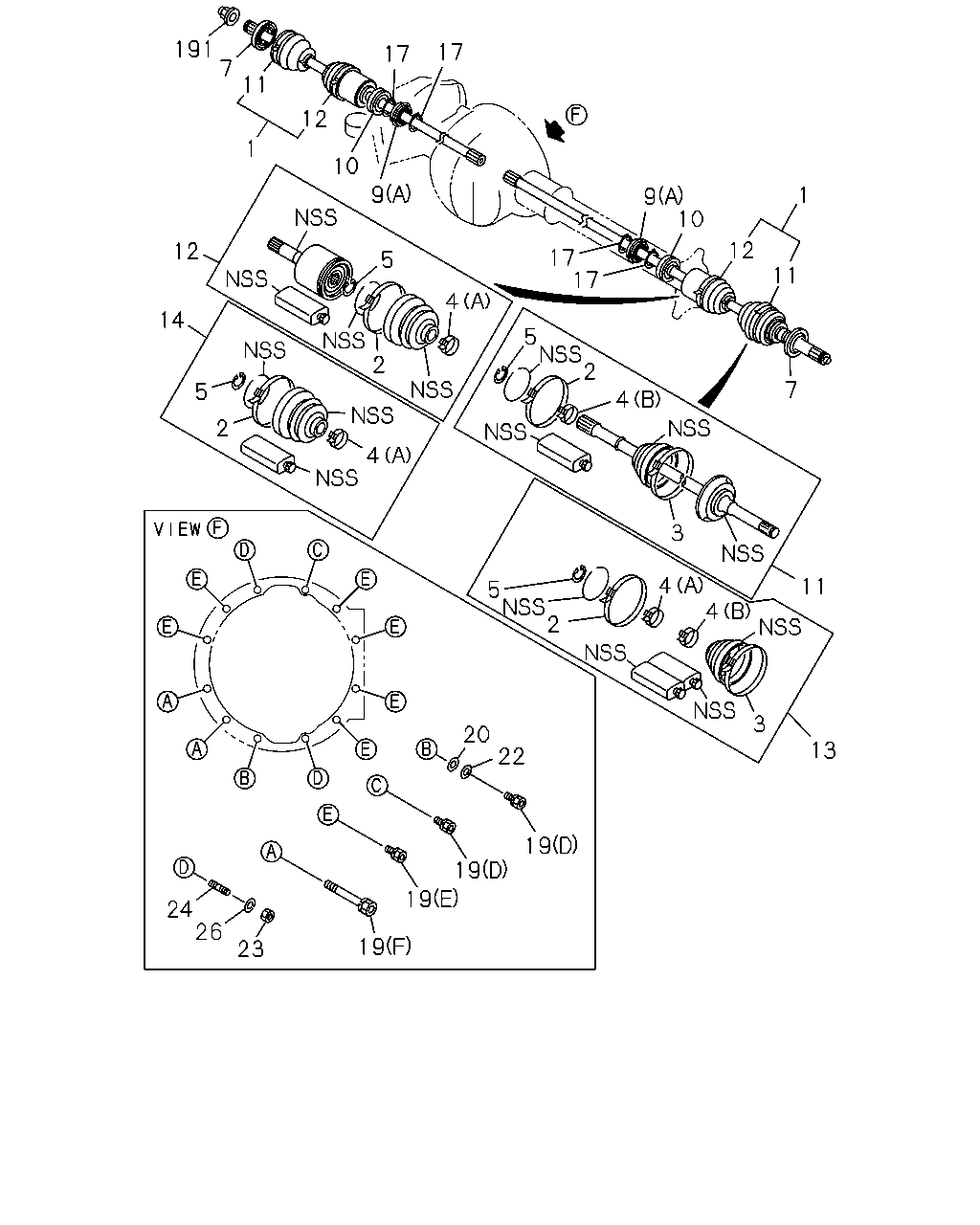

3 11 4 4 13 3 4 7 11 1 12 10 9 17 4 17 5 2 5 2 9 10 17 17 12 11 1 7 191 12 14 4 5 5 2 2 20 22 19 19 19 19 23 26 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	06.055 SHAFT ASM; FRT DRIVE USA	8-97184-576-0	02	1	9811-0012	●	●
1	06.055 SHAFT ASM; FRT DRIVE USA	8-97184-576-0	02	1	0101-0108	●
1	06.055 SHAFT ASM; FRT DRIVE USA	8-97209-981-3	02	1	0109-	●
2	06.061 BAND; "A",FRT DRIVE SHAFT USA	8-97212-745-0	02	1	9811-0012	●	●
2	06.061 BAND; "A",FRT DRIVE SHAFT USA	8-97212-745-0	02	1	0101-0108	●
2	06.061 BAND; "A",FRT DRIVE SHAFT USA	8-97218-530-0	02	1	0109-	●
3	06.061 BAND; "B",FRT DRIVE SHAFT USA	8-97212-744-0	02	1	9811-0012	●	●
3	06.061 BAND; "B",FRT DRIVE SHAFT USA	8-97212-744-0	02	1	0101-0108	●
3	06.061 BAND; "B",FRT DRIVE SHAFT USA	8-97218-529-0	02	1	0109-	●
4	06.061 BAND; "C",FRT DRIVE SHAFT (A) USA	8-97212-746-0	02	1	9811-0012	●	●
4	06.061 BAND; "C",FRT DRIVE SHAFT (A) USA	8-97212-746-0	02	1	0101-	●
4	06.061 BAND; "C",FRT DRIVE SHAFT (B) USA	8-97212-747-0	02	1	9811-0012	●	●
4	06.061 BAND; "C",FRT DRIVE SHAFT (B) USA	8-97212-747-0	02	1	0101-0108	●
4	06.061 BAND; "C",FRT DRIVE SHAFT (B) USA	8-94312-931-0	02	1	0109-	●
5	06.061 RING; RET,FRT DRIVE SHAFT USA	8-97131-402-0	02	1	9811-0012	●	●
5	06.061 RING; RET,FRT DRIVE SHAFT USA	8-97131-402-0	02	1	0101-	●
7	06.061 SEAL; DUST,DRIVE SHAFT USA	8-97044-609-1	02	1	9811-0010	●	●
7	06.061 SEAL; DUST,DRIVE SHAFT	8-97123-692-0	02	1	0011-0012	●	●
7	06.061 SEAL; DUST,DRIVE SHAFT	8-97123-692-0	02	1	0101-	●
9	06.056 BEARING; AXLE SHAFT,INNER (B)	8-97101-878-0	01	1	9811-0012	●	●
9	06.056 BEARING; AXLE SHAFT,INNER (B)	8-97101-878-0	01	1	0101-	●
9	06.056 BEARING; AXLE SHAFT,INNER (A) USA	8-97124-188-0	02	1	9811-0012	●	●
9	06.056 BEARING; AXLE SHAFT,INNER (A) USA	8-97124-188-0	02	1	0101-	●
10	06.061 SEAL; OIL,AXLE SHAFT,INNER	8-94366-610-0	02	1	9811-0012	●	●
10	06.061 SEAL; OIL,AXLE SHAFT,INNER	8-94366-610-0	02	1	0101-	●
11	06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA USA	8-97212-740-0	02	1	9811-0012	●	●
11	06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA USA	8-97212-740-0	02	1	0101-0108	●
11	06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA USA	8-97218-523-0	02	1	0109-	●
12	06.060 JOINT ASM USA	8-97212-741-0	02	1	9811-0012	●	●
12	06.060 JOINT ASM USA	8-97212-741-0	02	1	0101-0108	●
12	06.060 JOINT ASM USA	8-97218-524-0	02	1	0109-	●
13	06.061 BOOT KIT; OUTSIDE,FRT DRIVE SHAF USA	8-97212-742-0	02	1	9811-0012	●	●
13	06.061 BOOT KIT; OUTSIDE,FRT DRIVE SHAF USA	8-97212-742-0	02	1	0101-0108	●
13	06.061 BOOT KIT; OUTSIDE,FRT DRIVE SHAF USA	8-97218-526-0	02	1	0109-	●
14	06.061 BOOT KIT; IN SIDE,FRT DRIVE SHAF USA	8-97212-743-0	02	1	9811-0012	●	●
14	06.061 BOOT KIT; IN SIDE,FRT DRIVE SHAF USA	8-97212-743-0	02	1	0101-0108	●
14	06.061 BOOT KIT; IN SIDE,FRT DRIVE SHAF USA	8-97218-528-0	02	1	0109-	●
17	06.061 RING; SNAP,DRIVE SHAFT TO TRANS 04.416 ID=27.9	9-09180-030-0	04	1	9811-0012	●	●
17	06.061 RING; SNAP,DRIVE SHAFT TO TRANS 04.416 ID=27.9	9-09180-030-0	04	1	0101-	●
19	06.156 BOLT; FRT AXLE 06.056 (A) M12X22 FLANGE	0-28081-222-0	04	1	9811-0012	●	●
19	06.156 BOLT; FRT AXLE 06.056 (A) M12X22 FLANGE	0-28081-222-0	04	1	0101-	●
19	06.156 BOLT; FRT AXLE 16.335 (B) M8X20 FLANGE	0-28280-820-0	04	1	9811-0012	●	●
19	06.156 BOLT; FRT AXLE 16.335 (B) M8X20 FLANGE	0-28280-820-0	04	1	0101-	●
19	06.156 BOLT; FRT AXLE 06.635 (G) M6X16 FLANGE	0-28480-616-0	01	1	9811-0012	●	●
19	06.156 BOLT; FRT AXLE 08.155 (C) M8X16 FLANGE	0-28480-816-0	01	1	9811-0012	●	●
19	06.156 BOLT; FRT AXLE 04.595 (H) M8X20 FLANGE	0-28480-820-0	02	1	9811-0012	●	●
19	06.156 BOLT; FRT AXLE (E) M8X25 W/LK WASHER	8-97093-664-0	06	1	9811-0012	●	●
19	06.156 BOLT; FRT AXLE (E) M8X25 W/LK WASHER	8-97093-664-1	06	1	0101-	●
19	06.156 BOLT; FRT AXLE (D) M8X30 W/LK WASHER	8-97093-665-0	02	1	9811-0012	●	●
19	06.156 BOLT; FRT AXLE (D) M8X30 W/LK WASHER	8-97093-665-1	02	1	0101-	●
19	06.156 BOLT; FRT AXLE (F) M8X90 W/LK WASHER	8-97093-666-0	02	1	9811-0012	●	●
19	06.156 BOLT; FRT AXLE (F) M8X90 W/LK WASHER	8-97093-666-1	02	1	0101-	●
20	06.156 GASKET; AXLE CASE 05.398 ID=8.2 OD=14.0 T=1.0	9-09571-408-0	01	1	9811-0012	●	●
20	06.156 GASKET; AXLE CASE 05.398 ID=8.2 OD=14.0 T=1.0	9-09571-408-0	01	1	0101-	●
22	06.056 WASHER; PL,AXLE CASE 00.206 ID=8.4	9-09164-508-0	01	1	9811-0012	●	●
22	06.056 WASHER; PL,AXLE CASE 00.206 ID=8.4	9-09164-508-0	01	1	0101-	●
23	06.056 NUT; FRT AXLE 00.002 M8	9-09110-508-0	02	1	9811-0012	●	●
23	06.056 NUT; FRT AXLE 00.002 M8	9-09110-508-0	02	1	0101-	●
24	06.056 STUD; CASE,FRT AXLE 03.901 M8X25 L=37	9-04110-825-0	02	1	9811-0012	●	●
24	06.056 STUD; CASE,FRT AXLE 03.901 M8X25 L=37	9-04110-825-0	02	1	0101-	●
26	06.056 WASHER; LK,CASE,FRT AXLE 00.002 ID=8.2	9-09150-608-0	02	1	9811-0012	●	●
26	06.056 WASHER; LK,CASE,FRT AXLE 00.002 ID=8.2	9-09150-608-0	02	1	0101-	●
191	06.521 NUT; SHAFT,FRT DRIVE 04.162 M24 FLANGE	8-97087-750-0	02	1	0109-	●

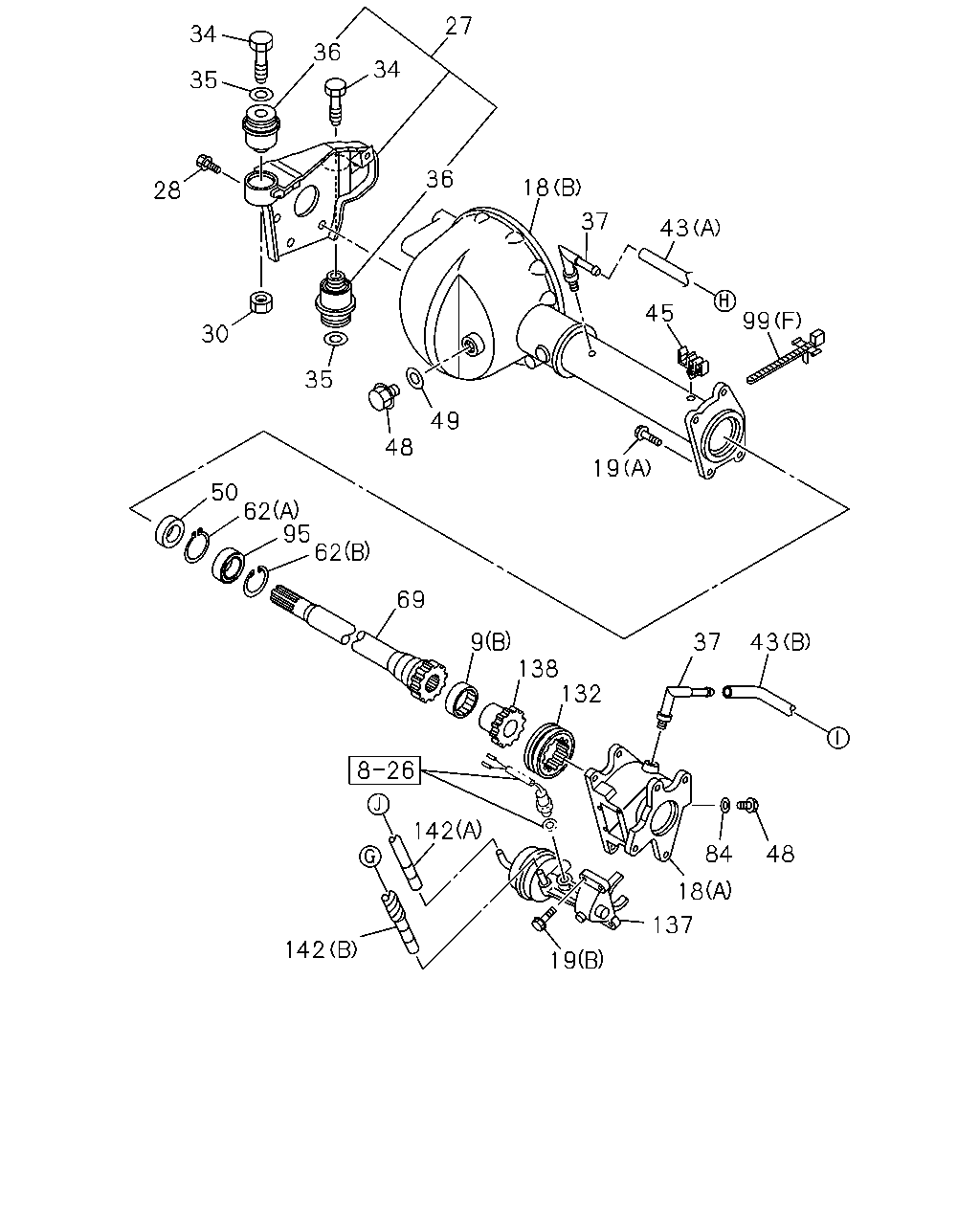

27 34 36 34 35 36 18 28 37 43 45 99 30 35 49 48 19 50 62 95 62 69 9 37 43 138 132 142 84 48 18 137 142 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	06.056 BEARING; AXLE SHAFT,INNER (B)	8-97101-878-0	01	1	9811-0012	●	●
9	06.056 BEARING; AXLE SHAFT,INNER (B)	8-97101-878-0	01	1	0101-	●
9	06.056 BEARING; AXLE SHAFT,INNER (A) USA	8-97124-188-0	02	1	9811-0012	●	●
9	06.056 BEARING; AXLE SHAFT,INNER (A) USA	8-97124-188-0	02	1	0101-	●
18	06.008 CASE; FRT AXLE (A)	8-97081-658-2	01	1	9811-0012	●	●
18	06.008 CASE; FRT AXLE (A)	8-97081-658-3	01	1	0101-	●
18	06.008 CASE; FRT AXLE (B)	8-97125-439-1	01	1	9811-0012	●	●
18	06.008 CASE; FRT AXLE (B)	8-97125-439-1	01	1	0101-	●
19	06.156 BOLT; FRT AXLE 06.056 (A) M12X22 FLANGE	0-28081-222-0	04	1	9811-0012	●	●
19	06.156 BOLT; FRT AXLE 06.056 (A) M12X22 FLANGE	0-28081-222-0	04	1	0101-	●
19	06.156 BOLT; FRT AXLE 16.335 (B) M8X20 FLANGE	0-28280-820-0	04	1	9811-0012	●	●
19	06.156 BOLT; FRT AXLE 16.335 (B) M8X20 FLANGE	0-28280-820-0	04	1	0101-	●
19	06.156 BOLT; FRT AXLE 06.635 (G) M6X16 FLANGE	0-28480-616-0	01	1	9811-0012	●	●
19	06.156 BOLT; FRT AXLE 08.155 (C) M8X16 FLANGE	0-28480-816-0	01	1	9811-0012	●	●
19	06.156 BOLT; FRT AXLE 04.595 (H) M8X20 FLANGE	0-28480-820-0	02	1	9811-0012	●	●
19	06.156 BOLT; FRT AXLE (E) M8X25 W/LK WASHER	8-97093-664-0	06	1	9811-0012	●	●
19	06.156 BOLT; FRT AXLE (E) M8X25 W/LK WASHER	8-97093-664-1	06	1	0101-	●
19	06.156 BOLT; FRT AXLE (D) M8X30 W/LK WASHER	8-97093-665-0	02	1	9811-0012	●	●
19	06.156 BOLT; FRT AXLE (D) M8X30 W/LK WASHER	8-97093-665-1	02	1	0101-	●
19	06.156 BOLT; FRT AXLE (F) M8X90 W/LK WASHER	8-97093-666-0	02	1	9811-0012	●	●
19	06.156 BOLT; FRT AXLE (F) M8X90 W/LK WASHER	8-97093-666-1	02	1	0101-	●
27	06.056 BRACKET; AXLE CASE USA	8-97125-450-0	01	1	9811-0012		●
27	06.056 BRACKET; AXLE CASE TORQUE ON DEMAND(7HA) USA	8-97218-222-2	01	1	0101-	●
27	06.056 BRACKET; AXLE CASE USA	8-97125-449-0	01	1	9811-0012		●
27	06.056 BRACKET; AXLE CASE TORQUE ON DEMAND(7HA) USA	8-97218-221-2	01	1	0101-	●
27	06.056 BRACKET; AXLE CASE USA	8-97125-443-0	01	1	9811-0012	●
27	06.056 BRACKET; AXLE CASE EXC. TORQUE ON DEMAND(7HA) USA	8-97125-443-0	01	1	0101-0304	●
27	06.056 BRACKET; AXLE CASE EXC. TORQUE ON DEMAND(7HA) USA	8-97366-506-0	01	1	0305-	●
27	06.056 BRACKET; AXLE CASE USA	8-97125-442-0	01	1	9811-0012	●
27	06.056 BRACKET; AXLE CASE EXC. TORQUE ON DEMAND(7HA) USA	8-97125-442-0	01	1	0101-0304	●
27	06.056 BRACKET; AXLE CASE EXC. TORQUE ON DEMAND(7HA) USA	8-97366-505-0	01	1	0305-	●
28	06.056 BOLT; BRKT TO AXLE CASE M12X22 FLANGE	0-28081-222-0	08	1	9811-0012	●	●
28	06.056 BOLT; BRKT TO AXLE CASE M12X22 FLANGE	0-28081-222-0	08	1	0101-0105	●
28	06.056 BOLT; BRKT TO AXLE CASE M12X20 FLANGE	0-28091-220-0	08	1	0106-	●
30	06.008 NUT; FRT AXLE MTG 06.170 M14 FLANGE	0-91150-214-0	02	1	9811-0012	●	●
30	06.008 NUT; FRT AXLE MTG 06.170 M14 FLANGE	0-91150-214-0	02	1	0101-	●
34	06.008 BOLT; FRT AXLE MTG M14X80 FLANGE	0-29291-480-0	04	1	9811-0012	●	●
34	06.008 BOLT; FRT AXLE MTG M14X80 FLANGE	0-29291-480-0	04	1	0101-	●
35	06.008 WASHER; FRT AXLE MTG ID=14 OD=50	8-97093-581-0	04	1	9811-0012	●	●
35	06.008 WASHER; FRT AXLE MTG ID=14 OD=50	8-97093-581-0	04	1	0101-	●
36	06.008 BUSHING; RUBBER,FRT AXLE MTG USA	8-97139-268-0	02	1	9811-0012	●	●
36	06.008 BUSHING; RUBBER,FRT AXLE MTG USA	8-97139-268-0	02	1	0101-0304	●
36	06.008 BUSHING; RUBBER,FRT AXLE MTG USA	8-97366-511-0	02	1	0305-	●
36	06.008 BUSHING; RUBBER,FRT AXLE MTG USA	8-97149-540-0	02	1	9811-0012	●	●
36	06.008 BUSHING; RUBBER,FRT AXLE MTG USA	8-97149-540-0	02	1	0101-0304	●
36	06.008 BUSHING; RUBBER,FRT AXLE MTG USA	8-97366-510-0	02	1	0305-	●
37	06.008 BREATHER; FRT AXLE CASE	8-94226-943-0	02	1	9811-0012	●	●
37	06.008 BREATHER; FRT AXLE CASE	8-94226-943-0	02	1	0101-	●
43	06.008 HOSE; RUBBER,AIR BREATHER 08.962 (C) L=150 SERVICED BY L=3000	0-04740-300-0	02	1	9811-9903	●	●
43	06.008 HOSE; RUBBER,AIR BREATHER 08.962 (C) L=140 SERVICED BY L=3000	0-04740-300-0	02	1	9904-0012	●	●
43	06.008 HOSE; RUBBER,AIR BREATHER 08.962 (A) L=100 SERVICED BY L=3000	0-04750-300-0	01	1	9811-0012	●	●
43	06.008 HOSE; RUBBER,AIR BREATHER 08.962 (A) L=100 SERVICED BY L=3000	0-04750-300-0	01	1	0101-	●
43	06.008 HOSE; RUBBER,AIR BREATHER 08.962 (B) L=50 SERVICED BY L=3000	0-04750-300-0	01	1	9811-0012	●	●
43	06.008 HOSE; RUBBER,AIR BREATHER 08.962 (B) L=50 SERVICED BY L=3000	0-04750-300-0	01	1	0101-	●
45	06.008 CLIP 04.686 THA	8-94442-883-1	01	1	9811-0012	●	●
48	05.400 PLUG; DRAIN,AXLE CASE 04.103 M20X10.5	9-09662-005-0	02	1	9811-0012	●	●
48	05.400 PLUG; DRAIN,AXLE CASE 04.103 M20X10.5	9-09662-005-0	02	1	0101-	●
49	05.400 GASKET; DRAIN PLUG ID=20 OD=30	8-94462-734-0	01	1	9811-0012	●	●
49	05.400 GASKET; DRAIN PLUG ID=20 OD=30	8-94462-734-0	01	1	0101-	●
50	06.061 SEAL; OIL,SHAFT,FRT AXLE	8-97084-507-0	01	1	9811-0012	●	●
50	06.061 SEAL; OIL,SHAFT,FRT AXLE	8-97084-507-0	01	1	0101-	●
62	06.061 RING; SNAP,AXLE SHAFT 08.934 (A) ID=37.0	9-09180-040-0	01	1	9811-0012	●	●
62	06.061 RING; SNAP,AXLE SHAFT 08.934 (A) ID=37.0	9-09180-040-0	01	1	0101-	●
62	06.061 RING; SNAP,AXLE SHAFT 01.105 (B) ID=57.9	9-09180-162-0	01	1	9811-0012	●	●
62	06.061 RING; SNAP,AXLE SHAFT 01.105 (B) ID=57.9	9-09180-162-0	01	1	0101-	●
69	06.055 SHAFT; AXLE,FRT INNER	8-97188-174-0	01	1	9811-0012	●	●
69	06.055 SHAFT; AXLE,FRT INNER	8-97188-174-1	01	1	0101-	●
84	06.326 GASKET; PLUG,OIL FILLER 05.400 ID=20 OD=30	8-94462-734-0	01	1	9811-0012	●	●
84	06.326 GASKET; PLUG,OIL FILLER 05.400 ID=20 OD=30	8-94462-734-0	01	1	0101-	●
95	06.008 BEARING; AXLE SHAFT,FRT	8-97103-392-0	01	1	9811-0012	●	●
95	06.008 BEARING; AXLE SHAFT,FRT	8-97103-392-0	01	1	0101-	●
99	06.008 CLIP; RUBBER HOSE 00.855 (G) ID=8.3 & 16.5 USA	8-94169-027-0	01	1	9811-0012		●
99	06.008 CLIP; RUBBER HOSE 02.559 (F) L=170.3 THA	1-09987-182-0	01	1	9811-0012	●	●
99	06.008 CLIP; RUBBER HOSE 03.145 (A) ID=8	8-94107-762-0	02	1	9811-0012	●	●
99	06.008 CLIP; RUBBER HOSE 04.681 (D) ID=8.3 & 8.3 USA	8-94426-175-0	01	1	9811-0012	●	●
99	06.008 CLIP; RUBBER HOSE 04.686 (C) ID=8 & 4.8 USA	8-94430-297-0	02	1	9811-0012	●	●
99	06.008 CLIP; RUBBER HOSE 09.649 (E) ID=7 USA	8-97085-207-0	01	1	9811-0012	●	●
99	06.008 CLIP; RUBBER HOSE (B) USA	8-97200-741-0	01	1	9811-0012	●
132	06.008 SLEEVE; RUBBER,HOSE	8-97130-567-1	01	1	9811-0012	●	●
132	06.008 SLEEVE; RUBBER,HOSE	8-97130-567-1	01	1	0101-	●
137	06.008 ACTUATOR; AXLE USA	8-97101-856-3	01	1	9811-0012	●	●
137	06.008 ACTUATOR; AXLE	8-97208-683-8	01	1	0101-	●
138	06.008 GEAR; CLUTCH Z=17	8-97134-857-1	01	1	9811-0012	●	●
138	06.008 GEAR; CLUTCH Z=17	8-97134-857-1	01	1	0101-	●
142	06.008 HOSE; VSV (A)	8-97101-810-0	01	1	9811-0012	●	●
142	06.008 HOSE; VSV (B) USA	8-97138-605-0	01	1	9811-0012	●	●

184 186 183 185

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
183	06.008 PIPE; BREATHER (B) USA	8-97208-684-2	01	1	0101-	●
183	06.008 PIPE; BREATHER (A) USA	8-97208-685-0	01	1	0101-	●
184	06.008 HOSE; BREATHER 08.962 (B) L=180 SERVICED BY L=3000	0-04745-300-0	01	1	0101-	●
184	06.008 HOSE; BREATHER (A) USA	8-97260-489-0	01	1	0101-	●
185	06.008 BOLT; PIPE,BREATHER 06.635 (A) M6X16 FLANGE	0-28480-616-0	01	1	0101-	●
185	06.008 BOLT; PIPE,BREATHER 08.155 (B) M8X16 FLANGE	0-28480-816-0	01	1	0101-	●
186	06.008 CLIP; HOSE,BREATHER 02.559 L=170.3 THA	1-09987-182-0	01	1	0101-	●

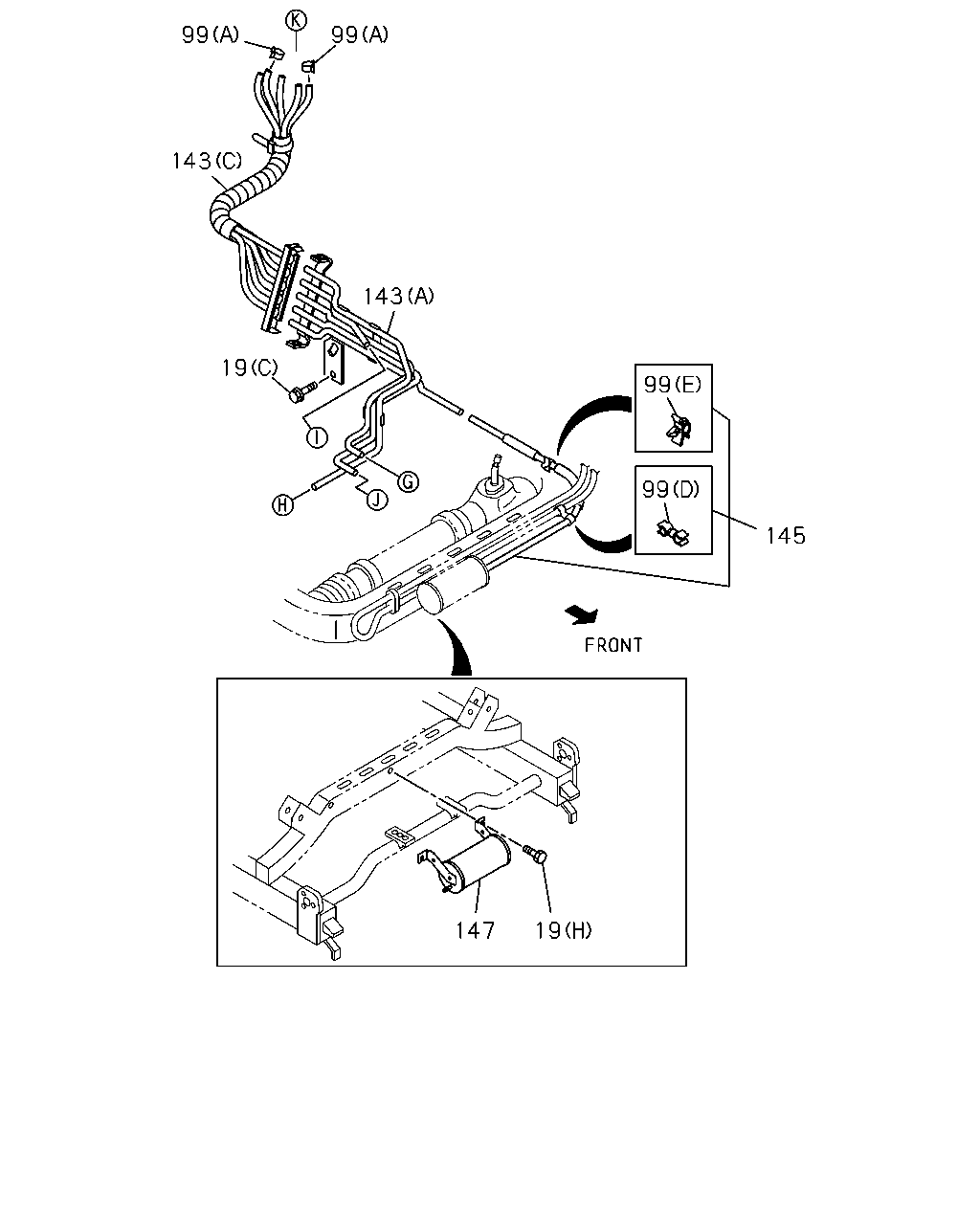

99 99 143 143 19 99 99 145 147 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
19	06.156 BOLT; FRT AXLE 06.056 (A) M12X22 FLANGE	0-28081-222-0	04	1	9811-0012	●	●
19	06.156 BOLT; FRT AXLE 06.056 (A) M12X22 FLANGE	0-28081-222-0	04	1	0101-	●
19	06.156 BOLT; FRT AXLE 16.335 (B) M8X20 FLANGE	0-28280-820-0	04	1	9811-0012	●	●
19	06.156 BOLT; FRT AXLE 16.335 (B) M8X20 FLANGE	0-28280-820-0	04	1	0101-	●
19	06.156 BOLT; FRT AXLE 06.635 (G) M6X16 FLANGE	0-28480-616-0	01	1	9811-0012	●	●
19	06.156 BOLT; FRT AXLE 08.155 (C) M8X16 FLANGE	0-28480-816-0	01	1	9811-0012	●	●
19	06.156 BOLT; FRT AXLE 04.595 (H) M8X20 FLANGE	0-28480-820-0	02	1	9811-0012	●	●
19	06.156 BOLT; FRT AXLE (E) M8X25 W/LK WASHER	8-97093-664-0	06	1	9811-0012	●	●
19	06.156 BOLT; FRT AXLE (E) M8X25 W/LK WASHER	8-97093-664-1	06	1	0101-	●
19	06.156 BOLT; FRT AXLE (D) M8X30 W/LK WASHER	8-97093-665-0	02	1	9811-0012	●	●
19	06.156 BOLT; FRT AXLE (D) M8X30 W/LK WASHER	8-97093-665-1	02	1	0101-	●
19	06.156 BOLT; FRT AXLE (F) M8X90 W/LK WASHER	8-97093-666-0	02	1	9811-0012	●	●
19	06.156 BOLT; FRT AXLE (F) M8X90 W/LK WASHER	8-97093-666-1	02	1	0101-	●
99	06.008 CLIP; RUBBER HOSE 00.855 (G) ID=8.3 & 16.5 USA	8-94169-027-0	01	1	9811-0012		●
99	06.008 CLIP; RUBBER HOSE 02.559 (F) L=170.3 THA	1-09987-182-0	01	1	9811-0012	●	●
99	06.008 CLIP; RUBBER HOSE 03.145 (A) ID=8	8-94107-762-0	02	1	9811-0012	●	●
99	06.008 CLIP; RUBBER HOSE 04.681 (D) ID=8.3 & 8.3 USA	8-94426-175-0	01	1	9811-0012	●	●
99	06.008 CLIP; RUBBER HOSE 04.686 (C) ID=8 & 4.8 USA	8-94430-297-0	02	1	9811-0012	●	●
99	06.008 CLIP; RUBBER HOSE 09.649 (E) ID=7 USA	8-97085-207-0	01	1	9811-0012	●	●
99	06.008 CLIP; RUBBER HOSE (B) USA	8-97200-741-0	01	1	9811-0012	●
143	06.008 PIPE; VACUUM (A) USA	8-97135-793-2	01	1	9811-0012	●	●
143	06.008 PIPE; VACUUM (B) USA	8-97135-794-2	01	1	9811-0012	●	●
143	06.008 PIPE; VACUUM (C) USA	8-97135-799-2	01	1	9811-0012	●	●
145	06.008 HOSE; VAC TANK USA	8-97135-798-3	01	1	9811-0012	●	●
147	06.008 TANK; VACUUM USA	8-97125-140-0	01	1	9811-0012	●	●

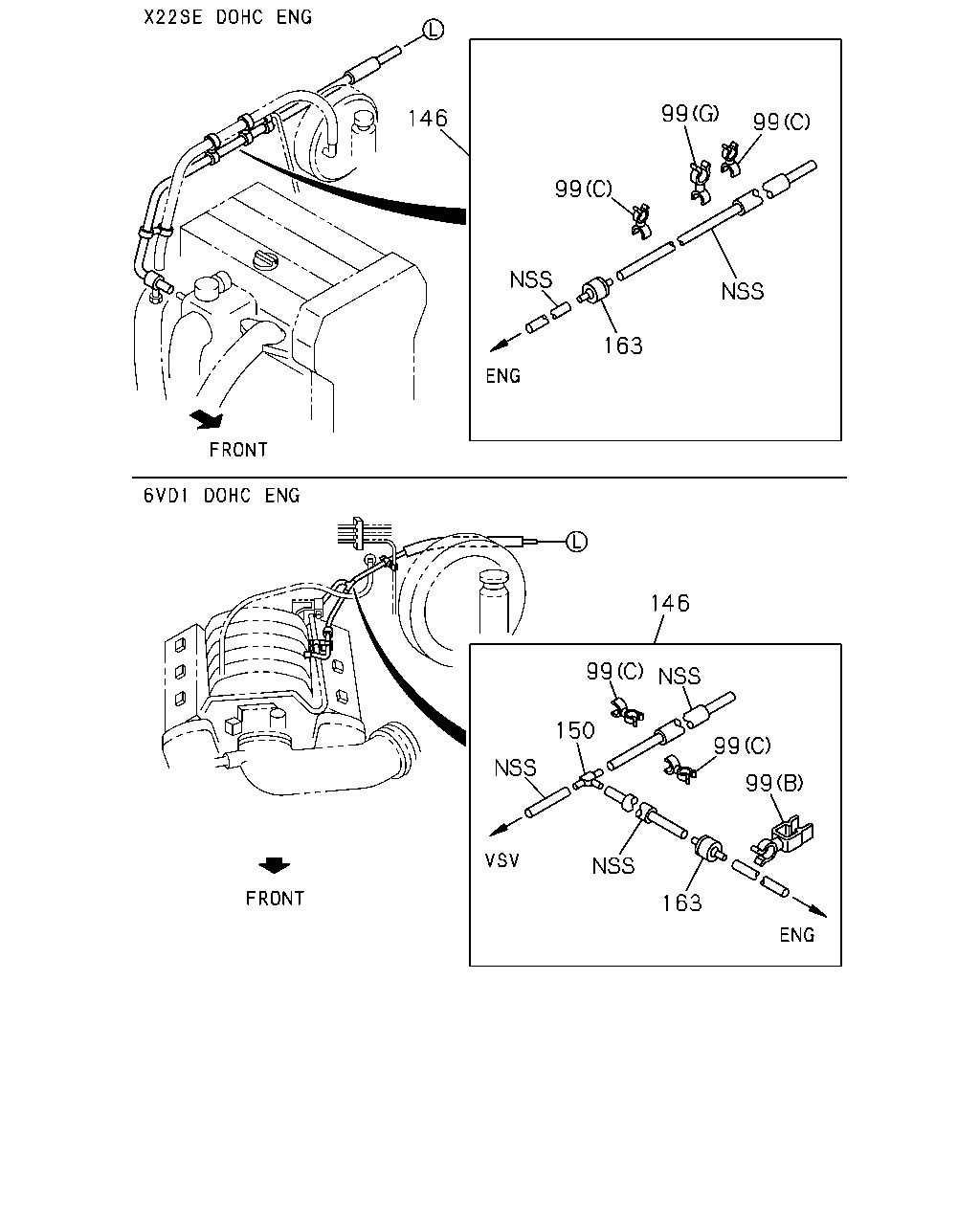

99 146 99 99 163 146 99 150 99 99 163

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
99	06.008 CLIP; RUBBER HOSE 00.855 (G) ID=8.3 & 16.5 USA	8-94169-027-0	01	1	9811-0012		●
99	06.008 CLIP; RUBBER HOSE 02.559 (F) L=170.3 THA	1-09987-182-0	01	1	9811-0012	●	●
99	06.008 CLIP; RUBBER HOSE 03.145 (A) ID=8	8-94107-762-0	02	1	9811-0012	●	●
99	06.008 CLIP; RUBBER HOSE 04.681 (D) ID=8.3 & 8.3 USA	8-94426-175-0	01	1	9811-0012	●	●
99	06.008 CLIP; RUBBER HOSE 04.686 (C) ID=8 & 4.8 USA	8-94430-297-0	02	1	9811-0012	●	●
99	06.008 CLIP; RUBBER HOSE 09.649 (E) ID=7 USA	8-97085-207-0	01	1	9811-0012	●	●
99	06.008 CLIP; RUBBER HOSE (B) USA	8-97200-741-0	01	1	9811-0012	●
146	06.008 HOSE; CHECK VLV USA	8-97192-518-0	01	1	9811-0009		●
146	06.008 HOSE; CHECK VLV USA	8-97223-178-0	01	1	0010-0012		●
146	06.008 HOSE; CHECK VLV USA	8-97209-252-0	01	1	9811-0012	●
150	06.008 JOINT 03.680 3WAY USA	8-94208-695-0	01	1	9811-0012	●
163	06.008 VALVE; CHECK 03.670 USA	8-97024-129-2	01	1	9811-0012	●	●

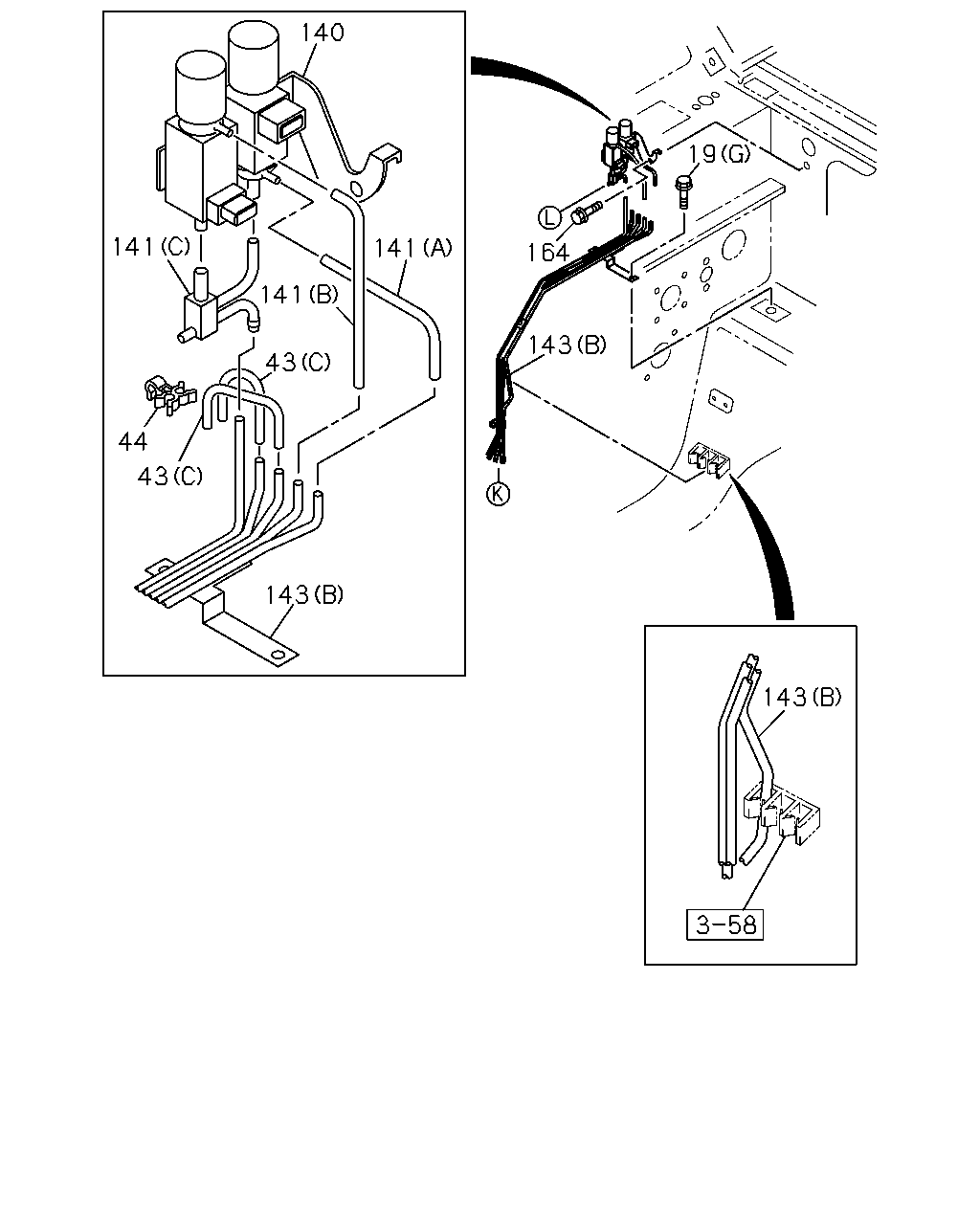

140 19 164 141 141 141 143 43 44 43 143 143

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
19	06.156 BOLT; FRT AXLE 06.056 (A) M12X22 FLANGE	0-28081-222-0	04	1	9811-0012	●	●
19	06.156 BOLT; FRT AXLE 06.056 (A) M12X22 FLANGE	0-28081-222-0	04	1	0101-	●
19	06.156 BOLT; FRT AXLE 16.335 (B) M8X20 FLANGE	0-28280-820-0	04	1	9811-0012	●	●
19	06.156 BOLT; FRT AXLE 16.335 (B) M8X20 FLANGE	0-28280-820-0	04	1	0101-	●
19	06.156 BOLT; FRT AXLE 06.635 (G) M6X16 FLANGE	0-28480-616-0	01	1	9811-0012	●	●
19	06.156 BOLT; FRT AXLE 08.155 (C) M8X16 FLANGE	0-28480-816-0	01	1	9811-0012	●	●
19	06.156 BOLT; FRT AXLE 04.595 (H) M8X20 FLANGE	0-28480-820-0	02	1	9811-0012	●	●
19	06.156 BOLT; FRT AXLE (E) M8X25 W/LK WASHER	8-97093-664-0	06	1	9811-0012	●	●
19	06.156 BOLT; FRT AXLE (E) M8X25 W/LK WASHER	8-97093-664-1	06	1	0101-	●
19	06.156 BOLT; FRT AXLE (D) M8X30 W/LK WASHER	8-97093-665-0	02	1	9811-0012	●	●
19	06.156 BOLT; FRT AXLE (D) M8X30 W/LK WASHER	8-97093-665-1	02	1	0101-	●
19	06.156 BOLT; FRT AXLE (F) M8X90 W/LK WASHER	8-97093-666-0	02	1	9811-0012	●	●
19	06.156 BOLT; FRT AXLE (F) M8X90 W/LK WASHER	8-97093-666-1	02	1	0101-	●
43	06.008 HOSE; RUBBER,AIR BREATHER 08.962 (C) L=150 SERVICED BY L=3000	0-04740-300-0	02	1	9811-9903	●	●
43	06.008 HOSE; RUBBER,AIR BREATHER 08.962 (C) L=140 SERVICED BY L=3000	0-04740-300-0	02	1	9904-0012	●	●
43	06.008 HOSE; RUBBER,AIR BREATHER 08.962 (A) L=100 SERVICED BY L=3000	0-04750-300-0	01	1	9811-0012	●	●
43	06.008 HOSE; RUBBER,AIR BREATHER 08.962 (A) L=100 SERVICED BY L=3000	0-04750-300-0	01	1	0101-	●
43	06.008 HOSE; RUBBER,AIR BREATHER 08.962 (B) L=50 SERVICED BY L=3000	0-04750-300-0	01	1	9811-0012	●	●
43	06.008 HOSE; RUBBER,AIR BREATHER 08.962 (B) L=50 SERVICED BY L=3000	0-04750-300-0	01	1	0101-	●
44	06.008 CLIP; AIR BREATHER HOSE 03.675 ID=7.7	8-94443-785-0	01	1	9811-0012	●	●
140	06.008 VALVE UNIT; AXLE	8-97135-769-1	01	1	9811-0012	●	●
141	06.008 HOSE; VACUUM 08.962 (A) L=190 SERVICED BY L=3000	0-04741-300-0	01	1	9811-0012	●	●
141	06.008 HOSE; VACUUM 08.962 (B) L=180 SERVICED BY L=3000	0-04745-300-0	01	1	9811-0012	●	●
141	06.008 HOSE; VACUUM (C) USA	8-97125-169-1	01	1	9811-0012	●	●
143	06.008 PIPE; VACUUM (A) USA	8-97135-793-2	01	1	9811-0012	●	●
143	06.008 PIPE; VACUUM (B) USA	8-97135-794-2	01	1	9811-0012	●	●
143	06.008 PIPE; VACUUM (C) USA	8-97135-799-2	01	1	9811-0012	●	●
164	06.156 BOLT; VALVE 06.635 M6X16 FLANGE	0-28480-616-0	01	1	9811-0012	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
