4-11 — FRONT HUB AND DRUM OR ROTOR (#32604) — 62 parça

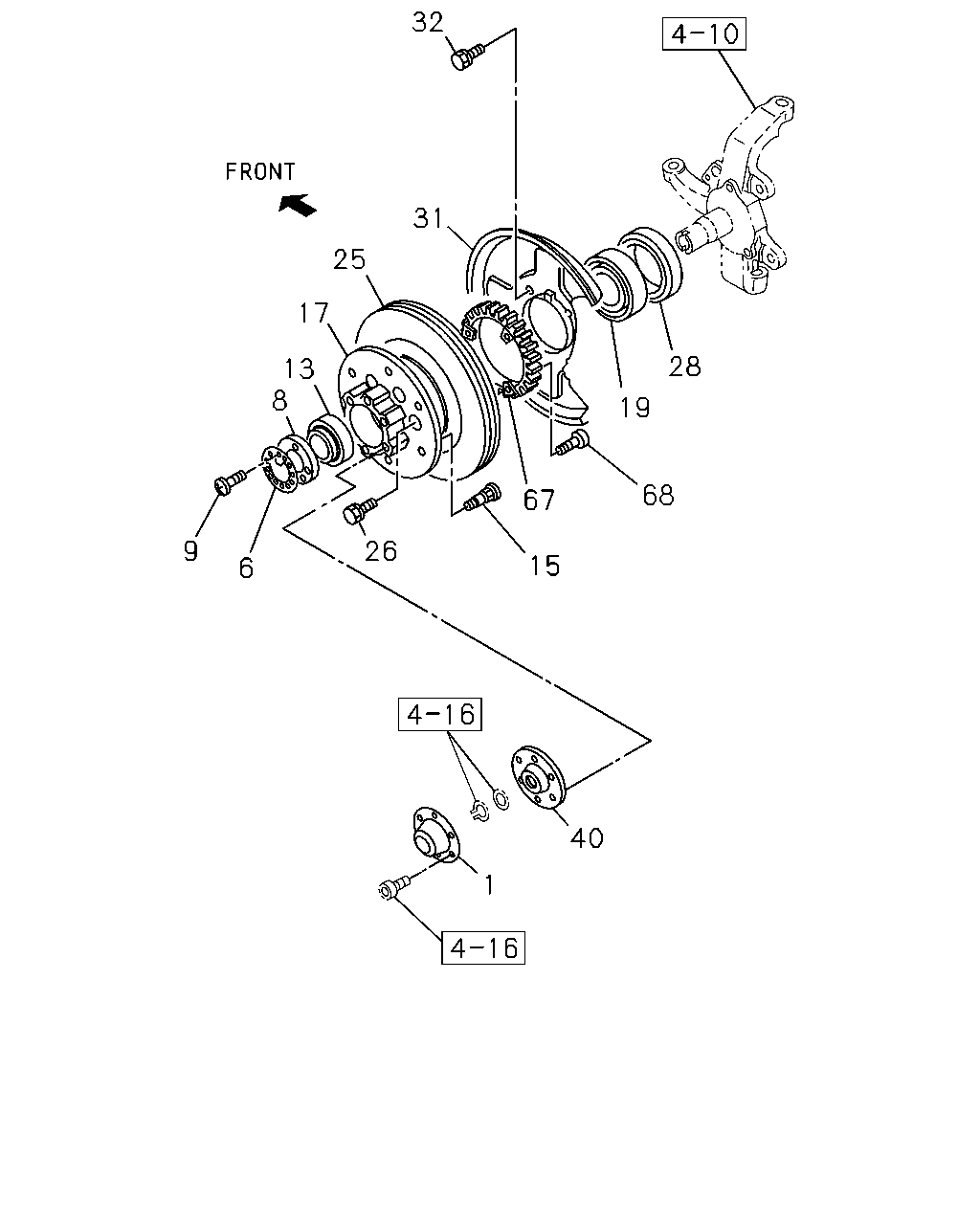

32 31 25 17 28 19 13 8 68 67 9 26 15 6 40 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	06.330 CAP; HUB,FRT AXLE	8-94173-314-1	02	1	9811-0012	●	●
1	06.330 CAP; HUB,FRT AXLE THA	8-94173-314-2	02	1	0101-0108		●
6	05.812 WASHER; LK,FRT HUB T=1.8 OD=65	8-94442-398-0	02	1	9811-0012	●	●
6	05.812 WASHER; LK,FRT HUB T=1.8 OD=65	8-94442-398-0	02	1	0101-0108		●
8	05.812 NUT; ADJ,FRT HUB ID=40 OD=65 T=8 USA	8-94442-399-1	02	1	9811-0012	●	●
8	05.812 NUT; ADJ,FRT HUB ID=40 OD=65 T=8 USA	8-94442-399-1	02	1	0101-0108		●
9	05.812 SCREW; ADJ,NUT 08.913 M4X8 CK-HEAD	9-93090-408-0	06	1	9811-0012	●	●
9	05.812 SCREW; ADJ,NUT 08.913 M4X8 CK-HEAD	9-93090-408-0	06	1	0101-0108		●
13	06.313 BEARING; HUB OUTER,FRT AXLE USA	8-97031-887-0	02	1	9811-0012	●	●
13	06.313 BEARING; HUB OUTER,FRT AXLE USA	8-97031-887-0	02	1	0101-0108		●
15	05.812 PIN; WHEEL,FRT AXLE USA	8-97046-682-0	12	1	9811-0012	●	●
15	05.812 PIN; WHEEL,FRT AXLE USA	8-97046-682-0	12	1	0101-0108		●
15	05.812 PIN; WHEEL,FRT AXLE USA	8-97310-701-0	12	1	0109-		●
17	06.307 HUB; FRT AXLE USA	8-97105-107-1	02	1	9811-0012	●	●
17	06.307 HUB; FRT AXLE USA	8-97105-107-1	02	1	0101-0108		●
19	06.311 BEARING; HUB INNER,FRT AXLE USA	8-97031-888-0	02	1	9811-0012	●	●
19	06.311 BEARING; HUB INNER,FRT AXLE USA	8-97031-888-0	02	1	0101-0108		●
25	05.809 ROTOR; DISC BRK,FRT USA	8-97207-701-0	02	1	9811-0012	●	●
25	05.809 ROTOR; DISC BRK,FRT USA	8-97207-701-0	02	1	0101-0108		●
25	05.809 ROTOR; DISC BRK,FRT USA	8-97254-295-0	02	1	0109-		●
26	05.812 BOLT; BRK,DISC TO HUB USA	8-97046-797-0	12	1	9811-0012	●	●
26	05.812 BOLT; BRK,DISC TO HUB USA	8-97046-797-0	12	1	0101-0108		●
28	06.326 SEAL; OIL,FRT HUB USA	8-97044-739-0	02	1	9811-0012	●	●
28	06.326 SEAL; OIL,FRT HUB USA	8-97044-739-0	02	1	0101-0108		●
31	04.665 COVER; DUST,FRT BRAKE USA	8-97124-843-0	01	1	9811-0012	●	●
31	04.665 COVER; DUST,FRT BRAKE USA	8-97124-843-0	01	1	0101-0108		●
31	04.665 COVER; DUST,FRT BRAKE USA	8-97254-339-1	01	1	0109-		●
31	04.665 COVER; DUST,FRT BRAKE USA	8-97124-842-0	01	1	9811-0012	●	●
31	04.665 COVER; DUST,FRT BRAKE USA	8-97124-842-0	01	1	0101-0108		●
31	04.665 COVER; DUST,FRT BRAKE USA	8-97254-338-1	01	1	0109-		●
32	04.665 BOLT; DUST COVER TO KNUCKLE M8X10 W/LK WASHER USA	8-97025-916-0	06	1	9811-0012	●	●
32	04.665 BOLT; DUST COVER TO KNUCKLE M8X10 W/LK WASHER USA	8-97025-916-0	06	1	0101-		●
40	06.308 FLANGE; FRT WHEEL HUB	8-94173-313-0	02	1	9811-0012	●	●
40	06.308 FLANGE; FRT WHEEL HUB	8-94173-313-0	02	1	0101-0108		●
67	05.811 ROTOR; SENSOR USA	8-97096-411-0	02	1	9811-0012	●	●
67	05.811 ROTOR; SENSOR USA	8-97096-411-0	02	1	0101-0108		●
67	05.811 ROTOR; SENSOR USA	8-97256-571-1	02	1	0109-		●
68	05.812 BOLT; SENSOR ROTOR 08.900 M8X16	9-05820-816-0	06	1	9811-0012	●	●
68	05.812 BOLT; SENSOR ROTOR 08.900 M8X16	9-05820-816-0	06	1	0101-0108		●
68	05.812 BOLT; SENSOR ROTOR 03.330 M8X16 HEX SOCKET	0-58310-816-0	12	1	0109-		●

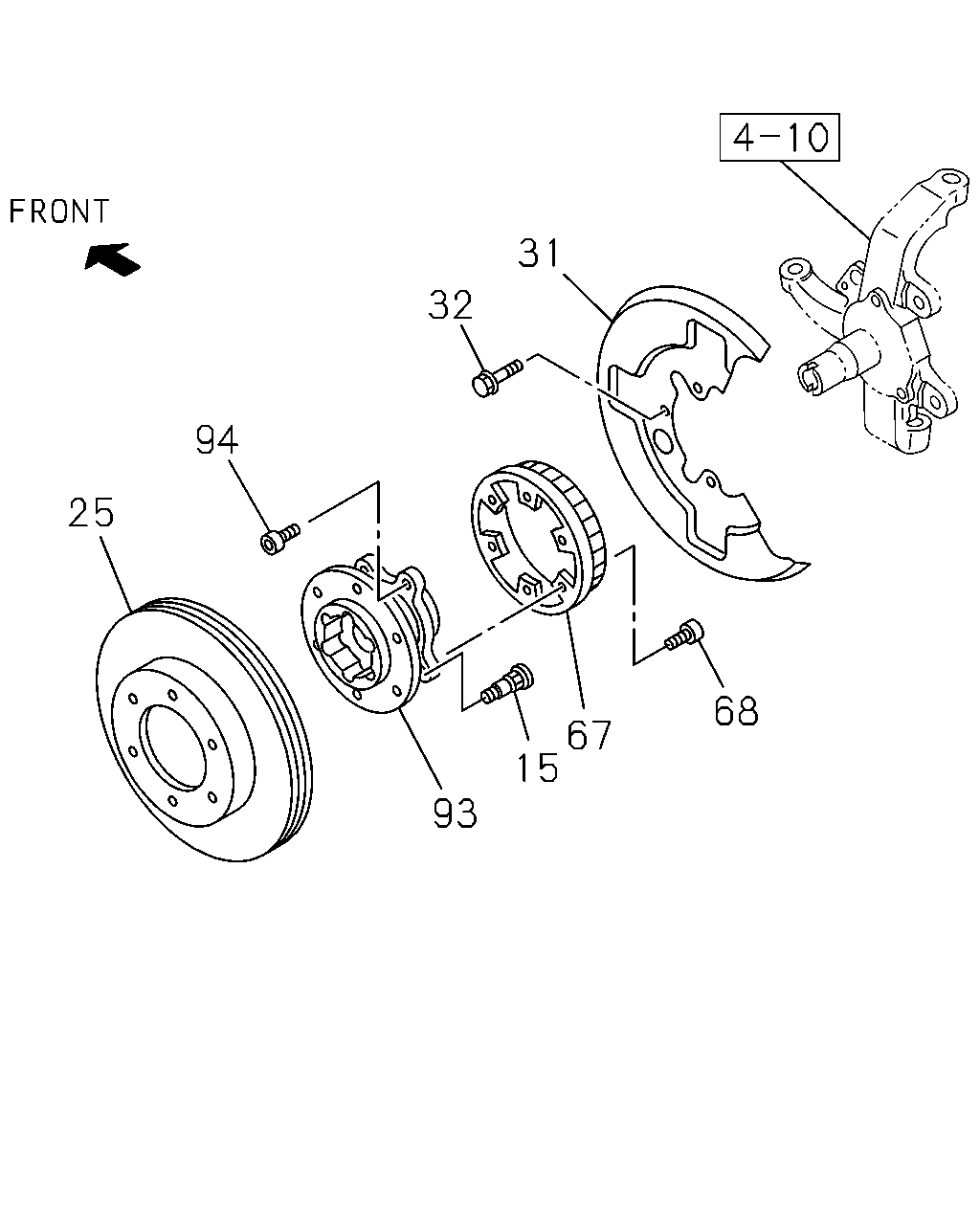

31 32 94 25 68 67 15 93

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	05.812 PIN; WHEEL,FRT AXLE USA	8-97046-682-0	12	1	9811-0012	●	●
15	05.812 PIN; WHEEL,FRT AXLE USA	8-97046-682-0	12	1	0101-0108		●
15	05.812 PIN; WHEEL,FRT AXLE USA	8-97310-701-0	12	1	0109-		●
25	05.809 ROTOR; DISC BRK,FRT USA	8-97207-701-0	02	1	9811-0012	●	●
25	05.809 ROTOR; DISC BRK,FRT USA	8-97207-701-0	02	1	0101-0108		●
25	05.809 ROTOR; DISC BRK,FRT USA	8-97254-295-0	02	1	0109-		●
31	04.665 COVER; DUST,FRT BRAKE USA	8-97124-843-0	01	1	9811-0012	●	●
31	04.665 COVER; DUST,FRT BRAKE USA	8-97124-843-0	01	1	0101-0108		●
31	04.665 COVER; DUST,FRT BRAKE USA	8-97254-339-1	01	1	0109-		●
31	04.665 COVER; DUST,FRT BRAKE USA	8-97124-842-0	01	1	9811-0012	●	●
31	04.665 COVER; DUST,FRT BRAKE USA	8-97124-842-0	01	1	0101-0108		●
31	04.665 COVER; DUST,FRT BRAKE USA	8-97254-338-1	01	1	0109-		●
32	04.665 BOLT; DUST COVER TO KNUCKLE M8X10 W/LK WASHER USA	8-97025-916-0	06	1	9811-0012	●	●
32	04.665 BOLT; DUST COVER TO KNUCKLE M8X10 W/LK WASHER USA	8-97025-916-0	06	1	0101-		●
67	05.811 ROTOR; SENSOR USA	8-97096-411-0	02	1	9811-0012	●	●
67	05.811 ROTOR; SENSOR USA	8-97096-411-0	02	1	0101-0108		●
67	05.811 ROTOR; SENSOR USA	8-97256-571-1	02	1	0109-		●
68	05.812 BOLT; SENSOR ROTOR 08.900 M8X16	9-05820-816-0	06	1	9811-0012	●	●
68	05.812 BOLT; SENSOR ROTOR 08.900 M8X16	9-05820-816-0	06	1	0101-0108		●
68	05.812 BOLT; SENSOR ROTOR 03.330 M8X16 HEX SOCKET	0-58310-816-0	12	1	0109-		●
93	05.809 HUB UNIT; BEARING USA	8-97209-964-5	02	1	0109-		●
94	05.812 BOLT; HUB UNIT 00.724 M12X41.5	8-94247-495-2	08	1	0109-		●
