◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UES ▶ 50807 - UES(AUSTRALIA) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-10 - FRONT AXLE ▶
4-10 — FRONT AXLE (#32603) — 51 parça

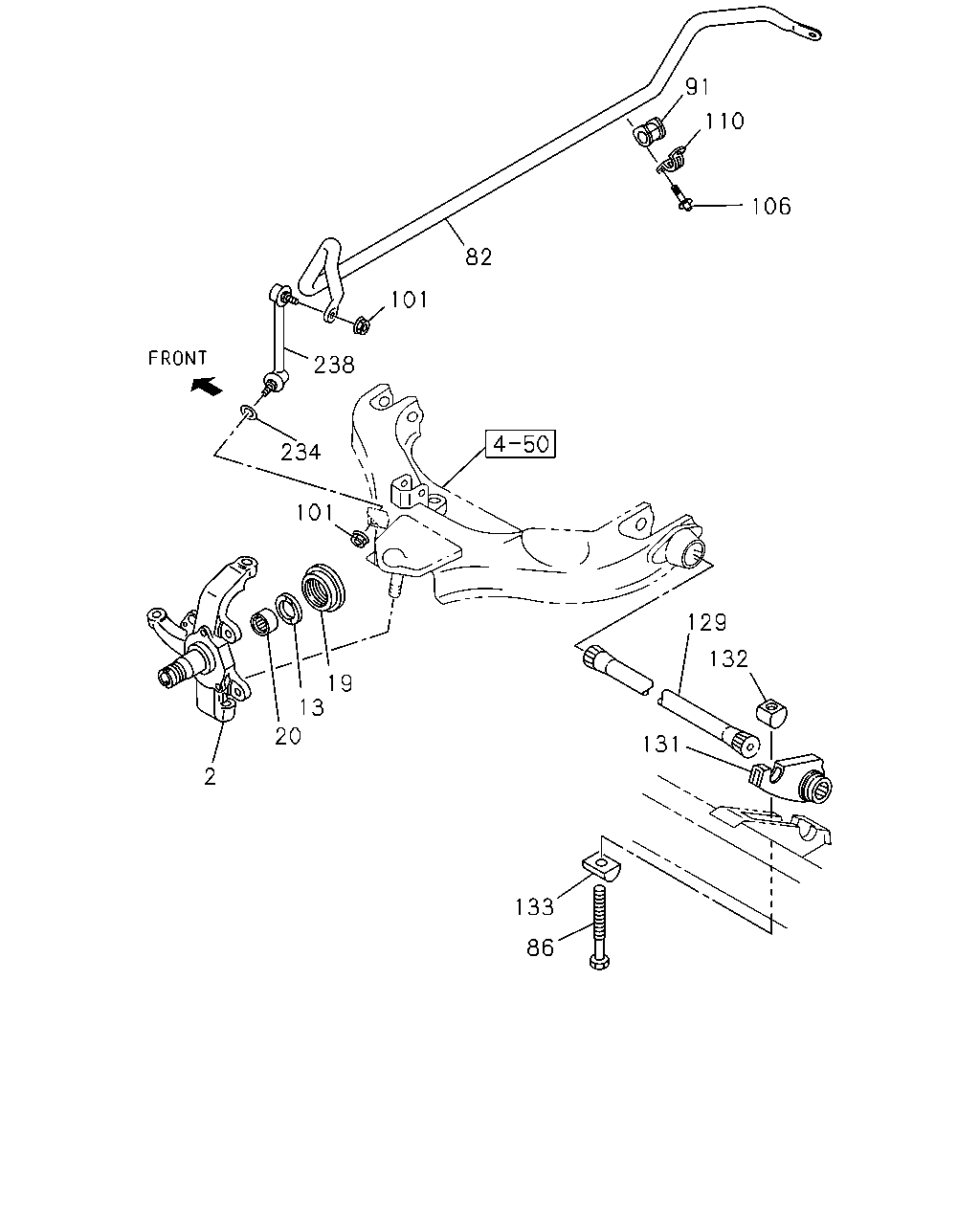

çizim 36960
91 110 106 82 101 238 234 101 129 132 19 13 20 131 2 133 86
BalonParca AdiParca NoAdetTipApplied Date A B
2 06.020 KNUCKLE; FRT AXLE 8-97104-465-0 01 1 9811-0012 ● ●
2 06.020 KNUCKLE; FRT AXLE 8-97104-465-0 01 1 0101-0108 ●
2 06.020 KNUCKLE; FRT AXLE 8-97232-154-1 01 1 0109- ●
2 06.020 KNUCKLE; FRT AXLE 8-97104-464-0 01 1 9811-0012 ● ●
2 06.020 KNUCKLE; FRT AXLE 8-97104-464-0 01 1 0101-0108 ●
2 06.020 KNUCKLE; FRT AXLE 8-97232-153-1 01 1 0109- ●
13 06.104 WASHER; THRUST,KNUCKLE
ID=34 W/OIL GROOVE 		8-94407-718-0 02 1 9811-0012 ● ●
13 06.104 WASHER; THRUST,KNUCKLE
ID=34 W/OIL GROOVE 		8-94407-718-0 02 1 0101-0108 ●
19 06.061 SEAL; OIL,KNUCKLE
USA 		8-97044-741-0 02 1 9811-0010 ● ●
19 06.061 SEAL; OIL,KNUCKLE 8-97123-691-0 02 1 0011-0012 ● ●
19 06.061 SEAL; OIL,KNUCKLE 8-97123-691-0 02 1 0101- ●
20 06.104 BEARING; KNUCKLE
USA 		8-97120-850-0 02 1 9811-0012 ● ●
20 06.104 BEARING; KNUCKLE
USA 		8-97120-850-0 02 1 0101-0108 ●
82 07.241 BAR; STAB,FRT SUSP
USA 		8-97162-967-0 01 1 9811-0012 ●
82 07.241 BAR; STAB,FRT SUSP
USA 		8-97125-012-0 01 1 9811-0012 ●
82 07.241 BAR; STAB,FRT SUSP
USA 		8-97125-012-1 01 1 0101- ●
86 07.428 BOLT; TORSION BAR,HEIGHT CONT
M18X153 USA 		8-97136-935-0 02 1 9811-0012 ● ●
86 07.428 BOLT; TORSION BAR,HEIGHT CONT
M18X153 USA 		8-97136-935-0 02 1 0101- ●
91 07.243 BUSHING; RUBBER,STAB BAR
USA 		8-97162-968-0 02 1 9811-0012 ●
91 07.243 BUSHING; RUBBER,STAB BAR
USA 		8-97125-464-0 02 1 9811-0012 ●
91 07.243 BUSHING; RUBBER,STAB BAR
USA 		8-97125-464-0 02 1 0101- ●
101 07.242 NUT; STAB BAR 8-97035-383-0 04 1 9811-0012 ● ●
101 07.242 NUT; STAB BAR 8-97035-383-0 04 1 0101- ●
106 06.216 BOLT; CAP FIX
04.595 M8X20 FLANGE 		0-28480-820-0 04 1 9811-0012 ● ●
106 06.216 BOLT; CAP FIX
04.595 M8X20 FLANGE 		0-28480-820-0 04 1 0101- ●
110 07.242 CLAMP; STAB TO ROD
ID=36 		8-97032-869-0 02 1 9811-0012 ● ●
110 07.242 CLAMP; STAB TO ROD
ID=36 		8-97032-869-0 02 1 0101- ●
129 07.412 BAR; TORSION,FRT SUSP
USA 		8-97162-524-1 01 1 9811-0012 ●
129 07.412 BAR; TORSION,FRT SUSP
USA 		8-97162-525-1 01 1 9811-0012 ●
129 07.412 BAR; TORSION,FRT SUSP
USA 		8-97162-522-0 01 1 9811-0012 ●
129 07.412 BAR; TORSION,FRT SUSP
USA 		8-97162-522-0 01 1 0101- ●
129 07.412 BAR; TORSION,FRT SUSP
USA 		8-97162-523-0 01 1 9811-0012 ●
129 07.412 BAR; TORSION,FRT SUSP
USA 		8-97162-523-0 01 1 0101- ●
131 07.436 ARM; HEIGHT CONT
USA 		8-97125-093-2 01 1 9811-0012 ● ●
131 07.436 ARM; HEIGHT CONT
USA 		8-97125-093-2 01 1 0101- ●
131 07.436 ARM; HEIGHT CONT
USA 		8-97211-053-0 01 1 9811-0012 ● ●
131 07.436 ARM; HEIGHT CONT
USA 		8-97211-053-0 01 1 0101- ●
132 07.436 COLLAR; TORSION BAR
USA 		8-94367-757-0 02 1 9811-0012 ● ●
132 07.436 COLLAR; TORSION BAR
USA 		8-94367-757-0 02 1 0101- ●
133 07.420 SEAT; TORSION BAR,HEIGHT CONT
USA 		8-97032-976-1 02 1 9811-0012 ● ●
133 07.420 SEAT; TORSION BAR,HEIGHT CONT
USA 		8-97032-976-1 02 1 0101- ●
234 07.242 WASHER; STAB 8-97049-475-0 02 1 0011-0012 ● ●
234 07.242 WASHER; STAB 8-97049-475-0 02 1 0101- ●
238 07.240 ROD LINK ASM; STABILIZER,FRT
USA 		8-97125-014-0 01 1 9811-0010 ● ●
238 07.240 ROD LINK ASM; STABILIZER,FRT 8-97018-228-2 01 1 0011-0012 ● ●
238 07.240 ROD LINK ASM; STABILIZER,FRT 8-97018-228-2 01 1 0101-0102 ●
238 07.240 ROD LINK ASM; STABILIZER,FRT 8-97289-820-0 01 1 0103- ●
238 07.240 ROD LINK ASM; STABILIZER,FRT
USA 		8-97125-013-0 01 1 9811-0010 ● ●
238 07.240 ROD LINK ASM; STABILIZER,FRT 8-97018-227-2 01 1 0011-0012 ● ●
238 07.240 ROD LINK ASM; STABILIZER,FRT 8-97018-227-2 01 1 0101-0102 ●
238 07.240 ROD LINK ASM; STABILIZER,FRT 8-97289-819-0 01 1 0103- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
