4-01 — PROPELLER SHAFT (#32602) — 158 parça

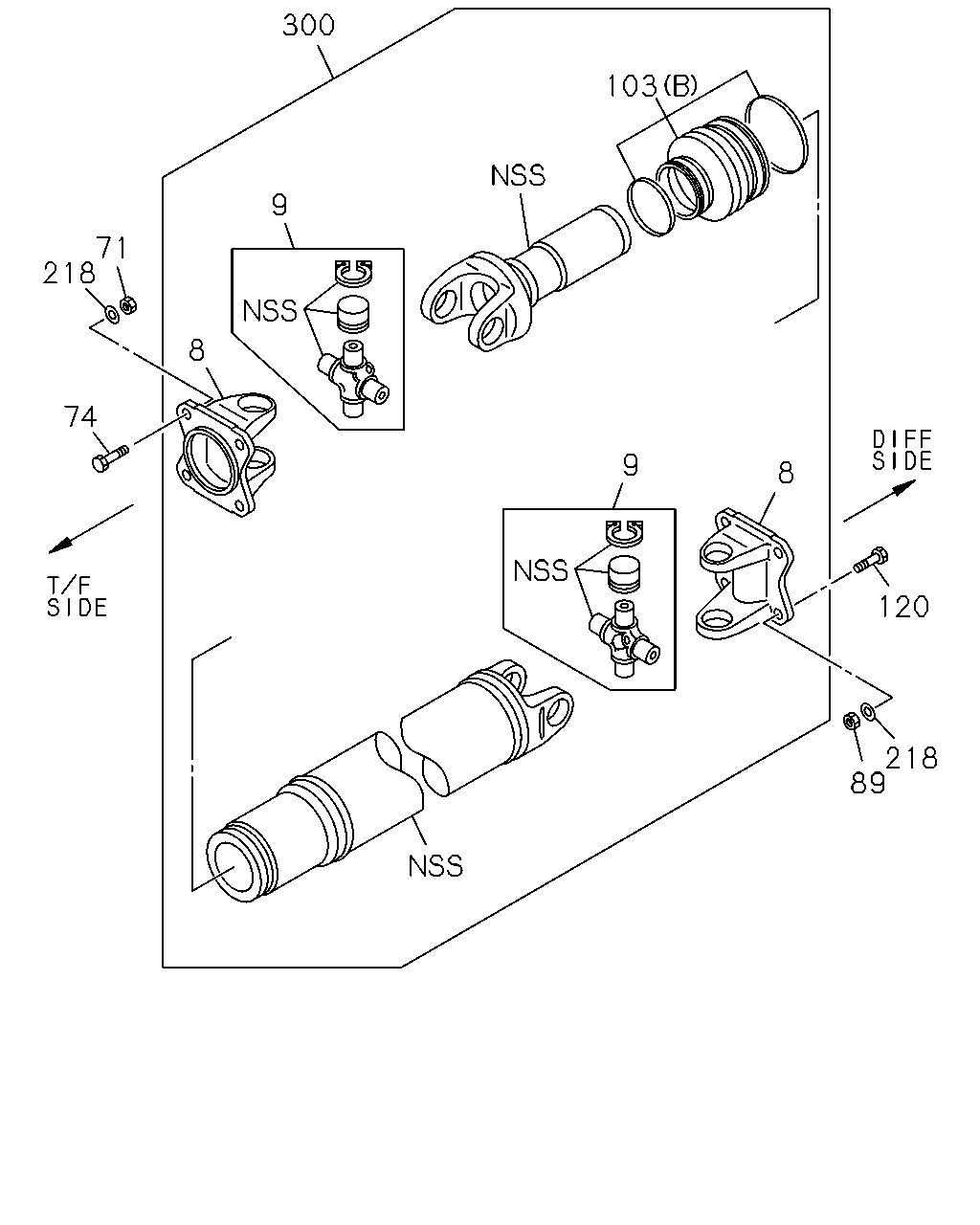

300 103 9 71 218 8 74 9 8 120 218 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	05.544 YOKE; FLANGE,PROP SHAFT 2DOOR SHORT(UE***C) FRONT USA	8-97020-281-0	01	1	9811-0012	●
8	05.544 YOKE; FLANGE,PROP SHAFT 4DOOR LONG(UE***F) FRONT USA	8-97020-281-0	02	1	9811-0012	●
8	05.544 YOKE; FLANGE,PROP SHAFT FRONT USA	8-97020-281-0	02	1	9811-0012		●
8	05.544 YOKE; FLANGE,PROP SHAFT FRONT USA	8-97020-281-0	02	1	0101-	●
8	05.544 YOKE; FLANGE,PROP SHAFT EXC. TORQUE ON DEMAND(7HA) FRONT USA	8-97020-281-0	02	1	0101-		●
8	05.544 YOKE; FLANGE,PROP SHAFT REAR USA	8-97182-188-0	02	1	9811-	●	●
9	05.548 JOURNAL ASM; PROP SHAFT USA	8-97359-258-0	02	1	0210-	●
9	05.548 JOURNAL ASM; PROP SHAFT 2DOOR SHORT(UE***C) FRONT USA	8-97020-279-0	01	1	9811-0012	●
9	05.548 JOURNAL ASM; PROP SHAFT 4DOOR LONG(UE***F) REAR USA	8-97182-165-0	02	1	9811-0012	●
9	05.548 JOURNAL ASM; PROP SHAFT REAR USA	8-97182-165-0	02	1	0101-0201	●
9	05.548 JOURNAL ASM; PROP SHAFT REAR-SHORT,FRONT-LONG USA	8-97020-279-0	02	1	9811-0012	●	●
9	05.548 JOURNAL ASM; PROP SHAFT REAR-SHORT,FRONT-LONG USA	8-97020-279-0	02	1	0101-	●
9	05.548 JOURNAL ASM; PROP SHAFT EXC. TORQUE ON DEMAND(7HA) REAR-SHORT,FRONT-LONG USA	8-97020-279-0	02	1	0101-		●
9	05.548 JOURNAL ASM; PROP SHAFT REAR USA	8-97185-603-0	02	1	9811-		●
71	05.586 NUT; YOKE M10 USA	8-94159-009-1	04	1	9811-	●	●
74	05.586 BOLT; YOKE,TRANS M10X29 USA	8-97168-458-1	04	1	9811-	●	●
89	05.586 NUT; YOKE TO RR AXLE FRONT M10 USA	8-94159-009-1	08	1	0101-	●
89	05.586 NUT; YOKE TO RR AXLE EXC. TORQUE ON DEMAND(7HA) FRONT M10 USA	8-94159-009-1	08	1	0101-		●
89	05.586 NUT; YOKE TO RR AXLE M10 USA	8-94159-009-1	12	1	9811-0012	●	●
89	05.586 NUT; YOKE TO RR AXLE REAR M10 USA	8-94159-009-1	04	1	0101-	●	●
103	05.544 BOOT; PROP SHAFT (B) REAR USA	8-97182-163-0	01	1	0210-	●
103	05.544 BOOT; PROP SHAFT 4DOOR LONG(UE***F) (B) REAR USA	8-97182-163-0	01	1	9811-0012	●
103	05.544 BOOT; PROP SHAFT (B) REAR USA	8-97182-163-0	01	1	0101-0201	●
103	05.544 BOOT; PROP SHAFT (A) FRONT,REAR USA	8-97182-164-0	01	1	9811-0012	●	●
103	05.544 BOOT; PROP SHAFT 2DOOR SHORT(UE***C) (A) FRONT,REAR USA	8-97182-164-0	01	1	9811-0012	●
103	05.544 BOOT; PROP SHAFT (A) FRONT,REAR USA	8-97182-164-0	01	1	9811-0012		●
103	05.544 BOOT; PROP SHAFT (A) FRONT USA	8-97182-164-0	01	1	0101-	●
103	05.544 BOOT; PROP SHAFT EXC. TORQUE ON DEMAND(7HA) (A) FRONT USA	8-97182-164-0	01	1	0101-		●
120	05.586 BOLT; YOKE TO RR AXLE M10X29 USA	8-97168-458-1	08	1	0101-	●
120	05.586 BOLT; YOKE TO RR AXLE EXC. TORQUE ON DEMAND(7HA) M10X29 USA	8-97168-458-1	08	1	0101-		●
120	05.586 BOLT; YOKE TO RR AXLE M10X29 USA	8-97168-458-1	12	1	9811-0012	●	●
120	05.586 BOLT; YOKE TO RR AXLE M10X29 USA	8-97168-458-1	04	1	0101-	●	●
120	05.586 BOLT; YOKE TO RR AXLE TORQUE ON DEMAND(7HA) M10X29 USA	8-97168-458-1	06	1	0101-		●
218	05.586 WASHER; PL,PROP SHAFT 03.613 USA	1-09503-222-0	08	1	0101-	●
218	05.586 WASHER; PL,PROP SHAFT EXC. TORQUE ON DEMAND(7HA) 03.613 USA	1-09503-222-0	08	1	0101-		●
218	05.586 WASHER; PL,PROP SHAFT 03.613 USA	1-09503-222-0	16	1	9811-0012	●	●
218	05.586 WASHER; PL,PROP SHAFT 03.613 USA	1-09503-222-0	04	1	0101-	●	●
218	05.586 WASHER; PL,PROP SHAFT 03.613 USA	1-09503-222-0	04	1	0101-	●	●
218	05.586 WASHER; PL,PROP SHAFT TORQUE ON DEMAND(7HA) 03.613 USA	1-09503-222-0	06	1	0101-		●
300	05.544 SHAFT ASM; PROP,RR 2DOOR SHORT(UE***C) USA	8-97125-293-3	01	1	9811-0012	●
300	05.544 SHAFT ASM; PROP,RR TORQUE ON DEMAND(7HA) USA	8-97232-171-3	01	1	0101-		●
300	05.544 SHAFT ASM; PROP,RR 4DOOR LONG(UE***F) USA	8-97125-298-3	01	1	9811-0012	●
300	05.544 SHAFT ASM; PROP,RR USA	8-97125-298-3	01	1	0101-0201	●
300	05.544 SHAFT ASM; PROP,RR USA	8-97332-353-0	01	1	0202-0301	●
300	05.544 SHAFT ASM; PROP,RR USA	8-97365-638-0	01	1	0302-	●
300	05.544 SHAFT ASM; PROP,RR USA	8-97176-109-1	01	1	9811-9908		●
300	05.544 SHAFT ASM; PROP,RR USA	8-97232-169-0	01	1	9909-0012		●
300	05.544 SHAFT ASM; PROP,RR EXC. TORQUE ON DEMAND(7HA) USA	8-97232-169-3	01	1	0101-		●

96 301 161 218 120

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
96	05.586 BOLT; PROP SHAFT TORQUE ON DEMAND(7HA)	8-97194-803-0	06	1	0101-		●
120	05.586 BOLT; YOKE TO RR AXLE M10X29 USA	8-97168-458-1	08	1	0101-	●
120	05.586 BOLT; YOKE TO RR AXLE EXC. TORQUE ON DEMAND(7HA) M10X29 USA	8-97168-458-1	08	1	0101-		●
120	05.586 BOLT; YOKE TO RR AXLE M10X29 USA	8-97168-458-1	12	1	9811-0012	●	●
120	05.586 BOLT; YOKE TO RR AXLE M10X29 USA	8-97168-458-1	04	1	0101-	●	●
120	05.586 BOLT; YOKE TO RR AXLE TORQUE ON DEMAND(7HA) M10X29 USA	8-97168-458-1	06	1	0101-		●
161	05.586 WASHER; LK,PROP SHAFT TORQUE ON DEMAND(7HA)	8-97194-808-0	03	1	0101-		●
218	05.586 WASHER; PL,PROP SHAFT 03.613 USA	1-09503-222-0	08	1	0101-	●
218	05.586 WASHER; PL,PROP SHAFT EXC. TORQUE ON DEMAND(7HA) 03.613 USA	1-09503-222-0	08	1	0101-		●
218	05.586 WASHER; PL,PROP SHAFT 03.613 USA	1-09503-222-0	16	1	9811-0012	●	●
218	05.586 WASHER; PL,PROP SHAFT 03.613 USA	1-09503-222-0	04	1	0101-	●	●
218	05.586 WASHER; PL,PROP SHAFT 03.613 USA	1-09503-222-0	04	1	0101-	●	●
218	05.586 WASHER; PL,PROP SHAFT TORQUE ON DEMAND(7HA) 03.613 USA	1-09503-222-0	06	1	0101-		●
301	05.544 SHAFT ASM; PROP,FRT 2DOOR SHORT(UE***C) USA	8-97125-303-1	01	1	9811-0012	●
301	05.544 SHAFT ASM; PROP,FRT TORQUE ON DEMAND(7HA)	8-97215-615-0	01	1	0101-		●
301	05.544 SHAFT ASM; PROP,FRT 4DOOR LONG(UE***F) USA	8-97125-301-2	01	1	9811-0012	●
301	05.544 SHAFT ASM; PROP,FRT USA	8-97125-301-3	01	1	0101-	●
301	05.544 SHAFT ASM; PROP,FRT USA	8-97125-302-2	01	1	9811-0012		●
301	05.544 SHAFT ASM; PROP,FRT EXC. TORQUE ON DEMAND(7HA) USA	8-97125-302-3	01	1	0101-		●

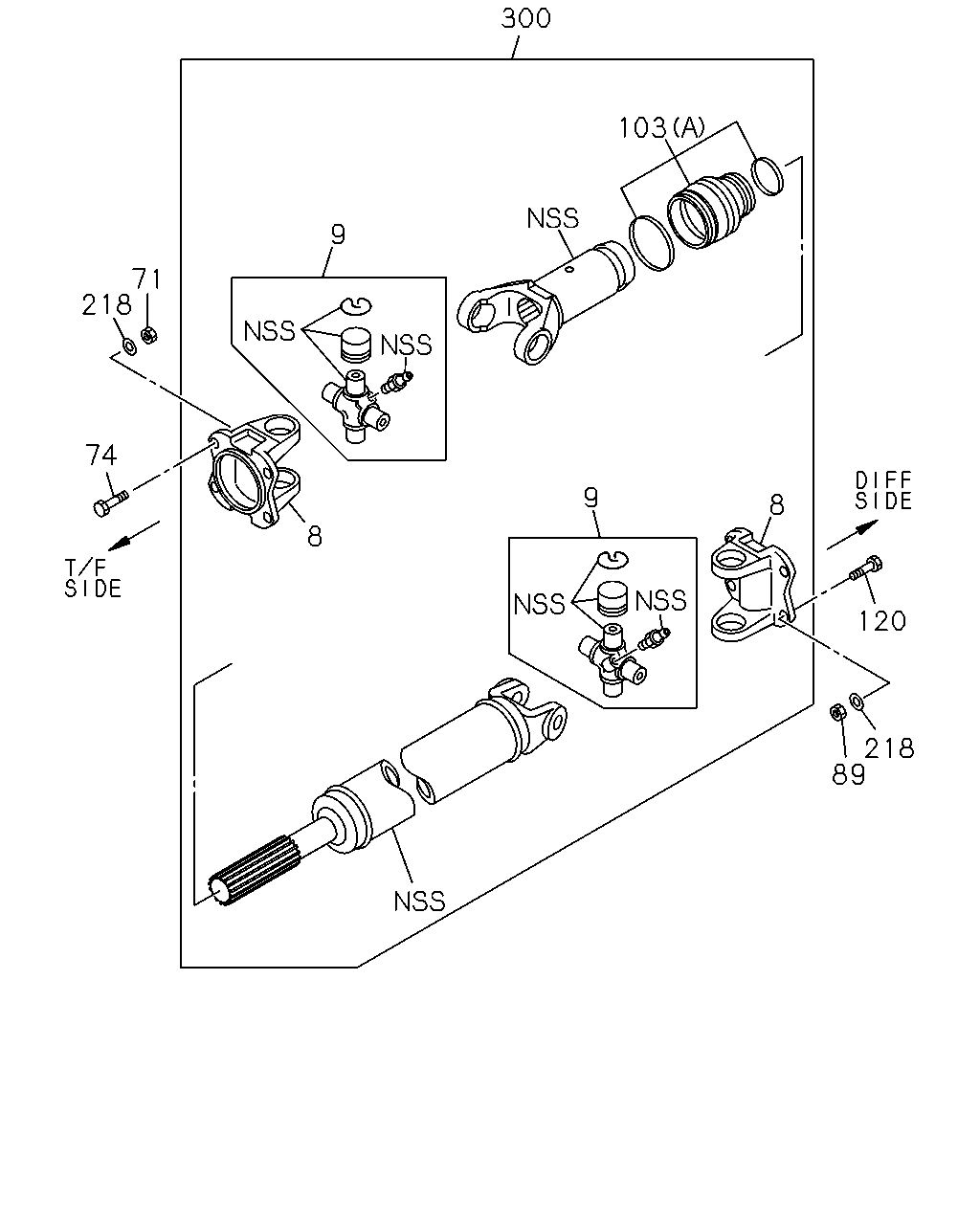

300 103 9 71 218 74 9 8 8 120 218 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	05.544 YOKE; FLANGE,PROP SHAFT 2DOOR SHORT(UE***C) FRONT USA	8-97020-281-0	01	1	9811-0012	●
8	05.544 YOKE; FLANGE,PROP SHAFT 4DOOR LONG(UE***F) FRONT USA	8-97020-281-0	02	1	9811-0012	●
8	05.544 YOKE; FLANGE,PROP SHAFT FRONT USA	8-97020-281-0	02	1	9811-0012		●
8	05.544 YOKE; FLANGE,PROP SHAFT FRONT USA	8-97020-281-0	02	1	0101-	●
8	05.544 YOKE; FLANGE,PROP SHAFT EXC. TORQUE ON DEMAND(7HA) FRONT USA	8-97020-281-0	02	1	0101-		●
8	05.544 YOKE; FLANGE,PROP SHAFT REAR USA	8-97182-188-0	02	1	9811-	●	●
9	05.548 JOURNAL ASM; PROP SHAFT USA	8-97359-258-0	02	1	0210-	●
9	05.548 JOURNAL ASM; PROP SHAFT 2DOOR SHORT(UE***C) FRONT USA	8-97020-279-0	01	1	9811-0012	●
9	05.548 JOURNAL ASM; PROP SHAFT 4DOOR LONG(UE***F) REAR USA	8-97182-165-0	02	1	9811-0012	●
9	05.548 JOURNAL ASM; PROP SHAFT REAR USA	8-97182-165-0	02	1	0101-0201	●
9	05.548 JOURNAL ASM; PROP SHAFT REAR-SHORT,FRONT-LONG USA	8-97020-279-0	02	1	9811-0012	●	●
9	05.548 JOURNAL ASM; PROP SHAFT REAR-SHORT,FRONT-LONG USA	8-97020-279-0	02	1	0101-	●
9	05.548 JOURNAL ASM; PROP SHAFT EXC. TORQUE ON DEMAND(7HA) REAR-SHORT,FRONT-LONG USA	8-97020-279-0	02	1	0101-		●
9	05.548 JOURNAL ASM; PROP SHAFT REAR USA	8-97185-603-0	02	1	9811-		●
71	05.586 NUT; YOKE M10 USA	8-94159-009-1	04	1	9811-	●	●
74	05.586 BOLT; YOKE,TRANS M10X29 USA	8-97168-458-1	04	1	9811-	●	●
89	05.586 NUT; YOKE TO RR AXLE FRONT M10 USA	8-94159-009-1	08	1	0101-	●
89	05.586 NUT; YOKE TO RR AXLE EXC. TORQUE ON DEMAND(7HA) FRONT M10 USA	8-94159-009-1	08	1	0101-		●
89	05.586 NUT; YOKE TO RR AXLE M10 USA	8-94159-009-1	12	1	9811-0012	●	●
89	05.586 NUT; YOKE TO RR AXLE REAR M10 USA	8-94159-009-1	04	1	0101-	●	●
103	05.544 BOOT; PROP SHAFT (B) REAR USA	8-97182-163-0	01	1	0210-	●
103	05.544 BOOT; PROP SHAFT 4DOOR LONG(UE***F) (B) REAR USA	8-97182-163-0	01	1	9811-0012	●
103	05.544 BOOT; PROP SHAFT (B) REAR USA	8-97182-163-0	01	1	0101-0201	●
103	05.544 BOOT; PROP SHAFT (A) FRONT,REAR USA	8-97182-164-0	01	1	9811-0012	●	●
103	05.544 BOOT; PROP SHAFT 2DOOR SHORT(UE***C) (A) FRONT,REAR USA	8-97182-164-0	01	1	9811-0012	●
103	05.544 BOOT; PROP SHAFT (A) FRONT,REAR USA	8-97182-164-0	01	1	9811-0012		●
103	05.544 BOOT; PROP SHAFT (A) FRONT USA	8-97182-164-0	01	1	0101-	●
103	05.544 BOOT; PROP SHAFT EXC. TORQUE ON DEMAND(7HA) (A) FRONT USA	8-97182-164-0	01	1	0101-		●
120	05.586 BOLT; YOKE TO RR AXLE M10X29 USA	8-97168-458-1	08	1	0101-	●
120	05.586 BOLT; YOKE TO RR AXLE EXC. TORQUE ON DEMAND(7HA) M10X29 USA	8-97168-458-1	08	1	0101-		●
120	05.586 BOLT; YOKE TO RR AXLE M10X29 USA	8-97168-458-1	12	1	9811-0012	●	●
120	05.586 BOLT; YOKE TO RR AXLE M10X29 USA	8-97168-458-1	04	1	0101-	●	●
120	05.586 BOLT; YOKE TO RR AXLE TORQUE ON DEMAND(7HA) M10X29 USA	8-97168-458-1	06	1	0101-		●
218	05.586 WASHER; PL,PROP SHAFT 03.613 USA	1-09503-222-0	08	1	0101-	●
218	05.586 WASHER; PL,PROP SHAFT EXC. TORQUE ON DEMAND(7HA) 03.613 USA	1-09503-222-0	08	1	0101-		●
218	05.586 WASHER; PL,PROP SHAFT 03.613 USA	1-09503-222-0	16	1	9811-0012	●	●
218	05.586 WASHER; PL,PROP SHAFT 03.613 USA	1-09503-222-0	04	1	0101-	●	●
218	05.586 WASHER; PL,PROP SHAFT 03.613 USA	1-09503-222-0	04	1	0101-	●	●
218	05.586 WASHER; PL,PROP SHAFT TORQUE ON DEMAND(7HA) 03.613 USA	1-09503-222-0	06	1	0101-		●
300	05.544 SHAFT ASM; PROP,RR 2DOOR SHORT(UE***C) USA	8-97125-293-3	01	1	9811-0012	●
300	05.544 SHAFT ASM; PROP,RR TORQUE ON DEMAND(7HA) USA	8-97232-171-3	01	1	0101-		●
300	05.544 SHAFT ASM; PROP,RR 4DOOR LONG(UE***F) USA	8-97125-298-3	01	1	9811-0012	●
300	05.544 SHAFT ASM; PROP,RR USA	8-97125-298-3	01	1	0101-0201	●
300	05.544 SHAFT ASM; PROP,RR USA	8-97332-353-0	01	1	0202-0301	●
300	05.544 SHAFT ASM; PROP,RR USA	8-97365-638-0	01	1	0302-	●
300	05.544 SHAFT ASM; PROP,RR USA	8-97176-109-1	01	1	9811-9908		●
300	05.544 SHAFT ASM; PROP,RR USA	8-97232-169-0	01	1	9909-0012		●
300	05.544 SHAFT ASM; PROP,RR EXC. TORQUE ON DEMAND(7HA) USA	8-97232-169-3	01	1	0101-		●

301 103 9 89 218 120 9 8 8 89 218 120 89 218 120

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	05.544 YOKE; FLANGE,PROP SHAFT 2DOOR SHORT(UE***C) FRONT USA	8-97020-281-0	01	1	9811-0012	●
8	05.544 YOKE; FLANGE,PROP SHAFT 4DOOR LONG(UE***F) FRONT USA	8-97020-281-0	02	1	9811-0012	●
8	05.544 YOKE; FLANGE,PROP SHAFT FRONT USA	8-97020-281-0	02	1	9811-0012		●
8	05.544 YOKE; FLANGE,PROP SHAFT FRONT USA	8-97020-281-0	02	1	0101-	●
8	05.544 YOKE; FLANGE,PROP SHAFT EXC. TORQUE ON DEMAND(7HA) FRONT USA	8-97020-281-0	02	1	0101-		●
8	05.544 YOKE; FLANGE,PROP SHAFT REAR USA	8-97182-188-0	02	1	9811-	●	●
9	05.548 JOURNAL ASM; PROP SHAFT USA	8-97359-258-0	02	1	0210-	●
9	05.548 JOURNAL ASM; PROP SHAFT 2DOOR SHORT(UE***C) FRONT USA	8-97020-279-0	01	1	9811-0012	●
9	05.548 JOURNAL ASM; PROP SHAFT 4DOOR LONG(UE***F) REAR USA	8-97182-165-0	02	1	9811-0012	●
9	05.548 JOURNAL ASM; PROP SHAFT REAR USA	8-97182-165-0	02	1	0101-0201	●
9	05.548 JOURNAL ASM; PROP SHAFT REAR-SHORT,FRONT-LONG USA	8-97020-279-0	02	1	9811-0012	●	●
9	05.548 JOURNAL ASM; PROP SHAFT REAR-SHORT,FRONT-LONG USA	8-97020-279-0	02	1	0101-	●
9	05.548 JOURNAL ASM; PROP SHAFT EXC. TORQUE ON DEMAND(7HA) REAR-SHORT,FRONT-LONG USA	8-97020-279-0	02	1	0101-		●
9	05.548 JOURNAL ASM; PROP SHAFT REAR USA	8-97185-603-0	02	1	9811-		●
89	05.586 NUT; YOKE TO RR AXLE FRONT M10 USA	8-94159-009-1	08	1	0101-	●
89	05.586 NUT; YOKE TO RR AXLE EXC. TORQUE ON DEMAND(7HA) FRONT M10 USA	8-94159-009-1	08	1	0101-		●
89	05.586 NUT; YOKE TO RR AXLE M10 USA	8-94159-009-1	12	1	9811-0012	●	●
89	05.586 NUT; YOKE TO RR AXLE REAR M10 USA	8-94159-009-1	04	1	0101-	●	●
103	05.544 BOOT; PROP SHAFT (B) REAR USA	8-97182-163-0	01	1	0210-	●
103	05.544 BOOT; PROP SHAFT 4DOOR LONG(UE***F) (B) REAR USA	8-97182-163-0	01	1	9811-0012	●
103	05.544 BOOT; PROP SHAFT (B) REAR USA	8-97182-163-0	01	1	0101-0201	●
103	05.544 BOOT; PROP SHAFT (A) FRONT,REAR USA	8-97182-164-0	01	1	9811-0012	●	●
103	05.544 BOOT; PROP SHAFT 2DOOR SHORT(UE***C) (A) FRONT,REAR USA	8-97182-164-0	01	1	9811-0012	●
103	05.544 BOOT; PROP SHAFT (A) FRONT,REAR USA	8-97182-164-0	01	1	9811-0012		●
103	05.544 BOOT; PROP SHAFT (A) FRONT USA	8-97182-164-0	01	1	0101-	●
103	05.544 BOOT; PROP SHAFT EXC. TORQUE ON DEMAND(7HA) (A) FRONT USA	8-97182-164-0	01	1	0101-		●
120	05.586 BOLT; YOKE TO RR AXLE M10X29 USA	8-97168-458-1	08	1	0101-	●
120	05.586 BOLT; YOKE TO RR AXLE EXC. TORQUE ON DEMAND(7HA) M10X29 USA	8-97168-458-1	08	1	0101-		●
120	05.586 BOLT; YOKE TO RR AXLE M10X29 USA	8-97168-458-1	12	1	9811-0012	●	●
120	05.586 BOLT; YOKE TO RR AXLE M10X29 USA	8-97168-458-1	04	1	0101-	●	●
120	05.586 BOLT; YOKE TO RR AXLE TORQUE ON DEMAND(7HA) M10X29 USA	8-97168-458-1	06	1	0101-		●
218	05.586 WASHER; PL,PROP SHAFT 03.613 USA	1-09503-222-0	08	1	0101-	●
218	05.586 WASHER; PL,PROP SHAFT EXC. TORQUE ON DEMAND(7HA) 03.613 USA	1-09503-222-0	08	1	0101-		●
218	05.586 WASHER; PL,PROP SHAFT 03.613 USA	1-09503-222-0	16	1	9811-0012	●	●
218	05.586 WASHER; PL,PROP SHAFT 03.613 USA	1-09503-222-0	04	1	0101-	●	●
218	05.586 WASHER; PL,PROP SHAFT 03.613 USA	1-09503-222-0	04	1	0101-	●	●
218	05.586 WASHER; PL,PROP SHAFT TORQUE ON DEMAND(7HA) 03.613 USA	1-09503-222-0	06	1	0101-		●
301	05.544 SHAFT ASM; PROP,FRT 2DOOR SHORT(UE***C) USA	8-97125-303-1	01	1	9811-0012	●
301	05.544 SHAFT ASM; PROP,FRT TORQUE ON DEMAND(7HA)	8-97215-615-0	01	1	0101-		●
301	05.544 SHAFT ASM; PROP,FRT 4DOOR LONG(UE***F) USA	8-97125-301-2	01	1	9811-0012	●
301	05.544 SHAFT ASM; PROP,FRT USA	8-97125-301-3	01	1	0101-	●
301	05.544 SHAFT ASM; PROP,FRT USA	8-97125-302-2	01	1	9811-0012		●
301	05.544 SHAFT ASM; PROP,FRT EXC. TORQUE ON DEMAND(7HA) USA	8-97125-302-3	01	1	0101-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
