◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UES ▶ 50807 - UES(AUSTRALIA) ▶ 3 - Brakes, Brake System ▶ 3-55 - BRAKE PIPING; OIL,REAR ▶
3-55 — BRAKE PIPING; OIL,REAR (#32599) — 34 parça

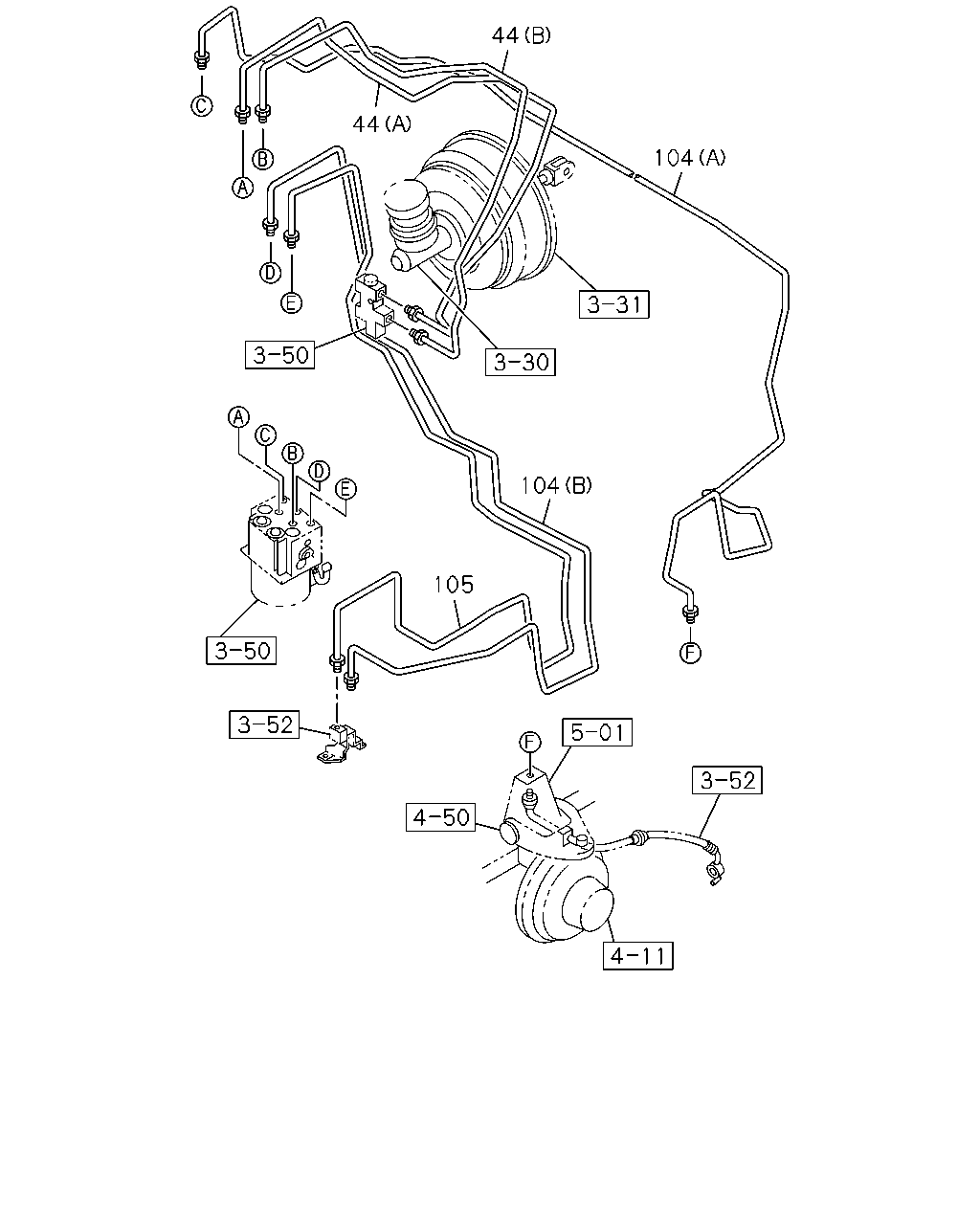

çizim 3895
44 44 104 104 105
BalonParca AdiParca NoAdetTipApplied Date A B
44 04.686 PIPE; BRK,HYDRAULIC UNIT TO VALV
(A) USA 		8-97210-835-1 01 1 9811-0003 ● ●
44 04.686 PIPE; BRK,HYDRAULIC UNIT TO VALV
(A) USA 		8-97240-239-1 01 1 0004-0009 ● ●
44 04.686 PIPE; BRK,HYDRAULIC UNIT TO VALV
(A) USA 		8-97247-108-0 01 1 0010-0012 ● ●
44 04.686 PIPE; BRK,HYDRAULIC UNIT TO VALV
(A) USA 		8-97247-108-0 01 1 0101- ●
44 04.686 PIPE; BRK,HYDRAULIC UNIT TO VALV
(B) USA 		8-97210-836-1 01 1 9811-0003 ● ●
44 04.686 PIPE; BRK,HYDRAULIC UNIT TO VALV
(B) USA 		8-97240-240-1 01 1 0004-0009 ● ●
44 04.686 PIPE; BRK,HYDRAULIC UNIT TO VALV
(B) USA 		8-97247-109-0 01 1 0010-0012 ● ●
44 04.686 PIPE; BRK,HYDRAULIC UNIT TO VALV
(B) USA 		8-97247-109-0 01 1 0101- ●
104 04.686 PIPE; BRK,H/U TO FRONT
(A) USA 		8-97181-010-1 01 1 9811-0003 ● ●
104 04.686 PIPE; BRK,H/U TO FRONT
(A) USA 		8-97240-241-0 01 1 0004-0012 ● ●
104 04.686 PIPE; BRK,H/U TO FRONT
(A) USA 		8-97240-241-0 01 1 0101- ●
104 04.686 PIPE; BRK,H/U TO FRONT
(B) USA 		8-97207-233-1 01 1 9811-0003 ● ●
104 04.686 PIPE; BRK,H/U TO FRONT
(B) USA 		8-97240-242-1 01 1 0004-0012 ● ●
104 04.686 PIPE; BRK,H/U TO FRONT
(B) USA 		8-97240-242-2 01 1 0101- ●
105 04.686 PIPE; BRK,H/U TO 2WAY
USA 		8-97207-234-1 01 1 9811-0012 ● ●
105 04.686 PIPE; BRK,H/U TO 2WAY
USA 		8-97207-234-1 01 1 0101- ●

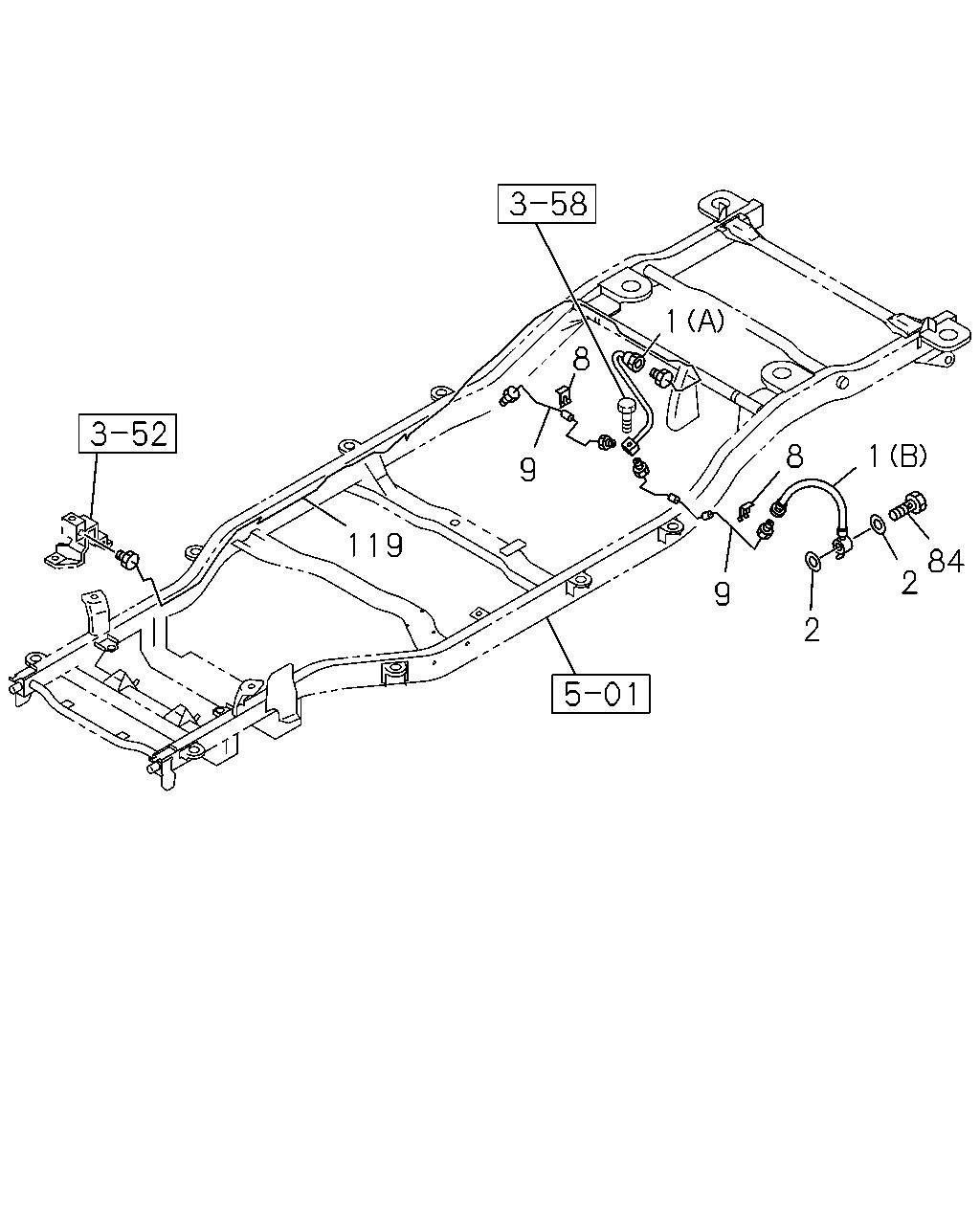

çizim 38503
8 1 8 1 9 119 84 2 9 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.680 HOSE; FLEX,RR BRK
(B) USA 		8-97124-878-0 02 1 9811-0012 ● ●
1 04.680 HOSE; FLEX,RR BRK
(B) USA 		8-97124-878-0 02 1 0101- ●
1 04.680 HOSE; FLEX,RR BRK
(A) USA 		8-97124-880-1 01 1 9811-0012 ● ●
1 04.680 HOSE; FLEX,RR BRK
(A) USA 		8-97124-880-1 01 1 0101- ●
2 04.686 GASKET; FLEX HOSE,RR BRK
08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 9811-0012 ● ●
2 04.686 GASKET; FLEX HOSE,RR BRK
08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 0101- ●
8 04.686 CLIP; RR BRK 8-97162-347-0 02 1 9811-0012 ● ●
8 04.686 CLIP; RR BRK 8-97162-347-0 02 1 0101- ●
9 04.685 PIPE; BRK,RR AXLE
USA 		8-97124-768-0 01 1 9811-0003 ● ●
9 04.685 PIPE; BRK,RR AXLE
USA 		8-97219-974-0 01 1 0004-0012 ● ●
9 04.685 PIPE; BRK,RR AXLE
USA 		8-97219-974-1 01 1 0101- ●
9 04.685 PIPE; BRK,RR AXLE
USA 		8-97124-769-1 01 1 9811-0003 ● ●
9 04.685 PIPE; BRK,RR AXLE
USA 		8-97219-975-0 01 1 0004-0012 ● ●
9 04.685 PIPE; BRK,RR AXLE
USA 		8-97219-975-1 01 1 0101- ●
84 04.686 BOLT; FLEX HOSE EYE
04.665 M10X22 USA 		5-09675-017-0 02 1 9811-0012 ● ●
84 04.686 BOLT; FLEX HOSE EYE
04.665 M10X22 USA 		5-09675-017-0 02 1 0101- ●
119 04.685 PIPE; BRK,2WAY TO RR
USA 		8-97130-529-3 01 1 9811-0012 ●
119 04.685 PIPE; BRK,2WAY TO RR
USA 		8-97124-775-4 01 1 9811- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
