◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UES ▶ 50807 - UES(AUSTRALIA) ▶ 3 - Brakes, Brake System ▶ 3-30 - BRAKE MASTER CYLINDER ▶
3-30 — BRAKE MASTER CYLINDER (#32595) — 47 parça

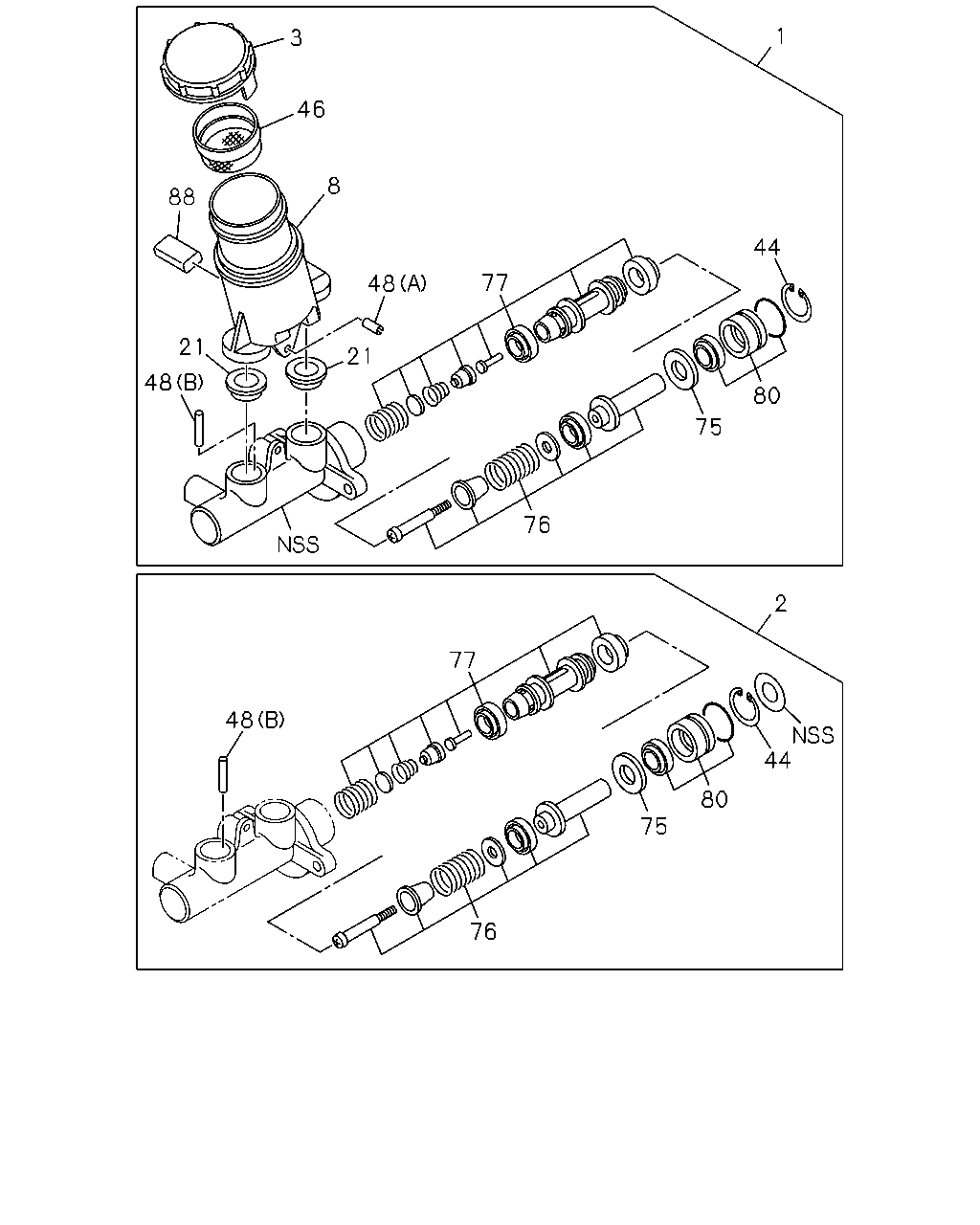

çizim 37069
1 3 46 8 88 44 77 48 21 21 48 80 75 76 2 77 48 44 80 75 76
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.650 CYLINDER ASM; BRK MASTER
USA 		8-97178-010-1 01 1 9811-0012 ● ●
1 04.650 CYLINDER ASM; BRK MASTER
USA 		8-97178-010-1 01 1 0101-0102 ●
1 04.650 CYLINDER ASM; BRK MASTER
USA 		8-97309-954-0 01 1 0103-0108 ●
1 04.650 CYLINDER ASM; BRK MASTER
USA 		8-97288-161-0 01 1 0109- ●
2 04.649 REPAIR KIT; BRK,M/CYL
USA 		8-97178-913-0 01 1 9811-0012 ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
USA 		8-97178-913-0 01 1 0101-0102 ●
2 04.649 REPAIR KIT; BRK,M/CYL
USA 		8-97311-076-0 01 1 0103-0108 ●
2 04.649 REPAIR KIT; BRK,M/CYL
USA 		8-97308-563-0 01 1 0109- ●
3 04.651 CAP; OIL TANK
USA 		8-94124-872-0 01 1 9811-0012 ● ●
3 04.651 CAP; OIL TANK
USA 		8-94124-872-0 01 1 0101-0102 ●
3 04.651 CAP; OIL TANK
USA 		8-97289-099-0 01 1 0103- ●
8 04.651 TANK; OIL,M/CYL
USA 		8-97061-565-0 01 1 9811-0012 ● ●
8 04.651 TANK; OIL,M/CYL
USA 		8-97061-565-0 01 1 0101-0108 ●
8 04.651 TANK; OIL,M/CYL
USA 		8-97289-093-0 01 1 0109- ●
21 04.651 GROMMET; BRK M/CYL
USA 		8-97061-567-0 02 1 9811-0012 ● ●
21 04.651 GROMMET; BRK M/CYL
USA 		8-97061-567-0 02 1 0101-0108 ●
21 04.651 GROMMET; BRK M/CYL
USA 		8-97289-096-0 02 1 0109- ●
44 04.656 RING; SNAP,M/CYL
USA 		8-97289-091-0 01 1 0109- ●
46 04.651 FILTER; OIL TANK,M/CYL
USA 		8-97289-094-0 01 1 0109- ●
48 04.654 PIN; M/CYL
(A) USA 		8-97289-098-0 01 1 0109- ●
48 04.654 PIN; M/CYL
(B) USA 		8-97289-114-0 01 1 0109- ●
75 04.654 STOPPER; PISTON
USA 		8-97289-088-0 01 1 0109- ●
76 04.653 PISTON ASM; PRIMARY
USA 		8-97289-086-0 01 1 0109- ●
77 04.653 PISTON ASM; SECONDARY
USA 		8-97289-087-0 01 1 0109- ●
80 04.651 COVER; MASTER CYL
USA 		8-97289-089-0 01 1 0109- ●
88 04.663 SWITCH; LEVEL,OIL TANK,M/CYL
USA 		8-97289-102-0 01 1 0109- ●
çizim 37249
3 6 1 8 5 21 21 2 6 21 21
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.650 CYLINDER ASM; BRK MASTER
USA 		8-97178-010-1 01 1 9811-0012 ● ●
1 04.650 CYLINDER ASM; BRK MASTER
USA 		8-97178-010-1 01 1 0101-0102 ●
1 04.650 CYLINDER ASM; BRK MASTER
USA 		8-97309-954-0 01 1 0103-0108 ●
1 04.650 CYLINDER ASM; BRK MASTER
USA 		8-97288-161-0 01 1 0109- ●
2 04.649 REPAIR KIT; BRK,M/CYL
USA 		8-97178-913-0 01 1 9811-0012 ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
USA 		8-97178-913-0 01 1 0101-0102 ●
2 04.649 REPAIR KIT; BRK,M/CYL
USA 		8-97311-076-0 01 1 0103-0108 ●
2 04.649 REPAIR KIT; BRK,M/CYL
USA 		8-97308-563-0 01 1 0109- ●
3 04.651 CAP; OIL TANK
USA 		8-94124-872-0 01 1 9811-0012 ● ●
3 04.651 CAP; OIL TANK
USA 		8-94124-872-0 01 1 0101-0102 ●
3 04.651 CAP; OIL TANK
USA 		8-97289-099-0 01 1 0103- ●
5 04.651 RETAINER; DIAPH,M/CYL
USA 		8-97061-568-0 01 1 9811-0012 ● ●
5 04.651 RETAINER; DIAPH,M/CYL
USA 		8-97061-568-0 01 1 0101-0108 ●
6 04.651 DIAPHRAGM; BRK M/CYL
04.657 USA 		8-94124-873-0 01 1 9811-0012 ● ●
6 04.651 DIAPHRAGM; BRK M/CYL
04.657 USA 		8-94124-873-0 01 1 0101-0108 ●
8 04.651 TANK; OIL,M/CYL
USA 		8-97061-565-0 01 1 9811-0012 ● ●
8 04.651 TANK; OIL,M/CYL
USA 		8-97061-565-0 01 1 0101-0108 ●
8 04.651 TANK; OIL,M/CYL
USA 		8-97289-093-0 01 1 0109- ●
21 04.651 GROMMET; BRK M/CYL
USA 		8-97061-567-0 02 1 9811-0012 ● ●
21 04.651 GROMMET; BRK M/CYL
USA 		8-97061-567-0 02 1 0101-0108 ●
21 04.651 GROMMET; BRK M/CYL
USA 		8-97289-096-0 02 1 0109- ●
