◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UES ▶ 50807 - UES(AUSTRALIA) ▶ 3 - Brakes, Brake System ▶ 3-10 - BRAKE PEDAL AND CONTROL ▶
3-10 — BRAKE PEDAL AND CONTROL (#32593) — 48 parça

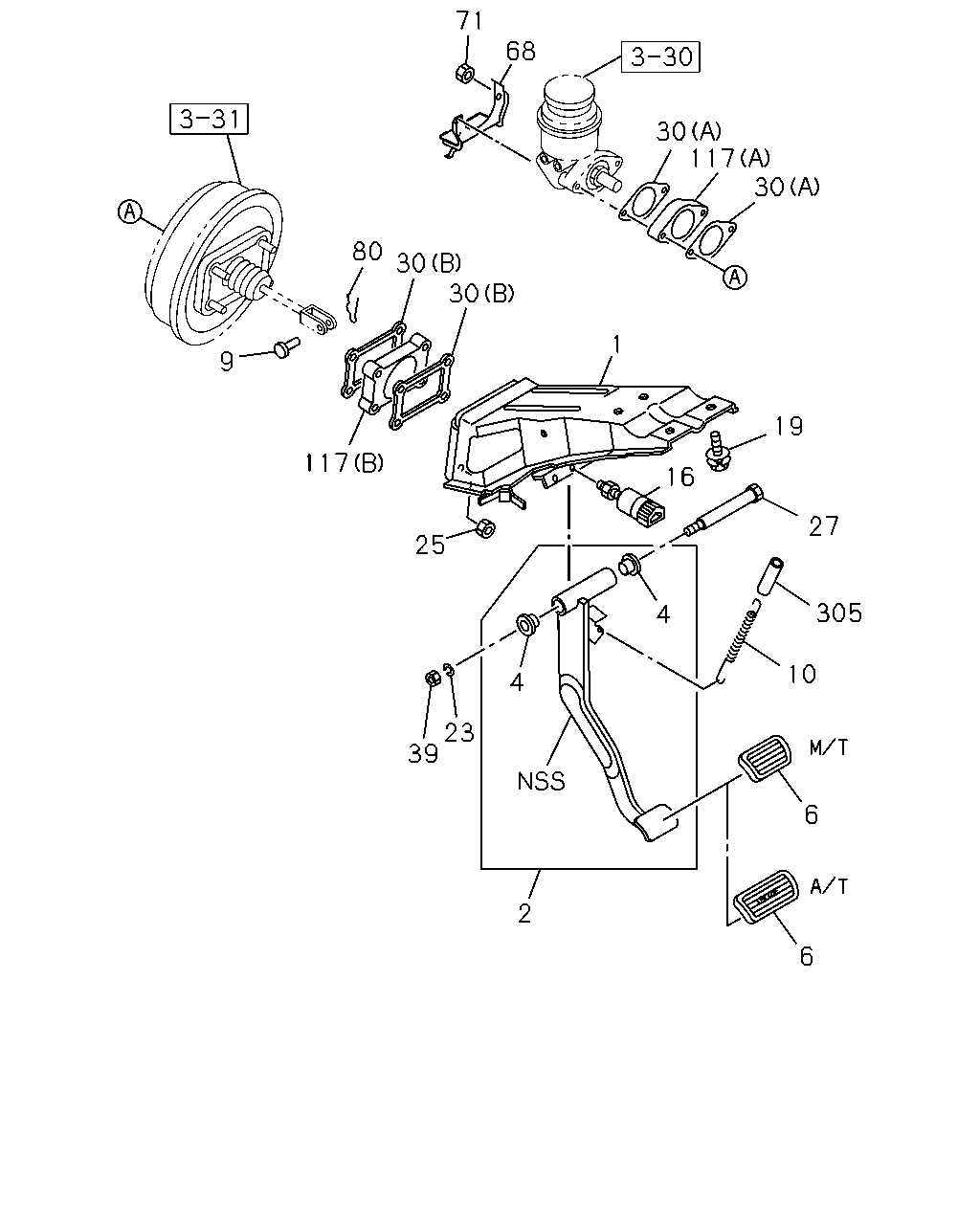

çizim 38846
71 68 30 117 30 80 30 30 9 1 19 117 16 27 25 305 4 10 4 23 39 6 2 6
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.634 BRACKET ASM; PEDAL 8-97142-209-0 01 1 9811-0012 ● ●
1 04.634 BRACKET ASM; PEDAL 8-97142-209-0 01 1 0101-0108 ●
1 04.634 BRACKET ASM; PEDAL 8-97300-593-0 01 1 0109- ●
2 04.625 PEDAL; BRK 8-97142-210-0 01 1 9811-0012 ●
2 04.625 PEDAL; BRK
M/T MUA 5 SPEED(RMN) 		8-97142-210-0 01 1 9811-0012 ●
2 04.625 PEDAL; BRK
M/T MUA 5 SPEED(RMN) 		8-97142-210-0 01 1 0101-0108 ●
2 04.625 PEDAL; BRK
M/T MUA 5 SPEED(RMN) 		8-97300-596-0 01 1 0109- ●
2 04.625 PEDAL; BRK
A/T THM 4 SPEED(RMQ) 		8-97142-211-0 01 1 9811-0108 ●
2 04.625 PEDAL; BRK
A/T THM 4 SPEED(RMQ) 		8-97300-595-0 01 1 0109- ●
4 04.634 BUSHING; BRK PEDAL
00.833 		8-94244-439-0 02 1 9811-0012 ● ●
4 04.634 BUSHING; BRK PEDAL
00.833 		8-94244-439-0 02 1 0101- ●
6 04.630 COVER; BRK PEDAL 8-94222-524-1 01 1 9811-0012 ●
6 04.630 COVER; BRK PEDAL
M/T MUA 5 SPEED(RMN) 		8-94222-524-1 01 1 9811-0012 ●
6 04.630 COVER; BRK PEDAL
M/T MUA 5 SPEED(RMN) 		8-94222-524-1 01 1 0101- ●
6 04.630 COVER; BRK PEDAL
A/T THM 4 SPEED(RMQ) 		5-31413-004-0 01 1 9811- ●
9 04.634 PIN; JAW JOINT
04.662 		8-94250-182-0 01 1 9811-0012 ● ●
9 04.634 PIN; JAW JOINT
04.662 		8-94250-182-0 01 1 0101- ●
10 04.639 SPRING; RETURN,BRK PEDAL 8-94329-696-0 01 1 9811-0012 ● ●
10 04.639 SPRING; RETURN,BRK PEDAL 8-94329-696-0 01 1 0101- ●
16 02.447 SWITCH; STOP LAMP 8-94109-863-0 01 1 9811-0012 ● ●
16 02.447 SWITCH; STOP LAMP 8-94109-863-0 01 1 0101- ●
19 04.634 BOLT; BRKT
02.664 M8X20 FLANGE USA 		0-28680-820-0 05 1 9811-0012 ● ●
19 04.634 BOLT; BRKT
02.664 M8X20 FLANGE USA 		0-28680-820-0 05 1 0101- ●
23 04.634 WASHER; LK,SHAFT
00.002 ID=10.2 		9-09150-510-0 01 1 9811-0012 ● ●
23 04.634 WASHER; LK,SHAFT
00.002 ID=10.2 		9-09150-510-0 01 1 0101- ●
25 04.634 NUT; FLANGE,MTG BRKT TO BODY
07.633 M8 FLANGE USA 		0-91150-108-0 04 1 9811-0012 ● ●
25 04.634 NUT; FLANGE,MTG BRKT TO BODY
07.633 M8 FLANGE USA 		0-91150-108-0 04 1 0101- ●
27 04.634 SHAFT; BRK PEDAL 8-94480-803-0 01 1 9811-0012 ● ●
27 04.634 SHAFT; BRK PEDAL 8-94480-803-0 01 1 0101- ●
30 04.910 GASKET; M/VAC TO BODY
(B) USA 		8-94111-590-0 02 1 9811-0012 ● ●
30 04.910 GASKET; M/VAC TO BODY
(A) USA 		8-97178-015-0 02 1 9811-0012 ● ●
30 04.910 GASKET; M/VAC TO BODY
(A) USA 		8-97178-015-0 02 1 0101-0108 ●
30 04.910 GASKET; M/VAC TO BODY
(B) USA 		8-94111-590-0 02 1 0101- ●
39 04.634 NUT; STOPPER LK
09.011 M10 		9-09110-410-0 01 1 9811-0012 ● ●
39 04.634 NUT; STOPPER LK
09.011 M10 		9-09110-410-0 01 1 0101- ●
68 04.634 BRACKET; SERVO TO DASH PANEL
USA 		8-97178-906-0 01 1 9811-0012 ● ●
68 04.634 BRACKET; SERVO TO DASH PANEL
USA 		8-97178-906-0 01 1 0101-0108 ●
68 04.634 BRACKET; SERVO TO DASH PANEL
USA 		8-97288-377-0 01 1 0109- ●
71 04.650 NUT; BRK M/CYL
00.777 M8 W/LK WASHER USA 		8-94279-050-0 02 1 9811-0012 ● ●
71 04.650 NUT; BRK M/CYL
00.777 M8 W/LK WASHER USA 		8-94279-050-0 02 1 0101- ●
80 04.634 PIN; SNAP,BRK PEDAL
L=27.7 		8-94157-841-0 01 1 9811-0012 ● ●
80 04.634 PIN; SNAP,BRK PEDAL
L=27.7 		8-94157-841-0 01 1 0101- ●
117 04.910 SPACER; M/VAC TO BODY
(B) USA 		8-97094-455-0 01 1 9811-0012 ● ●
117 04.910 SPACER; M/VAC TO BODY
(A) USA 		8-97178-908-0 01 1 9811-0012 ● ●
117 04.910 SPACER; M/VAC TO BODY
(A) USA 		8-97178-908-0 01 1 0101-0108 ●
117 04.910 SPACER; M/VAC TO BODY
(B) USA 		8-97094-455-0 01 1 0101- ●
305 04.641 COVER; SPRING 8-97182-844-0 01 1 9811-0012 ● ●
305 04.641 COVER; SPRING 8-97182-844-0 01 1 0101- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
