Isuzu WW
▶
SUV
▶
UES
▶
50807 - UES(AUSTRALIA)
▶
3 - Brakes, Brake System
▶
3-08 - PARKING BRAKE
▶

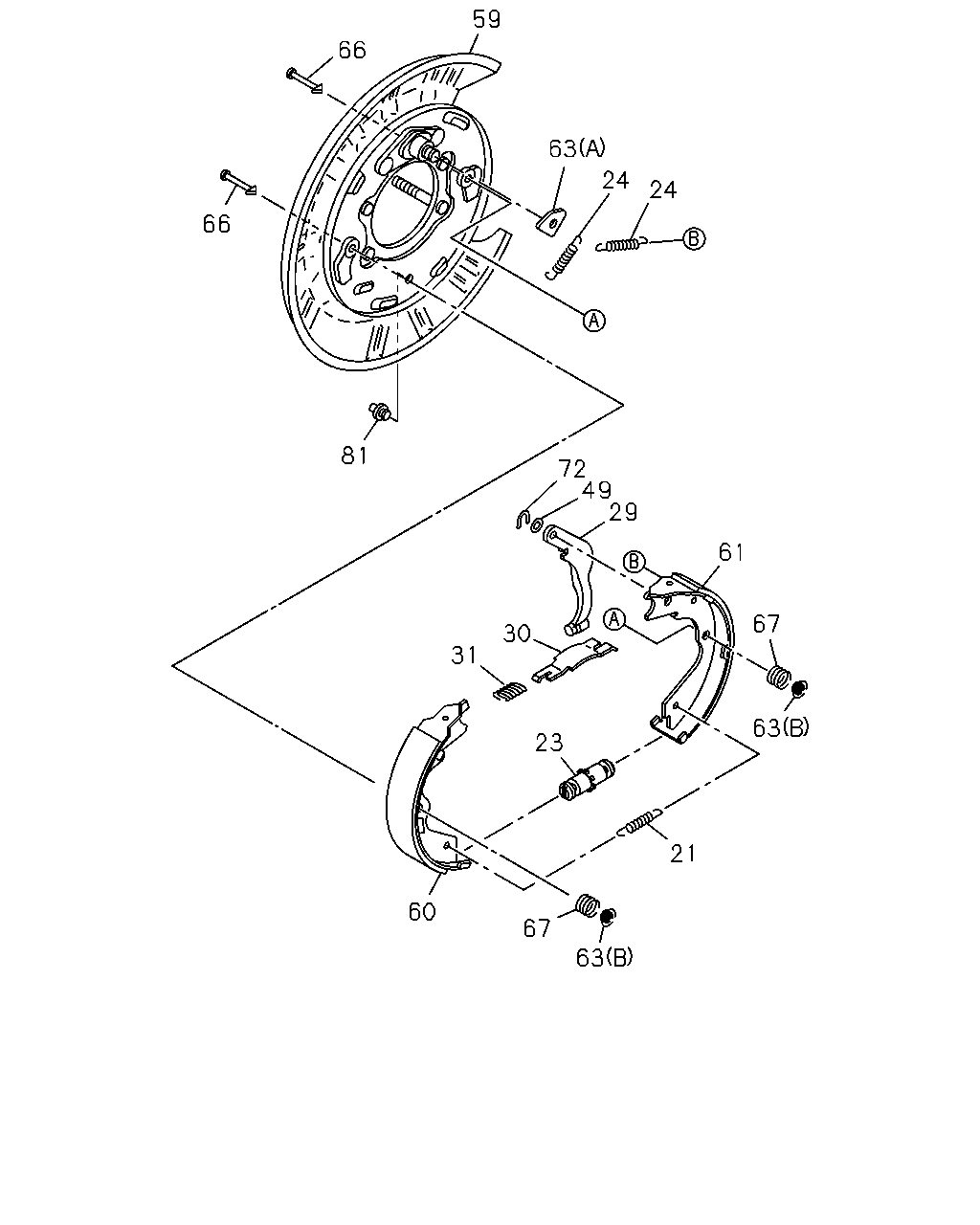

3-08 — PARKING BRAKE
(#32592) — 20 parça
Tümü
A - M/T MUA 5 SPEED
B - A/T THM 4 SPEED
59
66
63
24
24
66
72
49
29
81
61
67
30
31
63
23
21
60
67
63
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
21
05.606 SPRING; RETURN,PARKING BRK SHOE
USA
8-97120-773-0
02
1
9811-
●
●
23
05.615 SCREW; ADJ,PARKING BRK SHOE
USA
8-97120-775-0
02
1
9811-
●
●
24
05.605 SPRING; BRK SHOE
USA
8-97120-772-0
04
1
9811-
●
●
29
04.591 LEVER; PARKING BRK
USA
8-97120-762-0
01
1
9811-
●
●
29
04.591 LEVER; PARKING BRK
USA
8-97120-761-0
01
1
9811-
●
●
30
05.605 STRUT; PARKING BRK
USA
8-97120-764-0
01
1
9811-
●
●
30
05.605 STRUT; PARKING BRK
USA
8-97120-763-0
01
1
9811-
●
●
31
05.605 SPRING; SHOE TO STRUT
USA
8-97120-771-0
02
1
9811-
●
●
49
04.591 WASHER; PARKING BRK LEVER
USA
8-97120-769-0
02
1
9811-
●
●
59
05.610 COVER; DUST,PARKING BRK
USA
8-97141-947-0
01
1
9811-
●
●
59
05.610 COVER; DUST,PARKING BRK
USA
8-97141-946-0
01
1
9811-
●
●
60
05.610 SHOE; PARKING BRK,PRIMARY
LEADING USA
8-97120-760-0
02
1
9811-
●
●
61
05.610 SHOE; PARKING BRK,SECONDARY
TRAILING USA
8-97120-759-0
01
1
9811-
●
●
61
05.610 SHOE; PARKING BRK,SECONDARY
TRAILING USA
8-97120-758-0
01
1
9811-
●
●
63
04.591 RETAINER; PARKING BRK LEVER
(B) USA
8-97120-767-0
04
1
9811-
●
●
63
04.591 RETAINER; PARKING BRK LEVER
(A) USA
8-97120-774-0
02
1
9811-
●
●
66
05.610 PIN; SHOE HOLD,PARKING BRK
USA
8-97120-768-0
04
1
9811-
●
●
67
05.610 SPRING; SHOE HOLD,PARKING BRK
USA
8-97120-766-0
04
1
9811-
●
●
72
05.605 RING; SNAP
USA
8-97120-770-0
02
1
9811-
●
●
81
05.606 COVER; CHECK HOLE,PARKING BRK
USA
8-97120-765-0
02
1
9811-
●
●
