3-06 — REAR DISC BRAKE CALIPER (#32591) — 28 parça

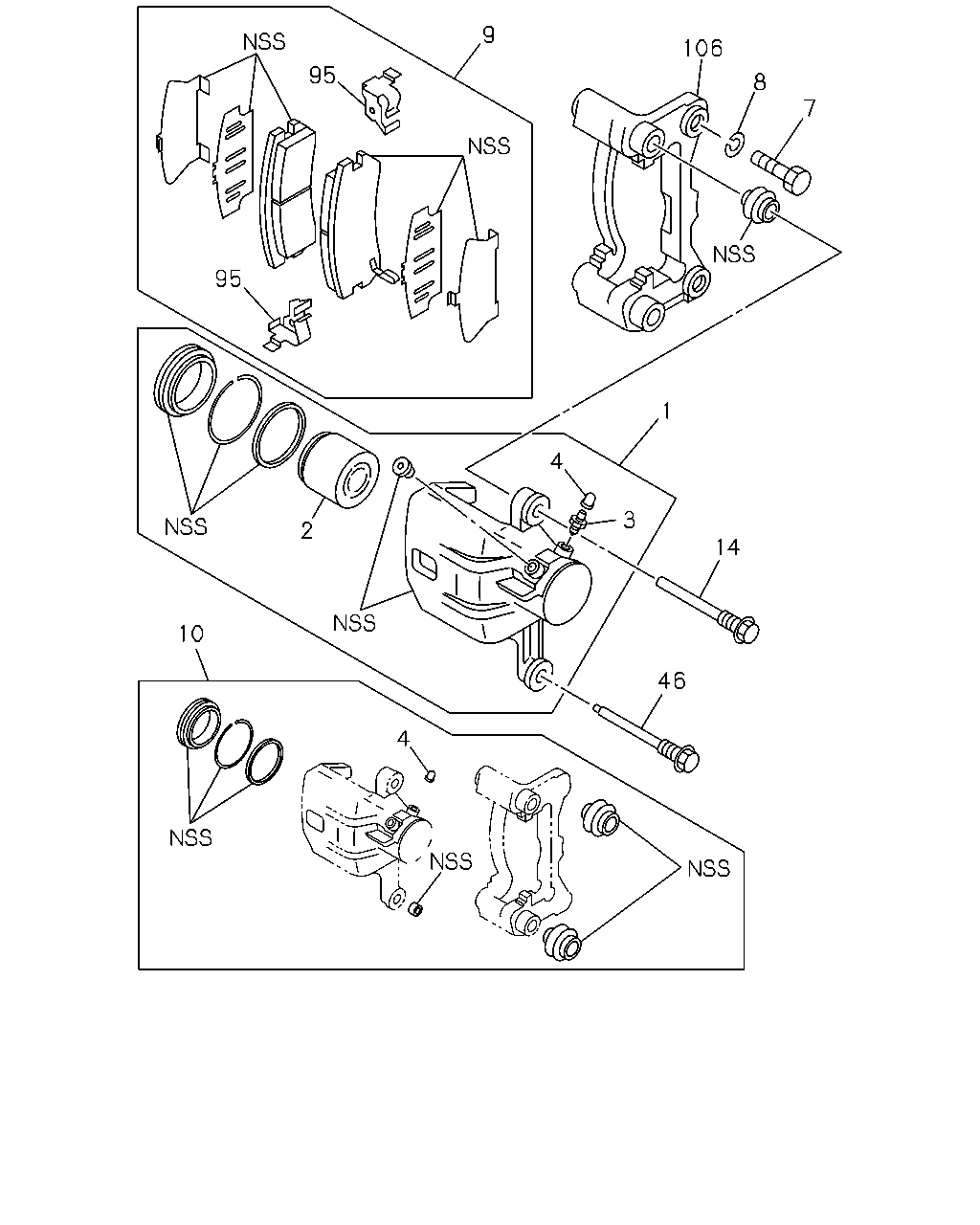

çizim 37786
9 106 95 8 7 95 1 4 3 2 14 10 46 4
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.665 CALIPER; RR DISC BRK
USA 		8-97127-630-0 01 1 9811-0012 ● ●
1 04.665 CALIPER; RR DISC BRK
USA 		8-97127-630-0 01 1 0101- ●
1 04.665 CALIPER; RR DISC BRK
USA 		8-97127-629-0 01 1 9811-0012 ● ●
1 04.665 CALIPER; RR DISC BRK
USA 		8-97127-629-0 01 1 0101- ●
2 04.665 PISTON; CALIPER,RR
USA 		8-97065-364-1 02 1 9811-0012 ● ●
2 04.665 PISTON; CALIPER,RR
USA 		8-97065-364-1 02 1 0101- ●
3 04.665 SCREW; BLEEDER,CALIPER,RR
04.666 USA 		8-94380-137-0 02 1 9811-0012 ● ●
3 04.665 SCREW; BLEEDER,CALIPER,RR
04.666 USA 		8-94380-137-0 02 1 0101- ●
4 04.665 CAP; BLEEDER SCREW,CALIPER,RR
04.666 USA 		1-47619-009-0 02 1 9811-0012 ● ●
4 04.665 CAP; BLEEDER SCREW,CALIPER,RR
04.666 USA 		1-47619-009-0 02 1 0101- ●
7 04.665 BOLT; DISC BRK
M12X27 USA 		8-97126-215-1 04 1 9811-0012 ● ●
7 04.665 BOLT; DISC BRK
M12X27 USA 		8-97126-215-1 04 1 0101-0203 ●
7 04.665 BOLT; DISC BRK
M12X27 USA 		8-97351-108-0 04 1 0204- ●
8 04.665 WASHER; LK,DISC BRK
00.002 ID=12.2 		9-09150-812-0 04 1 9811-0012 ● ●
8 04.665 WASHER; LK,DISC BRK
00.002 ID=12.2 		9-09150-812-0 04 1 0101- ●
9 04.667 PAD KIT; CALIPER,RR
USA 		8-97131-749-0 01 1 9811-9909 ● ●
9 04.667 PAD KIT; CALIPER,RR 8-97035-266-0 01 1 9910-0012 ● ●
9 04.667 PAD KIT; CALIPER,RR 8-97035-266-0 01 1 0101- ●
10 04.665 REPAIR KIT; DISC BRK,RR
USA 		8-97127-613-0 01 1 9811-0012 ● ●
10 04.665 REPAIR KIT; DISC BRK,RR
USA 		8-97127-613-0 01 1 0101- ●
14 04.665 PIN; GUIDE,CALIPER
USA 		8-97160-821-0 02 1 9811-0012 ● ●
14 04.665 PIN; GUIDE,CALIPER
USA 		8-97160-821-0 02 1 0101- ●
46 04.665 PIN; ADJ
USA 		8-97160-823-0 02 1 9811-0012 ● ●
46 04.665 PIN; ADJ
USA 		8-97160-823-0 02 1 0101- ●
95 04.665 CLIP; PAD
USA 		8-97160-819-0 04 1 9811-0012 ● ●
95 04.665 CLIP; PAD
USA 		8-97160-819-0 04 1 0101- ●
106 04.665 SUPPORT
USA 		8-97065-363-0 02 1 9811-0012 ● ●
106 04.665 SUPPORT
USA 		8-97065-363-0 02 1 0101- ●
