0-50 — OIL COOLER AND OIL FILTER (#3259) — 43 parça
çizim 5330
333 328 496 321 336 333 328
BalonParca AdiParca NoAdetTipApplied Date A B
321 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-13219-194-0 01 1 9101-9510 ● ●
321 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94370-670-0 01 1 9511- ● ●
328 BOLT; OIL FILTER
(A) M10X40 W/LK&PL WASHER 		0-50141-040-0 02 1 9101- ● ●
328 BOLT; OIL FILTER
(B) M10X145 		9-09800-928-1 02 1 9101- ● ●
333 GASKET; OIL FILTER
ALSO INCLUDED IN GASKET SET(ENGINE). 		9-09572-010-0 02 1 9101- ● ●
336 CLIP; OIL PIPE 1-15419-145-0 01 1 9101- ● ●
496 FILTER ASM; OIL 1-13200-594-0 01 1 9101- ● ●

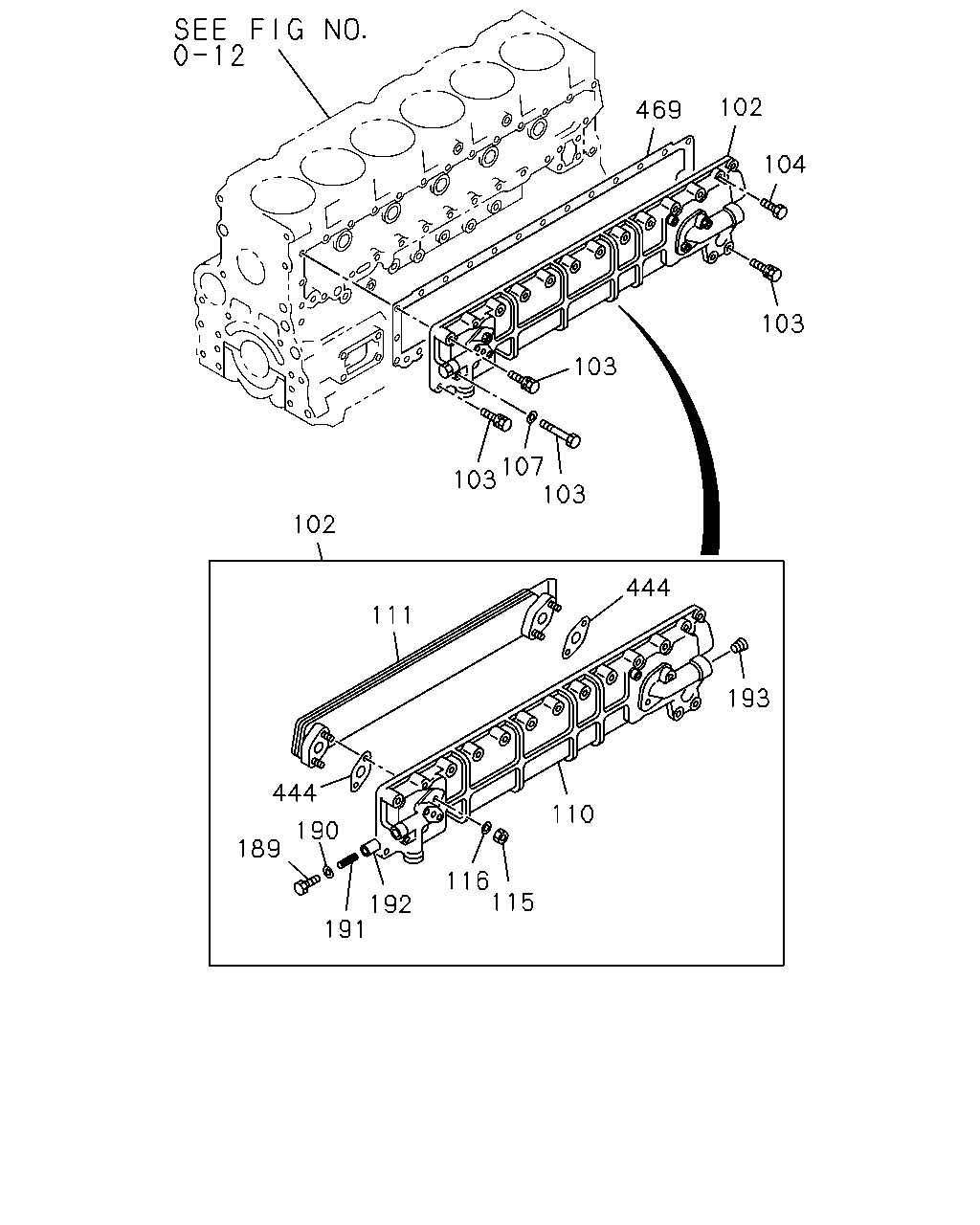

çizim 38494
102 469 104 103 103 107 103 103 102 444 111 193 444 110 190 189 116 115 192 191
BalonParca AdiParca NoAdetTipApplied Date A B
102 COOLER ASM; OIL 1-21700-222-3 01 1 9101- ● ●
103 BOLT; OIL COOLER
M8X20 W/LK&PL WASHER 		0-50140-820-0 02 1 9101-9104 ● ●
103 BOLT; OIL COOLER
M8X20 W/PL WASHER 		1-09030-091-0 02 1 9105- ● ●
103 BOLT; OIL COOLER
M8X28 W/LK&PL WASHER 		0-50140-828-0 15 1 9101- ● ●
103 BOLT; OIL COOLER
M8X65 W/LK WASHER 		8-94205-986-1 01 1 9101- ● ●
103 BOLT; OIL COOLER
AT545 A/T ALLISON(MD1) M8X45 W/LK&PL WASHER 		0-50140-845-0 10 1 9101- ● ●
103 BOLT; OIL COOLER
ISUZU M/T<X9A> M8X45 W/LK&PL WASHER 		0-50140-845-0 12 1 9101- ● ●
104 BOLT; OIL COOLER
AT545 A/T ALLISON(MD1) 		0-50040-850-0 02 1 9101- ● ●
107 WASHER; PL,OIL COOLER 9-09160-508-0 01 1 9101- ● ●
110 BODY; CASE,OIL COOLER 1-11281-026-1 01 1 9101- ● ●
111 CORE; OIL COOLER 1-11282-015-1 01 1 9101- ● ●
115 NUT; ELEMENT 9-09111-410-0 04 1 9101- ● ●
116 WASHER; PL,ELEMENT 9-09164-510-0 04 1 9101- ● ●
189 PLUG; BYPASS VLV 9-13263-010-0 01 1 9101- ● ●
190 GASKET; PLUG,BYPASS VLV 9-09562-215-0 01 1 9101- ● ●
191 SPRING; BYPASS VLV 5-09580-092-0 01 1 9101- ● ●
192 VALVE; BYPASS 5-11288-001-0 01 1 9101- ● ●
193 PLUG; TAPER 5-09605-017-0 02 1 9101- ● ●
444 GASKET; ELEMENT TO BODY 1-11282-014-0 02 1 9101- ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-11282-012-0 01 1 9101-9510 ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-11282-020-0 01 1 9511- ● ●

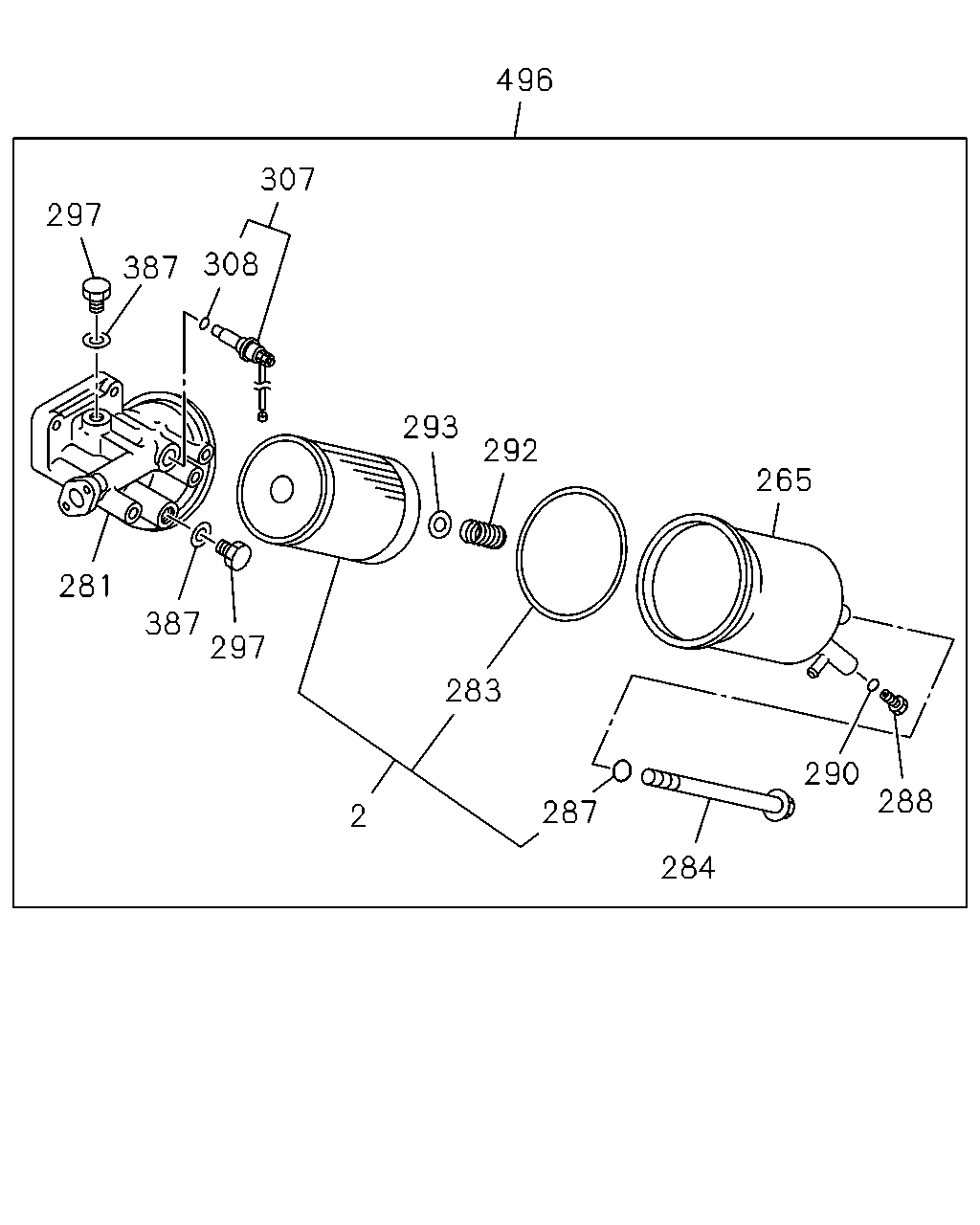

çizim 38495
496 307 297 308 387 293 292 265 281 387 297 283 290 288 287 2 284
BalonParca AdiParca NoAdetTipApplied Date A B
2 ELEMENT; OIL FILTER 1-87810-075-2 01 1 9101- ● ●
265 BODY; OIL FILTER 1-13211-084-1 01 1 9101- ● ●
281 COVER; OIL FILTER 1-13212-070-0 01 1 9101- ● ●
283 GASKET; BODY TO COVER 9-09920-311-0 01 1 9101- ● ●
284 BOLT; CENTER,OIL FILTER 1-13231-052-0 01 1 9101- ● ●
287 GASKET; CENTER BOLT 9-09920-694-0 01 1 9101- ● ●
288 PLUG; OIL DRAIN 1-09604-031-0 01 1 9101- ● ●
290 GASKET; PLUG,OIL DRAIN 9-09923-579-0 01 1 9101- ● ●
292 SPRING; ELEMENT 9-09941-283-0 01 1 9101- ● ●
293 SEAT; SPR 9-13239-025-0 01 1 9101- ● ●
297 PLUG; COVER 9-99202-314-0 02 1 9101- ● ●
307 VALVE; OVERFLOW 1-13260-066-1 01 1 9101- ● ●
308 GASKET; VLV,OVERFLOW
ID=15.8 		1-09623-163-0 01 1 9101- ● ●
387 GASKET; PLUG,COVER 9-09571-414-0 02 1 9101- ● ●
496 FILTER ASM; OIL 1-13200-594-0 01 1 9101- ● ●
