◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50803 - UBS(TAIWAN)-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-31 - FRONT DOOR GLASS AND REGULATOR ▶
6-31 — FRONT DOOR GLASS AND REGULATOR (#32589) — 58 parça

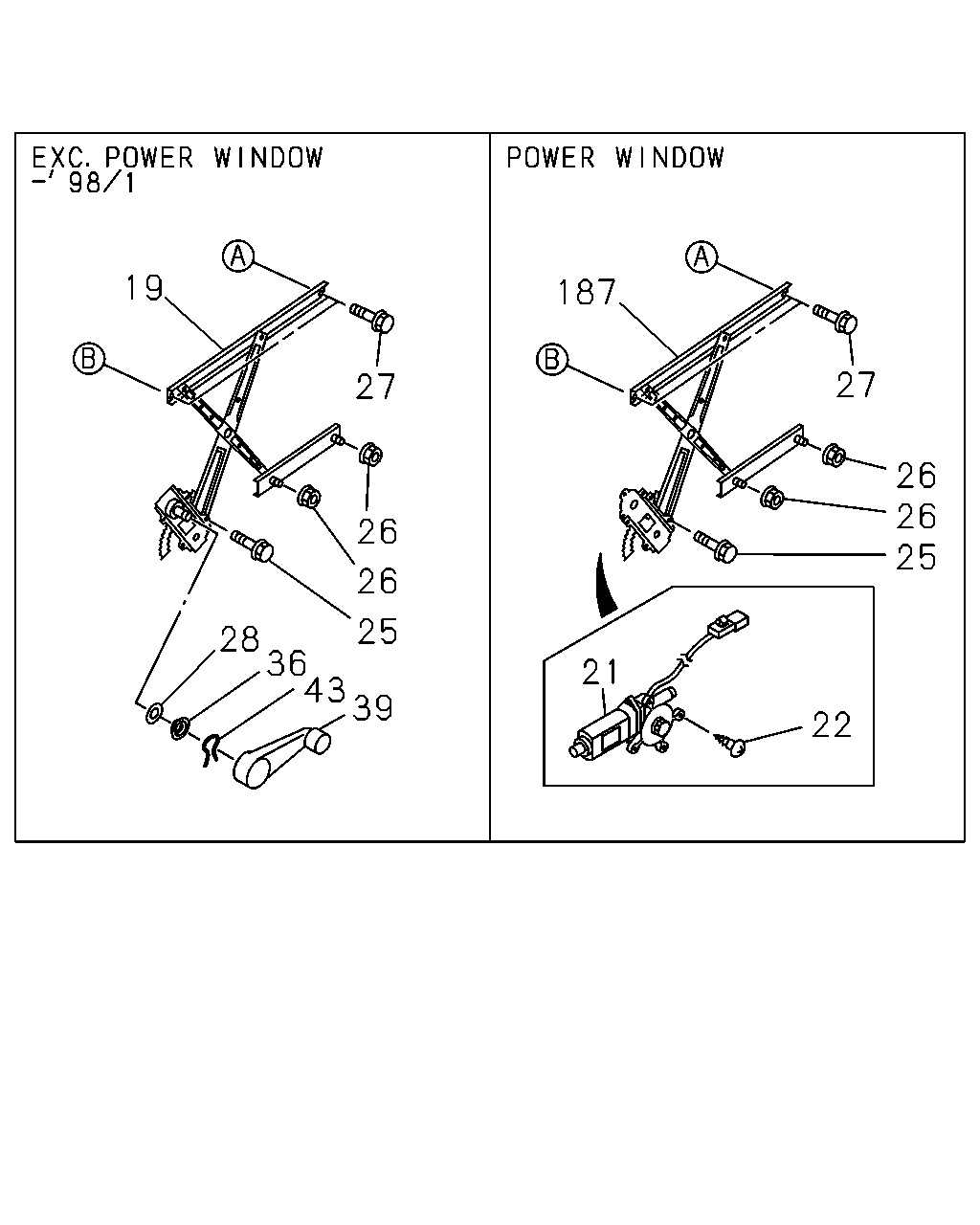

çizim 65077
19 187 27 27 26 26 25 26 26 25 28 36 43 39 21 22
BalonParca AdiParca NoAdetTipApplied Date
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW<A30> 		8-94358-572-0 01 1 9708-9801
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW<A30> 		8-94358-571-0 01 1 9708-9801
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> 		8-97165-864-0 01 1 9708-9801
21 MOTOR; POWER WINDOW REG,FRT DOOR 8-97165-864-0 01 1 9802-
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> 		8-97165-863-0 01 1 9708-9801
21 MOTOR; POWER WINDOW REG,FRT DOOR 8-97165-863-0 01 1 9802-
22 SCREW; POWER WINDOW MOTOR
POWER WINDOW<A30> M6X14 		9-03910-614-0 06 1 9708-9801
22 SCREW; POWER WINDOW MOTOR
M6X14 		9-03910-614-0 06 1 9802-
25 BOLT; WINDOW REG
M6X8 		8-94155-893-0 08 1 9708-
26 NUT; FLANGE,WINDOW REG
M6 FLANGE 		5-09440-004-0 04 1 9708-
27 BOLT; GLASS FIX
M6X8 		8-94155-893-0 04 1 9708-
28 GASKET; DUST SEAL,WINDOW REG
EXC. POWER WINDOW<A30> 		8-94106-830-1 02 1 9708-9801
36 ESCUTCHEON; HANDLE,WINDOW REG
EXC. POWER WINDOW<A30> 		8-94220-668-1 02 1 9708-9801
39 HANDLE; WINDOW REG,FRT DOOR
EXC. POWER WINDOW<A30> DARK GRAY 		8-97098-453-0 02 1 9708-9801
43 CLIP; REG HANDLE,FRT DOOR
EXC. POWER WINDOW<A30> 		8-94220-591-0 02 1 9708-9801
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> 		8-97165-862-0 01 1 9708-9801
187 REGULATOR ASM; DOOR 8-97165-862-3 01 1 9802-
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> 		8-97165-861-0 01 1 9708-9801
187 REGULATOR ASM; DOOR 8-97165-861-3 01 1 9802-

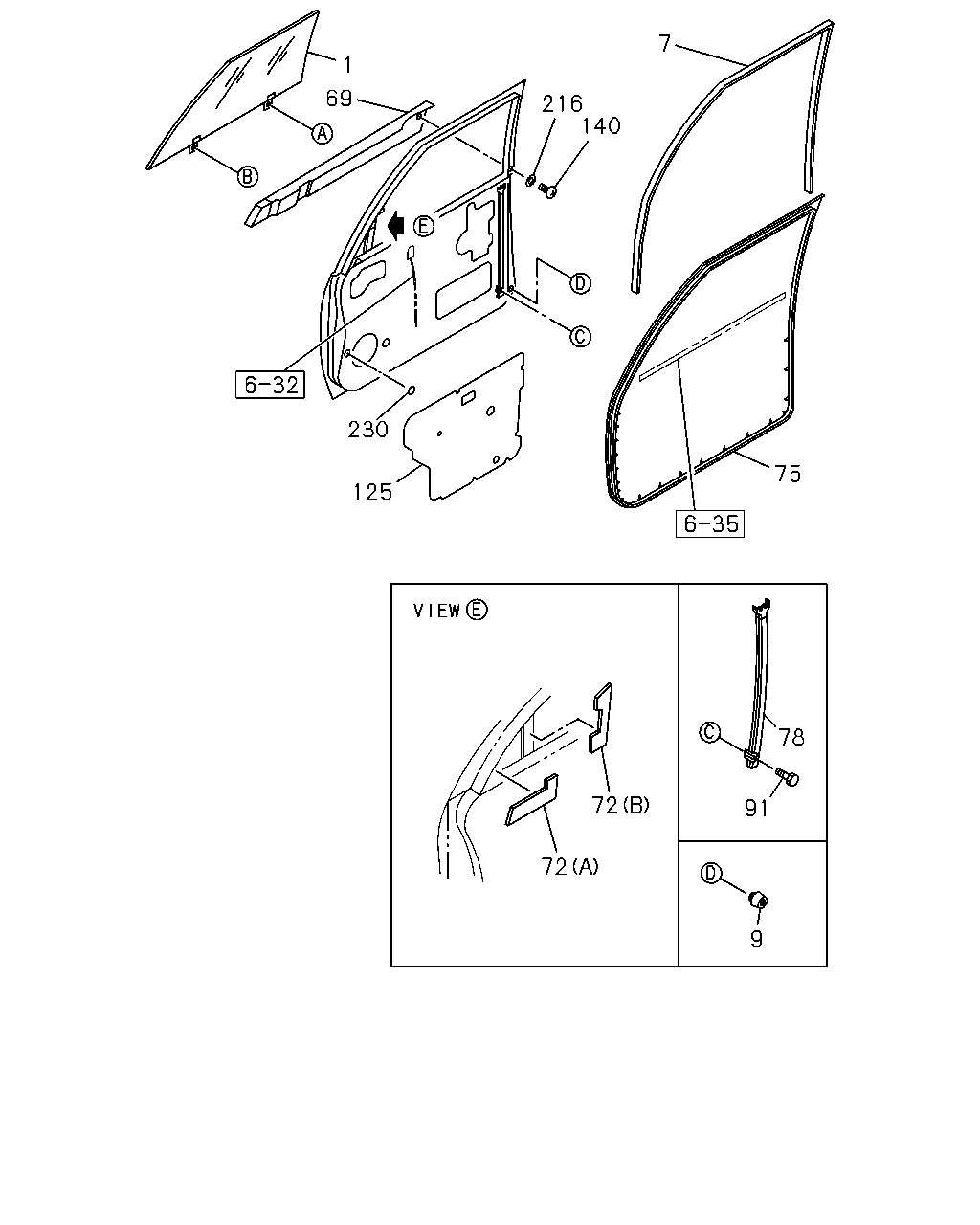

çizim 65253
7 1 69 216 140 230 75 125 78 72 91 72 9
BalonParca AdiParca NoAdetTipApplied Date
1 GLASS; FRT DOOR
BRONZE GLASS(X72) 		8-97811-220-1 01 1 9708-9801
1 GLASS; FRT DOOR 8-97811-220-2 01 1 9802-0202
1 GLASS; FRT DOOR 8-97263-677-0 01 1 0203-
1 GLASS; FRT DOOR
BRONZE GLASS(X72) 		8-97811-219-1 01 1 9708-9801
1 GLASS; FRT DOOR 8-97811-219-2 01 1 9802-0202
1 GLASS; FRT DOOR 8-97263-676-0 01 1 0203-
1 GLASS; FRT DOOR
EXC. BRONZE GLASS(X72) 		8-97121-780-1 01 1 9708-9801
1 GLASS; FRT DOOR
EXC. BRONZE GLASS(X72) 		8-97121-779-1 01 1 9708-9801
7 GLASS RUN; FRT DOOR 8-97128-688-0 01 1 9708-
7 GLASS RUN; FRT DOOR 8-97128-687-0 01 1 9708-
9 BUFFER; DOOR GLASS RUN 8-94358-581-0 04 1 9708-0101
9 BUFFER; DOOR GLASS RUN 8-97304-237-0 04 1 0102-
69 SEAL; DOOR WAIST
EXTERIOR CHROME PACKAGE<6CX> 		8-94358-661-6 01 1 9708-9806
69 SEAL; DOOR WAIST 8-94358-661-6 01 1 9807-
69 SEAL; DOOR WAIST
EXTERIOR CHROME PACKAGE<6CX> 		8-94358-660-6 01 1 9708-9806
69 SEAL; DOOR WAIST 8-94358-660-6 01 1 9807-
69 SEAL; DOOR WAIST
EXC. EXTERIOR CHROME PACKAGE<6CX> 		8-94358-616-7 01 1 9708-9806
69 SEAL; DOOR WAIST
EXC. EXTERIOR CHROME PACKAGE<6CX> 		8-94358-615-7 01 1 9708-9806
72 SEAL; WAIST,FRT DOOR
(A) 		8-97137-579-3 01 1 9708-
72 SEAL; WAIST,FRT DOOR
(B) 		8-97139-401-0 01 1 9708-
72 SEAL; WAIST,FRT DOOR
(A) 		8-97137-578-3 01 1 9708-
72 SEAL; WAIST,FRT DOOR
(B) 		8-97139-400-0 01 1 9708-
75 WEATHERSTRIP; FRT DOOR
EXTERIOR CHROME PACKAGE<6CX> 		8-97128-682-0 01 1 9708-9806
75 WEATHERSTRIP; FRT DOOR 8-97128-682-0 01 1 9807-0004
75 WEATHERSTRIP; FRT DOOR 8-97260-785-1 01 1 0005-
75 WEATHERSTRIP; FRT DOOR
EXTERIOR CHROME PACKAGE<6CX> 		8-97128-681-0 01 1 9708-9806
75 WEATHERSTRIP; FRT DOOR 8-97128-681-0 01 1 9807-0004
75 WEATHERSTRIP; FRT DOOR 8-97260-784-1 01 1 0005-
75 WEATHERSTRIP; FRT DOOR
EXC. EXTERIOR CHROME PACKAGE<6CX> 		8-97128-680-1 01 1 9708-9806
75 WEATHERSTRIP; FRT DOOR
EXC. EXTERIOR CHROME PACKAGE<6CX> 		8-97128-679-1 01 1 9708-9806
78 RAIL; FRT GUIDE 8-97810-349-1 01 1 9708-
78 RAIL; FRT GUIDE 8-97810-348-1 01 1 9708-
91 BOLT; GUIDE RAIL TO DOOR
M6X8 		8-94155-893-0 02 1 9708-
125 SHEET; WATER PROOF,FRT DOOR
POWER WINDOW<A30> 		8-97800-163-4 02 1 9708-9801
125 SHEET; WATER PROOF,FRT DOOR 8-97800-163-4 02 1 9802-
125 SHEET; WATER PROOF,FRT DOOR
EXC. POWER WINDOW<A30> 		8-97800-161-4 02 1 9708-9801
140 SCREW; SUPPORT,DOOR SEAL 8-97802-968-1 02 1 9708-
216 WASHER; WAIST SEAL
D=16 		8-94427-941-0 02 1 9708-
230 SEAL; DOOR
OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 9708-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
