6-30 — FRONT DOOR AND HINGE (#32588) — 20 parça

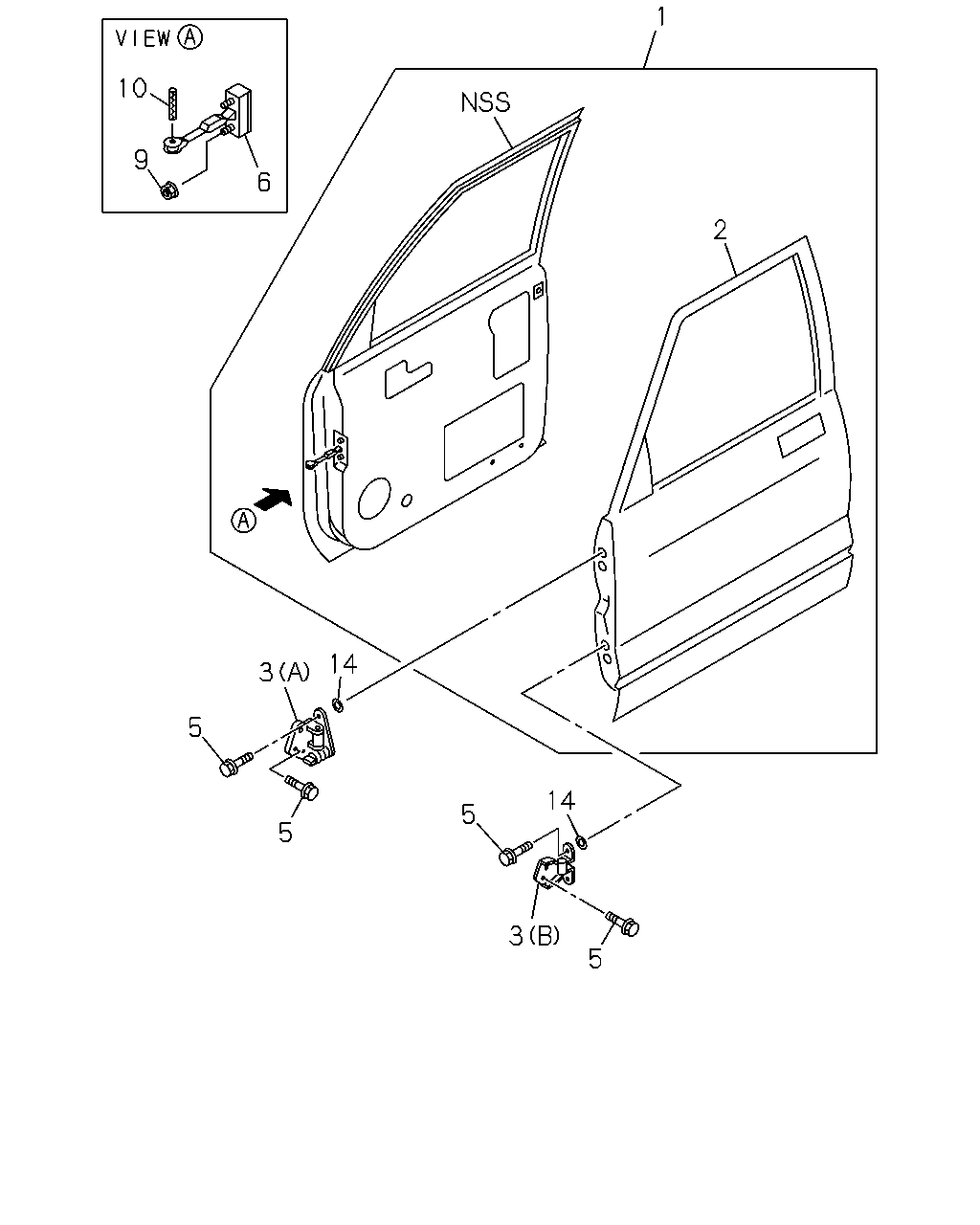

çizim 65254
1 10 9 6 2 14 3 5 14 5 5 3 5
BalonParca AdiParca NoAdetTipApplied Date
1 DOOR ASM; FRT,WO/TRIM 8-97161-761-0 01 1 9708-9711
1 DOOR ASM; FRT,WO/TRIM 8-97184-456-0 01 1 9712-0005
1 DOOR ASM; FRT,WO/TRIM 8-97170-967-1 01 1 0006-0301
1 DOOR ASM; FRT,WO/TRIM 8-97364-855-0 01 1 0302-
1 DOOR ASM; FRT,WO/TRIM 8-97161-760-0 01 1 9708-9711
1 DOOR ASM; FRT,WO/TRIM 8-97184-455-0 01 1 9712-0005
1 DOOR ASM; FRT,WO/TRIM 8-97170-966-1 01 1 0006-0301
1 DOOR ASM; FRT,WO/TRIM 8-97364-854-0 01 1 0302-
2 PANEL; FRT DOOR OUTER 8-94358-373-2 01 1 9708-
2 PANEL; FRT DOOR OUTER 8-94358-372-2 01 1 9708-
3 HINGE; DOOR FRT
(B) 		8-94155-314-2 01 1 9708-
3 HINGE; DOOR FRT
(A) 		8-94230-392-4 01 1 9708-
3 HINGE; DOOR FRT
(B) 		8-94155-315-2 01 1 9708-
3 HINGE; DOOR FRT
(A) 		8-94230-393-4 01 1 9708-
5 BOLT; HINGE
M8X23 FLANGE 		8-94174-559-2 24 1 9708-
6 ARM; CHECK,FRT DOOR 8-94358-619-0 02 1 9708-
9 NUT; CHECK ARM
M6 FLANGE 		5-09440-004-0 04 1 9708-
10 PIN; CHECK ARM 8-97020-859-0 02 1 9708-
14 WASHER; PL,HINGE
ID=8.1 W/PL WASHER 		8-97173-691-0 04 1 9708-0106
14 WASHER; PL,HINGE 8-97308-583-0 04 1 0107-
