6-20 — SIDE PANEL AND STEP (#32587) — 289 parça

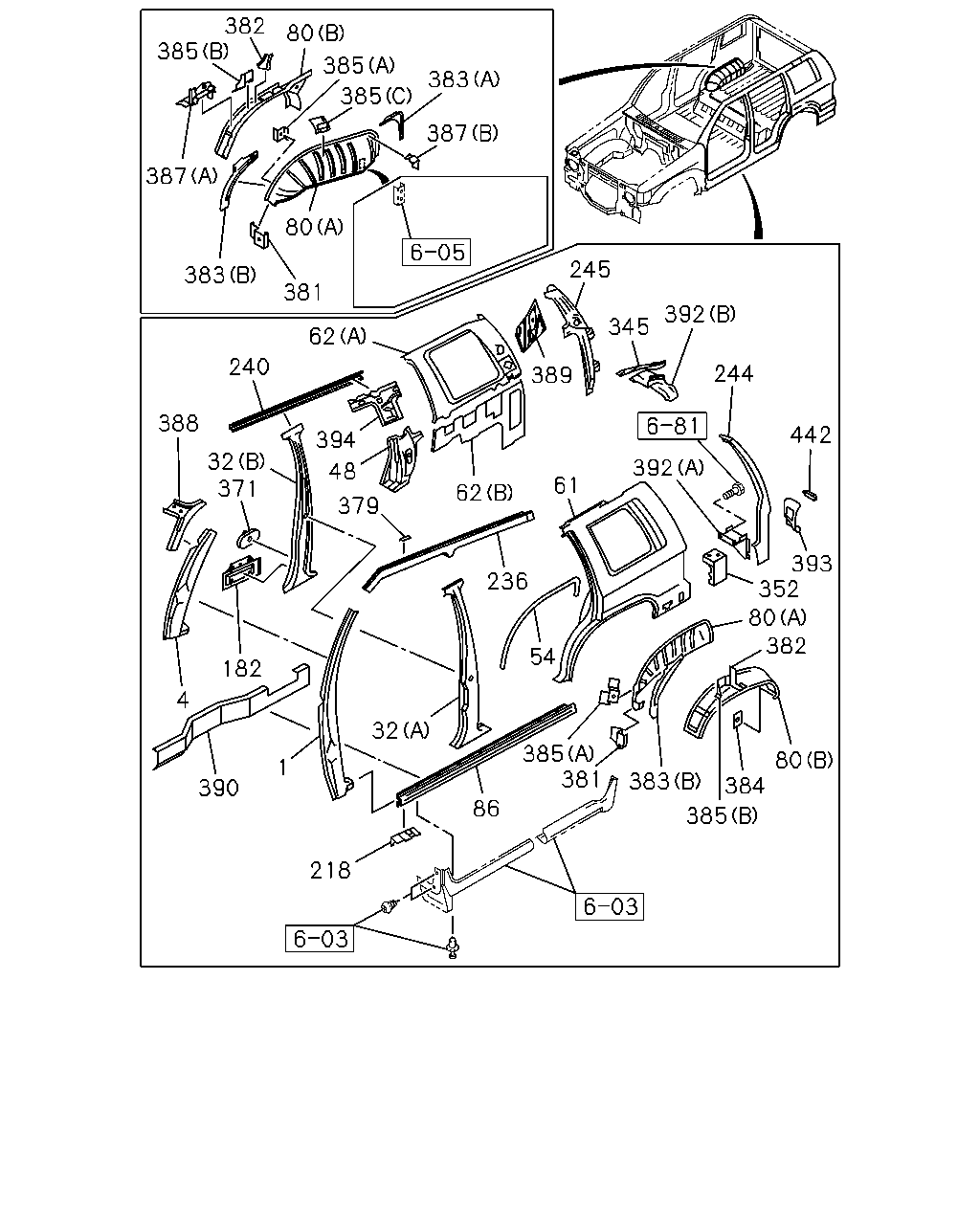

çizim 15624
382 385 80 385 385 383 387 387 80 245 383 381 392 345 62 389 240 244 394 48 388 442 32 371 392 61 62 379 393 352 80 382 236 54 182 4 32 385 381 80 384 385 1 383 390 86 218
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; A-POST OUTER ASM,UPR 8-97811-440-0 01 1 9708-
1 PANEL; A-POST OUTER ASM,UPR 8-97811-439-0 01 1 9708-
4 PANEL; A-POST INNER,UPR 8-94359-918-0 01 1 9708-9907
4 PANEL; A-POST INNER,UPR 8-97168-994-0 01 1 9908-
4 PANEL; A-POST INNER,UPR 8-94359-917-1 01 1 9708-9907
4 PANEL; A-POST INNER,UPR 8-97168-993-0 01 1 9908-
32 PANEL; BC-POST
(B) 		8-97811-380-0 01 1 9708-
32 PANEL; BC-POST
(A) 		8-97811-436-0 01 1 9708-
32 PANEL; BC-POST
(B) 		8-97811-379-0 01 1 9708-
32 PANEL; BC-POST
(A) 		8-97811-435-0 01 1 9708-
48 REINFORCEMENT; C POST 8-97111-054-2 01 1 9708-
48 REINFORCEMENT; C POST 8-97111-053-2 01 1 9708-
54 PATCH; DOOR STRIKER 8-97808-594-0 02 1 9708-
61 PANEL; SIDE OUTER 8-97183-083-0 01 1 9708-
61 PANEL; SIDE OUTER 8-97183-082-0 01 1 9708-
62 PANEL; BODY SIDE INNER
(B) 		8-97104-211-0 01 1 9708-0012
62 PANEL; BODY SIDE INNER
(B) 		8-97263-938-0 01 1 0101-
62 PANEL; BODY SIDE INNER
(A) 		8-97110-494-2 01 1 9708-0012
62 PANEL; BODY SIDE INNER
(A) 		8-97263-939-1 01 1 0101-
62 PANEL; BODY SIDE INNER
(A) 		8-97110-493-1 01 1 9708-0012
62 PANEL; BODY SIDE INNER
(A) 		8-97263-936-1 01 1 0101-
62 PANEL; BODY SIDE INNER
(B) 		8-97801-090-9 01 1 9708-9805
62 PANEL; BODY SIDE INNER
(B) 		8-97113-107-0 01 1 9806-0012
62 PANEL; BODY SIDE INNER
(B) 		8-97263-935-0 01 1 0101-
80 PANEL; WHEEL HOUSE,INNER
(B) 		8-97103-599-2 01 1 9708-
80 PANEL; WHEEL HOUSE,INNER
(A) 		8-97810-389-1 01 1 9708-
80 PANEL; WHEEL HOUSE,INNER
(B) 		8-97103-598-1 01 1 9708-
80 PANEL; WHEEL HOUSE,INNER
(A) 		8-97810-388-1 01 1 9708-
86 PANEL; ROCKER OUTER
WO/PROTECTOR 		8-97133-179-0 01 1 9708-9711
86 PANEL; ROCKER OUTER
WO/PROTECTOR 		8-97187-977-0 01 1 9712-9907
86 PANEL; ROCKER OUTER
WO/PROTECTOR 		8-97227-455-0 01 1 9908-
86 PANEL; ROCKER OUTER
WO/PROTECTOR 		8-97133-178-0 01 1 9708-9711
86 PANEL; ROCKER OUTER
WO/PROTECTOR 		8-97187-976-0 01 1 9712-9907
86 PANEL; ROCKER OUTER
WO/PROTECTOR 		8-97227-454-0 01 1 9908-
86 PANEL; ROCKER OUTER
COLOR KEYED ROCKER SKIRT<6YA> W/PROTECTOR 		8-97133-161-0 01 1 9708-9711
86 PANEL; ROCKER OUTER
COLOR KEYED ROCKER SKIRT<6YA> W/PROTECTOR 		8-97188-180-0 01 1 9712-9801
86 PANEL; ROCKER OUTER
W/PROTECTOR 		8-97188-180-0 01 1 9802-9907
86 PANEL; ROCKER OUTER
W/PROTECTOR 		8-97227-459-0 01 1 9908-
86 PANEL; ROCKER OUTER
COLOR KEYED ROCKER SKIRT<6YA> W/PROTECTOR 		8-97133-160-0 01 1 9708-9711
86 PANEL; ROCKER OUTER
COLOR KEYED ROCKER SKIRT<6YA> W/PROTECTOR 		8-97188-179-0 01 1 9712-9801
86 PANEL; ROCKER OUTER
W/PROTECTOR 		8-97188-179-0 01 1 9802-9907
86 PANEL; ROCKER OUTER
W/PROTECTOR 		8-97227-456-0 01 1 9908-
182 PANEL; CLOSING,CTR PILLAR LWR 8-97802-757-3 01 1 9708-
182 PANEL; CLOSING,CTR PILLAR LWR 8-97802-756-3 01 1 9708-
218 PATCH; CAB MTG 8-97803-283-3 01 1 9708-9907
218 PATCH; CAB MTG 8-97227-477-1 01 1 9908-
218 PATCH; CAB MTG 8-97803-282-3 01 1 9708-9907
218 PATCH; CAB MTG 8-97227-476-1 01 1 9908-
236 PANEL; CANTRAIL OUTER,FRT 8-97166-947-1 01 1 9708-
236 PANEL; CANTRAIL OUTER,FRT 8-97166-946-1 01 1 9708-
240 CANTRAIL; RR INNER 8-97801-528-0 01 1 9708-
240 CANTRAIL; RR INNER 8-97801-527-0 01 1 9708-
244 PANEL; RR PILLAR UPR,OUTER 8-94358-369-7 01 1 9708-
244 PANEL; RR PILLAR UPR,OUTER 8-94358-368-7 01 1 9708-
245 PANEL; REINF,RR PILLAR 8-94359-904-3 01 1 9708-9801
245 PANEL; REINF,RR PILLAR
EXC. 3RD SEAT 7 PASSENGERS(AS3) 		8-94359-904-3 01 1 9802-
245 PANEL; REINF,RR PILLAR 8-94359-903-3 01 1 9708-9801
245 PANEL; REINF,RR PILLAR
EXC. 3RD SEAT 7 PASSENGERS(AS3) 		8-94359-903-3 01 1 9802-
245 PANEL; REINF,RR PILLAR
3RD SEAT 7 PASSENGERS(AS3) 		8-97803-743-7 01 1 9802-
245 PANEL; REINF,RR PILLAR
3RD SEAT 7 PASSENGERS(AS3) 		8-97803-742-7 01 1 9802-
345 PANEL; EXT,SIDE OUTER 8-94359-890-3 01 1 9708-
345 PANEL; EXT,SIDE OUTER 8-94359-889-3 01 1 9708-
352 CLOSING ASM; D POST 8-97803-336-1 01 1 9708-
352 CLOSING ASM; D POST 8-94359-915-2 01 1 9708-
371 PATCH; SEAT BELT 8-97804-637-1 02 1 9708-
379 PATCH; ROOF RACK 8-94359-867-1 06 1 9708-9907
379 PATCH; ROOF RACK
3RD SEAT 7 PASSENGERS(AS3) 		8-94359-867-1 06 1 9908-
379 PATCH; ROOF RACK
EXC. 3RD SEAT 7 PASSENGERS(AS3) 		8-94359-867-1 07 1 9908-
381 GUSSET; WHEEL HOUSE 8-94359-941-2 01 1 9708-
381 GUSSET; WHEEL HOUSE 8-94359-940-2 01 1 9708-
382 GUSSET; QTR PLR 8-97801-478-0 01 1 9708-
382 GUSSET; QTR PLR 8-97801-477-0 01 1 9708-
383 PANEL; SIDE INNER
(B) 		8-94359-938-1 01 1 9708-
383 PANEL; SIDE INNER
(A) 		8-94359-937-1 01 1 9708-
383 PANEL; SIDE INNER
(B) 		8-94359-939-0 01 1 9708-
384 PATCH; WHEEL HOUSE 8-97805-173-1 01 1 9708-
385 BRACKET; ANCHOR
(A) 		8-94359-945-2 01 1 9708-
385 BRACKET; ANCHOR
(B) 		8-94359-951-3 01 1 9708-
385 BRACKET; ANCHOR
(A) 		8-94359-944-2 01 1 9708-
385 BRACKET; ANCHOR
(B) 		8-94359-950-3 01 1 9708-
385 BRACKET; ANCHOR
3RD SEAT 7 PASSENGERS(AS3) (C) 		8-97802-235-1 01 1 9802-
385 BRACKET; ANCHOR
3RD SEAT 7 PASSENGERS(AS3) (C) 		8-97802-234-1 01 1 9802-
387 BRACKET; 3RD SEAT
3RD SEAT 7 PASSENGERS(AS3) (A) 		8-97802-007-2 01 1 9802-
387 BRACKET; 3RD SEAT
3RD SEAT 7 PASSENGERS(AS3) (A) 		8-97802-006-2 01 1 9802-
387 BRACKET; 3RD SEAT
3RD SEAT 7 PASSENGERS(AS3) (B) 		8-97803-403-1 01 1 9802-
388 REINFORCEMENT; FRONT PILLAR 8-94359-922-4 01 1 9708-
388 REINFORCEMENT; FRONT PILLAR 8-94359-921-4 01 1 9708-
389 BRACKET; SIDE
3RD SEAT 7 PASSENGERS(AS3) 		8-97802-015-1 01 1 9802-
389 BRACKET; SIDE
3RD SEAT 7 PASSENGERS(AS3) 		8-97802-014-1 01 1 9802-
390 REINFORCEMENT 8-97227-130-3 01 1 9908-
390 REINFORCEMENT 8-97227-129-3 01 1 9908-
392 GUSSET; RR PILLAR
(B) UPPER 		8-94359-894-2 01 1 9708-
392 GUSSET; RR PILLAR
(A) LOWER 		8-94359-896-4 01 1 9708-
392 GUSSET; RR PILLAR
(B) UPPER 		8-94359-893-2 01 1 9708-
392 GUSSET; RR PILLAR
(A) LOWER 		8-94359-895-3 01 1 9708-
393 PANEL; LAMP HOUSING 8-94359-900-1 01 1 9708-
393 PANEL; LAMP HOUSING 8-94359-899-1 01 1 9708-
394 BRACKET; QUARTER UPR 8-94359-957-2 01 1 9708-
394 BRACKET; QUARTER UPR 8-94359-956-2 01 1 9708-
442 PATCH 8-97811-443-0 02 1 9708-

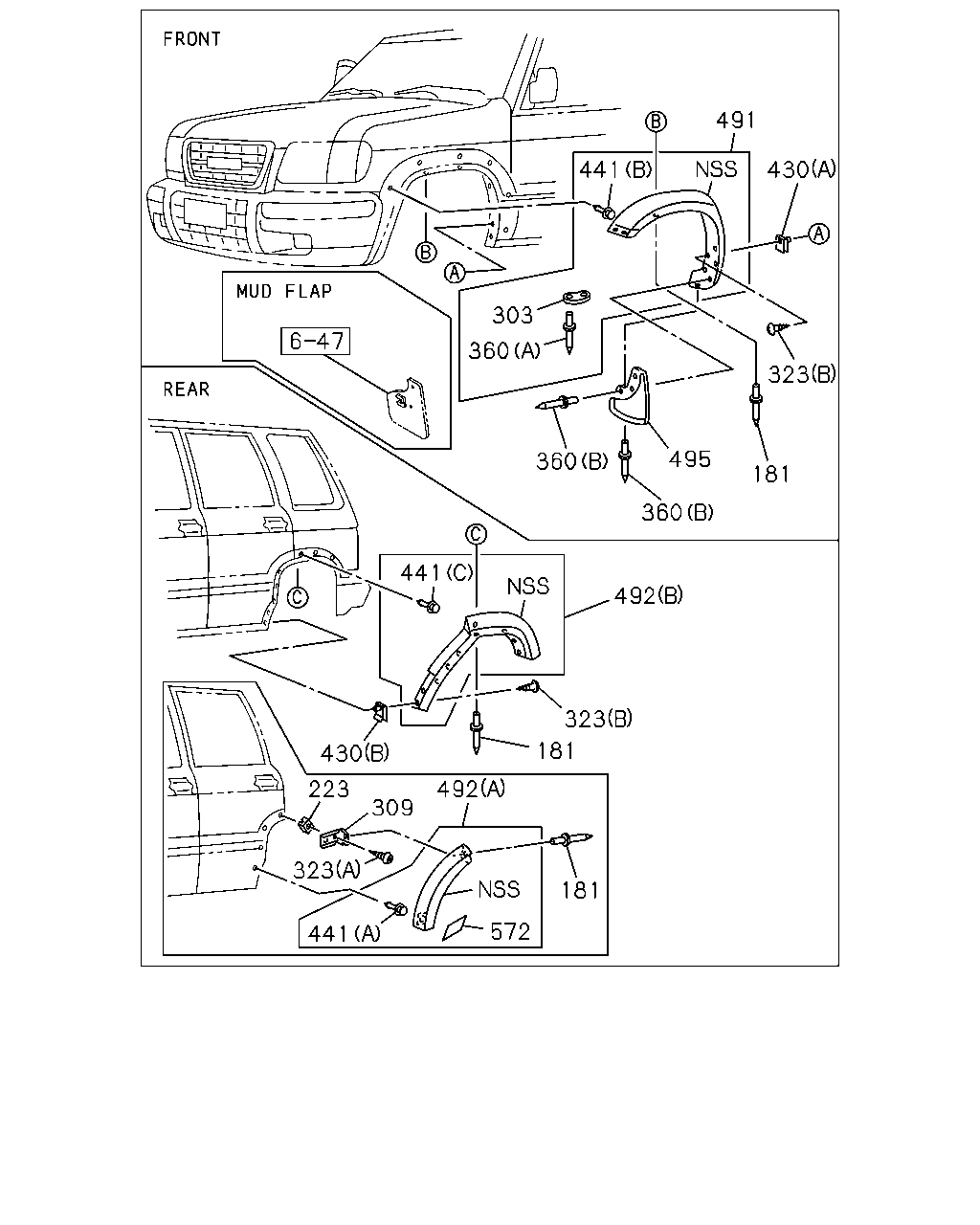

çizim 64047
491 430 441 303 360 323 495 360 181 360 441 492 323 181 430 492 223 323 309 181 572 441
BalonParca AdiParca NoAdetTipApplied Date
181 RIVET; OVER FENDER
OVER FENDER<6GH> 		8-97122-143-0 22 1 9708-9806
181 RIVET; OVER FENDER 8-97122-143-0 22 1 9807-
223 GROMMET; LOCATION HOLE
OVER FENDER<6GH> 		8-94291-927-0 04 1 9708-9806
223 GROMMET; LOCATION HOLE 8-94291-927-0 04 1 9807-
303 RETAINER; SIDE SKIRT,ROCKER 8-97117-762-1 02 1 9708-
309 BRACKET; FENDER COVER
OVER FENDER<6GH> 		8-97103-867-3 02 1 9708-9806
309 BRACKET; FENDER COVER 8-97103-867-3 02 1 9807-
323 SCREW; SET
OVER FENDER<6GH> (B) M6X20 W/PL WASHER TAPPING 		8-94321-767-1 08 1 9708-9806
323 SCREW; SET
(B) M6X20 W/PL WASHER TAPPING 		8-94321-767-1 08 1 9807-
323 SCREW; SET
OVER FENDER<6GH> (A) 		9-07006-516-0 04 1 9708-9806
323 SCREW; SET
(A) 		9-07006-516-0 04 1 9807-
360 RIVET; FENDER
(B) 		5-09734-006-1 08 1 9708-0102
360 RIVET; FENDER
(A) 		8-97163-054-0 04 1 9708-0102
360 RIVET; FENDER
(A),(B) 		8-97163-054-0 12 1 0103-
430 NUT; PANEL
OVER FENDER<6GH> (A) ID=5.2 H=10 		8-97032-135-0 04 1 9708-9806
430 NUT; PANEL
(A) ID=5.2 H=10 		8-97032-135-0 04 1 9807-
430 NUT; PANEL
OVER FENDER<6GH> (B) H=11.5 		8-97807-757-0 04 1 9708-9806
430 NUT; PANEL
(B) H=11.5 		8-97807-757-0 04 1 9807-
441 CLIP
(A) 		8-97117-942-0 06 1 9708-
441 CLIP
(C) 		8-97117-942-0 14 1 9708-
441 CLIP
(B) 		8-97135-071-0 08 1 9708-
491 EXTENSION; WHL,FRT
BODY COLOR CREAM WHITE(752) GRADE LS(RBB) OVER FENDER<6GH> WHITE 		8-97195-567-0 01 1 9708-9806
491 EXTENSION; WHL,FRT
BODY COLOR CREAM WHITE(752) GRADE LS(RBB) WHITE 		8-97195-567-0 01 1 9807-9907
491 EXTENSION; WHL,FRT
BODY COLOR FOXFIRE RED MICA(865) GRADE LS(RBB) DARK RED 		8-97291-106-0 01 1 9908-
491 EXTENSION; WHL,FRT
BODY COLOR CREAM WHITE(752) GRADE LS(RBB) OVER FENDER<6GH> WHITE 		8-97195-563-0 01 1 9708-9806
491 EXTENSION; WHL,FRT
BODY COLOR CREAM WHITE(752) GRADE LS(RBB) WHITE 		8-97195-563-0 01 1 9807-9907
491 EXTENSION; WHL,FRT
BODY COLOR FOXFIRE RED MICA(865) GRADE LS(RBB) DARK RED 		8-97291-098-0 01 1 9908-
491 EXTENSION; WHL,FRT
BODY COLOR EBONY BLACK(826) GRADE LS(RBB) BLACK 		8-97198-883-0 01 1 9807-
491 EXTENSION; WHL,FRT
BODY COLOR EBONY BLACK(826) GRADE LS(RBB) BLACK 		8-97198-881-0 01 1 9807-
491 EXTENSION; WHL,FRT
BODY COLOR EBONY BLACK(826) GRADE LS(RBB) OVER FENDER<6GH> BLACK 		8-97198-883-0 01 1 9708-9806
491 EXTENSION; WHL,FRT
BODY COLOR EBONY BLACK(826) GRADE LS(RBB) OVER FENDER<6GH> BLACK 		8-97198-881-0 01 1 9708-9806
491 EXTENSION; WHL,FRT
BODY COLOR EBONY BLACK/KAISER SILVER MET(630),BODY COLOR DRAGON GREEN MICA/KAISER SILVERMET(632),BODY COLOR FJORD BLUE MET/KAISER SILVER MET(633),BODY COLOR CAVALIER BLUE/HYPER SILVER MET(887) SILVER 		8-97297-251-0 01 1 0203-
491 EXTENSION; WHL,FRT
BODY COLOR EBONY BLACK/KAISER SILVER MET(630),BODY COLOR DRAGON GREEN MICA/KAISER SILVERMET(632),BODY COLOR FJORD BLUE MET/KAISER SILVER MET(633),BODY COLOR CAVALIER BLUE/HYPER SILVER MET(887) SILVER 		8-97297-242-0 01 1 0203-
491 EXTENSION; WHL,FRT
BODY COLOR FIR GREEN MICA(871) GRADE LS(RBB) OVER FENDER<6GH> DARK GREEN 		8-97195-568-0 01 1 9708-9806
491 EXTENSION; WHL,FRT
BODY COLOR FIR GREEN MICA(871) GRADE LS(RBB) DARK GREEN 		8-97195-568-0 01 1 9807-9907
491 EXTENSION; WHL,FRT
BODY COLOR DRAGON GREEN MICA(860) GRADE LS(RBB) DARK GREEN 		8-97291-104-0 01 1 9908-
491 EXTENSION; WHL,FRT
BODY COLOR FIR GREEN MICA(871) GRADE LS(RBB) OVER FENDER<6GH> DARK GREEN 		8-97195-564-0 01 1 9708-9806
491 EXTENSION; WHL,FRT
BODY COLOR FIR GREEN MICA(871) GRADE LS(RBB) DARK GREEN 		8-97195-564-0 01 1 9807-9907
491 EXTENSION; WHL,FRT
BODY COLOR DRAGON GREEN MICA(860) GRADE LS(RBB) DARK GREEN 		8-97291-096-0 01 1 9908-
491 EXTENSION; WHL,FRT
BODY COLOR LT.SILVER MET/MOONMIST GRAY MICA(712), BODY COLOR FOXFIRE RED/MOONMIST GRAY MICA(724) GRADE LTD(RBD) DARK GRAY 		8-97291-102-0 01 1 9908-0202
491 EXTENSION; WHL,FRT
BODY COLOR MOONMIST GRAY MICA(857) GRADE LS(RBB) DARK GRAY 		8-97291-102-0 01 1 9908-0202
491 EXTENSION; WHL,FRT
BODY COLOR SATIN GOLD MET/MOONMIST GRAY MICA(628), BODY COLOR LT.SILVER MET/MOONMIST GRAY MICA(712), BODY COLOR FOXFIRE RED/MOONMIST GRAY MICA(724) DARK GRAY 		8-97291-102-0 01 1 0203-
491 EXTENSION; WHL,FRT
BODY COLOR MOONMIST GRAY MICA(857) GRADE LS(RBB) DARK GRAY 		8-97291-102-0 01 1 0203-
491 EXTENSION; WHL,FRT
BODY COLOR LT.SILVER MET/MOONMIST GRAY MICA(712), BODY COLOR FOXFIRE RED/MOONMIST GRAY MICA(724) GRADE LTD(RBD) DARK GRAY 		8-97291-094-0 01 1 9908-0202
491 EXTENSION; WHL,FRT
BODY COLOR MOONMIST GRAY MICA(857) GRADE LS(RBB) DARK GRAY 		8-97291-094-0 01 1 9908-0202
491 EXTENSION; WHL,FRT
BODY COLOR SATIN GOLD MET/MOONMIST GRAY MICA(628), BODY COLOR LT.SILVER MET/MOONMIST GRAY MICA(712), BODY COLOR FOXFIRE RED/MOONMIST GRAY MICA(724) DARK GRAY 		8-97291-094-0 01 1 0203-
491 EXTENSION; WHL,FRT
BODY COLOR MOONMIST GRAY MICA(857) GRADE LS(RBB) DARK GRAY 		8-97291-094-0 01 1 0203-
491 EXTENSION; WHL,FRT
BODY COLOR POLAR WHITE MICA(610) GRADE LS(RBB) WHITE 		8-97297-245-0 01 1 0203-
491 EXTENSION; WHL,FRT
BODY COLOR POLAR WHITE MICA(610) GRADE LS(RBB) WHITE 		8-97297-236-0 01 1 0203-
491 EXTENSION; WHL,FRT
BODY COLOR RED ROCK MICA(872) GRADE LS(RBB) OVER FENDER<6GH> DARK RED 		8-97195-569-0 01 1 9708-9806
491 EXTENSION; WHL,FRT
BODY COLOR RED ROCK MICA(872) GRADE LS(RBB) DARK RED 		8-97195-569-0 01 1 9807-9907
491 EXTENSION; WHL,FRT
BODY COLOR ALPINE WHITE(877) GRADE LS(RBB) WHITE 		8-97291-108-0 01 1 9908-
491 EXTENSION; WHL,FRT
BODY COLOR RED ROCK MICA(872) GRADE LS(RBB) OVER FENDER<6GH> DARK RED 		8-97195-565-0 01 1 9708-9806
491 EXTENSION; WHL,FRT
BODY COLOR RED ROCK MICA(872) GRADE LS(RBB) DARK RED 		8-97195-565-0 01 1 9807-9907
491 EXTENSION; WHL,FRT
BODY COLOR ALPINE WHITE(877) GRADE LS(RBB) WHITE 		8-97291-100-0 01 1 9908-
491 EXTENSION; WHL,FRT
BODY COLOR SATIN GOLD MET(613) GRADE LS(RBB) SILVER 		8-97297-248-0 01 1 0203-
491 EXTENSION; WHL,FRT
BODY COLOR SATIN GOLD MET(613) GRADE LS(RBB) SILVER 		8-97297-239-0 01 1 0203-
491 EXTENSION; WHL,FRT
GRADE LTD(RBD) OVER FENDER<6GH> LIGHT SILVER 		8-97158-135-0 01 1 9708-9806
491 EXTENSION; WHL,FRT
BODY COLOR LT.SILVER MET(753) GRADE LS(RBB) OVER FENDER<6GH> LIGHT SILVER 		8-97158-135-0 01 1 9708-9806
491 EXTENSION; WHL,FRT
GRADE LTD(RBD) LIGHT SILVER 		8-97158-135-0 01 1 9807-0202
491 EXTENSION; WHL,FRT
BODY COLOR LT.SILVER MET(753) GRADE LS(RBB) LIGHT SILVER 		8-97158-135-0 01 1 9807-0202
491 EXTENSION; WHL,FRT
BODY COLOR SATIN GOLD MET/LIGHT SILVER MET(616), BODY COLOR FJORD BLUE MET/LIGHT SILVER MET(629),BODY COLOR ALPINE WHITE/LT.SILVER MET(740),BODY COLOR MOONMIST GRAY MICA/LT.SILVER MET(742),BODY COLOR DRAGON GREEN MICA/LT.SILVER MET(747),BODY COLOR EBONY BLACK/LT.SILVER MET(774) LIGHT SILVER 		8-97158-135-0 01 1 0203-
491 EXTENSION; WHL,FRT
BODY COLOR LT.SILVER MET(753) GRADE LS(RBB) LIGHT SILVER 		8-97158-135-0 01 1 0203-
491 EXTENSION; WHL,FRT
GRADE LTD(RBD) OVER FENDER<6GH> LIGHT SILVER 		8-97158-130-0 01 1 9708-9806
491 EXTENSION; WHL,FRT
BODY COLOR LT.SILVER MET(753) GRADE LS(RBB) OVER FENDER<6GH> LIGHT SILVER 		8-97158-130-0 01 1 9708-9806
491 EXTENSION; WHL,FRT
GRADE LTD(RBD) LIGHT SILVER 		8-97158-130-0 01 1 9807-0202
491 EXTENSION; WHL,FRT
BODY COLOR LT.SILVER MET(753) GRADE LS(RBB) LIGHT SILVER 		8-97158-130-0 01 1 9807-0202
491 EXTENSION; WHL,FRT
BODY COLOR SATIN GOLD MET/LIGHT SILVER MET(616), BODY COLOR FJORD BLUE MET/LIGHT SILVER MET(629),BODY COLOR ALPINE WHITE/LT.SILVER MET(740),BODY COLOR MOONMIST GRAY MICA/LT.SILVER MET(742),BODY COLOR DRAGON GREEN MICA/LT.SILVER MET(747),BODY COLOR EBONY BLACK/LT.SILVER MET(774) LIGHT SILVER 		8-97158-130-0 01 1 0203-
491 EXTENSION; WHL,FRT
BODY COLOR LT.SILVER MET(753) GRADE LS(RBB) LIGHT SILVER 		8-97158-130-0 01 1 0203-
492 EXTENSION; WHL,RR
BODY COLOR CREAM WHITE(752) GRADE LS(RBB) OVER FENDER<6GH> (A) WHITE 		8-97158-545-0 01 1 9708-9806
492 EXTENSION; WHL,RR
BODY COLOR CREAM WHITE(752) GRADE LS(RBB) (A) WHITE 		8-97158-545-0 01 1 9807-9907
492 EXTENSION; WHL,RR
BODY COLOR FOXFIRE RED MICA(865) GRADE LS(RBB) (A) DARK RED 		8-97290-955-0 01 1 9908-0105
492 EXTENSION; WHL,RR
BODY COLOR FOXFIRE RED MICA(865) GRADE LS(RBB) (A) DARK RED 		8-97392-998-0 01 1 0106-
492 EXTENSION; WHL,RR
BODY COLOR CREAM WHITE(752) GRADE LS(RBB) OVER FENDER<6GH> (B) WHITE 		8-97158-547-0 01 1 9708-9806
492 EXTENSION; WHL,RR
BODY COLOR CREAM WHITE(752) GRADE LS(RBB) (B) WHITE 		8-97158-547-0 01 1 9807-9907
492 EXTENSION; WHL,RR
BODY COLOR FOXFIRE RED MICA(865) GRADE LS(RBB) (B) DARK RED 		8-97290-963-0 01 1 9908-
492 EXTENSION; WHL,RR
BODY COLOR CREAM WHITE(752) GRADE LS(RBB) OVER FENDER<6GH> (A) WHITE 		8-97158-544-0 01 1 9708-9806
492 EXTENSION; WHL,RR
BODY COLOR CREAM WHITE(752) GRADE LS(RBB) (A) WHITE 		8-97158-544-0 01 1 9807-9907
492 EXTENSION; WHL,RR
BODY COLOR FOXFIRE RED MICA(865) GRADE LS(RBB) (A) DARK RED 		8-97290-951-0 01 1 9908-0105
492 EXTENSION; WHL,RR
BODY COLOR FOXFIRE RED MICA(865) GRADE LS(RBB) (A) DARK RED 		8-97392-997-0 01 1 0106-
492 EXTENSION; WHL,RR
BODY COLOR CREAM WHITE(752) GRADE LS(RBB) OVER FENDER<6GH> (B) WHITE 		8-97158-546-0 01 1 9708-9806
492 EXTENSION; WHL,RR
BODY COLOR CREAM WHITE(752) GRADE LS(RBB) (B) WHITE 		8-97158-546-0 01 1 9807-9907
492 EXTENSION; WHL,RR
BODY COLOR FOXFIRE RED MICA(865) GRADE LS(RBB) (B) DARK RED 		8-97290-959-0 01 1 9908-
492 EXTENSION; WHL,RR
BODY COLOR EBONY BLACK(826) GRADE LS(RBB) (A) BLACK 		8-97197-479-0 01 1 9807-9907
492 EXTENSION; WHL,RR
BODY COLOR EBONY BLACK(826) GRADE LS(RBB) (A) BLACK 		8-97291-060-0 01 1 9908-0105
492 EXTENSION; WHL,RR
BODY COLOR EBONY BLACK(826) GRADE LS(RBB) (A) BLACK 		8-97393-004-0 01 1 0106-
492 EXTENSION; WHL,RR
BODY COLOR EBONY BLACK(826) GRADE LS(RBB) (B) BLACK 		8-97197-481-0 01 1 9807-
492 EXTENSION; WHL,RR
BODY COLOR EBONY BLACK(826) GRADE LS(RBB) (A) BLACK 		8-97197-478-0 01 1 9807-9907
492 EXTENSION; WHL,RR
BODY COLOR EBONY BLACK(826) GRADE LS(RBB) (A) BLACK 		8-97291-058-0 01 1 9908-0105
492 EXTENSION; WHL,RR
BODY COLOR EBONY BLACK(826) GRADE LS(RBB) (A) BLACK 		8-97393-003-0 01 1 0106-
492 EXTENSION; WHL,RR
BODY COLOR EBONY BLACK(826) GRADE LS(RBB) (B) BLACK 		8-97197-480-0 01 1 9807-
492 EXTENSION; WHL,RR
BODY COLOR EBONY BLACK/KAISER SILVER MET(630),BODY COLOR DRAGON GREEN MICA/KAISER SILVERMET(632),BODY COLOR FJORD BLUE MET/KAISER SILVER MET(633),BODY COLOR CAVALIER BLUE/HYPER SILVER MET(887) (B) SILVER 		8-97297-170-0 01 1 0203-
492 EXTENSION; WHL,RR
BODY COLOR EBONY BLACK/KAISER SILVER MET(630),BODY COLOR DRAGON GREEN MICA/KAISER SILVERMET(632),BODY COLOR FJORD BLUE MET/KAISER SILVER MET(633),BODY COLOR CAVALIER BLUE/HYPER SILVER MET(887) (A) SILVER 		8-97393-010-0 01 1 0203-
492 EXTENSION; WHL,RR
BODY COLOR EBONY BLACK/KAISER SILVER MET(630),BODY COLOR DRAGON GREEN MICA/KAISER SILVERMET(632),BODY COLOR FJORD BLUE MET/KAISER SILVER MET(633),BODY COLOR CAVALIER BLUE/HYPER SILVER MET(887) (B) SILVER 		8-97297-167-0 01 1 0203-
492 EXTENSION; WHL,RR
BODY COLOR EBONY BLACK/KAISER SILVER MET(630),BODY COLOR DRAGON GREEN MICA/KAISER SILVERMET(632),BODY COLOR FJORD BLUE MET/KAISER SILVER MET(633),BODY COLOR CAVALIER BLUE/HYPER SILVER MET(887) (A) SILVER 		8-97393-009-0 01 1 0203-
492 EXTENSION; WHL,RR
BODY COLOR FIR GREEN MICA(871) GRADE LS(RBB) OVER FENDER<6GH> (A) DARK GREEN 		8-97158-551-0 01 1 9708-9806
492 EXTENSION; WHL,RR
BODY COLOR FIR GREEN MICA(871) GRADE LS(RBB) (A) DARK GREEN 		8-97158-551-0 01 1 9807-9907
492 EXTENSION; WHL,RR
BODY COLOR DRAGON GREEN MICA(860) GRADE LS(RBB) (A) DARK GREEN 		8-97290-954-0 01 1 9908-0105
492 EXTENSION; WHL,RR
BODY COLOR DRAGON GREEN MICA(860) GRADE LS(RBB) (A) DARK GREEN 		8-97392-996-0 01 1 0106-
492 EXTENSION; WHL,RR
BODY COLOR FIR GREEN MICA(871) GRADE LS(RBB) OVER FENDER<6GH> (B) DARK GREEN 		8-97158-553-0 01 1 9708-9806
492 EXTENSION; WHL,RR
BODY COLOR FIR GREEN MICA(871) GRADE LS(RBB) (B) DARK GREEN 		8-97158-553-0 01 1 9807-9907
492 EXTENSION; WHL,RR
BODY COLOR DRAGON GREEN MICA(860) GRADE LS(RBB) (B) DARK GREEN 		8-97290-962-0 01 1 9908-
492 EXTENSION; WHL,RR
BODY COLOR FIR GREEN MICA(871) GRADE LS(RBB) OVER FENDER<6GH> (A) DARK GREEN 		8-97158-550-0 01 1 9708-9806
492 EXTENSION; WHL,RR
BODY COLOR FIR GREEN MICA(871) GRADE LS(RBB) (A) DARK GREEN 		8-97158-550-0 01 1 9807-9907
492 EXTENSION; WHL,RR
BODY COLOR DRAGON GREEN MICA(860) GRADE LS(RBB) (A) DARK GREEN 		8-97290-950-0 01 1 9908-0105
492 EXTENSION; WHL,RR
BODY COLOR DRAGON GREEN MICA(860) GRADE LS(RBB) (A) DARK GREEN 		8-97392-995-0 01 1 0106-
492 EXTENSION; WHL,RR
BODY COLOR FIR GREEN MICA(871) GRADE LS(RBB) OVER FENDER<6GH> (B) DARK GREEN 		8-97158-552-0 01 1 9708-9806
492 EXTENSION; WHL,RR
BODY COLOR FIR GREEN MICA(871) GRADE LS(RBB) (B) DARK GREEN 		8-97158-552-0 01 1 9807-9907
492 EXTENSION; WHL,RR
BODY COLOR DRAGON GREEN MICA(860) GRADE LS(RBB) (B) DARK GREEN 		8-97290-958-0 01 1 9908-
492 EXTENSION; WHL,RR
BODY COLOR LT.SILVER MET/MOONMIST GRAY MICA(712), BODY COLOR FOXFIRE RED/MOONMIST GRAY MICA(724) GRADE LTD(RBD) (A) DARK GRAY 		8-97290-953-0 01 1 9908-0105
492 EXTENSION; WHL,RR
BODY COLOR MOONMIST GRAY MICA(857) GRADE LS(RBB) (A) DARK GRAY 		8-97290-953-0 01 1 9908-0105
492 EXTENSION; WHL,RR
BODY COLOR LT.SILVER MET/MOONMIST GRAY MICA(712), BODY COLOR FOXFIRE RED/MOONMIST GRAY MICA(724) GRADE LTD(RBD) (A) DARK GRAY 		8-97392-994-0 01 1 0106-0202
492 EXTENSION; WHL,RR
BODY COLOR MOONMIST GRAY MICA(857) GRADE LS(RBB) (A) DARK GRAY 		8-97392-994-0 01 1 0106-0202
492 EXTENSION; WHL,RR
BODY COLOR SATIN GOLD MET/MOONMIST GRAY MICA(628), BODY COLOR LT.SILVER MET/MOONMIST GRAY MICA(712), BODY COLOR FOXFIRE RED/MOONMIST GRAY MICA(724) (A) DARK GRAY 		8-97392-994-0 01 1 0203-
492 EXTENSION; WHL,RR
BODY COLOR MOONMIST GRAY MICA(857) GRADE LS(RBB) (A) DARK GRAY 		8-97392-994-0 01 1 0203-
492 EXTENSION; WHL,RR
BODY COLOR LT.SILVER MET/MOONMIST GRAY MICA(712), BODY COLOR FOXFIRE RED/MOONMIST GRAY MICA(724) GRADE LTD(RBD) (B) DARK GRAY 		8-97290-961-0 01 1 9908-0202
492 EXTENSION; WHL,RR
BODY COLOR MOONMIST GRAY MICA(857) GRADE LS(RBB) (B) DARK GRAY 		8-97290-961-0 01 1 9908-0202
492 EXTENSION; WHL,RR
BODY COLOR SATIN GOLD MET/MOONMIST GRAY MICA(628), BODY COLOR LT.SILVER MET/MOONMIST GRAY MICA(712), BODY COLOR FOXFIRE RED/MOONMIST GRAY MICA(724) (B) DARK GRAY 		8-97290-961-0 01 1 0203-
492 EXTENSION; WHL,RR
BODY COLOR MOONMIST GRAY MICA(857) GRADE LS(RBB) (B) DARK GRAY 		8-97290-961-0 01 1 0203-
492 EXTENSION; WHL,RR
BODY COLOR LT.SILVER MET/MOONMIST GRAY MICA(712), BODY COLOR FOXFIRE RED/MOONMIST GRAY MICA(724) GRADE LTD(RBD) (A) DARK GRAY 		8-97290-949-0 01 1 9908-0105
492 EXTENSION; WHL,RR
BODY COLOR MOONMIST GRAY MICA(857) GRADE LS(RBB) (A) DARK GRAY 		8-97290-949-0 01 1 9908-0105
492 EXTENSION; WHL,RR
BODY COLOR LT.SILVER MET/MOONMIST GRAY MICA(712), BODY COLOR FOXFIRE RED/MOONMIST GRAY MICA(724) GRADE LTD(RBD) (A) DARK GRAY 		8-97392-993-0 01 1 0106-0202
492 EXTENSION; WHL,RR
BODY COLOR MOONMIST GRAY MICA(857) GRADE LS(RBB) (A) DARK GRAY 		8-97392-993-0 01 1 0106-0202
492 EXTENSION; WHL,RR
BODY COLOR SATIN GOLD MET/MOONMIST GRAY MICA(628), BODY COLOR LT.SILVER MET/MOONMIST GRAY MICA(712), BODY COLOR FOXFIRE RED/MOONMIST GRAY MICA(724) (A) DARK GRAY 		8-97392-993-0 01 1 0203-
492 EXTENSION; WHL,RR
BODY COLOR MOONMIST GRAY MICA(857) GRADE LS(RBB) (A) DARK GRAY 		8-97392-993-0 01 1 0203-
492 EXTENSION; WHL,RR
BODY COLOR LT.SILVER MET/MOONMIST GRAY MICA(712), BODY COLOR FOXFIRE RED/MOONMIST GRAY MICA(724) GRADE LTD(RBD) (B) DARK GRAY 		8-97290-957-0 01 1 9908-0202
492 EXTENSION; WHL,RR
BODY COLOR MOONMIST GRAY MICA(857) GRADE LS(RBB) (B) DARK GRAY 		8-97290-957-0 01 1 9908-0202
492 EXTENSION; WHL,RR
BODY COLOR SATIN GOLD MET/MOONMIST GRAY MICA(628), BODY COLOR LT.SILVER MET/MOONMIST GRAY MICA(712), BODY COLOR FOXFIRE RED/MOONMIST GRAY MICA(724) (B) DARK GRAY 		8-97290-957-0 01 1 0203-
492 EXTENSION; WHL,RR
BODY COLOR MOONMIST GRAY MICA(857) GRADE LS(RBB) (B) DARK GRAY 		8-97290-957-0 01 1 0203-
492 EXTENSION; WHL,RR
BODY COLOR POLAR WHITE MICA(610) GRADE LS(RBB) (B) WHITE 		8-97297-168-0 01 1 0203-
492 EXTENSION; WHL,RR
BODY COLOR POLAR WHITE MICA(610) GRADE LS(RBB) (A) WHITE 		8-97393-006-0 01 1 0203-
492 EXTENSION; WHL,RR
BODY COLOR POLAR WHITE MICA(610) GRADE LS(RBB) (B) WHITE 		8-97297-165-0 01 1 0203-
492 EXTENSION; WHL,RR
BODY COLOR POLAR WHITE MICA(610) GRADE LS(RBB) (A) WHITE 		8-97393-005-0 01 1 0203-
492 EXTENSION; WHL,RR
BODY COLOR RED ROCK MICA(872) GRADE LS(RBB) OVER FENDER<6GH> (A) DARK RED 		8-97158-557-0 01 1 9708-9806
492 EXTENSION; WHL,RR
BODY COLOR RED ROCK MICA(872) GRADE LS(RBB) (A) DARK RED 		8-97158-557-0 01 1 9807-9907
492 EXTENSION; WHL,RR
BODY COLOR ALPINE WHITE(877) GRADE LS(RBB) (A) WHITE 		8-97290-956-0 01 1 9908-0105
492 EXTENSION; WHL,RR
BODY COLOR ALPINE WHITE(877) GRADE LS(RBB) (A) WHITE 		8-97393-000-0 01 1 0106-
492 EXTENSION; WHL,RR
BODY COLOR RED ROCK MICA(872) GRADE LS(RBB) OVER FENDER<6GH> (B) DARK RED 		8-97158-559-0 01 1 9708-9806
492 EXTENSION; WHL,RR
BODY COLOR RED ROCK MICA(872) GRADE LS(RBB) (B) DARK RED 		8-97158-559-0 01 1 9807-9907
492 EXTENSION; WHL,RR
BODY COLOR ALPINE WHITE(877) GRADE LS(RBB) (B) WHITE 		8-97290-964-0 01 1 9908-
492 EXTENSION; WHL,RR
BODY COLOR RED ROCK MICA(872) GRADE LS(RBB) OVER FENDER<6GH> (A) DARK RED 		8-97158-556-0 01 1 9708-9806
492 EXTENSION; WHL,RR
BODY COLOR RED ROCK MICA(872) GRADE LS(RBB) (A) DARK RED 		8-97158-556-0 01 1 9807-9907
492 EXTENSION; WHL,RR
BODY COLOR ALPINE WHITE(877) GRADE LS(RBB) (A) WHITE 		8-97290-952-0 01 1 9908-0105
492 EXTENSION; WHL,RR
BODY COLOR ALPINE WHITE(877) GRADE LS(RBB) (A) WHITE 		8-97392-999-0 01 1 0106-
492 EXTENSION; WHL,RR
BODY COLOR RED ROCK MICA(872) GRADE LS(RBB) OVER FENDER<6GH> (B) DARK RED 		8-97158-558-0 01 1 9708-9806
492 EXTENSION; WHL,RR
BODY COLOR RED ROCK MICA(872) GRADE LS(RBB) (B) DARK RED 		8-97158-558-0 01 1 9807-9907
492 EXTENSION; WHL,RR
BODY COLOR ALPINE WHITE(877) GRADE LS(RBB) (B) WHITE 		8-97290-960-0 01 1 9908-
492 EXTENSION; WHL,RR
BODY COLOR SATIN GOLD MET(613) GRADE LS(RBB) (B) SILVER 		8-97297-169-0 01 1 0203-
492 EXTENSION; WHL,RR
BODY COLOR SATIN GOLD MET(613) GRADE LS(RBB) (A) SILVER 		8-97393-008-0 01 1 0203-
492 EXTENSION; WHL,RR
BODY COLOR SATIN GOLD MET(613) GRADE LS(RBB) (B) SILVER 		8-97297-166-0 01 1 0203-
492 EXTENSION; WHL,RR
BODY COLOR SATIN GOLD MET(613) GRADE LS(RBB) (A) SILVER 		8-97393-007-0 01 1 0203-
492 EXTENSION; WHL,RR
GRADE LTD(RBD) OVER FENDER<6GH> (A) LIGHT SILVER 		8-97158-113-0 01 1 9708-9806
492 EXTENSION; WHL,RR
BODY COLOR LT.SILVER MET(753) GRADE LS(RBB) OVER FENDER<6GH> (A) LIGHT SILVER 		8-97158-113-0 01 1 9708-9806
492 EXTENSION; WHL,RR
GRADE LTD(RBD) (A) LIGHT SILVER 		8-97158-113-0 01 1 9807-9907
492 EXTENSION; WHL,RR
BODY COLOR LT.SILVER MET(753) GRADE LS(RBB) (A) LIGHT SILVER 		8-97158-113-0 01 1 9807-9907
492 EXTENSION; WHL,RR
GRADE LTD(RBD) (A) LIGHT SILVER 		8-97291-059-0 01 1 9908-0105
492 EXTENSION; WHL,RR
BODY COLOR LT.SILVER MET(753) GRADE LS(RBB) (A) LIGHT SILVER 		8-97291-059-0 01 1 9908-0105
492 EXTENSION; WHL,RR
GRADE LTD(RBD) (A) 		8-97393-002-0 01 1 0106-0202
492 EXTENSION; WHL,RR
BODY COLOR LT.SILVER MET(753) GRADE LS(RBB) (A) 		8-97393-002-0 01 1 0106-0202
492 EXTENSION; WHL,RR
BODY COLOR SATIN GOLD MET/LIGHT SILVER MET(616), BODY COLOR FJORD BLUE MET/LIGHT SILVER MET(629),BODY COLOR ALPINE WHITE/LT.SILVER MET(740),BODY COLOR MOONMIST GRAY MICA/LT.SILVER MET(742),BODY COLOR DRAGON GREEN MICA/LT.SILVER MET(747),BODY COLOR EBONY BLACK/LT.SILVER MET(774) (A) 		8-97393-002-0 01 1 0203-
492 EXTENSION; WHL,RR
BODY COLOR LT.SILVER MET(753) GRADE LS(RBB) (A) 		8-97393-002-0 01 1 0203-
492 EXTENSION; WHL,RR
GRADE LTD(RBD) OVER FENDER<6GH> (B) LIGHT SILVER 		8-97158-115-0 01 1 9708-9806
492 EXTENSION; WHL,RR
BODY COLOR LT.SILVER MET(753) GRADE LS(RBB) OVER FENDER<6GH> (B) LIGHT SILVER 		8-97158-115-0 01 1 9708-9806
492 EXTENSION; WHL,RR
GRADE LTD(RBD) (B) LIGHT SILVER 		8-97158-115-0 01 1 9807-0202
492 EXTENSION; WHL,RR
BODY COLOR LT.SILVER MET(753) GRADE LS(RBB) (B) LIGHT SILVER 		8-97158-115-0 01 1 9807-0202
492 EXTENSION; WHL,RR
BODY COLOR SATIN GOLD MET/LIGHT SILVER MET(616), BODY COLOR FJORD BLUE MET/LIGHT SILVER MET(629),BODY COLOR ALPINE WHITE/LT.SILVER MET(740),BODY COLOR MOONMIST GRAY MICA/LT.SILVER MET(742),BODY COLOR DRAGON GREEN MICA/LT.SILVER MET(747),BODY COLOR EBONY BLACK/LT.SILVER MET(774) (B) LIGHT SILVER 		8-97158-115-0 01 1 0203-
492 EXTENSION; WHL,RR
BODY COLOR LT.SILVER MET(753) GRADE LS(RBB) (B) LIGHT SILVER 		8-97158-115-0 01 1 0203-
492 EXTENSION; WHL,RR
GRADE LTD(RBD) OVER FENDER<6GH> (A) LIGHT SILVER 		8-97158-112-0 01 1 9708-9806
492 EXTENSION; WHL,RR
BODY COLOR LT.SILVER MET(753) GRADE LS(RBB) OVER FENDER<6GH> (A) LIGHT SILVER 		8-97158-112-0 01 1 9708-9806
492 EXTENSION; WHL,RR
GRADE LTD(RBD) (A) LIGHT SILVER 		8-97158-112-0 01 1 9807-9907
492 EXTENSION; WHL,RR
BODY COLOR LT.SILVER MET(753) GRADE LS(RBB) (A) LIGHT SILVER 		8-97158-112-0 01 1 9807-9907
492 EXTENSION; WHL,RR
GRADE LTD(RBD) (A) LIGHT SILVER 		8-97291-057-0 01 1 9908-0105
492 EXTENSION; WHL,RR
BODY COLOR LT.SILVER MET(753) GRADE LS(RBB) (A) LIGHT SILVER 		8-97291-057-0 01 1 9908-0105
492 EXTENSION; WHL,RR
GRADE LTD(RBD) (A) LIGHT SILVER 		8-97393-001-0 01 1 0106-0202
492 EXTENSION; WHL,RR
BODY COLOR LT.SILVER MET(753) GRADE LS(RBB) (A) LIGHT SILVER 		8-97393-001-0 01 1 0106-0202
492 EXTENSION; WHL,RR
BODY COLOR SATIN GOLD MET/LIGHT SILVER MET(616), BODY COLOR FJORD BLUE MET/LIGHT SILVER MET(629),BODY COLOR ALPINE WHITE/LT.SILVER MET(740),BODY COLOR MOONMIST GRAY MICA/LT.SILVER MET(742),BODY COLOR DRAGON GREEN MICA/LT.SILVER MET(747),BODY COLOR EBONY BLACK/LT.SILVER MET(774) (A) LIGHT SILVER 		8-97393-001-0 01 1 0203-
492 EXTENSION; WHL,RR
BODY COLOR LT.SILVER MET(753) GRADE LS(RBB) (A) LIGHT SILVER 		8-97393-001-0 01 1 0203-
492 EXTENSION; WHL,RR
GRADE LTD(RBD) OVER FENDER<6GH> (B) LIGHT SILVER 		8-97158-114-0 01 1 9708-9806
492 EXTENSION; WHL,RR
BODY COLOR LT.SILVER MET(753) GRADE LS(RBB) OVER FENDER<6GH> (B) LIGHT SILVER 		8-97158-114-0 01 1 9708-9806
492 EXTENSION; WHL,RR
GRADE LTD(RBD) (B) LIGHT SILVER 		8-97158-114-0 01 1 9807-0202
492 EXTENSION; WHL,RR
BODY COLOR LT.SILVER MET(753) GRADE LS(RBB) (B) LIGHT SILVER 		8-97158-114-0 01 1 9807-0202
492 EXTENSION; WHL,RR
BODY COLOR SATIN GOLD MET/LIGHT SILVER MET(616), BODY COLOR FJORD BLUE MET/LIGHT SILVER MET(629),BODY COLOR ALPINE WHITE/LT.SILVER MET(740),BODY COLOR MOONMIST GRAY MICA/LT.SILVER MET(742),BODY COLOR DRAGON GREEN MICA/LT.SILVER MET(747),BODY COLOR EBONY BLACK/LT.SILVER MET(774) (B) LIGHT SILVER 		8-97158-114-0 01 1 0203-
492 EXTENSION; WHL,RR
BODY COLOR LT.SILVER MET(753) GRADE LS(RBB) (B) LIGHT SILVER 		8-97158-114-0 01 1 0203-
495 FLAP
DARK GRAY 		8-97158-139-0 01 1 9908-
495 FLAP
DARK GRAY 		8-97158-134-0 01 1 9908-
572 FILM; EXT,WHEEL 8-97219-520-0 01 1 9908-0111
572 FILM; EXT,WHEEL 8-97326-546-0 01 1 0112-
572 FILM; EXT,WHEEL 8-97219-519-0 01 1 9908-0111
572 FILM; EXT,WHEEL 8-97326-545-0 01 1 0112-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
