Isuzu WW
▶
SUV
▶
UBS
▶
50803 - UBS(TAIWAN)-LHD
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

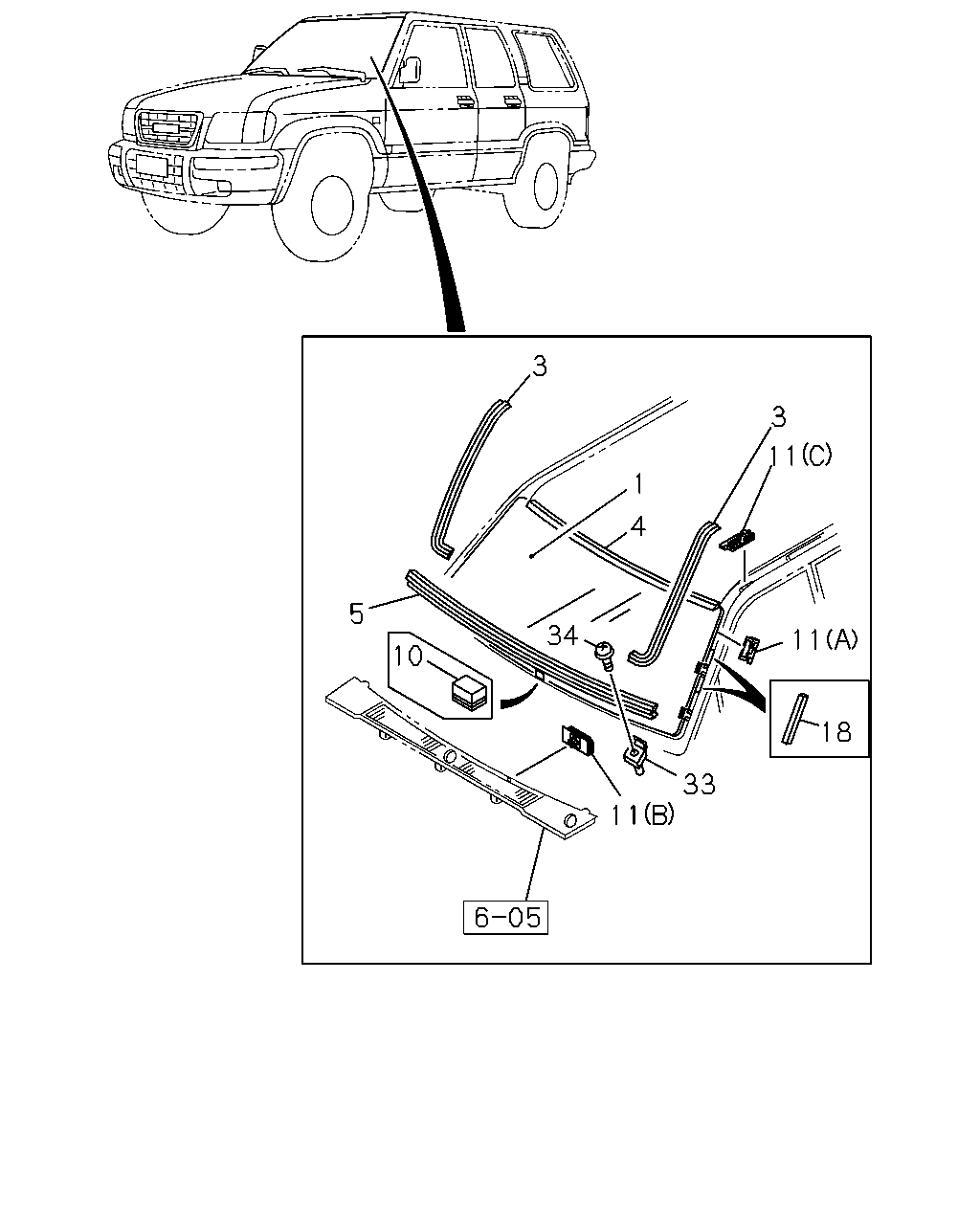

6-07 - FRONT WINDOW GLASS AND WEATHERSTRIP
▶
6-07 — FRONT WINDOW GLASS AND WEATHERSTRIP
(#32584) — 21 parça
3
3
11
1
4
5
34
11
10
18
33
11
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
GLASS; WINDSHIELD
BRONZE GLASS SHADED UPPER(6MG)
8-97102-769-4
01
1
9708-9801
1
GLASS; WINDSHIELD
8-97102-769-4
01
1
9802-0202
1
GLASS; WINDSHIELD
8-97122-069-2
01
1
0203-
1
GLASS; WINDSHIELD
LAMINATED TINTED GLASS(YM4)
8-97137-123-1
01
1
9708-9709
1
GLASS; WINDSHIELD
LAMINATED TINTED GLASS(YM4)
8-97121-769-2
01
1
9710-9801
3
MOLDING; WINDSHIELD
8-94358-797-6
01
1
9708-0212
3
MOLDING; WINDSHIELD
8-97360-912-0
01
1
0301-
3
MOLDING; WINDSHIELD
8-94358-796-6
01
1
9708-0212
3
MOLDING; WINDSHIELD
8-97360-911-0
01
1
0301-
4
MOLDING; WINDSHIELD,UPR
8-97147-200-0
01
1
9708-0212
4
MOLDING; WINDSHIELD,UPR
8-97360-910-0
01
1
0301-
5
MOLDING; WINDSHIELD,LWR
8-97811-431-0
01
1
9708-0212
5
MOLDING; WINDSHIELD,LWR
8-97360-913-0
01
1
0301-
10
SPACER; WINDSHIELD GLASS
8-94434-770-0
07
1
9708-
11
CLIP; WINDSHIELD MOLDING
(A)
8-97134-978-0
10
1
9708-
11
CLIP; WINDSHIELD MOLDING
(B)
8-97803-159-5
04
1
9708-
11
CLIP; WINDSHIELD MOLDING
(C)
8-97805-738-3
01
1
9708-
11
CLIP; WINDSHIELD MOLDING
(C)
8-97805-737-3
01
1
9708-
18
SEAL; WINDSHIELD
8-97161-712-0
04
1
9708-
33
SUPPORT; WINDSHIELD,LWR
8-97807-477-0
02
1
9708-
34
SCREW; SUPPORT TO BRKT
M6X16
8-97805-189-0
02
1
9708-
