◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50803 - UBS(TAIWAN)-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-05 - FRONT PANEL ▶
6-05 — FRONT PANEL (#32583) — 31 parça

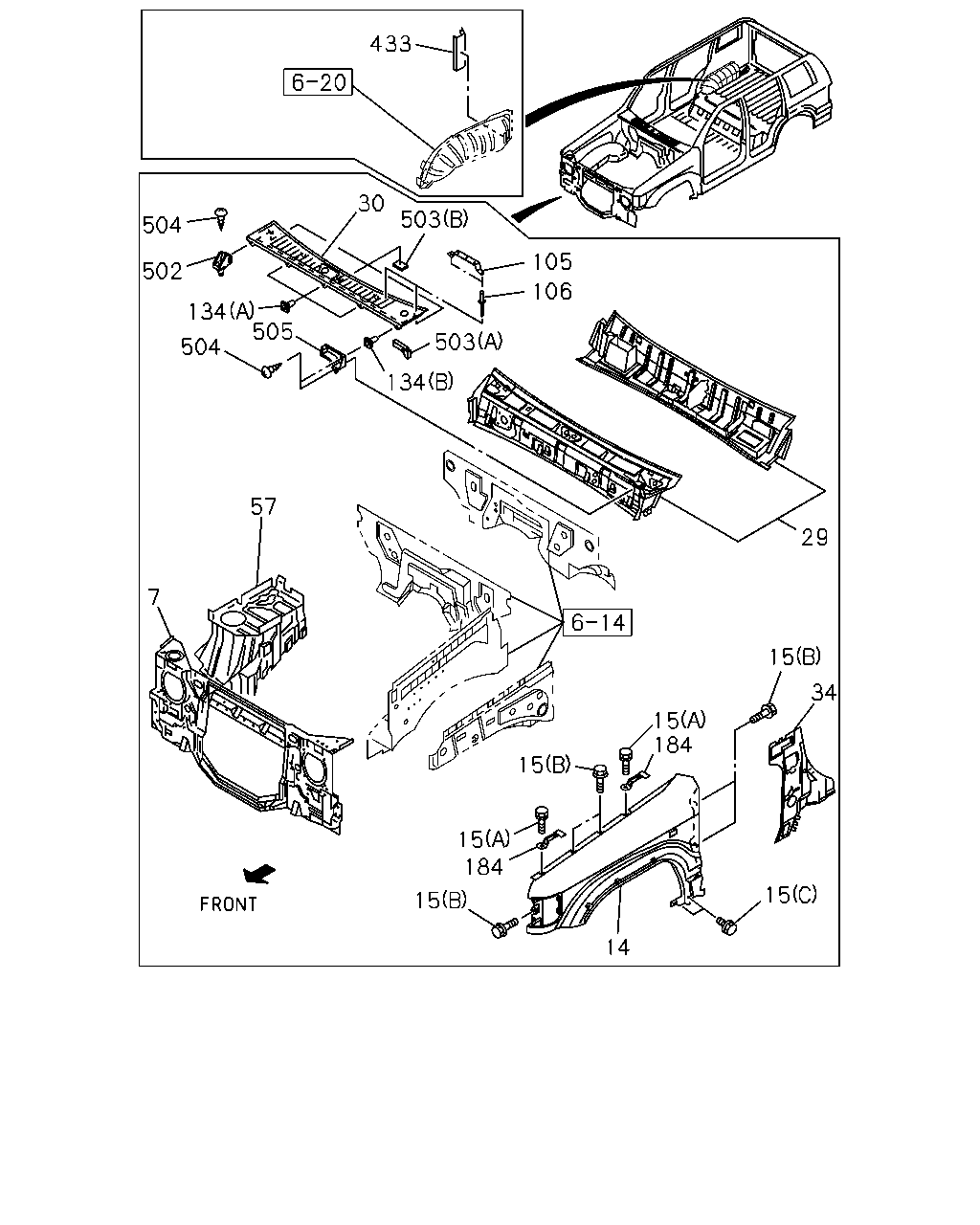

çizim 64018
433 30 503 504 105 106 502 134 505 503 504 134 57 29 7 15 34 15 184 15 15 184 15 15 14
BalonParca AdiParca NoAdetTipApplied Date
7 PANEL; DEFLECTOR 8-97125-459-0 01 1 9708-
14 FENDER; FRT 8-97184-451-0 01 1 9708-
14 FENDER; FRT
OVER FENDER<6GH> EXC. ANTENNA<U73> 		8-97184-452-0 01 1 9708-9801
14 FENDER; FRT 8-97184-452-0 01 1 9802-
14 FENDER; FRT
ANTENNA<U73> OVER FENDER<6GH> 		8-97184-449-0 01 1 9708-9801
15 BOLT; FENDER
(A) M6X16 FLANGE 		0-28080-616-0 04 1 9708-0112
15 BOLT; FENDER
(A) M6X16 FLANGE 		0-28080-616-0 02 1 0201-
15 BOLT; FENDER
(B) M6X12 W/PL WASHER 		8-97806-950-0 12 1 9708-0112
15 BOLT; FENDER
(B) M6X12 W/PL WASHER 		8-97806-950-0 14 1 0201-
15 BOLT; FENDER
(C) M6X20 W/PL WASHER 		8-97808-622-0 04 1 9708-
29 COWL ASM 8-97132-955-1 01 1 9708-0104
29 COWL ASM 8-97300-115-0 01 1 0105-
30 PANEL; COWL UPR 8-97177-031-1 01 1 9708-
34 PANEL; DASH SIDE 8-97093-865-3 01 1 9708-
34 PANEL; DASH SIDE 8-97093-864-3 01 1 9708-
57 TRAY; BATTERY 8-97137-900-0 01 1 9708-0012
57 TRAY; BATTERY 8-97286-924-0 01 1 0101-
105 BRACKET; VIN PLATE 8-97103-393-2 01 1 9708-
106 RIVET; VIN PLATE BRKT 8-94153-449-0 02 1 9708-
134 GROMMET; SCREW,COVER TO BODY
(B) 		8-97802-935-2 04 1 9708-
134 GROMMET; SCREW,COVER TO BODY
(A) OD=8.8 L=19.2 		8-97807-380-0 03 1 9708-0104
134 GROMMET; SCREW,COVER TO BODY
(A) OD=8.8 L=19.2 		8-97807-380-0 04 1 0105-
184 CLIP; REST,FENDER 8-94443-017-1 04 1 9708-0112
184 CLIP; REST,FENDER 8-94443-017-1 02 1 0201-
433 BRACKET; FILLER NECK PROTECTOR 8-97810-390-0 01 1 9708-
502 STOPPER; COWL 8-97801-409-5 05 1 9708-
503 RUBBER; SEAL,COWL
(A) 		8-97806-581-1 02 1 9708-
503 RUBBER; SEAL,COWL
(B) 		8-97807-710-1 04 1 9708-
504 SCREW; COWL
M6X16 		8-97805-189-0 12 1 9708-
505 BRACKET; COWL COVER 8-97806-835-1 01 1 9708-
505 BRACKET; COWL COVER 8-97806-834-1 01 1 9708-
