◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ MR ▶ 10663 - MR ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-42 - FUEL PUMP AND PIPE ▶
0-42 — FUEL PUMP AND PIPE (#3258) — 25 parça

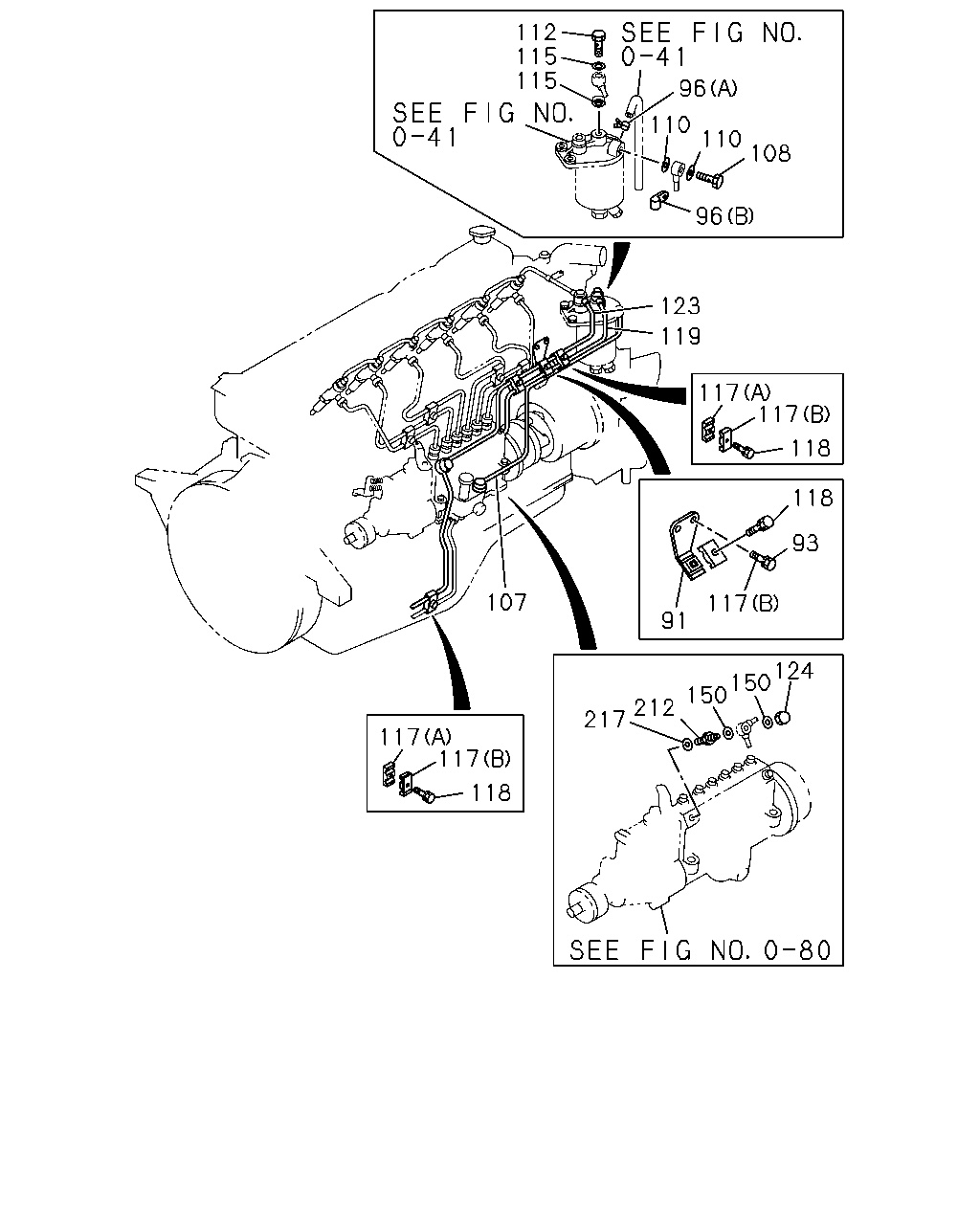

çizim 38469
112 115 115 96 110 110 108 96 123 119 117 117 118 118 93 107 117 91 124 150 150 212 217 117 117 118
BalonParca AdiParca NoAdetTipApplied Date A B
91 BRACKET; FUEL PIPE TO INL MANIF
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-15419-192-0 01 1 9101- ● ●
91 BRACKET; FUEL PIPE TO INL MANIF
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) 		1-15419-139-0 01 1 9101- ● ●
93 BOLT; PIPE BRKT 0-50040-616-0 02 1 9101-9707 ● ●
93 BOLT; PIPE BRKT
M6X16 FLANGE 		0-28680-616-0 02 1 9708- ● ●
96 CLIP; VINYL PIPE
(A) ID=8 		8-94107-762-0 01 1 9101- ● ●
96 CLIP; VINYL PIPE
(B) ID=13 L=20 		9-09525-235-0 01 1 9101- ● ●
107 PIPE; FUEL,FEED PUMP TO FUEL FILTER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-15414-316-0 01 1 9101- ● ●
107 PIPE; FUEL,FEED PUMP TO FUEL FILTER
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) 		1-15413-200-0 01 1 9101- ● ●
108 BOLT; JOINT,FUEL FILTER 1-09675-086-0 01 1 9101- ● ●
110 GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-09630-085-0 02 1 9101- ● ●
112 BOLT; JOINT,FUEL FILTER 1-09675-086-0 01 1 9101- ● ●
115 GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-09630-085-0 02 1 9101- ● ●
117 CLIP; FUEL PIPE
(B) L=48 		5-09709-103-0 04 1 9101- ● ●
117 CLIP; FUEL PIPE
(A) L=45 		5-09709-104-0 02 1 9101- ● ●
118 BOLT; CLIP,FUEL PIPE 9-01900-630-0 04 1 9101-9204 ● ●
118 BOLT; CLIP,FUEL PIPE 0-50040-630-0 04 1 9205- ● ●
119 PIPE; FUEL,FUEL FILTER TO INJ PUMP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-15414-315-0 01 1 9101- ● ●
119 PIPE; FUEL,FUEL FILTER TO INJ PUMP
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) 		1-15414-344-0 01 1 9101- ● ●
123 PIPE; FUEL,FUEL FILTER LEAK OFF
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-15414-495-1 01 1 9101- ● ●
123 PIPE; FUEL,FUEL FILTER LEAK OFF
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) 		1-15413-397-1 01 1 9101-9204 ● ●
123 PIPE; FUEL,FUEL FILTER LEAK OFF
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) 		1-15415-399-0 01 1 9205- ● ●
124 NUT; CAP,FUEL PIPE
M14 		1-09468-002-1 01 1 9101- ● ●
150 GASKET; FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-09630-085-0 02 1 9101- ● ●
212 VALVE; OVERFLOW 1-13260-001-1 01 1 9101- ● ●
217 GASKET; OVERFLOW VLV
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-09630-085-0 01 1 9101- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
