Isuzu WW
▶
SUV
▶
UBS
▶
50803 - UBS(TAIWAN)-LHD
▶
5 - Frame, Cab Mounting
▶
5-40 - ENGINE ROOM INSULATOR
▶

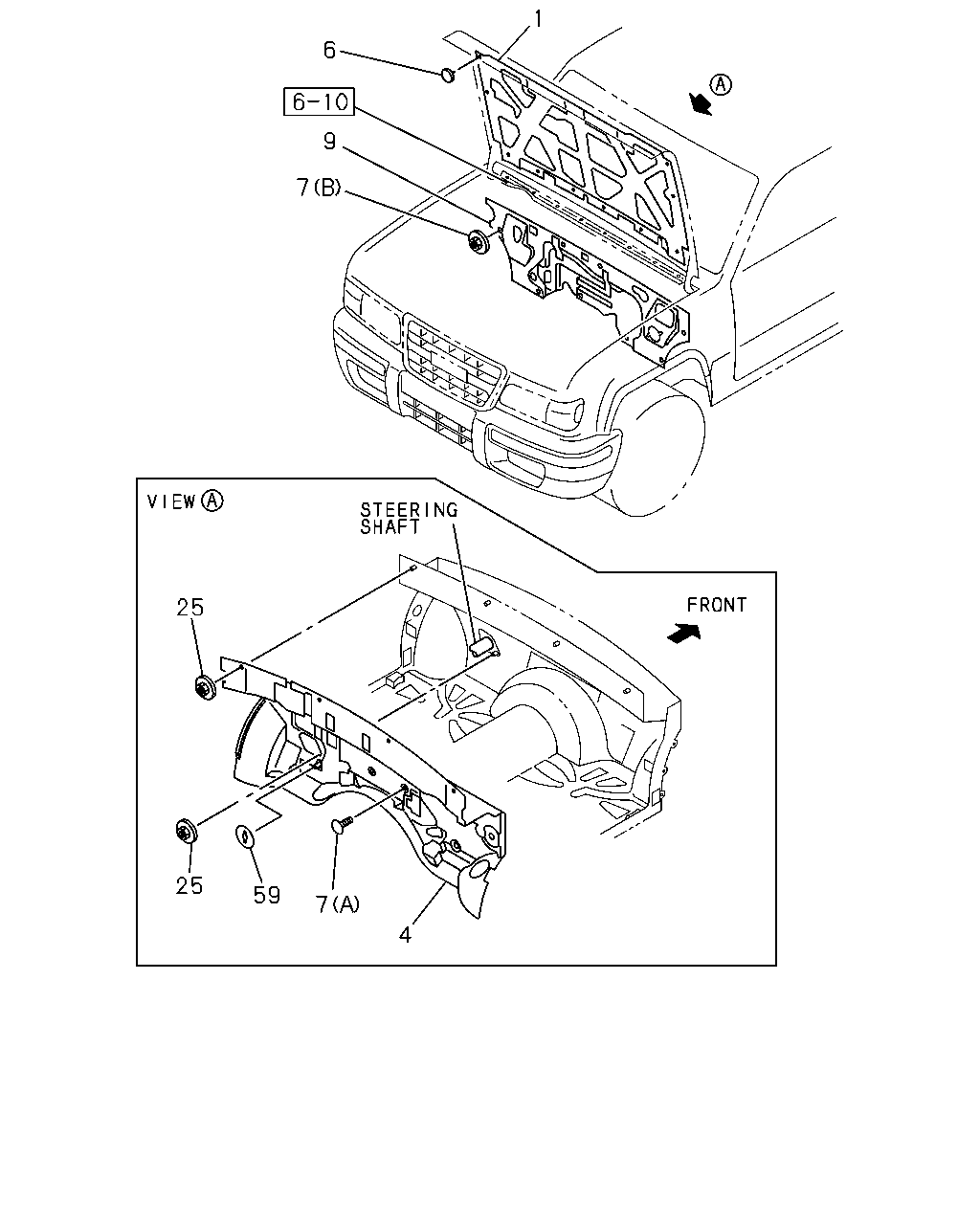

5-40 — ENGINE ROOM INSULATOR
(#32579) — 12 parça
1
6
9
7
25
25
59
7
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
INSULATION; ENG HOOD
8-97177-873-1
01
1
9708-9812
1
INSULATION; ENG HOOD
8-97218-543-0
01
1
9901-
4
INSULATION; DASH PNL,INNER
8-97138-530-2
01
1
9708-
6
CLIP; ENG HOOD INSULATION
8-97808-623-0
16
1
9708-
7
CLIP; INSULATION
(B) H=10.5
8-94441-810-0
09
1
9708-0202
7
CLIP; INSULATION
(B) H=10.5
8-94441-810-0
07
1
0203-
7
CLIP; INSULATION
(A) DARK GRAY
8-97805-803-0
01
1
9708-9711
9
INSULATION; DASH ENG ROOM
8-97147-063-0
01
1
9708-0202
9
INSULATION; DASH ENG ROOM
8-97303-069-0
01
1
0203-0211
9
INSULATION; DASH ENG ROOM
8-97361-164-0
01
1
0212-
25
CLIP; DASH INSULATION
H=10.5
8-94441-810-0
05
1
9708-
59
COVER; PAD INSULATION
8-97807-909-0
01
1
9708-
