◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50803 - UBS(TAIWAN)-LHD ▶ 5 - Frame, Cab Mounting ▶ 5-10 - CAB MOUNTING; FRAME SIDE ▶
5-10 — CAB MOUNTING; FRAME SIDE (#32576) — 34 parça

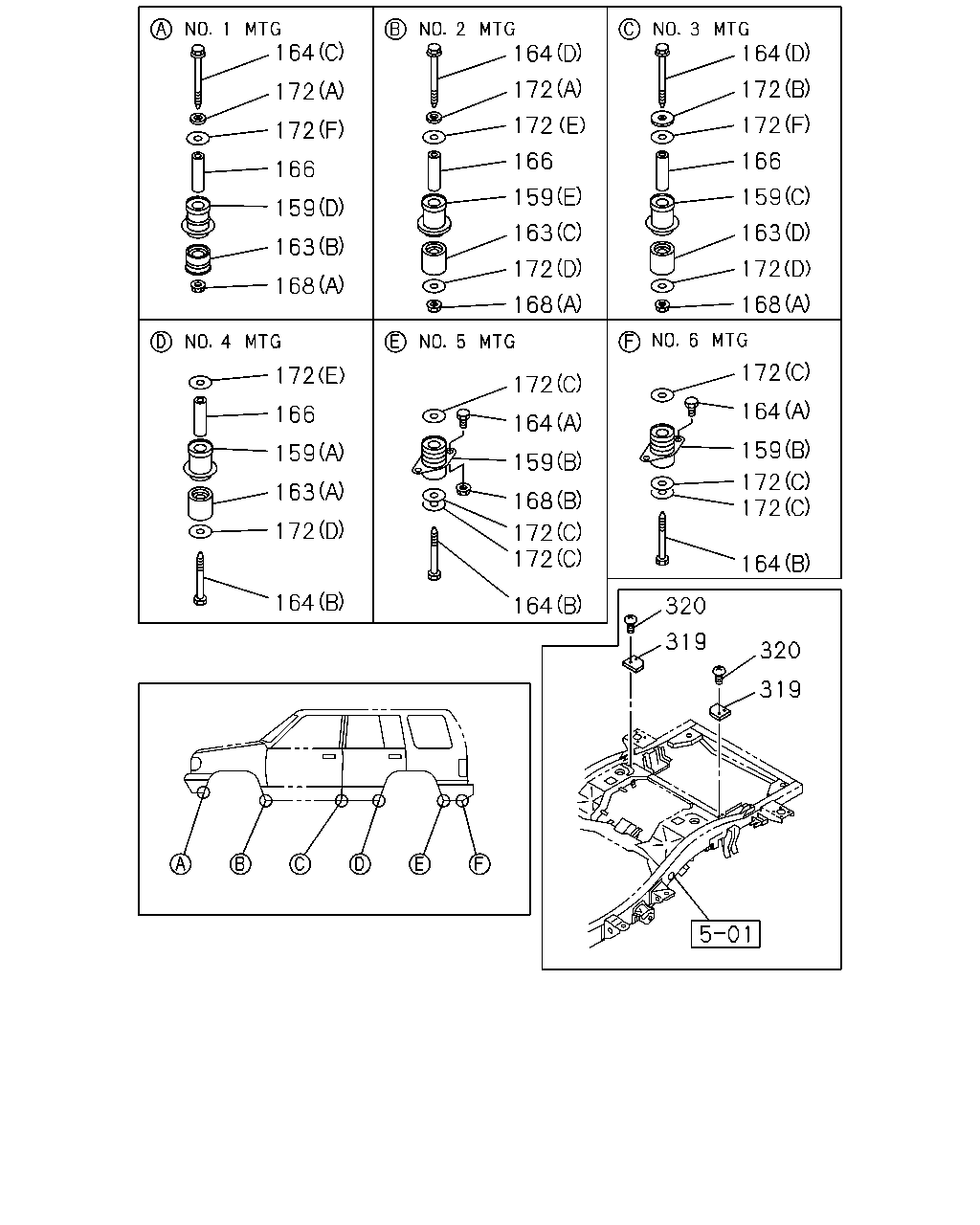

çizim 16656
164 164 164 172 172 172 172 172 172 166 166 166 159 159 159 163 163 163 172 172 168 168 168 172 172 172 164 166 164 159 159 159 172 172 163 168 172 172 172 164 164 164 320 319 320 319
BalonParca AdiParca NoAdetTipApplied Date
159 RUBBER; CUSHION,CAB MTG
(D) NO.1 MTG 		8-94325-155-2 02 1 9708-
159 RUBBER; CUSHION,CAB MTG
(C) NO.3 MTG 		8-94325-158-2 02 1 9708-
159 RUBBER; CUSHION,CAB MTG
(A) NO.4 MTG 		8-94370-629-2 02 1 9708-
159 RUBBER; CUSHION,CAB MTG
(B) NO.5,NO.6 MTG 		8-94370-631-1 04 1 9708-
159 RUBBER; CUSHION,CAB MTG
(E) NO.2 MTG 		8-97035-571-2 02 1 9708-
163 RUBBER; CUSHION,BODY MTG,REBOUND
(D) NO.3 MTG 		8-94157-885-0 02 1 9708-
163 RUBBER; CUSHION,BODY MTG,REBOUND
(A) NO.4 MTG 		8-94227-777-1 02 1 9708-
163 RUBBER; CUSHION,BODY MTG,REBOUND
(B) NO.1 MTG 		8-94325-156-0 02 1 9708-
163 RUBBER; CUSHION,BODY MTG,REBOUND
(C) NO.2 MTG 		8-97035-572-1 02 1 9708-
164 BOLT; CUSHION RUBBER,CAB MTG
(A) NO.5,NO.6 MTG M10X20 FLANGE 		0-28681-020-0 08 1 9708-
164 BOLT; CUSHION RUBBER,CAB MTG
(B) NO.4,NO.5,NO.6 MTG M10X102 		8-97091-599-0 06 1 9708-0008
164 BOLT; CUSHION RUBBER,CAB MTG
(B) NO.4,NO.5,NO.6 MTG M10X110 		8-97289-814-0 06 1 0009-
164 BOLT; CUSHION RUBBER,CAB MTG
(C) NO.1 MTG M10X120 		8-97134-968-0 02 1 9708-
164 BOLT; CUSHION RUBBER,CAB MTG
(D) NO.2 NO.3 M10X105 		8-97142-724-0 04 1 9708-
166 PIECE; DIST,BODY MTG RUBBER
NO.1,NO.2,NO.3,NO.4 MTG L=70 		8-97148-478-0 08 1 9708-
168 NUT; CUSHION RUBBER,BODY MTG
(B) NO.5 MTG M10 FLANGE 		0-91150-110-0 04 1 9708-
168 NUT; CUSHION RUBBER,BODY MTG
(A) NO.1,NO.2,NO.3 MTG M10 FLANGE 		0-91150-210-0 06 1 9708-
172 WASHER; BODY MTG RUBBER
(D) NO.2,NO.3,NO.4 MTG ID=11 OD=48 T=2.9 		8-94223-170-0 06 1 9708-
172 WASHER; BODY MTG RUBBER
(A) NO.1,NO.2 MTG OD=32 T=6.0 		8-94416-693-0 04 1 9708-
172 WASHER; BODY MTG RUBBER
(B) NO.3 MTG OD=48 T=6.0 		8-94416-694-0 02 1 9708-
172 WASHER; BODY MTG RUBBER
(C) NO.5,NO.6 MTG ID=11 OD=62 T=2.9 		8-97037-993-0 12 1 9708-
172 WASHER; BODY MTG RUBBER
(E) NO.2,NO.4 MTG OD=62 T=2.9 		8-97077-385-1 04 1 9708-
172 WASHER; BODY MTG RUBBER
(F) NO.1,NO.3 MTG OD=48 T=2.9 		8-97077-386-1 04 1 9708-
319 GASKET; BODY MTG BOLT 8-97021-539-3 02 1 9708-
320 SCREW; BODY MTG GASKET
M6X16 CK-HEAD 		0-70180-616-0 04 1 9708-

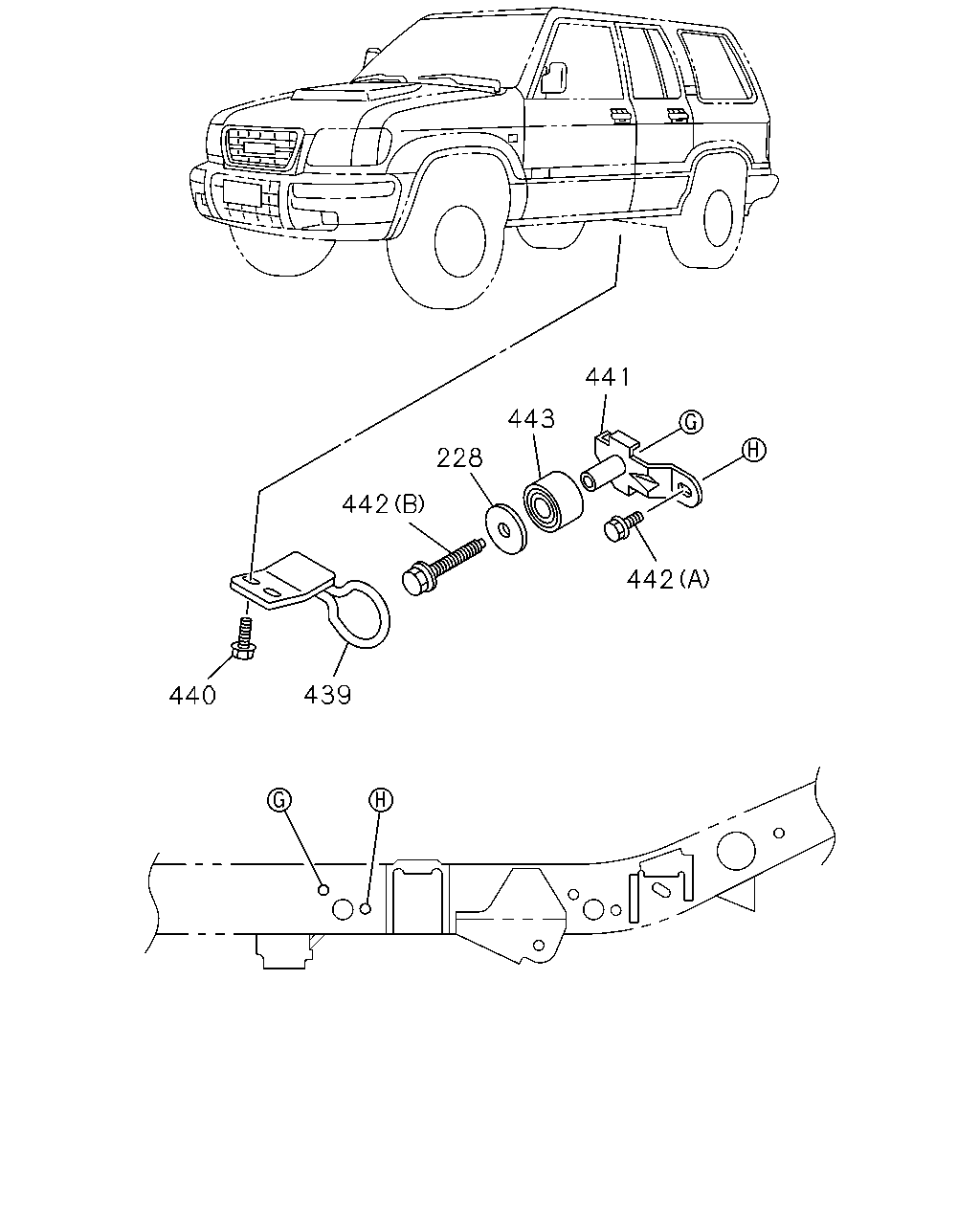

çizim 63842
441 443 228 442 442 439 440
BalonParca AdiParca NoAdetTipApplied Date
228 WASHER; PL
ID=14 OD=36 		9-09164-714-0 02 1 9708-
439 ROD; CAB STOPPER 8-97122-499-2 01 1 9708-
439 ROD; CAB STOPPER 8-97122-498-2 01 1 9708-
440 BOLT; ROD
M14X30 FLANGE 		0-28691-430-0 04 1 9708-
441 BRACKET; CAB STOPPER 8-97122-500-1 01 1 9708-
441 BRACKET; CAB STOPPER 8-97122-501-1 01 1 9708-
442 BOLT; BRKT
(A) M10X25 FLANGE 		0-28691-025-0 02 1 9708-
442 BOLT; BRKT
(B) M14X85 FLANGE 		8-97022-802-3 02 1 9708-
443 CUSHION; CAB STOPPER 8-97122-502-0 02 1 9708-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
