5-01 — FRAME AND OTHER PARTS (#32575) — 56 parça

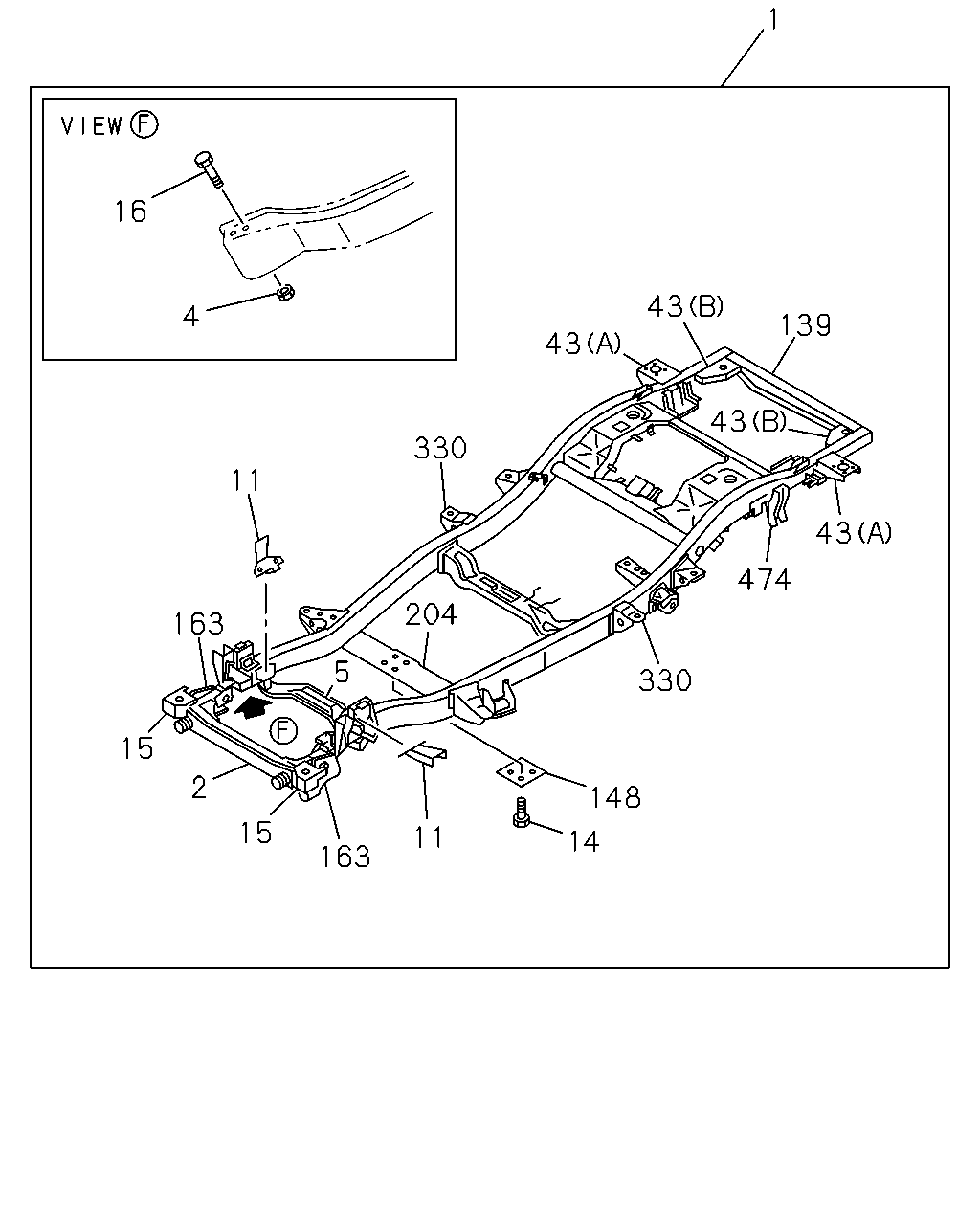

çizim 64004
1 16 43 4 139 43 43 330 11 43 474 204 163 5 330 15 2 148 15 11 14 163
BalonParca AdiParca NoAdetTipApplied Date
1 FRAME ASM
A/T THM(RMQ) TORQUE ON DEMAND<7HA> 		8-97163-122-1 01 1 9708-9806
1 FRAME ASM
TORQUE ON DEMAND<7HA> 		8-97163-122-4 01 1 9807-0208
1 FRAME ASM
TORQUE ON DEMAND<7HA> 		8-97351-608-0 01 1 0209-
1 FRAME ASM
A/T THM(RMQ) EXC. TORQUE ON DEMAND<7HA> 		8-97183-103-1 01 1 9708-9806
1 FRAME ASM
EXC. TORQUE ON DEMAND<7HA> 		8-97183-103-4 01 1 9807-0208
1 FRAME ASM
EXC. TORQUE ON DEMAND<7HA> 		8-97351-609-0 01 1 0209-
1 FRAME ASM
M/T AR-5 5 SPEED(RNK) 		8-97163-123-1 01 1 9708-9806
2 MEMBER; CROSS,1ST 8-97117-868-1 01 1 9708-
4 NUT; 1ST C/MBR TO S/MBR
M10 FLANGE 		8-94383-595-0 02 1 9708-
5 MEMBER; CROSS,SUSPENSION 8-94498-707-1 01 1 9708-
11 BRACKET; ENG MTG 8-97118-210-0 01 1 9708-
11 BRACKET; ENG MTG 8-97118-209-0 01 1 9708-
14 BOLT; TRANS MTG MBR,FRAME
A/T THM(RMQ) TORQUE ON DEMAND<7HA> M12X31 FLANGE 		8-97166-862-0 08 1 9708-9806
14 BOLT; TRANS MTG MBR,FRAME
TORQUE ON DEMAND<7HA> M12X31 FLANGE 		8-97166-862-0 08 1 9807-
14 BOLT; TRANS MTG MBR,FRAME
M/T AR-5 5 SPEED(RNK) M12X25 		8-97166-861-0 08 1 9708-9806
14 BOLT; TRANS MTG MBR,FRAME
A/T THM(RMQ) EXC. TORQUE ON DEMAND<7HA> M12X25 		8-97166-861-0 08 1 9708-9806
14 BOLT; TRANS MTG MBR,FRAME
EXC. TORQUE ON DEMAND<7HA> M12X25 		8-97166-861-0 08 1 9807-
15 BRACKET; BODY MTG,FRT 8-97170-739-0 01 1 9708-
15 BRACKET; BODY MTG,FRT 8-97170-738-0 01 1 9708-
16 BOLT; 1ST C/MBR TO S/MBR
M10X83 FLANGE 		8-97805-841-1 02 1 9708-
43 BRACKET; CAB MTG,RR
(B) 		8-97800-851-1 01 1 9708-
43 BRACKET; CAB MTG,RR
(A) 		8-97802-653-0 01 1 9708-
43 BRACKET; CAB MTG,RR
(B) 		8-97800-850-1 01 1 9708-
43 BRACKET; CAB MTG,RR
(A) 		8-97803-128-0 01 1 9708-
139 MEMBER; CROSS,6TH 8-97800-845-4 01 1 9708-
148 SPACER; C/MBR
A/T THM(RMQ) TORQUE ON DEMAND<7HA> 		8-94325-131-0 02 1 9708-9806
148 SPACER; C/MBR
M/T AR-5 5 SPEED(RNK) 		8-94325-131-0 02 1 9708-9806
148 SPACER; C/MBR
TORQUE ON DEMAND<7HA> 		8-94325-131-0 02 1 9807-
163 BRACKET; LINK ARM
A/T THM(RMQ) TORQUE ON DEMAND<7HA> 		8-97142-704-0 01 1 9708-9806
163 BRACKET; LINK ARM
M/T AR-5 5 SPEED(RNK) 		8-97142-704-0 01 1 9708-9806
163 BRACKET; LINK ARM
TORQUE ON DEMAND<7HA> 		8-97142-704-1 01 1 9807-0005
163 BRACKET; LINK ARM 8-97142-704-2 01 1 0006-
163 BRACKET; LINK ARM
A/T THM(RMQ) TORQUE ON DEMAND<7HA> 		8-97142-703-0 01 1 9708-9806
163 BRACKET; LINK ARM
M/T AR-5 5 SPEED(RNK) 		8-97142-703-0 01 1 9708-9806
163 BRACKET; LINK ARM
TORQUE ON DEMAND<7HA> 		8-97142-703-1 01 1 9807-0005
163 BRACKET; LINK ARM 8-97142-703-2 01 1 0006-
204 MEMBER; CROSS,TRANS MTG
A/T THM(RMQ) TORQUE ON DEMAND<7HA> 		8-97119-803-2 01 1 9708-9806
204 MEMBER; CROSS,TRANS MTG
TORQUE ON DEMAND<7HA> 		8-97119-803-2 01 1 9807-
204 MEMBER; CROSS,TRANS MTG
M/T AR-5 5 SPEED(RNK) 		8-97128-335-3 01 1 9708-9806
204 MEMBER; CROSS,TRANS MTG
A/T THM(RMQ) EXC. TORQUE ON DEMAND<7HA> 		8-97128-335-3 01 1 9708-9806
204 MEMBER; CROSS,TRANS MTG
EXC. TORQUE ON DEMAND<7HA> 		8-97128-335-3 01 1 9807-
330 BRACKET; BODY MTG 8-94158-629-0 02 1 0203-
474 BRACKET; LATERAL ROD 8-97800-863-2 01 1 9807-

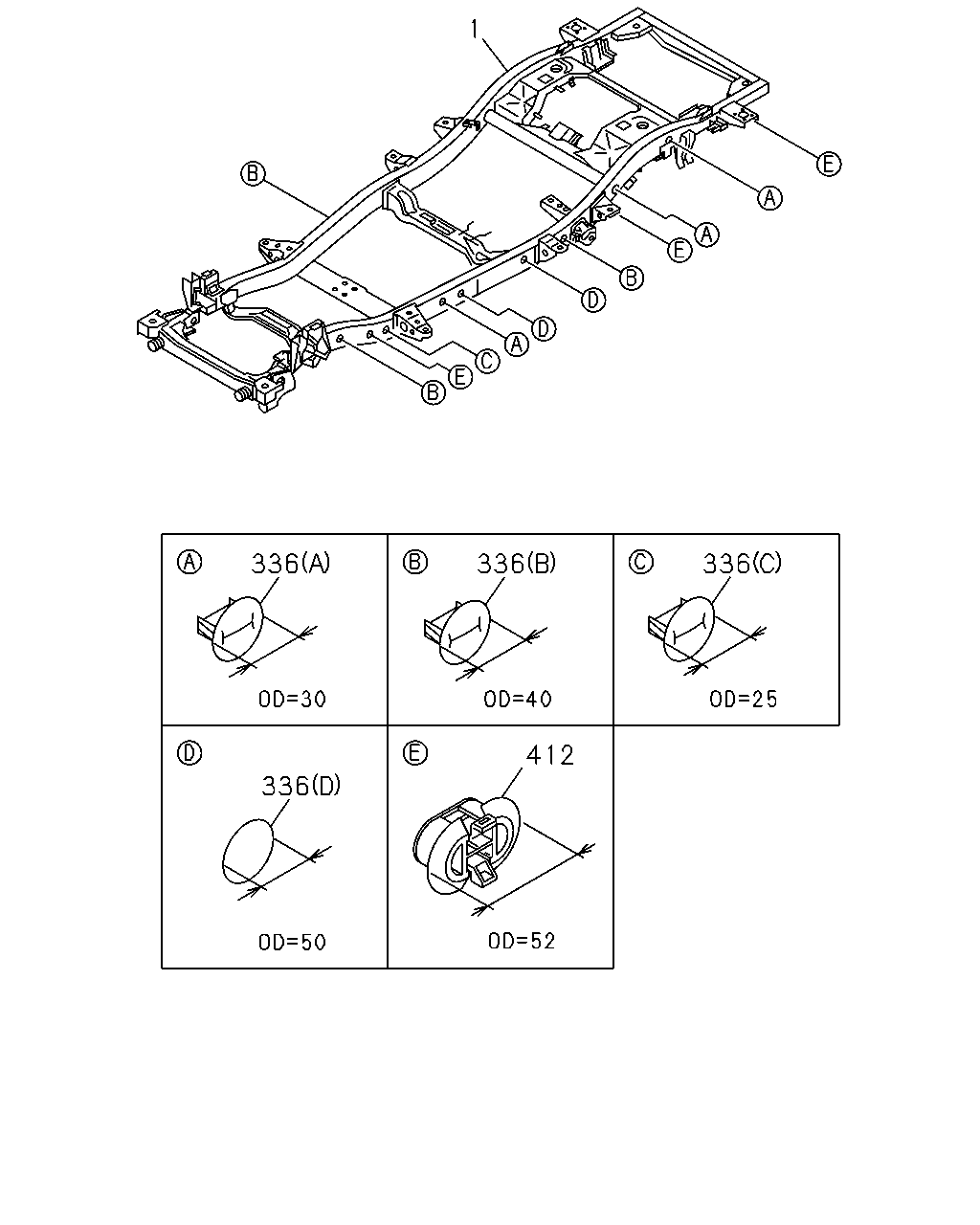

çizim 64190
1 336 336 336 412 336
BalonParca AdiParca NoAdetTipApplied Date
1 FRAME ASM
A/T THM(RMQ) TORQUE ON DEMAND<7HA> 		8-97163-122-1 01 1 9708-9806
1 FRAME ASM
TORQUE ON DEMAND<7HA> 		8-97163-122-4 01 1 9807-0208
1 FRAME ASM
TORQUE ON DEMAND<7HA> 		8-97351-608-0 01 1 0209-
1 FRAME ASM
A/T THM(RMQ) EXC. TORQUE ON DEMAND<7HA> 		8-97183-103-1 01 1 9708-9806
1 FRAME ASM
EXC. TORQUE ON DEMAND<7HA> 		8-97183-103-4 01 1 9807-0208
1 FRAME ASM
EXC. TORQUE ON DEMAND<7HA> 		8-97351-609-0 01 1 0209-
1 FRAME ASM
M/T AR-5 5 SPEED(RNK) 		8-97163-123-1 01 1 9708-9806
336 PLUG; HOLE
(D) OD=50 		8-94241-235-0 03 1 9708-0111
336 PLUG; HOLE
(C) OD=27 GRAY 		8-97071-775-0 02 1 9708-9908
336 PLUG; HOLE
(C) OD=27 GRAY 		8-97071-775-0 04 1 9909-
336 PLUG; HOLE
(B) OD=40 BLACK 		8-97806-918-0 05 1 9708-
336 PLUG; HOLE
(A) OD=30 BLACK 		8-97806-920-0 06 1 9708-
412 PLUG; TIE DOWN HOLE 8-97071-716-1 06 1 9708-
