4-50 — FRONT SUSPENSION (#32571) — 55 parça

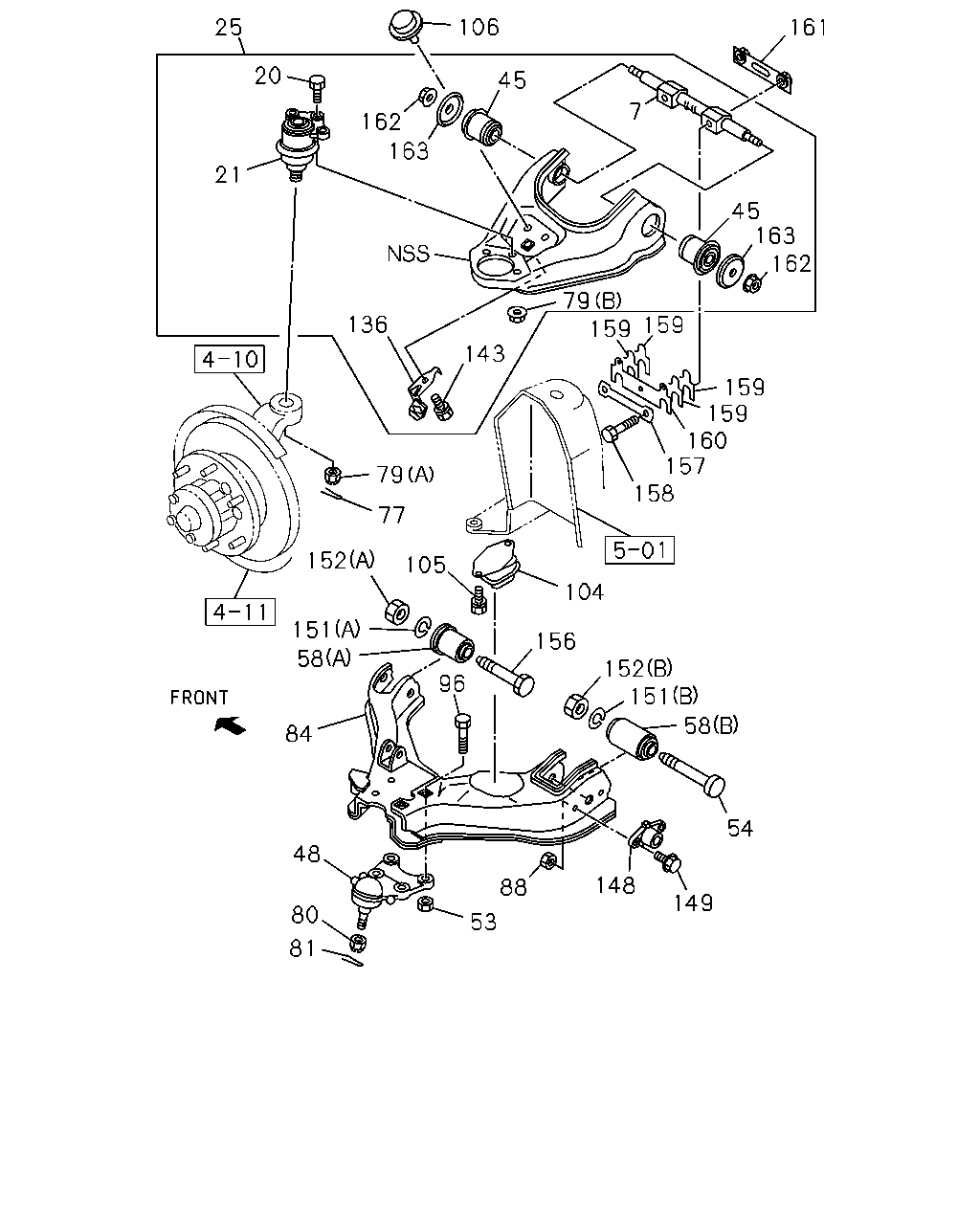

çizim 15849
25 106 161 20 45 7 162 163 21 45 163 162 79 159 159 136 143 159 159 160 157 158 79 77 152 105 104 151 58 156 96 152 151 58 84 54 48 148 88 149 80 81 53
BalonParca AdiParca NoAdetTipApplied Date
7 PIN; FULCRUM,UPR LINK 8-94381-234-3 02 1 9708-
20 BOLT; UPR LINK END TO UPR LINK
M10X30 		8-97010-129-0 06 1 9708-
21 JOINT ASM; BALL,UPR CONT ARM 8-94374-424-0 02 1 9708-
25 ARM; UPR CONT 8-97104-175-1 01 1 9708-
25 ARM; UPR CONT 8-97104-174-1 01 1 9708-
45 BUSHING; UPR LINK,FRT 8-97104-178-0 04 1 9708-
48 JOINT ASM; BALL,LWR CONT ARM 8-97103-437-0 02 1 9708-
53 NUT; LWR LINK
M12 FLANGE 		0-91150-212-0 08 1 9708-
54 PIN; FULCRUM,LWR LINK
M18X127 		8-97032-986-0 02 1 9708-
58 BUSHING; LWR LINK
(A) 		8-97018-165-0 02 1 9708-
58 BUSHING; LWR LINK
(B) ID=18.2 		8-97018-166-1 02 1 9708-
77 PIN; SPLIT,LINK END TO KNUCKLE
L=28 		9-08113-028-0 02 1 9708-0204
77 PIN; SPLIT,LINK END TO KNUCKLE
L=25 		9-08113-025-0 02 1 0205-
79 NUT; UPR LINK END TO KNUCKLE
(A) M14 SLOTTED 		8-94124-556-0 02 1 9708-
79 NUT; UPR LINK END TO KNUCKLE
(B) M10 FLANGE 		8-94383-595-0 06 1 9708-
80 NUT; LWR LINK END TO KNUCKLE
M18 		9-99116-418-0 02 1 9708-
81 PIN; SPLIT,LWR LINK TO KNUCKLE
L=30 		9-08114-030-0 02 1 9708-
84 ARM; LWR CONT 8-94374-429-1 01 1 9708-
84 ARM; LWR CONT 8-94374-428-1 01 1 9708-
88 NUT; LWR LINK
M12 FLANGE 		0-91150-212-0 04 1 9708-
96 BOLT; LWR LINK
M12X50 		9-92061-250-0 08 1 9708-
104 RUBBER; BUMPER,STRUT 8-94374-431-0 01 1 9708-
104 RUBBER; BUMPER,STRUT 8-94374-430-0 01 1 9708-
105 BOLT; STRUT BAR TO LWR LINK
M10X25 W/LK WASHER 		0-50041-025-0 04 1 9708-
106 RUBBER; REBOUND,STRUT 8-94374-432-0 02 1 9708-
136 BRACKET; FLEX HOSE,FRT BRAKE 8-94387-605-1 01 1 9708-
136 BRACKET; FLEX HOSE,FRT BRAKE 8-94387-604-1 01 1 9708-
143 BOLT; BRKT,FLEX HOSE,FRT BRAKE
M8X18 W/LK WASHER 		0-50040-818-0 02 1 9708-
148 ARM; LWR LINK 8-97018-220-0 02 1 9708-
149 BOLT; ARM TO LWR CONT ARM
M12X37 FLANGE 		8-94382-104-2 04 1 9708-
151 WASHER; LK,LWR LINK TO FRT C/MBR
(A) ID=16 		9-09150-616-0 02 1 9708-
151 WASHER; LK,LWR LINK TO FRT C/MBR
(B) ID=18 		9-09164-618-0 02 1 9708-
152 NUT; LWR LINK TO FRT C/MBR
(A) M16 		8-94478-728-0 02 1 9708-
152 NUT; LWR LINK TO FRT C/MBR
(B) M18 		8-94478-729-0 02 1 9708-
156 PIN; FULCRUM,FRT SUSPENSION
M16X91 		8-94173-359-1 02 1 9708-
157 PLATE; UPR LINK TO FRAME 8-94382-920-1 02 1 9708-
158 BOLT; UPR LINK TO FRAME
M14X65 		8-94478-730-0 04 1 9708-
159 SHIM; CASTER ANGLE,FRT SUSPENSION
T=0.40 		8-94227-053-1 AR 1 9708-
159 SHIM; CASTER ANGLE,FRT SUSPENSION
T=1.60 		8-94227-054-2 AR 1 9708-
159 SHIM; CASTER ANGLE,FRT SUSPENSION
T=3.20 		8-94241-885-3 AR 1 9708-
160 SHIM; CAMBER ANGLE,FRT SUSPENSION
T=3.20 		8-94381-376-1 AR 1 9708-
160 SHIM; CAMBER ANGLE,FRT SUSPENSION
T=1.60 		8-94381-377-1 AR 1 9708-
161 NUT ASM; UPR LINK TO FRAME 8-94381-235-0 02 1 9708-0210
161 NUT ASM; UPR LINK TO FRAME 8-97327-725-0 02 1 0211-
162 NUT; FULCRUM PIN TO UPR ARM
M14 FLANGE 		8-94137-483-0 04 1 9708-
163 PLATE; FULCRUM PIN,UPR LINK 8-94407-707-0 04 1 9708-
çizim 63845
14 65 17 18 62 17 65 60 76 103
BalonParca AdiParca NoAdetTipApplied Date
14 NUT; S/ABS,UPR
M10 		8-94317-772-0 02 1 9708-9902
14 NUT; S/ABS,UPR
M10 FLANGE 		0-91150-110-0 02 1 9903-
17 BUSHING; RUBBER,S/ABS 8-97036-284-0 04 1 9708-
18 WASHER; CENTERING,S/ABS 8-97036-285-0 02 1 9708-
60 BOLT; S/ABS TO LWR LINK
M12X50 		9-91061-250-0 02 1 9708-
62 ABSORBER ASM; SHOCK,FRT 8-97107-900-3 02 1 9708-
65 WASHER; S/ABS
ID=10.8 		8-97036-286-0 04 1 9708-
76 WASHER; LK,S/ABS TO LWR LINK
ID=12 		9-09150-512-0 02 1 9708-
103 NUT; S/ABS TO LWR LINK
M12 		9-99111-512-0 02 1 9708-
