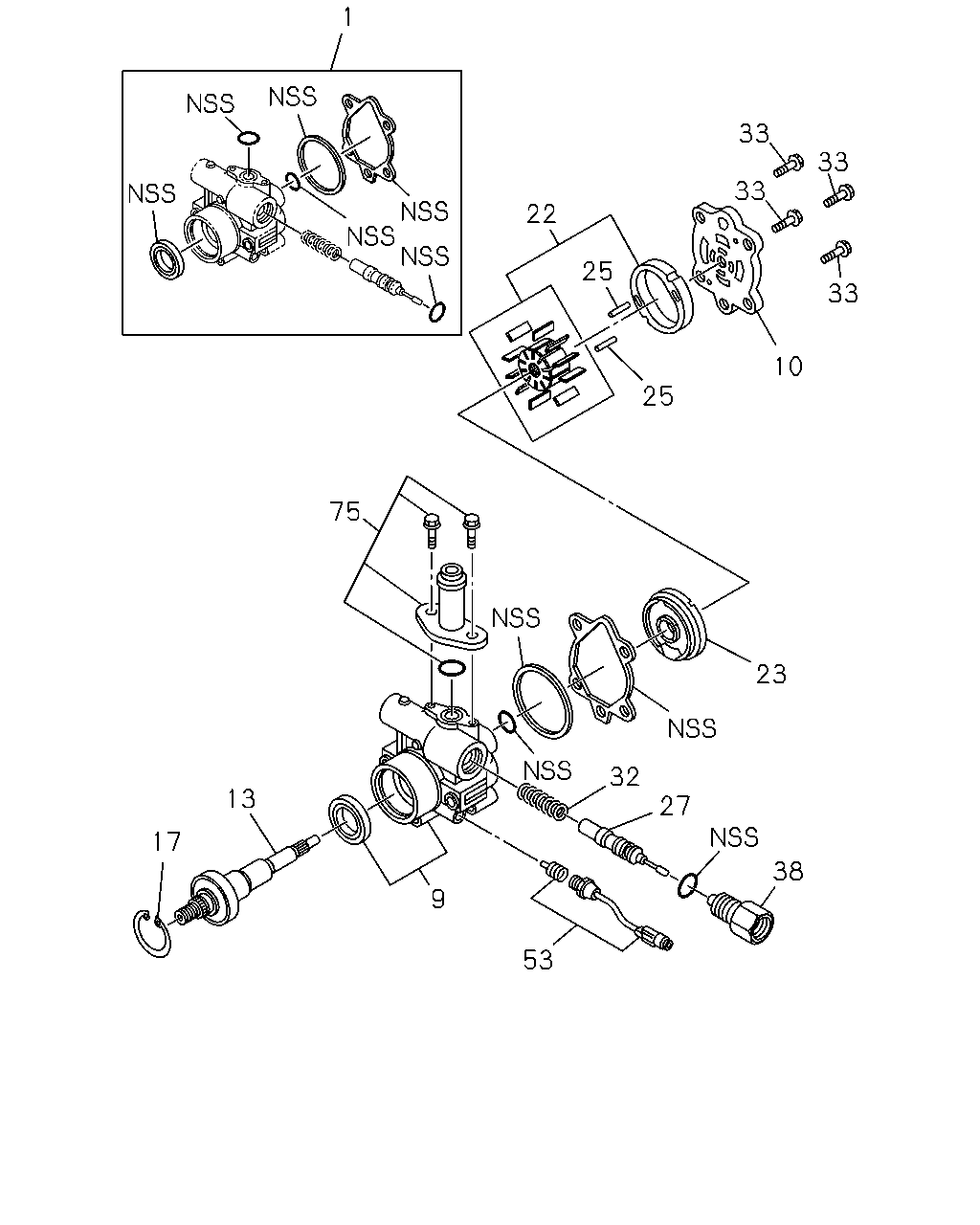

4-42 — POWER STEERING OIL PUMP (#32570) — 17 parça

1 33 33 33 22 25 33 10 25 75 23 32 13 27 17 38 9 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; OIL PUMP ASM PART: A = 8-97185-604-2, B = 8-97262-128-2	8-97081-867-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: A = 8-97185-604-2, B = 8-97262-128-2	8-97100-391-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: A = 8-97185-604-2, B = 8-97262-128-2	8-97102-303-0	01	1	-
13	SHAFT KIT; RET ASM PART: A = 8-97185-604-2, B = 8-97262-128-2	8-97102-304-0	01	1	-
17	RING; RET ASM PART: A = 8-97185-604-2, B = 8-97262-128-2	8-97081-855-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: A = 8-97185-604-2, B = 8-97262-128-2	8-97188-367-0	01	1	-0109
22	CARTRIDGE ASM; OIL PUMP ASM PART: A = 8-97185-604-2, B = 8-97262-128-2	8-97313-095-0	01	1	0110-
23	PLATE; SIDE,OIL PUMP ASM PART: A = 8-97185-604-2, B = 8-97262-128-2	8-97168-842-0	01	1	-0109
23	PLATE; SIDE,OIL PUMP ASM PART: A = 8-97185-604-2, B = 8-97262-128-2	8-97313-094-0	01	1	0110-
25	PIN; HSG,P/S ASM PART: A = 8-97185-604-2, B = 8-97262-128-2	8-97081-859-0	02	1	-
27	VALVE ASM; OIL PUMP ASM PART: A = 8-97185-604-2, B = 8-97262-128-2	8-97081-857-0	01	1	-
32	SPRING; OIL PUMP ASM PART: A = 8-97185-604-2, B = 8-97262-128-2	8-97064-987-0	01	1	-
33	BOLT; COVER ASM PART: A = 8-97185-604-2, B = 8-97262-128-2	8-97081-847-0	04	1	-
38	CONNECTOR; OIL PUMP ASM PART: A = 8-97185-604-2, B = 8-97262-128-2	8-97081-865-0	01	1	-
53	SWITCH KIT; PRESSURE ASM PART: A = 8-97185-604-2, B = 8-97262-128-2	8-97188-370-0	01	1	-
75	PIPE KIT; OIL PUMP ASM PART: A = 8-97185-604-2	8-97188-379-0	01	1	-
75	PIPE KIT; OIL PUMP ASM PART: B = 8-97262-128-2	8-97263-590-0	01	1	-
