4-40 — STEERING UNIT (#32569) — 10 parça

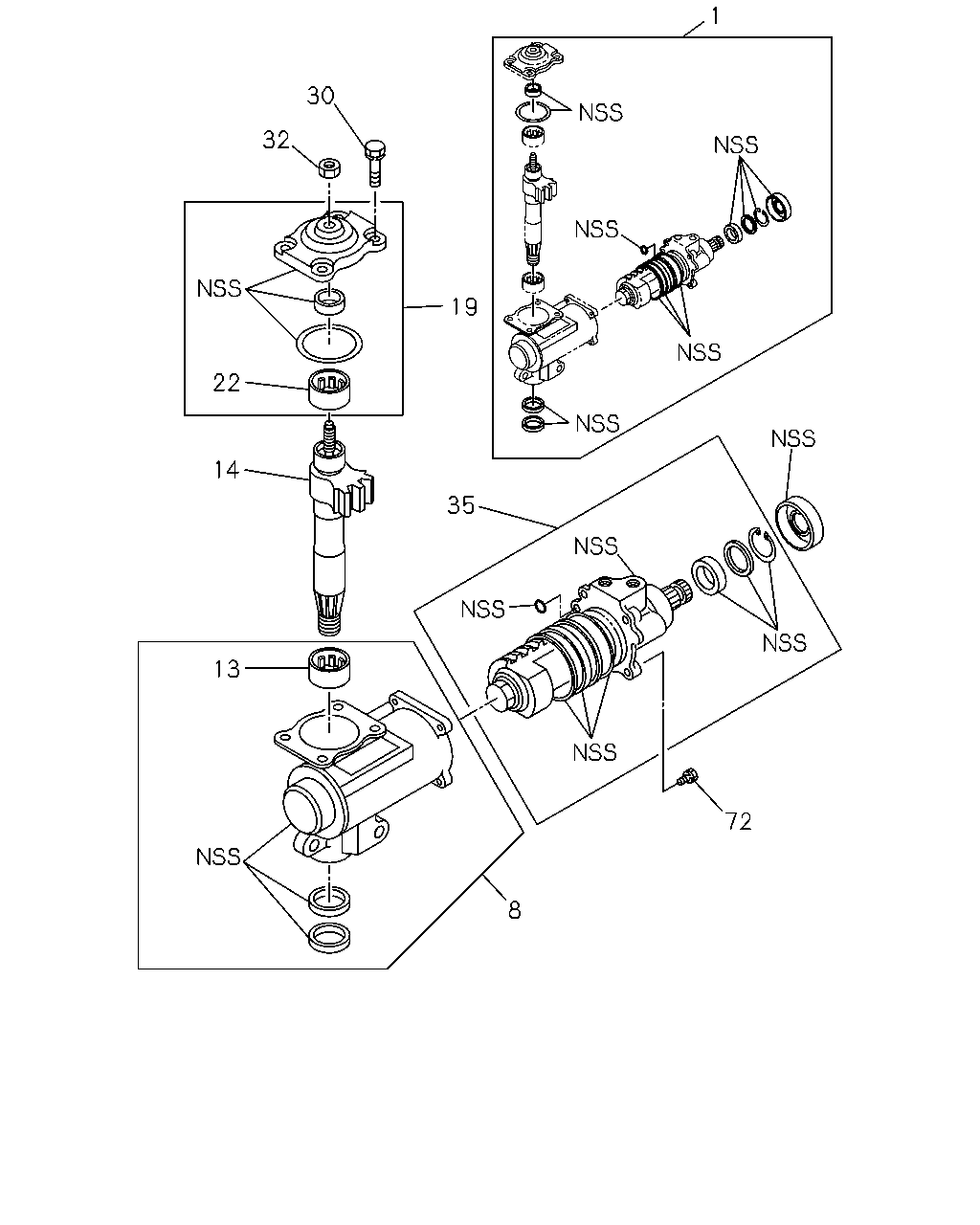

çizim 63844
1 30 32 19 22 14 35 13 72 8
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: A = 8-97109-986-5 		8-97132-700-1 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: A = 8-97109-986-5 		8-97132-697-0 01 1 -
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: A = 8-97109-986-5 		8-94240-933-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 8-97109-986-5 		8-97132-699-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: A = 8-97109-986-5 		8-97029-942-0 01 1 -
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: A = 8-97109-986-5 		8-94240-939-0 01 1 -
30 BOLT; COVER STRG UNIT
M10X22 ASM PART: A = 8-97109-986-5 		9-01911-022-0 04 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 8-97109-986-5 		8-97029-944-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: A = 8-97109-986-5 		8-97132-695-2 01 1 -
72 BOLT; HSG FIX STRG UNIT
M10X22 ASM PART: A = 8-97109-986-5 		9-01911-022-0 04 1 -
