4-36 — POWER STEERING CONTROL; ENGINE SIDE (#32568) — 13 parça

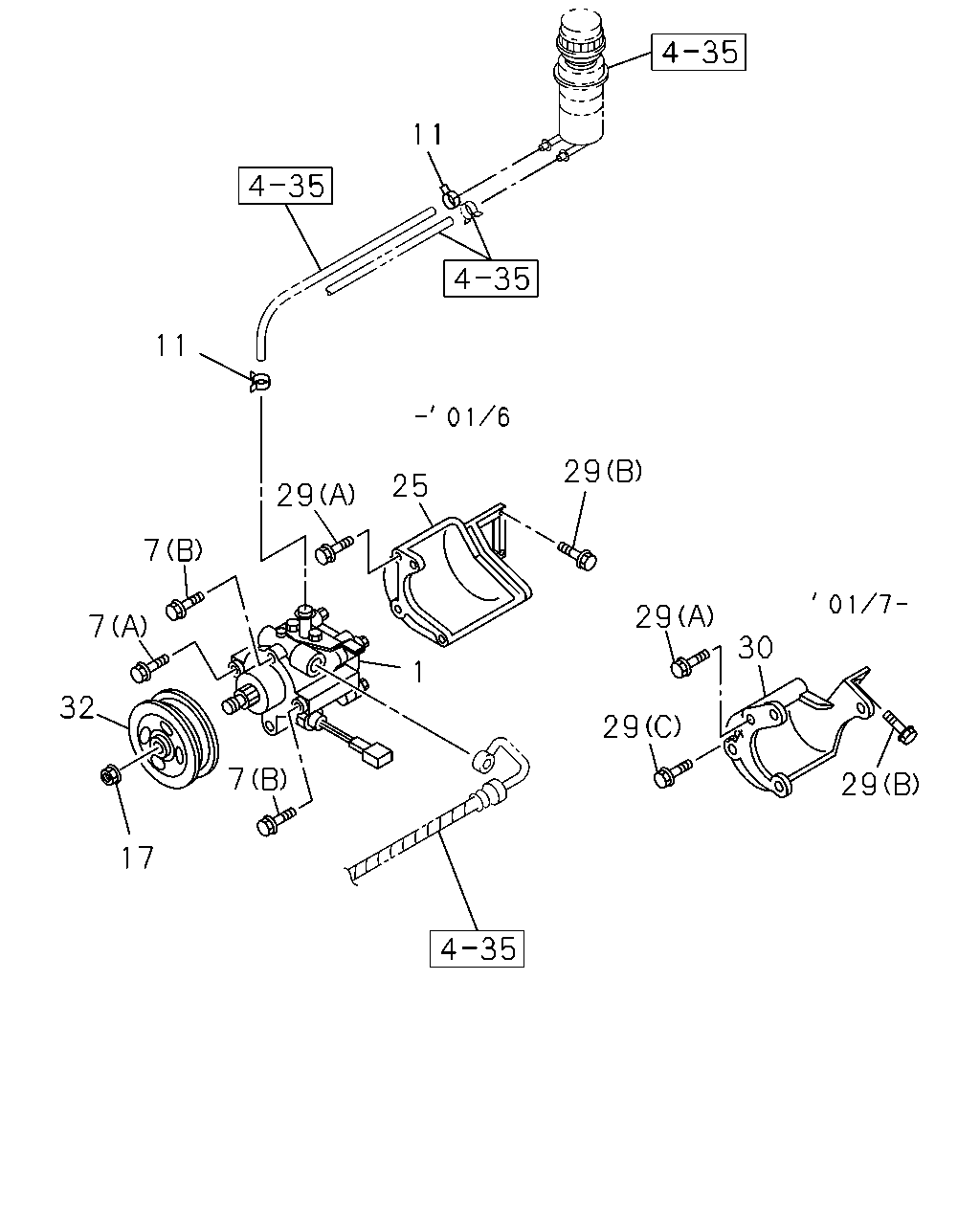

çizim 63995
11 11 29 25 29 7 29 7 30 1 32 29 7 29 17
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		8-97185-604-2 01 1 9708-0202
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		8-97262-128-2 01 1 0203-
7 BOLT; OIL PUMP,P/S
(A) M10X100 FLANGE 		0-28081-000-0 01 1 9708-
7 BOLT; OIL PUMP,P/S
(B) M8X25 FLANGE 		0-28680-825-0 02 1 9708-
11 CLIP; FLEX HOSE
ID=21 		8-94242-034-0 02 1 9708-
17 NUT; POWER STRG PUMP
M12 		8-94139-015-0 01 1 9708-
25 BRACKET; P/S PUMP 8-97160-608-1 01 1 9708-0106
29 BOLT; BRKT,POWER STRG
(A) M8X100 FLANGE 		0-28080-800-0 01 1 9708-
29 BOLT; BRKT,POWER STRG
(B) M8X40 FLANGE 		0-28680-840-0 02 1 9708-0108
29 BOLT; BRKT,POWER STRG
(B) M8X40 FLANGE 		0-28690-840-0 02 1 0109-
29 BOLT; BRKT,POWER STRG
(C) M10X60 FLANGE 		0-28181-060-0 01 1 0107-
30 BRACKET; FLEX HOSE 8-97941-396-1 01 1 0107-
32 PULLEY; IDLER,P/S 8-97175-769-0 01 1 9708-
