4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#32567) — 27 parça

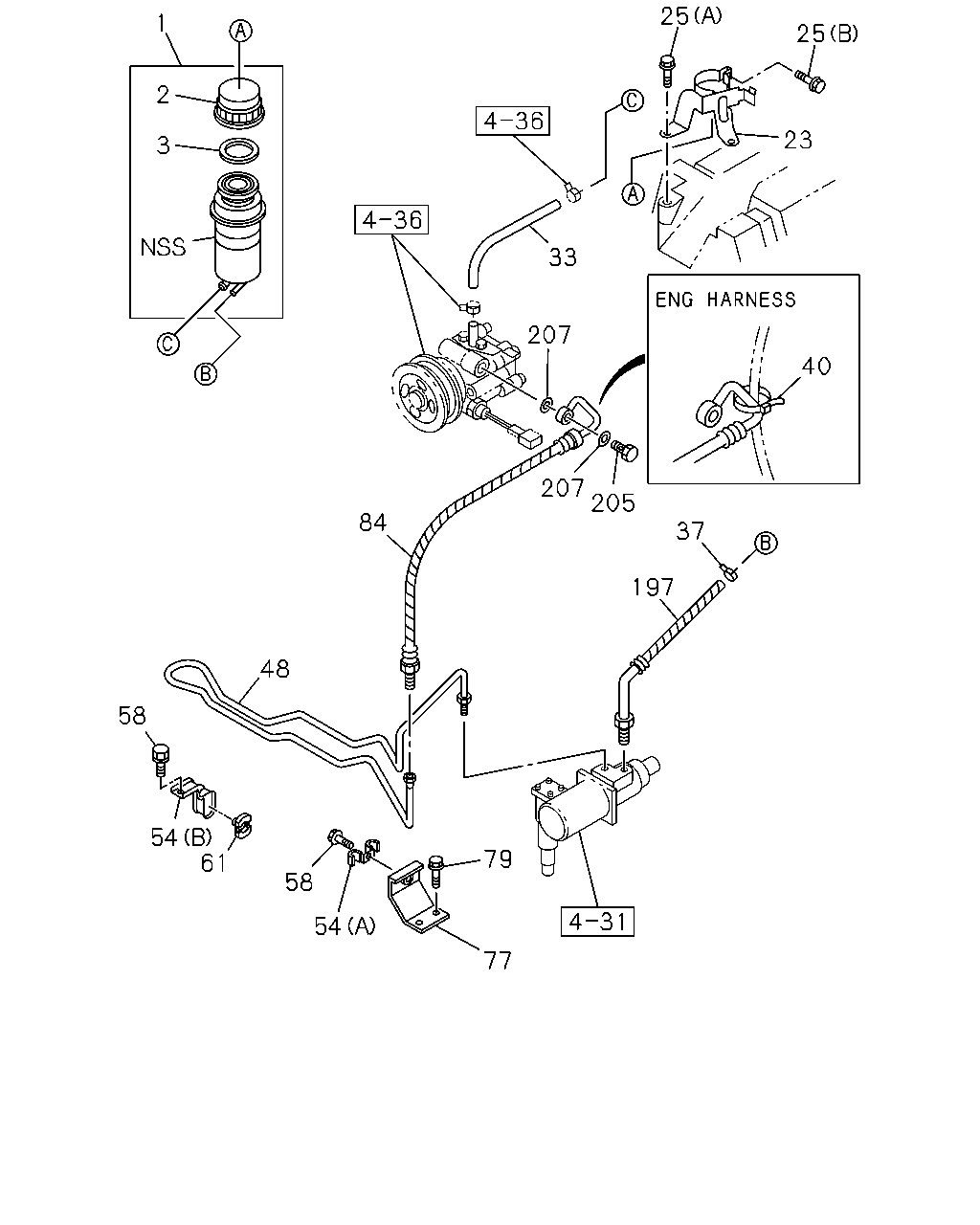

çizim 65113
25 1 25 2 23 3 33 207 40 207 205 84 37 197 48 58 54 61 79 58 54 77
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; OIL,P/S 8-97115-869-2 01 1 9708-
2 CAP; OIL TANK,P/S 8-94481-841-2 01 1 9708-
3 GASKET; OIL TANK,P/S 8-94363-359-1 01 1 9708-
23 BRACKET; OIL TANK,P/S 8-97064-085-4 01 1 9708-9905
23 BRACKET; OIL TANK,P/S 8-97224-313-0 01 1 9906-0202
23 BRACKET; OIL TANK,P/S 8-97263-412-0 01 1 0203-
25 BOLT; OIL TANK BRKT
(B) M6X16 FLANGE 		0-28480-616-0 01 1 9708-
25 BOLT; OIL TANK BRKT
(A) M8X16 FLANGE 		0-28480-816-0 02 1 9708-
33 HOSE; RUBBER,POWER STRG 8-97178-427-1 01 1 9708-0105
33 HOSE; RUBBER,POWER STRG 8-97263-519-1 01 1 0203-
37 CLIP; HOSE,P/S
ID=16 		8-94238-568-0 01 1 9708-9708
37 CLIP; HOSE,P/S
ID=17.1 		8-94122-679-0 01 1 9709-
40 CLIP; BAND 8-94368-493-0 01 1 9708-
48 PIPE; OIL,FLEX HOSE TO STRG UNIT 8-97165-837-2 01 1 9708-
54 CLIP; OIL PIPE
(A) 		8-94222-795-1 01 1 9708-9708
54 CLIP; OIL PIPE
(A) ID=13 & 13 L=16 & 16 		1-09700-072-0 01 1 9709-
54 CLIP; OIL PIPE
(B) 		8-97026-703-0 01 1 9708-
58 BOLT; CLIP
M6X16 FLANGE 		0-28480-616-0 02 1 9708-
61 CLIP; OIL PIPE 8-94252-455-2 01 1 9708-
77 BRACKET; POWER STEERING HOSE 8-97120-706-0 01 1 9708-
79 BOLT; BRKT
M6X16 FLANGE 		0-28480-616-0 01 1 9708-
84 HOSE; FLEX,P/S 8-97179-756-2 01 1 9708-9810
84 HOSE; FLEX,P/S 8-97216-180-2 01 1 9811-0202
84 HOSE; FLEX,P/S 8-97304-157-4 01 1 0203-
197 HOSE; FLEX,P/S,RETURN 8-97171-952-2 01 1 9708-
205 BOLT; EYE,FLEX HOSE,P/S 8-94383-489-0 01 1 9708-
207 GASKET; FLEX HOSE,P/S PUMP
ID=16.2 OD=24 		9-09571-416-0 02 1 9708-
