2-03 — CLUTCH PEDAL AND CONTROL (#32563) — 116 parça

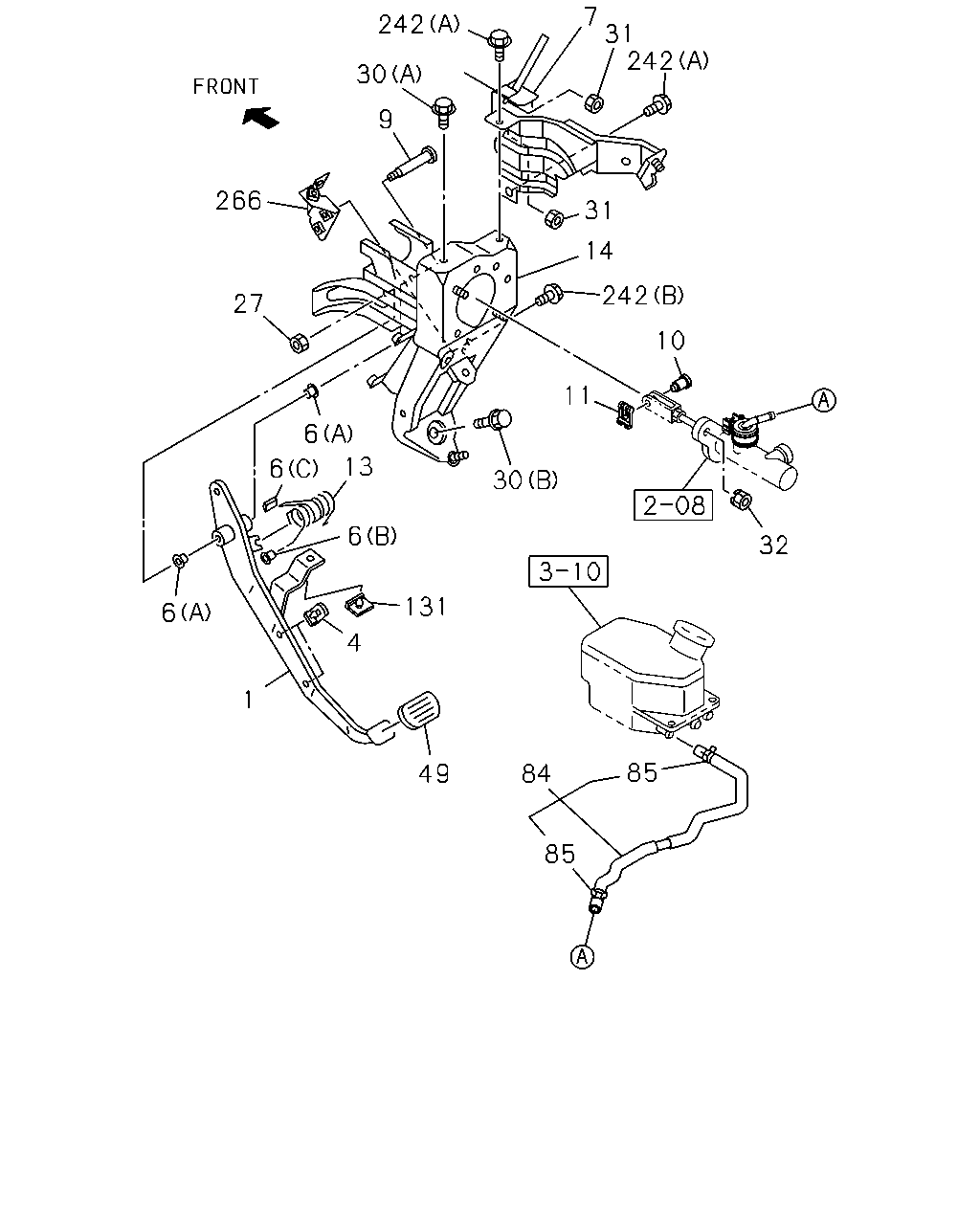

7 31 242 242 30 9 266 31 14 242 27 10 11 6 13 6 30 6 32 131 6 4 1 85 84 49 85

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PEDAL; CLU POWER ASSIST CLUTCH(S2T)	8-98074-429-0	01	1	0804-1004	●
1	PEDAL; CLU POWER ASSIST CLUTCH(S2T)	8-98074-429-0	01	1	1005-	●	●
1	PEDAL; CLU EXC. POWER ASSIST CLUTCH(S2T)	8-98074-430-0	01	1	0804-1004	●
1	PEDAL; CLU EXC. POWER ASSIST CLUTCH(S2T)	8-98074-430-0	01	1	1005-	●	●
4	STOPPER; CLU PEDAL SOU	8-97853-534-1	02	1	0804-1004	●
4	STOPPER; CLU PEDAL SOU	8-97853-534-1	02	1	1005-	●	●
6	BUSHING; CLU PEDAL (A) SOU	8-94238-596-0	02	1	0804-1004	●
6	BUSHING; CLU PEDAL (A) SOU	8-94238-596-0	02	1	1005-	●	●
6	BUSHING; CLU PEDAL EXC. POWER ASSIST CLUTCH(S2T) (B) SOU	8-97853-619-0	02	1	0804-1004	●
6	BUSHING; CLU PEDAL EXC. POWER ASSIST CLUTCH(S2T) (B) SOU	8-97853-619-0	02	1	1005-	●	●
6	BUSHING; CLU PEDAL EXC. POWER ASSIST CLUTCH(S2T) (C) SOU	8-97853-620-0	01	1	0804-1004	●
6	BUSHING; CLU PEDAL EXC. POWER ASSIST CLUTCH(S2T) (C) SOU	8-97853-620-0	01	1	1005-	●	●
7	BRACKET; CLU PEDAL	8-98029-186-4	01	1	0804-1004	●
7	BRACKET; CLU PEDAL	8-98029-186-4	01	1	1005-	●	●
9	PIN; CLU PEDAL SOU	8-97866-667-0	01	1	0804-1004	●
9	PIN; CLU PEDAL SOU	8-97866-667-0	01	1	1005-	●	●
10	PIN; CLU PEDAL	8-97387-230-0	01	1	0804-1004	●
10	PIN; CLU PEDAL	8-97387-230-0	01	1	1005-1007	●	●
10	PIN; CLU PEDAL	8-98147-657-0	01	1	1008-	●	●
11	PIN; SNAP,PUSH ROD TO PEDAL	8-98007-161-0	01	1	0804-1004	●
11	PIN; SNAP,PUSH ROD TO PEDAL	8-98007-161-0	01	1	1005-	●	●
13	SPRING; ASSIST,CLU PEDAL POWER ASSIST CLUTCH(S2T)	8-98023-621-1	01	1	0804-1004	●
13	SPRING; ASSIST,CLU PEDAL POWER ASSIST CLUTCH(S2T)	8-98023-621-1	01	1	1005-	●	●
13	SPRING; ASSIST,CLU PEDAL EXC. POWER ASSIST CLUTCH(S2T)	8-98034-014-0	01	1	0804-1004	●
13	SPRING; ASSIST,CLU PEDAL EXC. POWER ASSIST CLUTCH(S2T)	8-98034-014-0	01	1	1005-	●	●
14	BRACKET ASM; CLU PEDAL MTG	8-98074-425-0	01	1	0804-1004	●
14	BRACKET ASM; CLU PEDAL MTG	8-98074-425-0	01	1	1005-	●	●
27	NUT; FULCRUM PIN M10 LOCK NUT FLANGE	0-91380-010-0	01	1	0804-1004	●
27	NUT; FULCRUM PIN M10 LOCK NUT FLANGE	0-91380-010-0	01	1	1005-	●	●
30	BOLT; CLU MTG BRKT (A) M10X25 FLANGE	0-28661-025-0	01	1	0804-1004	●
30	BOLT; CLU MTG BRKT (A) M10X25 FLANGE	0-28661-025-0	01	1	1005-	●	●
30	BOLT; CLU MTG BRKT (B) M10X22 W/PL WASHER	8-98033-926-0	01	1	0804-0903	●
30	BOLT; CLU MTG BRKT (B) M10X22 W/PL WASHER SOU	8-97313-188-0	01	1	0904-1004	●
30	BOLT; CLU MTG BRKT (B) M10X22 W/PL WASHER SOU	8-97313-188-0	01	1	1005-	●	●
31	NUT; MTG BRKT TO BODY M8 W/LK WASHER SOU	8-94279-050-0	02	1	0804-1004	●
31	NUT; MTG BRKT TO BODY M8 W/LK WASHER SOU	8-94279-050-0	02	1	1005-	●	●
32	NUT; BRKT TO CLU M/CYL M8 W/LK WASHER SOU	8-94279-050-0	02	1	0804-1004	●
32	NUT; BRKT TO CLU M/CYL M8 W/LK WASHER SOU	8-94279-050-0	02	1	1005-	●	●
49	RUBBER; PAD,CLU PEDAL SOU	8-97853-413-2	01	1	0804-1004	●
49	RUBBER; PAD,CLU PEDAL SOU	8-97853-413-2	01	1	1005-	●	●
84	HOSE; RUBBER,CLU LINE POWER ASSIST CLUTCH(S2T)	8-98023-510-4	01	1	0804-1004	●
84	HOSE; RUBBER,CLU LINE POWER ASSIST CLUTCH(S2T)	8-98023-510-4	01	1	1005-1208	●	●
84	HOSE; RUBBER,CLU LINE POWER ASSIST CLUTCH(S2T)	8-98218-205-1	01	1	1209-	●	●
84	HOSE; RUBBER,CLU LINE EXC. POWER ASSIST CLUTCH(S2T)	8-98025-422-1	01	1	0804-1004	●
84	HOSE; RUBBER,CLU LINE EXC. POWER ASSIST CLUTCH(S2T)	8-98025-422-1	01	1	1005-1208	●	●
84	HOSE; RUBBER,CLU LINE EXC. POWER ASSIST CLUTCH(S2T)	8-98218-207-1	01	1	1209-	●	●
85	CLIP; HOSE TO M/CYL	8-98031-178-0	02	1	0804-1004	●
85	CLIP; HOSE TO M/CYL	8-98031-178-0	02	1	1005-1208	●	●
85	CLIP; HOSE TO M/CYL	8-98168-080-0	02	1	1209-	●	●
131	STOPPER; CLU SW SOU	8-97302-305-0	02	1	0804-1004	●
131	STOPPER; CLU SW SOU	8-97302-305-0	02	1	1005-	●	●
242	BOLT; BRKT,CLUTCH (B) M6X12 FLANGE SOU	0-28050-612-0	02	1	0804-1004	●
242	BOLT; BRKT,CLUTCH (B) M6X12 FLANGE SOU	0-28050-612-0	02	1	1005-	●	●
242	BOLT; BRKT,CLUTCH (A) M8X16 FLANGE	0-28450-816-0	02	1	0804-1004	●
242	BOLT; BRKT,CLUTCH (A) M8X16 FLANGE	0-28450-816-0	02	1	1005-	●	●
266	BRACKET; CLU SWITCH	8-98079-100-0	01	1	0804-1004	●
266	BRACKET; CLU SWITCH	8-98079-100-0	01	1	1005-	●	●

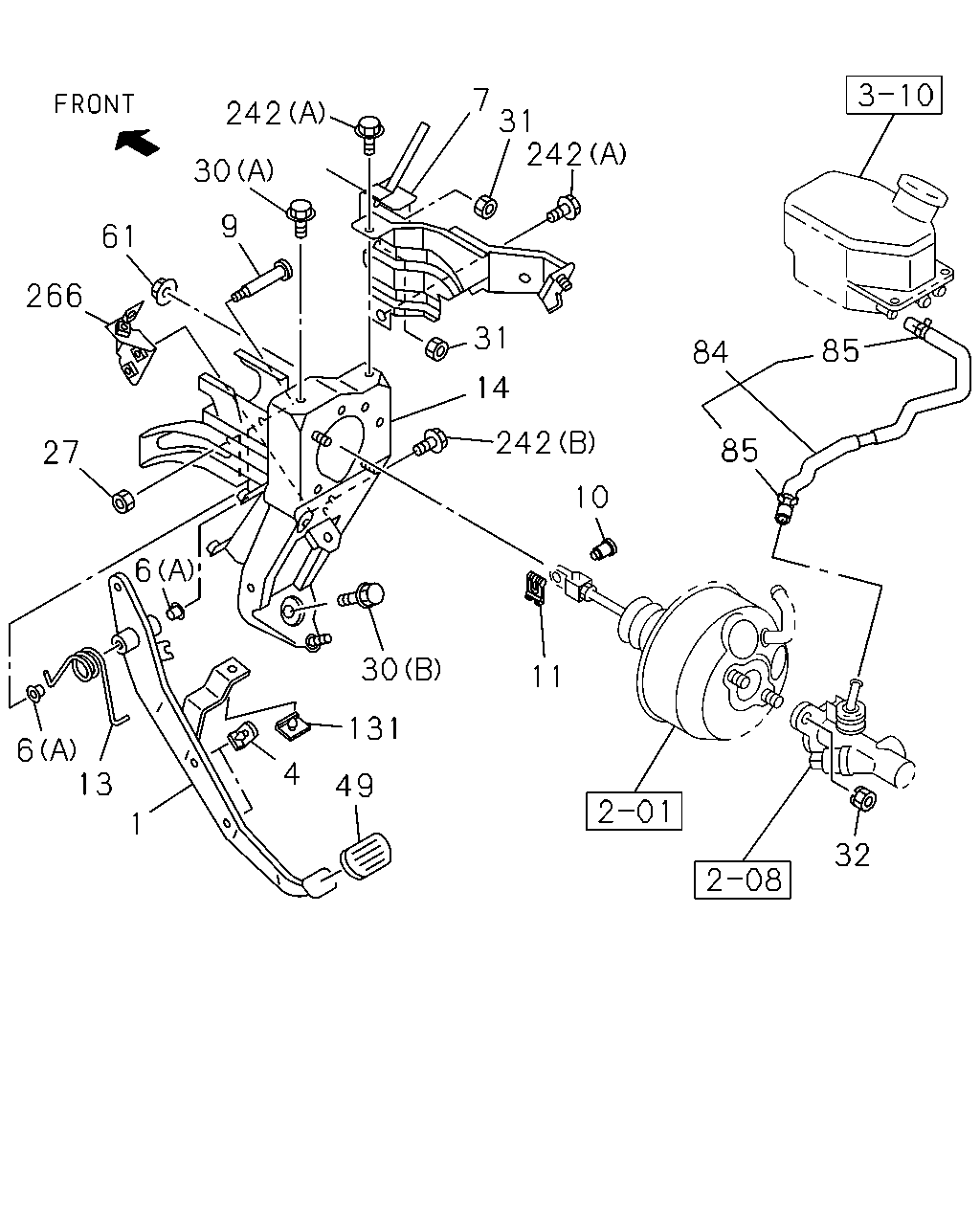

7 31 242 242 30 9 61 266 31 85 84 14 242 85 27 10 6 30 11 131 6 13 4 49 1 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PEDAL; CLU POWER ASSIST CLUTCH(S2T)	8-98074-429-0	01	1	0804-1004	●
1	PEDAL; CLU POWER ASSIST CLUTCH(S2T)	8-98074-429-0	01	1	1005-	●	●
1	PEDAL; CLU EXC. POWER ASSIST CLUTCH(S2T)	8-98074-430-0	01	1	0804-1004	●
1	PEDAL; CLU EXC. POWER ASSIST CLUTCH(S2T)	8-98074-430-0	01	1	1005-	●	●
4	STOPPER; CLU PEDAL SOU	8-97853-534-1	02	1	0804-1004	●
4	STOPPER; CLU PEDAL SOU	8-97853-534-1	02	1	1005-	●	●
6	BUSHING; CLU PEDAL (A) SOU	8-94238-596-0	02	1	0804-1004	●
6	BUSHING; CLU PEDAL (A) SOU	8-94238-596-0	02	1	1005-	●	●
6	BUSHING; CLU PEDAL EXC. POWER ASSIST CLUTCH(S2T) (B) SOU	8-97853-619-0	02	1	0804-1004	●
6	BUSHING; CLU PEDAL EXC. POWER ASSIST CLUTCH(S2T) (B) SOU	8-97853-619-0	02	1	1005-	●	●
6	BUSHING; CLU PEDAL EXC. POWER ASSIST CLUTCH(S2T) (C) SOU	8-97853-620-0	01	1	0804-1004	●
6	BUSHING; CLU PEDAL EXC. POWER ASSIST CLUTCH(S2T) (C) SOU	8-97853-620-0	01	1	1005-	●	●
7	BRACKET; CLU PEDAL	8-98029-186-4	01	1	0804-1004	●
7	BRACKET; CLU PEDAL	8-98029-186-4	01	1	1005-	●	●
9	PIN; CLU PEDAL SOU	8-97866-667-0	01	1	0804-1004	●
9	PIN; CLU PEDAL SOU	8-97866-667-0	01	1	1005-	●	●
10	PIN; CLU PEDAL	8-97387-230-0	01	1	0804-1004	●
10	PIN; CLU PEDAL	8-97387-230-0	01	1	1005-1007	●	●
10	PIN; CLU PEDAL	8-98147-657-0	01	1	1008-	●	●
11	PIN; SNAP,PUSH ROD TO PEDAL	8-98007-161-0	01	1	0804-1004	●
11	PIN; SNAP,PUSH ROD TO PEDAL	8-98007-161-0	01	1	1005-	●	●
13	SPRING; ASSIST,CLU PEDAL POWER ASSIST CLUTCH(S2T)	8-98023-621-1	01	1	0804-1004	●
13	SPRING; ASSIST,CLU PEDAL POWER ASSIST CLUTCH(S2T)	8-98023-621-1	01	1	1005-	●	●
13	SPRING; ASSIST,CLU PEDAL EXC. POWER ASSIST CLUTCH(S2T)	8-98034-014-0	01	1	0804-1004	●
13	SPRING; ASSIST,CLU PEDAL EXC. POWER ASSIST CLUTCH(S2T)	8-98034-014-0	01	1	1005-	●	●
14	BRACKET ASM; CLU PEDAL MTG	8-98074-425-0	01	1	0804-1004	●
14	BRACKET ASM; CLU PEDAL MTG	8-98074-425-0	01	1	1005-	●	●
27	NUT; FULCRUM PIN M10 LOCK NUT FLANGE	0-91380-010-0	01	1	0804-1004	●
27	NUT; FULCRUM PIN M10 LOCK NUT FLANGE	0-91380-010-0	01	1	1005-	●	●
30	BOLT; CLU MTG BRKT (A) M10X25 FLANGE	0-28661-025-0	01	1	0804-1004	●
30	BOLT; CLU MTG BRKT (A) M10X25 FLANGE	0-28661-025-0	01	1	1005-	●	●
30	BOLT; CLU MTG BRKT (B) M10X22 W/PL WASHER	8-98033-926-0	01	1	0804-0903	●
30	BOLT; CLU MTG BRKT (B) M10X22 W/PL WASHER SOU	8-97313-188-0	01	1	0904-1004	●
30	BOLT; CLU MTG BRKT (B) M10X22 W/PL WASHER SOU	8-97313-188-0	01	1	1005-	●	●
31	NUT; MTG BRKT TO BODY M8 W/LK WASHER SOU	8-94279-050-0	02	1	0804-1004	●
31	NUT; MTG BRKT TO BODY M8 W/LK WASHER SOU	8-94279-050-0	02	1	1005-	●	●
32	NUT; BRKT TO CLU M/CYL M8 W/LK WASHER SOU	8-94279-050-0	02	1	0804-1004	●
32	NUT; BRKT TO CLU M/CYL M8 W/LK WASHER SOU	8-94279-050-0	02	1	1005-	●	●
49	RUBBER; PAD,CLU PEDAL SOU	8-97853-413-2	01	1	0804-1004	●
49	RUBBER; PAD,CLU PEDAL SOU	8-97853-413-2	01	1	1005-	●	●
61	NUT; BOOSTER TO BRKT POWER ASSIST CLUTCH(S2T) M8 W/LK WASHER SOU	8-94279-050-0	04	1	0804-1004	●
61	NUT; BOOSTER TO BRKT POWER ASSIST CLUTCH(S2T) M8 W/LK WASHER SOU	8-94279-050-0	04	1	1005-	●	●
84	HOSE; RUBBER,CLU LINE POWER ASSIST CLUTCH(S2T)	8-98023-510-4	01	1	0804-1004	●
84	HOSE; RUBBER,CLU LINE POWER ASSIST CLUTCH(S2T)	8-98023-510-4	01	1	1005-1208	●	●
84	HOSE; RUBBER,CLU LINE POWER ASSIST CLUTCH(S2T)	8-98218-205-1	01	1	1209-	●	●
84	HOSE; RUBBER,CLU LINE EXC. POWER ASSIST CLUTCH(S2T)	8-98025-422-1	01	1	0804-1004	●
84	HOSE; RUBBER,CLU LINE EXC. POWER ASSIST CLUTCH(S2T)	8-98025-422-1	01	1	1005-1208	●	●
84	HOSE; RUBBER,CLU LINE EXC. POWER ASSIST CLUTCH(S2T)	8-98218-207-1	01	1	1209-	●	●
85	CLIP; HOSE TO M/CYL	8-98031-178-0	02	1	0804-1004	●
85	CLIP; HOSE TO M/CYL	8-98031-178-0	02	1	1005-1208	●	●
85	CLIP; HOSE TO M/CYL	8-98168-080-0	02	1	1209-	●	●
131	STOPPER; CLU SW SOU	8-97302-305-0	02	1	0804-1004	●
131	STOPPER; CLU SW SOU	8-97302-305-0	02	1	1005-	●	●
242	BOLT; BRKT,CLUTCH (B) M6X12 FLANGE SOU	0-28050-612-0	02	1	0804-1004	●
242	BOLT; BRKT,CLUTCH (B) M6X12 FLANGE SOU	0-28050-612-0	02	1	1005-	●	●
242	BOLT; BRKT,CLUTCH (A) M8X16 FLANGE	0-28450-816-0	02	1	0804-1004	●
242	BOLT; BRKT,CLUTCH (A) M8X16 FLANGE	0-28450-816-0	02	1	1005-	●	●
266	BRACKET; CLU SWITCH	8-98079-100-0	01	1	0804-1004	●
266	BRACKET; CLU SWITCH	8-98079-100-0	01	1	1005-	●	●
