Isuzu WW
▶
TRUCKS
▶
NPS
▶
51173 - NPS(SOUTH AFRICA)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶

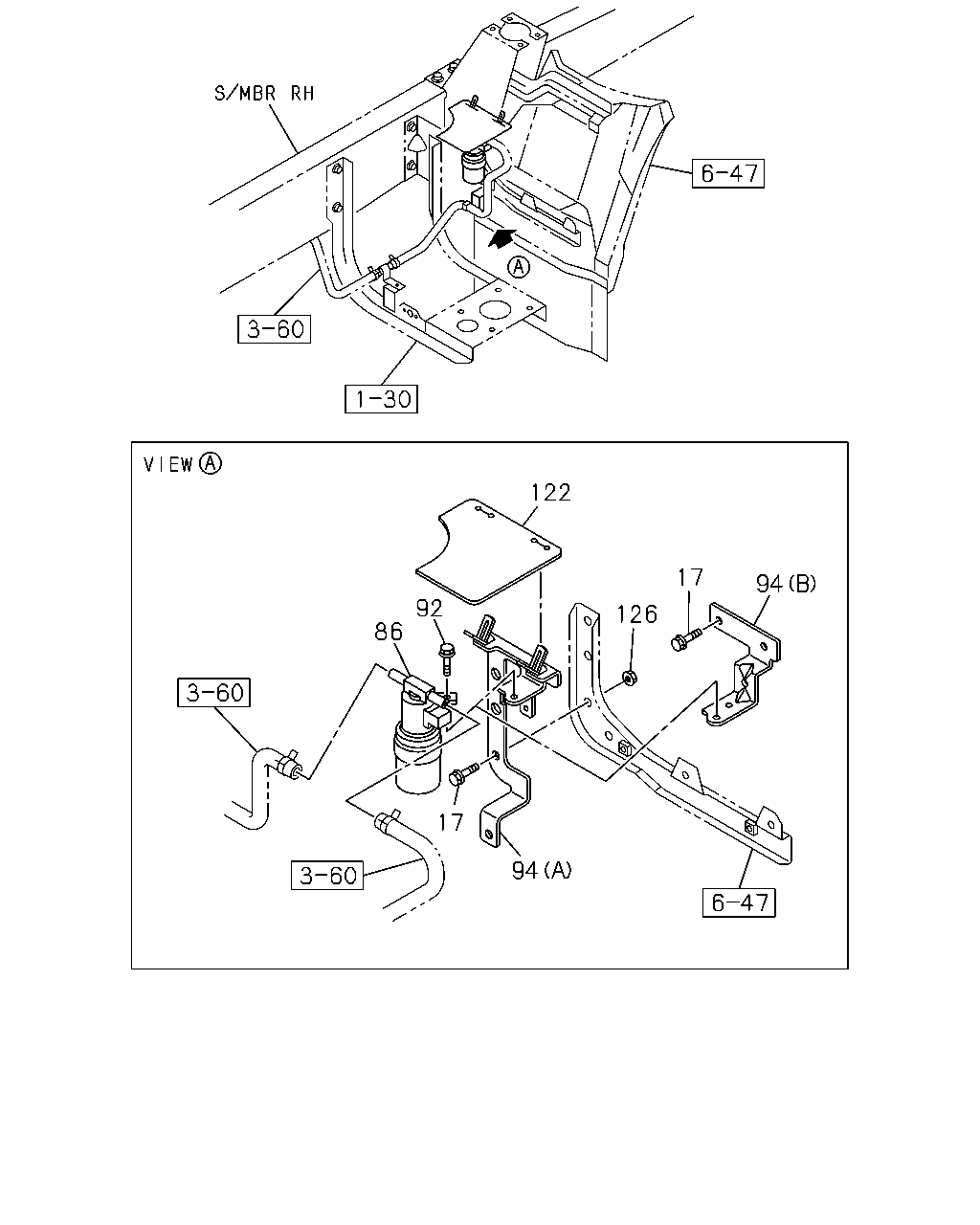

1-56 - EXHAUST BRAKE SYSTEM
▶
1-56 — EXHAUST BRAKE SYSTEM
(#32561) — 19 parça
Tümü
A - NPS5SN
B - NPS5WN
◀
[156A] NO.1 (9 parça)
[156A] NO.2 (10 parça)
▶
1
8
15
14
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
BRAKE UNIT; EXH
8-98068-178-1
01
1
0804-1004
●
1
BRAKE UNIT; EXH
8-98068-178-1
01
1
1005-1212
●
●
1
BRAKE UNIT; EXH
8-98227-170-0
01
1
1301-
●
●
8
NUT; EXH BRAKE UNIT FIX
M8 W/LK WASHER
8-97581-234-0
04
1
0804-1004
●
8
NUT; EXH BRAKE UNIT FIX
M8 W/LK WASHER
8-97581-234-0
04
1
1005-
●
●
14
FILTER; AIR,EXH BRAKE
8-97033-888-0
01
1
0804-1004
●
14
FILTER; AIR,EXH BRAKE
8-97033-888-0
01
1
1005-
●
●
15
NUT; AIR FILTER
M8 FLANGE SOU
0-91180-108-0
02
1
0804-1004
●
15
NUT; AIR FILTER
M8 FLANGE SOU
0-91180-108-0
02
1
1005-
●
●
122
17
94
92
126
86
17
94
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
17
BOLT; BRKT
M8X25 FLANGE SOU
0-28650-825-0
02
1
1005-
●
17
BOLT; BRKT
M8X25 FLANGE SOU
0-28650-825-0
01
1
0804-
●
86
VALVE; MAG,EXH BRK
8-98043-344-0
01
1
0804-1004
●
86
VALVE; MAG,EXH BRK
8-98043-344-0
01
1
1005-
●
●
92
BOLT; MAG VLV
M8X25 FLANGE SOU
0-28650-825-0
01
1
0804-1004
●
92
BOLT; MAG VLV
M8X25 FLANGE SOU
0-28650-825-0
01
1
1005-
●
●
94
BRACKET; MAG VLV,EXH BRAKE
(B)
8-98040-636-1
01
1
1005-
●
94
BRACKET; MAG VLV,EXH BRAKE
(A)
8-98034-053-3
01
1
0804-
●
122
PROTECTOR; MAG VLV
8-98087-988-0
01
1
0804-
●
126
NUT; BRKT
M8 FLANGE SOU
0-91180-108-0
01
1
0804-
●
