1-55 — EXHAUST BRAKE VALVE AND CONTROL CYLINDER (#32560) — 29 parça

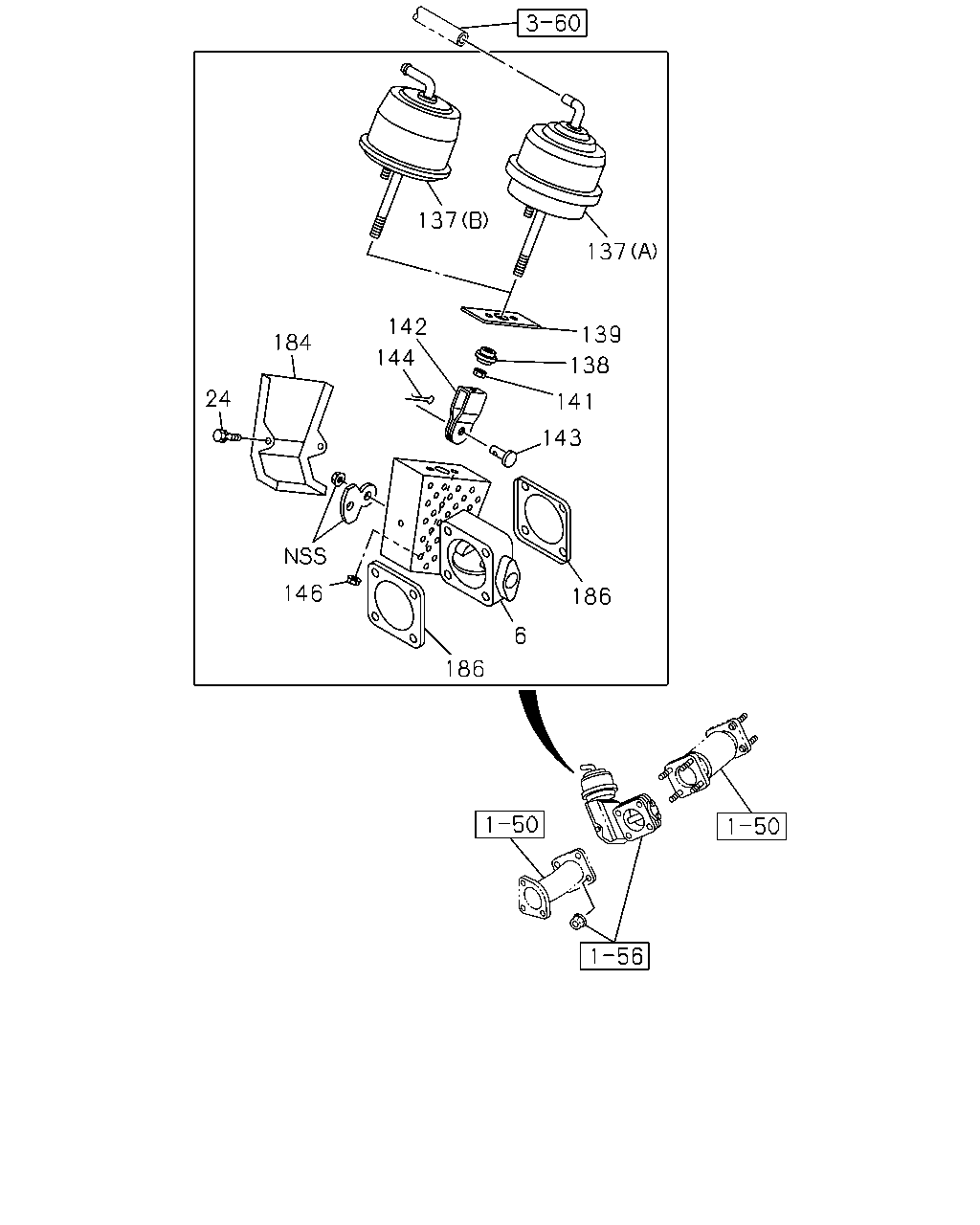

çizim 122136
137 137 139 138 141 143 142 144 184 24 146 6 186 186
BalonParca AdiParca NoAdetTipApplied Date A B
6 VALVE; EXH BRAKE 8-98069-291-0 01 1 0804-1004 ●
6 VALVE; EXH BRAKE 8-98069-291-0 01 1 1005- ● ●
24 BOLT; COVER 8-97065-029-0 02 1 0804-1004 ●
24 BOLT; COVER 8-97065-029-0 02 1 1005- ● ●
137 CHAMBER; POWER
(A) 		8-98043-596-0 01 1 0804-1004 ●
137 CHAMBER; POWER
(A) 		8-98043-596-0 01 1 1005-1212 ● ●
137 CHAMBER; POWER
(B) 		8-98229-058-0 01 1 1301- ● ●
138 BEARING; EXH BRK VLV 5-22189-004-0 01 1 0804-1004 ●
138 BEARING; EXH BRK VLV 5-22189-004-0 01 1 1005-1212 ● ●
138 BEARING; EXH BRK VLV 8-98231-608-0 01 1 1301- ● ●
139 GASKET; EXH BRK VLV 8-94328-234-0 01 1 0804-1004 ●
139 GASKET; EXH BRK VLV 8-94328-234-0 01 1 1005- ● ●
141 NUT; CLEVIS,EXH BRK VLV 8-94311-428-0 01 1 0804-1004 ●
141 NUT; CLEVIS,EXH BRK VLV 8-94311-428-0 01 1 1005- ● ●
142 CLEVIS; EXH BRK VLV 8-97177-311-0 01 1 0804-1004 ●
142 CLEVIS; EXH BRK VLV 8-97177-311-0 01 1 1005-1212 ● ●
142 CLEVIS; EXH BRK VLV 8-98231-609-0 01 1 1301- ● ●
143 PIN; EXH BRK VLV 8-94311-452-0 01 1 0804-1004 ●
143 PIN; EXH BRK VLV 8-94311-452-0 01 1 1005-1212 ● ●
143 PIN; EXH BRK VLV 8-98231-610-0 01 1 1301- ● ●
144 PIN; SPLIT,EXH BRK VLV 8-97029-428-0 01 1 0804-1004 ●
144 PIN; SPLIT,EXH BRK VLV 8-97029-428-0 01 1 1005-1212 ● ●
144 PIN; SPLIT,EXH BRK VLV 8-97985-124-0 01 1 1301- ● ●
146 NUT; EXH BRK VLV
M8 FLANGE SOU 		0-91180-108-0 02 1 0804-1004 ●
146 NUT; EXH BRK VLV
M8 FLANGE SOU 		0-91180-108-0 02 1 1005- ● ●
184 COVER; BRKT 8-97370-068-0 01 1 0804-1004 ●
184 COVER; BRKT 8-97370-068-0 01 1 1005- ● ●
186 GASKET; EXH BRK VLV,BODY 8-98022-713-0 02 1 0804-1004 ●
186 GASKET; EXH BRK VLV,BODY 8-98022-713-0 02 1 1005- ● ●
