Sayfa 5-10 - Isuzu EPC

5-10 — CAB MOUNTING; FRAME SIDE (#32559) — 232 parça

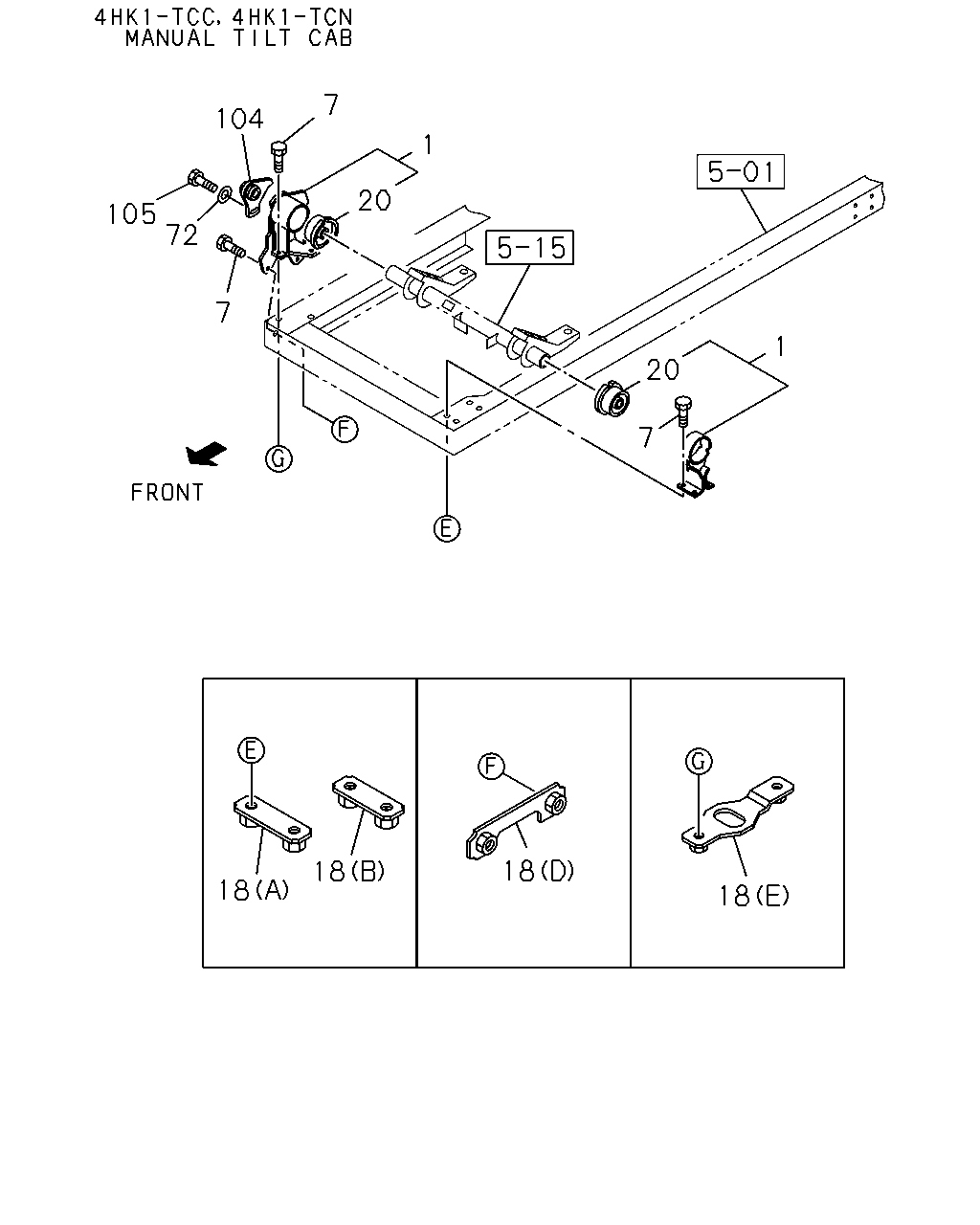

105 104 7 1 20 7 1 20 7 23 18 18 18 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	09.003 BRACKET; CAB MTG 4HK1-TCN ENG(RDQ) MANUAL TILT CAB<RWZ>	8-97330-146-1	01	1	0612-	●	●
1	09.003 BRACKET; CAB MTG 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) MANUAL TILT CAB<RWZ>	8-97330-146-1	01	1	0612-			●
1	09.003 BRACKET; CAB MTG 4HK1-TCC ENG(RDV) MANUAL TILT CAB<RWZ>	8-97330-146-1	01	1	0612-				●
1	09.003 BRACKET; CAB MTG 4HK1-TCN ENG(RDQ) MANUAL TILT CAB<RWZ>	8-97330-144-1	01	1	0612-	●	●
1	09.003 BRACKET; CAB MTG 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) MANUAL TILT CAB<RWZ>	8-97330-144-1	01	1	0612-			●
1	09.003 BRACKET; CAB MTG 4HK1-TCC ENG(RDV) MANUAL TILT CAB<RWZ>	8-97330-144-1	01	1	0612-				●
1	09.003 BRACKET; CAB MTG 4HK1-TCN ENG(RDQ) EXC. MANUAL TILT CAB<RWZ>	8-97331-637-1	01	1	0612-	●	●
1	09.003 BRACKET; CAB MTG 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) EXC. MANUAL TILT CAB<RWZ>	8-97331-637-1	01	1	0612-			●
1	09.003 BRACKET; CAB MTG 4HK1-TCC ENG(RDV) EXC. MANUAL TILT CAB<RWZ>	8-97331-637-1	01	1	0612-				●
1	09.003 BRACKET; CAB MTG 4HK1-TCN ENG(RDQ) EXC. MANUAL TILT CAB<RWZ>	8-97331-636-1	01	1	0612-	●	●
1	09.003 BRACKET; CAB MTG 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) EXC. MANUAL TILT CAB<RWZ>	8-97331-636-1	01	1	0612-			●
1	09.003 BRACKET; CAB MTG 4HK1-TCC ENG(RDV) EXC. MANUAL TILT CAB<RWZ>	8-97331-636-1	01	1	0612-				●
1	09.003 BRACKET; CAB MTG 4JJ1 ENG(LFB) MANUAL TILT CAB<RWZ>	8-97095-147-1	01	1	0612-		●	●
1	09.003 BRACKET; CAB MTG 4JJ1 ENG(LFB) MANUAL TILT CAB<RWZ>	8-97095-146-0	01	1	0612-		●	●
1	09.003 BRACKET; CAB MTG 4JJ1 ENG(LFB) EXC. MANUAL TILT CAB<RWZ>	8-97033-350-3	01	1	0612-		●	●
1	09.003 BRACKET; CAB MTG 4JJ1 ENG(LFB) EXC. MANUAL TILT CAB<RWZ>	8-97033-348-5	01	1	0612-		●	●
7	09.003 BOLT; BRKT,CAB TILT M12X40 FLANGE	0-28651-240-0	08	1	0612-	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX 4HK1-TCN ENG(RDQ) MANUAL TILT CAB<RWZ> (E)	8-97388-371-0	01	1	0612-	●	●
18	09.003 PLATE; MTG BRKT FIX 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) MANUAL TILT CAB<RWZ> (E)	8-97388-371-0	01	1	0612-			●
18	09.003 PLATE; MTG BRKT FIX 4HK1-TCC ENG(RDV) MANUAL TILT CAB<RWZ> (E)	8-97388-371-0	01	1	0612-				●
18	09.003 PLATE; MTG BRKT FIX (A)	8-97034-139-2	02	1	0612-	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ> (A)	8-97034-139-2	02	1	0612-	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (A)	8-97034-139-2	01	1	0612-	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (B)	8-97034-140-2	01	1	0612-	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ> (B)	8-97034-140-2	02	1	0612-	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (D)	8-97130-348-1	01	1	0612-	●			●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> (D)	8-97130-348-1	01	1	0612-		●	●
18	09.003 PLATE; MTG BRKT FIX 4JJ1 ENG(LFB) MANUAL TILT CAB<RWZ> (C)	8-97076-469-2	01	1	0612-		●	●
20	09.003 RUBBER; MTG,CAB BRKT 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) MANUAL TILT CAB<RWZ>	8-97095-148-1	02	1	0612-	●			●
20	09.003 RUBBER; MTG,CAB BRKT MANUAL TILT CAB<RWZ>	8-97095-148-1	02	1	0612-		●	●
20	09.003 RUBBER; MTG,CAB BRKT 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) EXC. MANUAL TILT CAB<RWZ>	8-97033-368-3	02	1	0612-	●			●
20	09.003 RUBBER; MTG,CAB BRKT EXC. MANUAL TILT CAB<RWZ>	8-97033-368-3	02	1	0612-		●	●
23	09.003 NUT; MTG BRKT MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> 02.042 M12 FLANGE	0-91180-112-0	02	1	0612-		●	●
104	09.003 BRACKET; CAB FRAME,CAB FRT MTG 4HK1-TCN ENG(RDQ) MANUAL TILT CAB<RWZ>	8-97330-162-2	01	1	0612-	●	●
104	09.003 BRACKET; CAB FRAME,CAB FRT MTG 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) MANUAL TILT CAB<RWZ>	8-97330-162-2	01	1	0612-			●
104	09.003 BRACKET; CAB FRAME,CAB FRT MTG 4HK1-TCC ENG(RDV) MANUAL TILT CAB<RWZ>	8-97330-162-2	01	1	0612-				●
104	09.003 BRACKET; CAB FRAME,CAB FRT MTG 4JJ1 ENG(LFB) MANUAL TILT CAB<RWZ>	8-97033-625-4	01	1	0612-		●	●
105	09.023 BOLT; BRKT TO CAB FRAME 4HK1-TCN ENG(RDQ) MANUAL TILT CAB<RWZ> 02.277 M14X35 FLANGE	0-28651-435-0	01	1	0612-	●	●
105	09.023 BOLT; BRKT TO CAB FRAME 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) MANUAL TILT CAB<RWZ> 02.277 M14X35 FLANGE	0-28651-435-0	01	1	0612-			●
105	09.023 BOLT; BRKT TO CAB FRAME 4HK1-TCC ENG(RDV) MANUAL TILT CAB<RWZ> 02.277 M14X35 FLANGE	0-28651-435-0	01	1	0612-				●
105	09.023 BOLT; BRKT TO CAB FRAME 4JJ1 ENG(LFB) MANUAL TILT CAB<RWZ> M16X35 FLANGE	0-28851-635-0	01	1	0612-		●	●

1 7 20 2 1 2 20 7 18 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	09.003 BRACKET; CAB MTG 4HK1-TCN ENG(RDQ) MANUAL TILT CAB<RWZ>	8-97330-146-1	01	1	0612-	●	●
1	09.003 BRACKET; CAB MTG 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) MANUAL TILT CAB<RWZ>	8-97330-146-1	01	1	0612-			●
1	09.003 BRACKET; CAB MTG 4HK1-TCC ENG(RDV) MANUAL TILT CAB<RWZ>	8-97330-146-1	01	1	0612-				●
1	09.003 BRACKET; CAB MTG 4HK1-TCN ENG(RDQ) MANUAL TILT CAB<RWZ>	8-97330-144-1	01	1	0612-	●	●
1	09.003 BRACKET; CAB MTG 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) MANUAL TILT CAB<RWZ>	8-97330-144-1	01	1	0612-			●
1	09.003 BRACKET; CAB MTG 4HK1-TCC ENG(RDV) MANUAL TILT CAB<RWZ>	8-97330-144-1	01	1	0612-				●
1	09.003 BRACKET; CAB MTG 4HK1-TCN ENG(RDQ) EXC. MANUAL TILT CAB<RWZ>	8-97331-637-1	01	1	0612-	●	●
1	09.003 BRACKET; CAB MTG 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) EXC. MANUAL TILT CAB<RWZ>	8-97331-637-1	01	1	0612-			●
1	09.003 BRACKET; CAB MTG 4HK1-TCC ENG(RDV) EXC. MANUAL TILT CAB<RWZ>	8-97331-637-1	01	1	0612-				●
1	09.003 BRACKET; CAB MTG 4HK1-TCN ENG(RDQ) EXC. MANUAL TILT CAB<RWZ>	8-97331-636-1	01	1	0612-	●	●
1	09.003 BRACKET; CAB MTG 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) EXC. MANUAL TILT CAB<RWZ>	8-97331-636-1	01	1	0612-			●
1	09.003 BRACKET; CAB MTG 4HK1-TCC ENG(RDV) EXC. MANUAL TILT CAB<RWZ>	8-97331-636-1	01	1	0612-				●
1	09.003 BRACKET; CAB MTG 4JJ1 ENG(LFB) MANUAL TILT CAB<RWZ>	8-97095-147-1	01	1	0612-		●	●
1	09.003 BRACKET; CAB MTG 4JJ1 ENG(LFB) MANUAL TILT CAB<RWZ>	8-97095-146-0	01	1	0612-		●	●
1	09.003 BRACKET; CAB MTG 4JJ1 ENG(LFB) EXC. MANUAL TILT CAB<RWZ>	8-97033-350-3	01	1	0612-		●	●
1	09.003 BRACKET; CAB MTG 4JJ1 ENG(LFB) EXC. MANUAL TILT CAB<RWZ>	8-97033-348-5	01	1	0612-		●	●
2	09.009 BUSHING; TORSION BAR EXC. MANUAL TILT CAB<RWZ>	8-97061-514-0	02	1	0612-	●	●	●	●
7	09.003 BOLT; BRKT,CAB TILT M12X40 FLANGE	0-28651-240-0	08	1	0612-	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX 4HK1-TCN ENG(RDQ) MANUAL TILT CAB<RWZ> (E)	8-97388-371-0	01	1	0612-	●	●
18	09.003 PLATE; MTG BRKT FIX 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) MANUAL TILT CAB<RWZ> (E)	8-97388-371-0	01	1	0612-			●
18	09.003 PLATE; MTG BRKT FIX 4HK1-TCC ENG(RDV) MANUAL TILT CAB<RWZ> (E)	8-97388-371-0	01	1	0612-				●
18	09.003 PLATE; MTG BRKT FIX (A)	8-97034-139-2	02	1	0612-	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ> (A)	8-97034-139-2	02	1	0612-	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (A)	8-97034-139-2	01	1	0612-	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (B)	8-97034-140-2	01	1	0612-	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ> (B)	8-97034-140-2	02	1	0612-	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (D)	8-97130-348-1	01	1	0612-	●			●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> (D)	8-97130-348-1	01	1	0612-		●	●
18	09.003 PLATE; MTG BRKT FIX 4JJ1 ENG(LFB) MANUAL TILT CAB<RWZ> (C)	8-97076-469-2	01	1	0612-		●	●
20	09.003 RUBBER; MTG,CAB BRKT 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) MANUAL TILT CAB<RWZ>	8-97095-148-1	02	1	0612-	●			●
20	09.003 RUBBER; MTG,CAB BRKT MANUAL TILT CAB<RWZ>	8-97095-148-1	02	1	0612-		●	●
20	09.003 RUBBER; MTG,CAB BRKT 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) EXC. MANUAL TILT CAB<RWZ>	8-97033-368-3	02	1	0612-	●			●
20	09.003 RUBBER; MTG,CAB BRKT EXC. MANUAL TILT CAB<RWZ>	8-97033-368-3	02	1	0612-		●	●

1 7 20 2 1 2 20 7 18 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	09.003 BRACKET; CAB MTG 4HK1-TCN ENG(RDQ) MANUAL TILT CAB<RWZ>	8-97330-146-1	01	1	0612-	●	●
1	09.003 BRACKET; CAB MTG 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) MANUAL TILT CAB<RWZ>	8-97330-146-1	01	1	0612-			●
1	09.003 BRACKET; CAB MTG 4HK1-TCC ENG(RDV) MANUAL TILT CAB<RWZ>	8-97330-146-1	01	1	0612-				●
1	09.003 BRACKET; CAB MTG 4HK1-TCN ENG(RDQ) MANUAL TILT CAB<RWZ>	8-97330-144-1	01	1	0612-	●	●
1	09.003 BRACKET; CAB MTG 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) MANUAL TILT CAB<RWZ>	8-97330-144-1	01	1	0612-			●
1	09.003 BRACKET; CAB MTG 4HK1-TCC ENG(RDV) MANUAL TILT CAB<RWZ>	8-97330-144-1	01	1	0612-				●
1	09.003 BRACKET; CAB MTG 4HK1-TCN ENG(RDQ) EXC. MANUAL TILT CAB<RWZ>	8-97331-637-1	01	1	0612-	●	●
1	09.003 BRACKET; CAB MTG 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) EXC. MANUAL TILT CAB<RWZ>	8-97331-637-1	01	1	0612-			●
1	09.003 BRACKET; CAB MTG 4HK1-TCC ENG(RDV) EXC. MANUAL TILT CAB<RWZ>	8-97331-637-1	01	1	0612-				●
1	09.003 BRACKET; CAB MTG 4HK1-TCN ENG(RDQ) EXC. MANUAL TILT CAB<RWZ>	8-97331-636-1	01	1	0612-	●	●
1	09.003 BRACKET; CAB MTG 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) EXC. MANUAL TILT CAB<RWZ>	8-97331-636-1	01	1	0612-			●
1	09.003 BRACKET; CAB MTG 4HK1-TCC ENG(RDV) EXC. MANUAL TILT CAB<RWZ>	8-97331-636-1	01	1	0612-				●
1	09.003 BRACKET; CAB MTG 4JJ1 ENG(LFB) MANUAL TILT CAB<RWZ>	8-97095-147-1	01	1	0612-		●	●
1	09.003 BRACKET; CAB MTG 4JJ1 ENG(LFB) MANUAL TILT CAB<RWZ>	8-97095-146-0	01	1	0612-		●	●
1	09.003 BRACKET; CAB MTG 4JJ1 ENG(LFB) EXC. MANUAL TILT CAB<RWZ>	8-97033-350-3	01	1	0612-		●	●
1	09.003 BRACKET; CAB MTG 4JJ1 ENG(LFB) EXC. MANUAL TILT CAB<RWZ>	8-97033-348-5	01	1	0612-		●	●
2	09.009 BUSHING; TORSION BAR EXC. MANUAL TILT CAB<RWZ>	8-97061-514-0	02	1	0612-	●	●	●	●
7	09.003 BOLT; BRKT,CAB TILT M12X40 FLANGE	0-28651-240-0	08	1	0612-	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX 4HK1-TCN ENG(RDQ) MANUAL TILT CAB<RWZ> (E)	8-97388-371-0	01	1	0612-	●	●
18	09.003 PLATE; MTG BRKT FIX 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) MANUAL TILT CAB<RWZ> (E)	8-97388-371-0	01	1	0612-			●
18	09.003 PLATE; MTG BRKT FIX 4HK1-TCC ENG(RDV) MANUAL TILT CAB<RWZ> (E)	8-97388-371-0	01	1	0612-				●
18	09.003 PLATE; MTG BRKT FIX (A)	8-97034-139-2	02	1	0612-	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ> (A)	8-97034-139-2	02	1	0612-	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (A)	8-97034-139-2	01	1	0612-	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (B)	8-97034-140-2	01	1	0612-	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ> (B)	8-97034-140-2	02	1	0612-	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (D)	8-97130-348-1	01	1	0612-	●			●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> (D)	8-97130-348-1	01	1	0612-		●	●
18	09.003 PLATE; MTG BRKT FIX 4JJ1 ENG(LFB) MANUAL TILT CAB<RWZ> (C)	8-97076-469-2	01	1	0612-		●	●
20	09.003 RUBBER; MTG,CAB BRKT 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) MANUAL TILT CAB<RWZ>	8-97095-148-1	02	1	0612-	●			●
20	09.003 RUBBER; MTG,CAB BRKT MANUAL TILT CAB<RWZ>	8-97095-148-1	02	1	0612-		●	●
20	09.003 RUBBER; MTG,CAB BRKT 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) EXC. MANUAL TILT CAB<RWZ>	8-97033-368-3	02	1	0612-	●			●
20	09.003 RUBBER; MTG,CAB BRKT EXC. MANUAL TILT CAB<RWZ>	8-97033-368-3	02	1	0612-		●	●

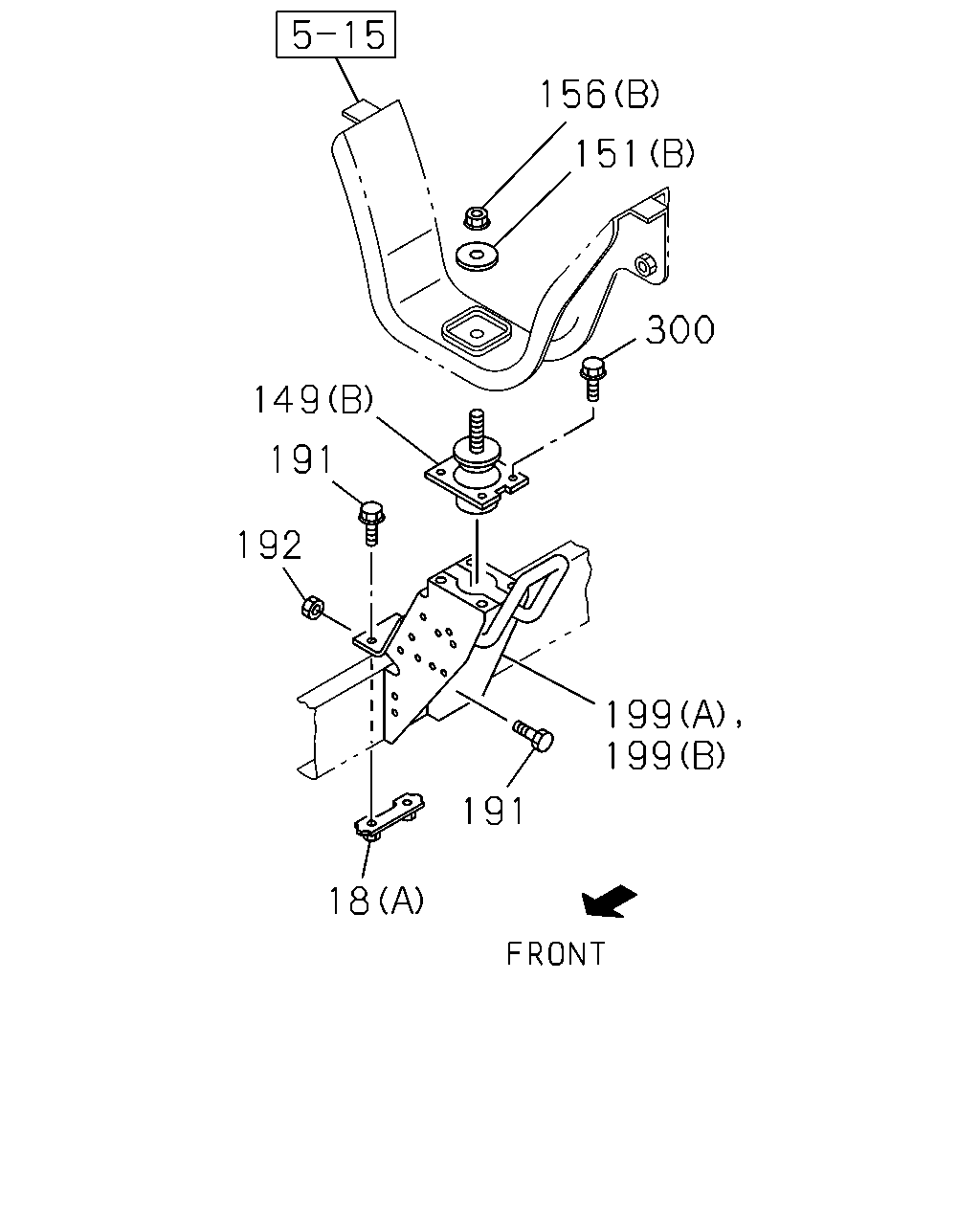

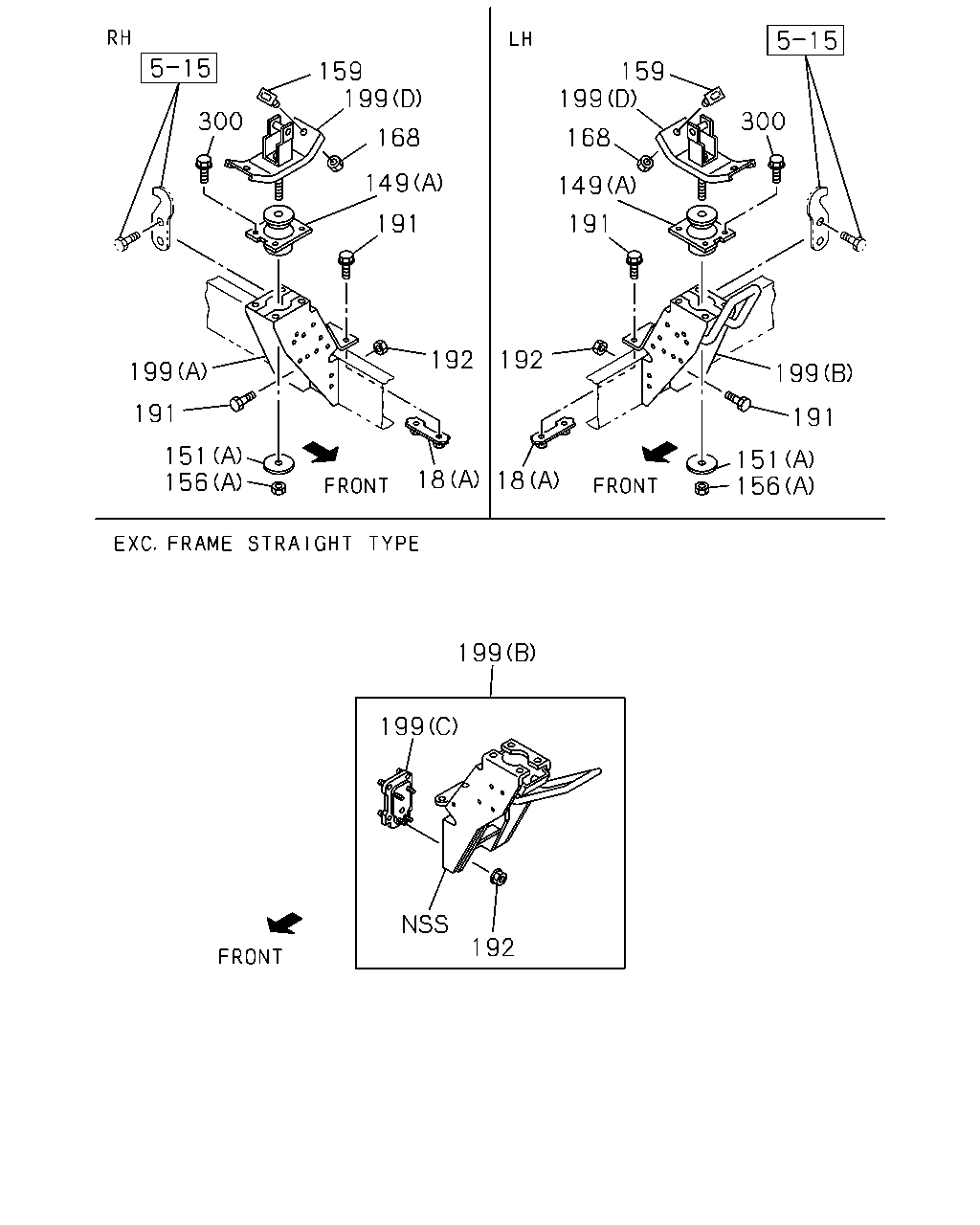

156 151 300 149 191 192 199 199 191 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
18	09.003 PLATE; MTG BRKT FIX 4HK1-TCN ENG(RDQ) MANUAL TILT CAB<RWZ> (E)	8-97388-371-0	01	1	0612-	●	●
18	09.003 PLATE; MTG BRKT FIX 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) MANUAL TILT CAB<RWZ> (E)	8-97388-371-0	01	1	0612-			●
18	09.003 PLATE; MTG BRKT FIX 4HK1-TCC ENG(RDV) MANUAL TILT CAB<RWZ> (E)	8-97388-371-0	01	1	0612-				●
18	09.003 PLATE; MTG BRKT FIX (A)	8-97034-139-2	02	1	0612-	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ> (A)	8-97034-139-2	02	1	0612-	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (A)	8-97034-139-2	01	1	0612-	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (B)	8-97034-140-2	01	1	0612-	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ> (B)	8-97034-140-2	02	1	0612-	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (D)	8-97130-348-1	01	1	0612-	●			●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> (D)	8-97130-348-1	01	1	0612-		●	●
18	09.003 PLATE; MTG BRKT FIX 4JJ1 ENG(LFB) MANUAL TILT CAB<RWZ> (C)	8-97076-469-2	01	1	0612-		●	●
149	09.023 RUBBER; MTG,CAB,UPR RR MANUAL TILT CAB<RWZ> (A)	8-97095-149-3	02	1	0612-0804	●	●	●	●
149	09.023 RUBBER; MTG,CAB,UPR RR MANUAL TILT CAB<RWZ> (A)	8-98021-561-1	02	1	0805-	●	●	●	●
149	09.023 RUBBER; MTG,CAB,UPR RR EXC. MANUAL TILT CAB<RWZ> (B)	8-97086-440-3	02	1	0612-0612	●	●	●	●
149	09.023 RUBBER; MTG,CAB,UPR RR EXC. MANUAL TILT CAB<RWZ> (B)	8-98038-868-0	02	1	0701-	●	●	●	●
151	09.011 WASHER; CAB MTG,RR UPR EXC. MANUAL TILT CAB<RWZ> (B) ID=16.5 OD=58	8-97034-383-1	02	1	0612-0612	●	●	●	●
151	09.011 WASHER; CAB MTG,RR UPR EXC. MANUAL TILT CAB<RWZ> (B) ID=16.5 OD=58	8-97359-040-1	02	1	0612-	●	●	●	●
151	09.011 WASHER; CAB MTG,RR UPR MANUAL TILT CAB<RWZ> (A) ID=16.4 OD=62	8-97034-382-0	02	1	0612-0612	●	●	●	●
151	09.011 WASHER; CAB MTG,RR UPR MANUAL TILT CAB<RWZ> (A) ID=17 OD=62	8-97359-042-1	02	1	0612-	●	●	●	●
156	07.529 NUT; CAB MTG RR MANUAL TILT CAB<RWZ> 00.785 (A) M16	0-91111-516-0	02	1	0612-	●	●	●	●
156	07.529 NUT; CAB MTG RR EXC. MANUAL TILT CAB<RWZ> (B) M14 FLANGE	0-91180-114-0	02	1	0612-	●	●	●	●
191	09.003 BOLT; BRKT FIX M12X40 FLANGE	0-28651-240-0	08	1	0612-	●			●
191	09.003 BOLT; BRKT FIX FRAME STRAIGHT TYPE<7KJ> M12X40 FLANGE	0-28651-240-0	08	1	0612-		●	●
191	09.003 BOLT; BRKT FIX EXC. FRAME STRAIGHT TYPE<7KJ> M12X40 FLANGE	0-28651-240-0	04	1	0612-		●	●
192	09.003 NUT; BRKT FIX 02.042 M12 FLANGE	0-91180-112-0	08	1	0612-	●	●	●	●
192	09.003 NUT; BRKT FIX 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 02.042 M12 FLANGE	0-91180-112-0	04	1	0612-		●	●
192	09.003 NUT; BRKT FIX 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 02.042 M12 FLANGE	0-91180-112-0	04	1	0612-		●	●
199	09.003 BRACKET; CAB RR MTG 4HK1-TCN ENG(RDQ) (A)	8-97330-165-1	01	1	0612-	●	●
199	09.003 BRACKET; CAB RR MTG 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) (A)	8-97330-165-1	01	1	0612-			●
199	09.003 BRACKET; CAB RR MTG 4HK1-TCC ENG(RDV) (A)	8-97330-165-1	01	1	0612-				●
199	09.003 BRACKET; CAB RR MTG 4HK1-TCN ENG(RDQ) MANUAL TILT CAB<RWZ> (B)	8-97330-163-1	01	1	0612-	●	●
199	09.003 BRACKET; CAB RR MTG 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) MANUAL TILT CAB<RWZ> (B)	8-97330-163-1	01	1	0612-			●
199	09.003 BRACKET; CAB RR MTG 4HK1-TCC ENG(RDV) MANUAL TILT CAB<RWZ> (B)	8-97330-163-1	01	1	0612-				●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (D)	8-98032-338-0	02	1	0612-	●	●	●	●
199	09.003 BRACKET; CAB RR MTG 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97092-102-5	01	1	0612-		●	●
199	09.003 BRACKET; CAB RR MTG 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97092-102-5	01	1	0612-		●	●
199	09.003 BRACKET; CAB RR MTG 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97326-522-1	01	1	0612-		●	●
199	09.003 BRACKET; CAB RR MTG 4JJ1 ENG(LFB) MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97326-520-0	01	1	0612-		●	●
199	09.003 BRACKET; CAB RR MTG 4JJ1 ENG(LFB) EXC. MANUAL TILT CAB<RWZ>,FRAME STRAIGHT TYPE<7KJ> (B)	8-97326-521-0	01	1	0612-		●	●
300	09.003 BOLT; MTG RUBBER 02.343 M10X20 FLANGE	0-28651-020-0	08	1	0612-	●	●	●	●

7 104 1 20 105 72 7 1 20 7 18 18 18 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	09.003 BRACKET; CAB MTG 4HK1-TCN ENG(RDQ) MANUAL TILT CAB<RWZ>	8-97330-146-1	01	1	0612-	●	●
1	09.003 BRACKET; CAB MTG 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) MANUAL TILT CAB<RWZ>	8-97330-146-1	01	1	0612-			●
1	09.003 BRACKET; CAB MTG 4HK1-TCC ENG(RDV) MANUAL TILT CAB<RWZ>	8-97330-146-1	01	1	0612-				●
1	09.003 BRACKET; CAB MTG 4HK1-TCN ENG(RDQ) MANUAL TILT CAB<RWZ>	8-97330-144-1	01	1	0612-	●	●
1	09.003 BRACKET; CAB MTG 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) MANUAL TILT CAB<RWZ>	8-97330-144-1	01	1	0612-			●
1	09.003 BRACKET; CAB MTG 4HK1-TCC ENG(RDV) MANUAL TILT CAB<RWZ>	8-97330-144-1	01	1	0612-				●
1	09.003 BRACKET; CAB MTG 4HK1-TCN ENG(RDQ) EXC. MANUAL TILT CAB<RWZ>	8-97331-637-1	01	1	0612-	●	●
1	09.003 BRACKET; CAB MTG 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) EXC. MANUAL TILT CAB<RWZ>	8-97331-637-1	01	1	0612-			●
1	09.003 BRACKET; CAB MTG 4HK1-TCC ENG(RDV) EXC. MANUAL TILT CAB<RWZ>	8-97331-637-1	01	1	0612-				●
1	09.003 BRACKET; CAB MTG 4HK1-TCN ENG(RDQ) EXC. MANUAL TILT CAB<RWZ>	8-97331-636-1	01	1	0612-	●	●
1	09.003 BRACKET; CAB MTG 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) EXC. MANUAL TILT CAB<RWZ>	8-97331-636-1	01	1	0612-			●
1	09.003 BRACKET; CAB MTG 4HK1-TCC ENG(RDV) EXC. MANUAL TILT CAB<RWZ>	8-97331-636-1	01	1	0612-				●
1	09.003 BRACKET; CAB MTG 4JJ1 ENG(LFB) MANUAL TILT CAB<RWZ>	8-97095-147-1	01	1	0612-		●	●
1	09.003 BRACKET; CAB MTG 4JJ1 ENG(LFB) MANUAL TILT CAB<RWZ>	8-97095-146-0	01	1	0612-		●	●
1	09.003 BRACKET; CAB MTG 4JJ1 ENG(LFB) EXC. MANUAL TILT CAB<RWZ>	8-97033-350-3	01	1	0612-		●	●
1	09.003 BRACKET; CAB MTG 4JJ1 ENG(LFB) EXC. MANUAL TILT CAB<RWZ>	8-97033-348-5	01	1	0612-		●	●
7	09.003 BOLT; BRKT,CAB TILT M12X40 FLANGE	0-28651-240-0	08	1	0612-	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX 4HK1-TCN ENG(RDQ) MANUAL TILT CAB<RWZ> (E)	8-97388-371-0	01	1	0612-	●	●
18	09.003 PLATE; MTG BRKT FIX 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) MANUAL TILT CAB<RWZ> (E)	8-97388-371-0	01	1	0612-			●
18	09.003 PLATE; MTG BRKT FIX 4HK1-TCC ENG(RDV) MANUAL TILT CAB<RWZ> (E)	8-97388-371-0	01	1	0612-				●
18	09.003 PLATE; MTG BRKT FIX (A)	8-97034-139-2	02	1	0612-	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ> (A)	8-97034-139-2	02	1	0612-	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (A)	8-97034-139-2	01	1	0612-	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (B)	8-97034-140-2	01	1	0612-	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ> (B)	8-97034-140-2	02	1	0612-	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (D)	8-97130-348-1	01	1	0612-	●			●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> (D)	8-97130-348-1	01	1	0612-		●	●
18	09.003 PLATE; MTG BRKT FIX 4JJ1 ENG(LFB) MANUAL TILT CAB<RWZ> (C)	8-97076-469-2	01	1	0612-		●	●
20	09.003 RUBBER; MTG,CAB BRKT 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) MANUAL TILT CAB<RWZ>	8-97095-148-1	02	1	0612-	●			●
20	09.003 RUBBER; MTG,CAB BRKT MANUAL TILT CAB<RWZ>	8-97095-148-1	02	1	0612-		●	●
20	09.003 RUBBER; MTG,CAB BRKT 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) EXC. MANUAL TILT CAB<RWZ>	8-97033-368-3	02	1	0612-	●			●
20	09.003 RUBBER; MTG,CAB BRKT EXC. MANUAL TILT CAB<RWZ>	8-97033-368-3	02	1	0612-		●	●
72	09.003 WASHER; PL,BRKT TO FRAME 4HK1-TCN ENG(RDQ) MANUAL TILT CAB<RWZ> ID=15 OD=36	0-91614-714-0	01	1	0612-	●	●
72	09.003 WASHER; PL,BRKT TO FRAME 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) MANUAL TILT CAB<RWZ> ID=15 OD=36	0-91614-714-0	01	1	0612-			●
72	09.003 WASHER; PL,BRKT TO FRAME 4HK1-TCC ENG(RDV) MANUAL TILT CAB<RWZ> ID=15 OD=36	0-91614-714-0	01	1	0612-				●
104	09.003 BRACKET; CAB FRAME,CAB FRT MTG 4HK1-TCN ENG(RDQ) MANUAL TILT CAB<RWZ>	8-97330-162-2	01	1	0612-	●	●
104	09.003 BRACKET; CAB FRAME,CAB FRT MTG 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) MANUAL TILT CAB<RWZ>	8-97330-162-2	01	1	0612-			●
104	09.003 BRACKET; CAB FRAME,CAB FRT MTG 4HK1-TCC ENG(RDV) MANUAL TILT CAB<RWZ>	8-97330-162-2	01	1	0612-				●
104	09.003 BRACKET; CAB FRAME,CAB FRT MTG 4JJ1 ENG(LFB) MANUAL TILT CAB<RWZ>	8-97033-625-4	01	1	0612-		●	●
105	09.023 BOLT; BRKT TO CAB FRAME 4HK1-TCN ENG(RDQ) MANUAL TILT CAB<RWZ> 02.277 M14X35 FLANGE	0-28651-435-0	01	1	0612-	●	●
105	09.023 BOLT; BRKT TO CAB FRAME 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) MANUAL TILT CAB<RWZ> 02.277 M14X35 FLANGE	0-28651-435-0	01	1	0612-			●
105	09.023 BOLT; BRKT TO CAB FRAME 4HK1-TCC ENG(RDV) MANUAL TILT CAB<RWZ> 02.277 M14X35 FLANGE	0-28651-435-0	01	1	0612-				●
105	09.023 BOLT; BRKT TO CAB FRAME 4JJ1 ENG(LFB) MANUAL TILT CAB<RWZ> M16X35 FLANGE	0-28851-635-0	01	1	0612-		●	●

159 159 199 300 300 168 168 149 149 191 191 192 192 199 199 191 191 151 156 151 156 18 18 199 199 192 199

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
18	09.003 PLATE; MTG BRKT FIX 4HK1-TCN ENG(RDQ) MANUAL TILT CAB<RWZ> (E)	8-97388-371-0	01	1	0612-	●	●
18	09.003 PLATE; MTG BRKT FIX 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) MANUAL TILT CAB<RWZ> (E)	8-97388-371-0	01	1	0612-			●
18	09.003 PLATE; MTG BRKT FIX 4HK1-TCC ENG(RDV) MANUAL TILT CAB<RWZ> (E)	8-97388-371-0	01	1	0612-				●
18	09.003 PLATE; MTG BRKT FIX (A)	8-97034-139-2	02	1	0612-	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ> (A)	8-97034-139-2	02	1	0612-	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (A)	8-97034-139-2	01	1	0612-	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (B)	8-97034-140-2	01	1	0612-	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ> (B)	8-97034-140-2	02	1	0612-	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (D)	8-97130-348-1	01	1	0612-	●			●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> (D)	8-97130-348-1	01	1	0612-		●	●
18	09.003 PLATE; MTG BRKT FIX 4JJ1 ENG(LFB) MANUAL TILT CAB<RWZ> (C)	8-97076-469-2	01	1	0612-		●	●
149	09.023 RUBBER; MTG,CAB,UPR RR MANUAL TILT CAB<RWZ> (A)	8-97095-149-3	02	1	0612-0804	●	●	●	●
149	09.023 RUBBER; MTG,CAB,UPR RR MANUAL TILT CAB<RWZ> (A)	8-98021-561-1	02	1	0805-	●	●	●	●
149	09.023 RUBBER; MTG,CAB,UPR RR EXC. MANUAL TILT CAB<RWZ> (B)	8-97086-440-3	02	1	0612-0612	●	●	●	●
149	09.023 RUBBER; MTG,CAB,UPR RR EXC. MANUAL TILT CAB<RWZ> (B)	8-98038-868-0	02	1	0701-	●	●	●	●
151	09.011 WASHER; CAB MTG,RR UPR EXC. MANUAL TILT CAB<RWZ> (B) ID=16.5 OD=58	8-97034-383-1	02	1	0612-0612	●	●	●	●
151	09.011 WASHER; CAB MTG,RR UPR EXC. MANUAL TILT CAB<RWZ> (B) ID=16.5 OD=58	8-97359-040-1	02	1	0612-	●	●	●	●
151	09.011 WASHER; CAB MTG,RR UPR MANUAL TILT CAB<RWZ> (A) ID=16.4 OD=62	8-97034-382-0	02	1	0612-0612	●	●	●	●
151	09.011 WASHER; CAB MTG,RR UPR MANUAL TILT CAB<RWZ> (A) ID=17 OD=62	8-97359-042-1	02	1	0612-	●	●	●	●
156	07.529 NUT; CAB MTG RR MANUAL TILT CAB<RWZ> 00.785 (A) M16	0-91111-516-0	02	1	0612-	●	●	●	●
156	07.529 NUT; CAB MTG RR EXC. MANUAL TILT CAB<RWZ> (B) M14 FLANGE	0-91180-114-0	02	1	0612-	●	●	●	●
159	09.023 RUBBER; CUSHION,CAB MTG MANUAL TILT CAB<RWZ>	8-97113-340-0	04	1	0612-	●	●	●	●
168	09.011 NUT; CUSHION RUBBER,BODY MTG MANUAL TILT CAB<RWZ> 01.062 M8 FLANGE	0-91180-108-0	04	1	0612-	●	●	●	●
191	09.003 BOLT; BRKT FIX M12X40 FLANGE	0-28651-240-0	08	1	0612-	●			●
191	09.003 BOLT; BRKT FIX FRAME STRAIGHT TYPE<7KJ> M12X40 FLANGE	0-28651-240-0	08	1	0612-		●	●
191	09.003 BOLT; BRKT FIX EXC. FRAME STRAIGHT TYPE<7KJ> M12X40 FLANGE	0-28651-240-0	04	1	0612-		●	●
192	09.003 NUT; BRKT FIX 02.042 M12 FLANGE	0-91180-112-0	08	1	0612-	●	●	●	●
192	09.003 NUT; BRKT FIX 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 02.042 M12 FLANGE	0-91180-112-0	04	1	0612-		●	●
192	09.003 NUT; BRKT FIX 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 02.042 M12 FLANGE	0-91180-112-0	04	1	0612-		●	●
199	09.003 BRACKET; CAB RR MTG 4HK1-TCN ENG(RDQ) (A)	8-97330-165-1	01	1	0612-	●	●
199	09.003 BRACKET; CAB RR MTG 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) (A)	8-97330-165-1	01	1	0612-			●
199	09.003 BRACKET; CAB RR MTG 4HK1-TCC ENG(RDV) (A)	8-97330-165-1	01	1	0612-				●
199	09.003 BRACKET; CAB RR MTG 4HK1-TCN ENG(RDQ) MANUAL TILT CAB<RWZ> (B)	8-97330-163-1	01	1	0612-	●	●
199	09.003 BRACKET; CAB RR MTG 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) MANUAL TILT CAB<RWZ> (B)	8-97330-163-1	01	1	0612-			●
199	09.003 BRACKET; CAB RR MTG 4HK1-TCC ENG(RDV) MANUAL TILT CAB<RWZ> (B)	8-97330-163-1	01	1	0612-				●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (D)	8-98032-338-0	02	1	0612-	●	●	●	●
199	09.003 BRACKET; CAB RR MTG 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97092-102-5	01	1	0612-		●	●
199	09.003 BRACKET; CAB RR MTG 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97092-102-5	01	1	0612-		●	●
199	09.003 BRACKET; CAB RR MTG 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97326-522-1	01	1	0612-		●	●
199	09.003 BRACKET; CAB RR MTG 4JJ1 ENG(LFB) MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97326-520-0	01	1	0612-		●	●
199	09.003 BRACKET; CAB RR MTG 4JJ1 ENG(LFB) EXC. MANUAL TILT CAB<RWZ>,FRAME STRAIGHT TYPE<7KJ> (B)	8-97326-521-0	01	1	0612-		●	●
300	09.003 BOLT; MTG RUBBER 02.343 M10X20 FLANGE	0-28651-020-0	08	1	0612-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
