Sayfa 5-01 - Isuzu EPC

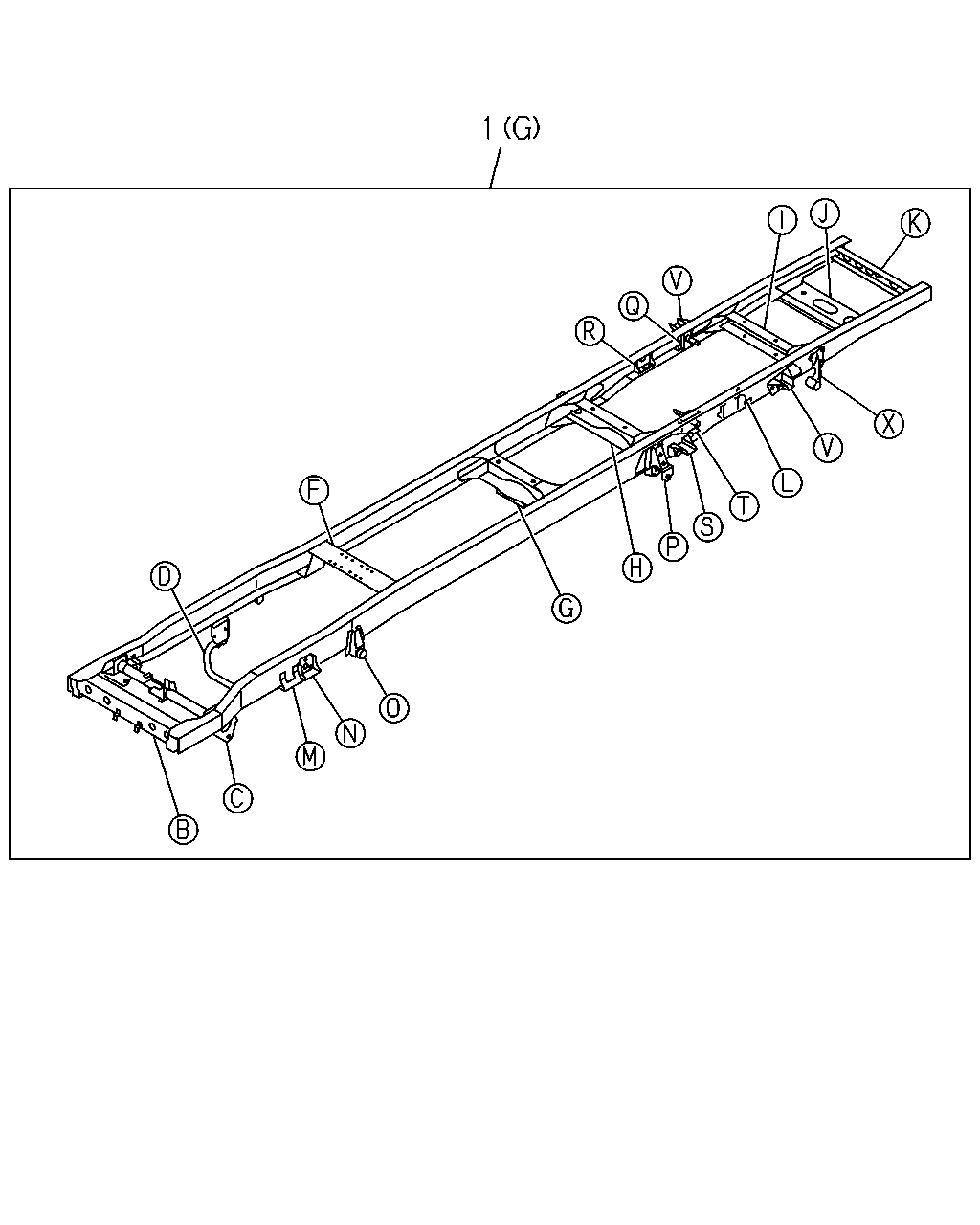

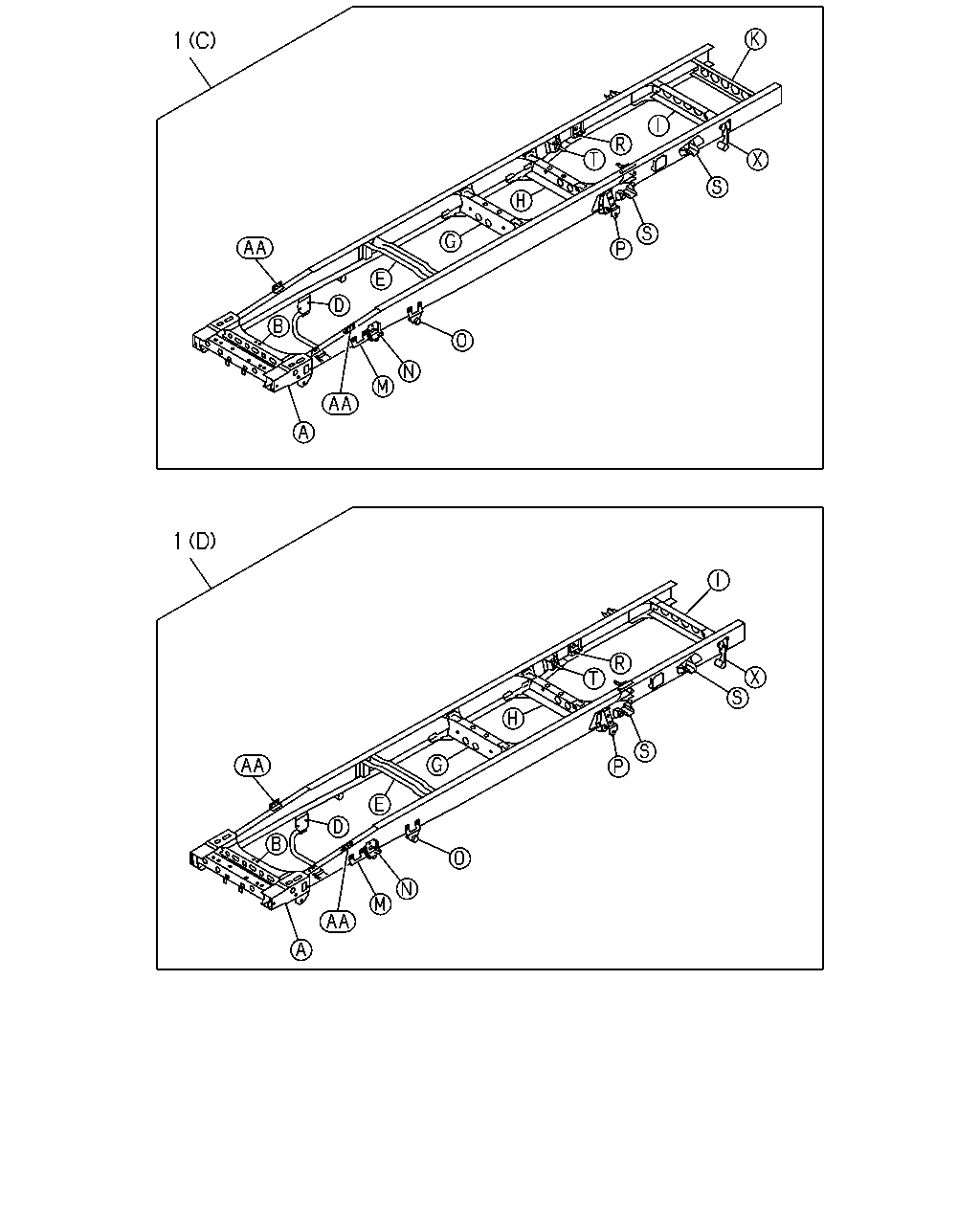

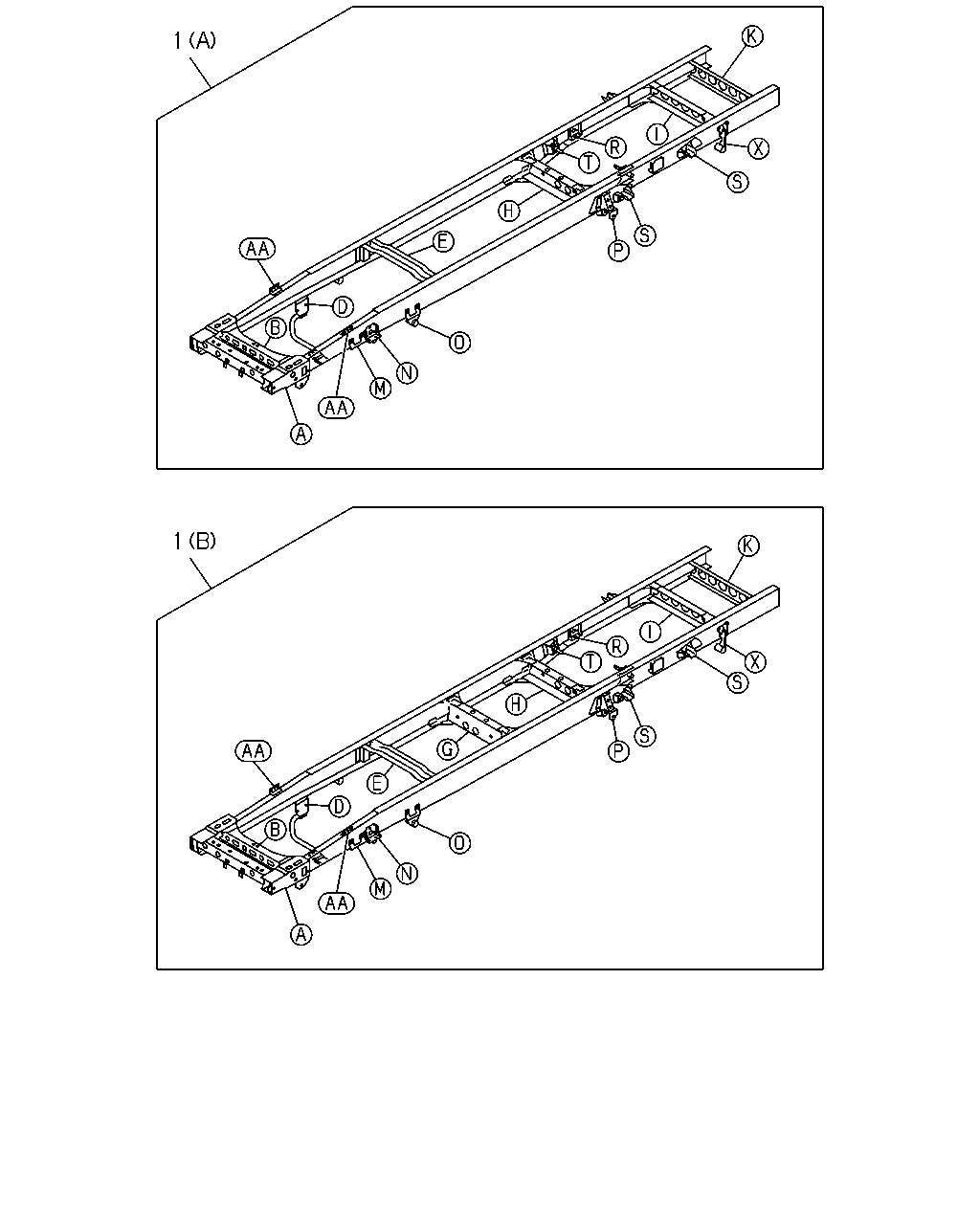

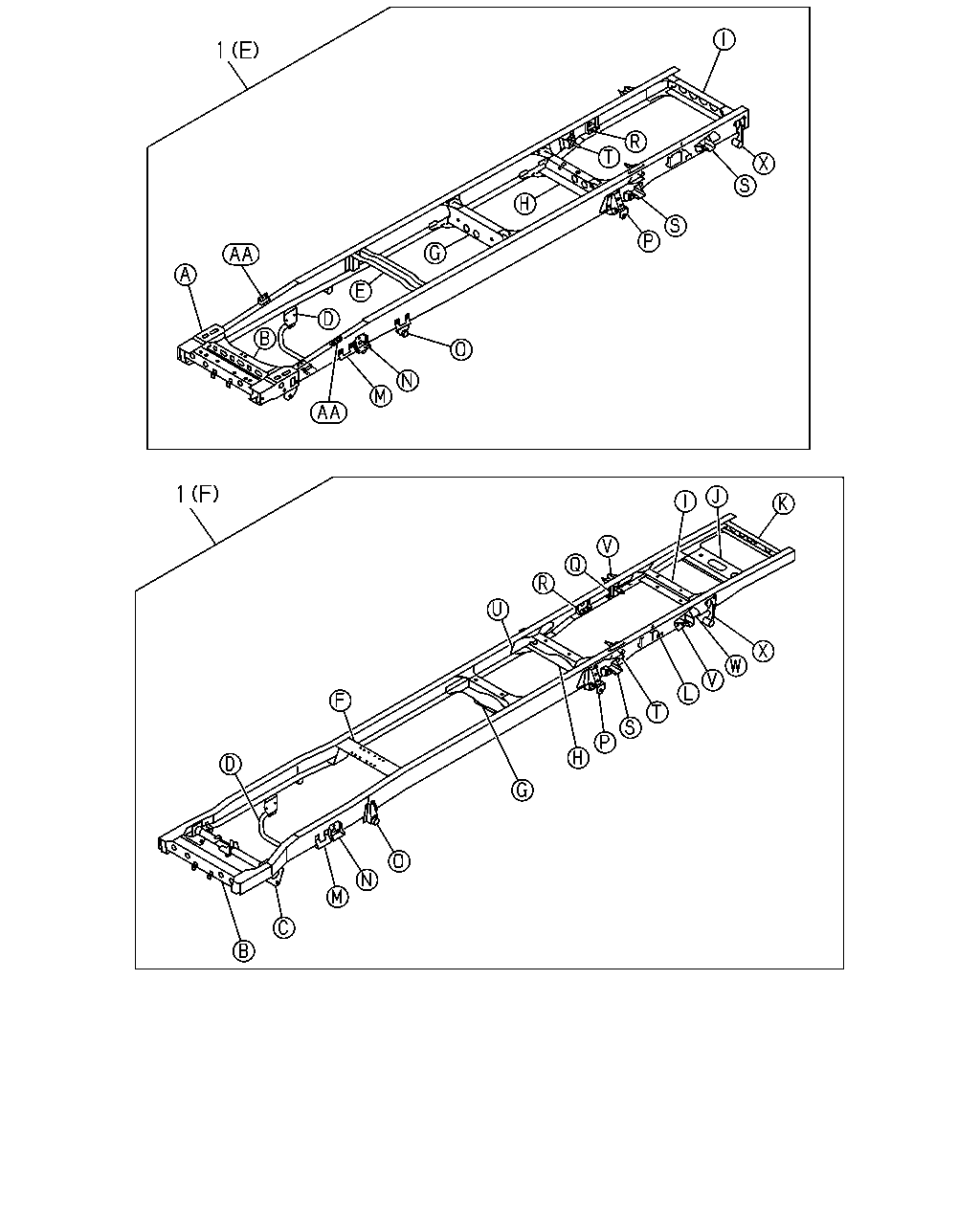

5-01 — FRAME AND OTHER PARTS (#32558) — 264 parça

1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	07.003 FRAME ASM 4HK1-TCC ENG(RDV) M/T MZZ6F(RSR) EXC. FRAME PRESS KOUGYOU<7RZ>, TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98067-975-0	01	1	0612-	●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) FRAME PRESS KOUGYOU<7RZ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98073-760-0	01	1	0704-		●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) FRAME PRESS KOUGYOU<7RZ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98073-755-0	01	1	0704-		●
1	07.003 FRAME ASM 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) FRAME PRESS KOUGYOU<7RZ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (F)	8-98073-769-0	01	1	0704-			●
1	07.003 FRAME ASM 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) FRAME PRESS KOUGYOU<7RZ> EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) (F)	8-98073-768-0	01	1	0704-			●
1	07.003 FRAME ASM 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) FRAME PRESS KOUGYOU<7RZ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (G)	8-98073-772-0	01	1	0704-				●
1	07.003 FRAME ASM 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) FRAME PRESS KOUGYOU<7RZ> EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) (G)	8-98073-771-0	01	1	0704-				●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) EXC. FRAME PRESS KOUGYOU<7RZ>, TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98003-441-0	01	1	0612-		●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME PRESS KOUGYOU<7RZ> (A)	8-98043-403-0	01	1	0612-		●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME PRESS KOUGYOU<7RZ> (B)	8-97376-790-0	01	1	0612-			●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> FRAME PRESS KOUGYOU<7RZ> TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97384-991-2	01	1	0612-			●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> EXC. FRAME PRESS KOUGYOU<7RZ>, TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98003-449-0	01	1	0612-			●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> FRAME PRESS KOUGYOU<7RZ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98003-500-2	01	1	0612-			●
1	07.003 FRAME ASM 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ>,FRAME PRESS KOUGYOU<7RZ>,TRANSMISSION CONTROL-SM OOTHER(8GF) (F)	8-98020-575-0	01	1	0612-			●
1	07.003 FRAME ASM 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ>,FRAME PRESS KOUGYOU<7RZ> (F)	8-98020-580-0	01	1	0612-			●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> FRAME PRESS KOUGYOU<7RZ> TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97384-995-2	01	1	0612-				●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> FRAME PRESS KOUGYOU<7RZ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98003-506-2	01	1	0612-				●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> EXC. FRAME PRESS KOUGYOU<7RZ>, TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98003-463-0	01	1	0612-				●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME PRESS KOUGYOU<7RZ> (B)	8-97376-800-0	01	1	0612-				●
1	07.003 FRAME ASM 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ>,FRAME PRESS KOUGYOU<7RZ>,TRANSMISSION CONTROL-SM OOTHER(8GF) (G)	8-98020-628-0	01	1	0612-				●
1	07.003 FRAME ASM 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ>,FRAME PRESS KOUGYOU<7RZ> (G)	8-98020-633-0	01	1	0612-				●
1	07.003 FRAME ASM 4HK1-TCC ENG(RDV) M/T MZZ6F(RSR) FRAME PRESS KOUGYOU<7RZ> TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-97384-997-2	01	1	0612-	●
1	07.003 FRAME ASM 4HK1-TCC ENG(RDV) M/T MZZ6F(RSR) FRAME PRESS KOUGYOU<7RZ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98003-511-2	01	1	0612-0703	●
1	07.003 FRAME ASM 4HK1-TCC ENG(RDV) M/T MZZ6F(RSR) FRAME PRESS KOUGYOU<7RZ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98073-767-0	01	1	0704-	●
1	07.003 FRAME ASM 4HK1-TCC ENG(RDV) M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME PRESS KOUGYOU<7RZ> (E)	8-97376-804-0	01	1	0612-	●

103 103 142 51 31 31 39 39 31 31 217 101 140 217 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
31	07.428 BUSHING; FRT SPR,RR 07.524	8-97184-699-1	04	1	0612-	●	●	●	●
39	07.112 BRACKET; FRT SPR,RR 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> (B)	8-97079-495-1	02	1	0612-	●	●	●	●
39	07.112 BRACKET; FRT SPR,RR 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ>,FRAME PRESS KOUGYOU<7RZ> (A)	8-97046-283-1	02	1	0612-0703			●	●
39	07.112 BRACKET; FRT SPR,RR 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97046-283-1	02	1	0704-			●	●
51	07.011 BRACKET; ENG SUPPORT,OUTER EXC. FRAME PRESS KOUGYOU<7RZ>	8-97202-415-1	02	1	0612-0703	●	●	●	●
51	07.011 BRACKET; ENG SUPPORT,OUTER 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ>	8-97202-415-1	02	1	0704-	●	●
51	07.011 BRACKET; ENG SUPPORT,OUTER 4JJ1 ENG(LFB) FRAME STRAIGHT TYPE<7KJ>	8-97202-415-1	02	1	0704-			●	●
51	07.011 BRACKET; ENG SUPPORT,OUTER 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97202-415-1	02	1	0704-			●	●
51	07.011 BRACKET; ENG SUPPORT,OUTER 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> EXC. FRAME PRESS KOUGYOU<7RZ>, TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97202-415-1	02	1	0704-			●	●
51	07.011 BRACKET; ENG SUPPORT,OUTER 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> FRAME PRESS KOUGYOU<7RZ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97046-284-1	02	1	0612-0703	●		●	●
51	07.011 BRACKET; ENG SUPPORT,OUTER 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> FRAME PRESS KOUGYOU<7RZ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97046-284-1	02	1	0704-			●	●

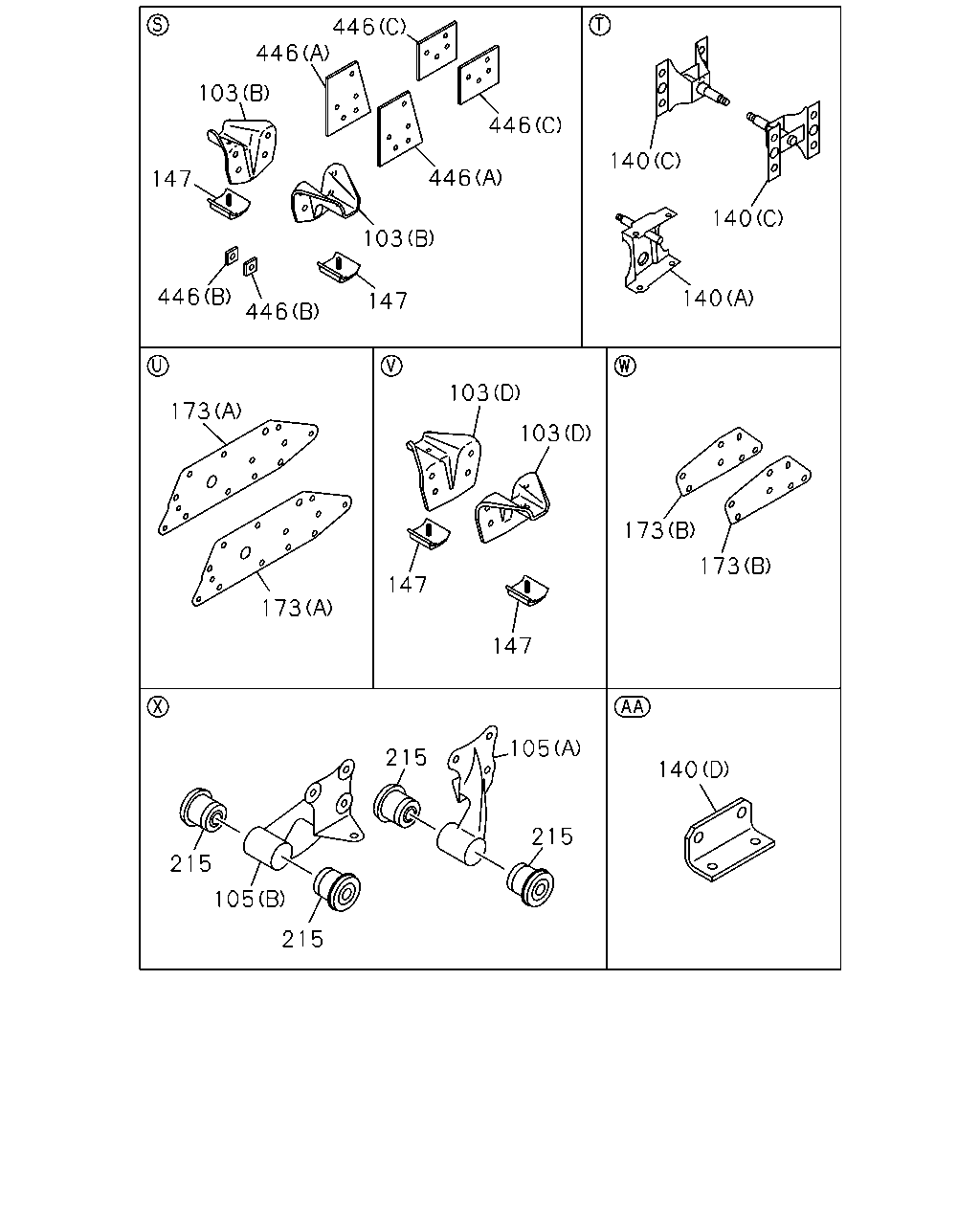

101	07.112 BRACKET; RR SPR,FRT	8-97042-245-1	02	1	0612-	●	●	●	●
103	07.420 STOPPER; SUB SPR 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> 07.524 (C)	8-97079-659-1	02	1	0612-	●	●	●	●
103	07.420 STOPPER; SUB SPR 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> (B)	8-97223-748-0	04	1	0612-	●	●	●	●
103	07.420 STOPPER; SUB SPR 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ>,FRAME PRESS KOUGYOU<7RZ> 07.112 (A)	8-94101-392-0	02	1	0612-0703			●	●
103	07.420 STOPPER; SUB SPR 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> 07.112 (A)	8-94101-392-0	02	1	0704-			●	●
103	07.420 STOPPER; SUB SPR 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ>,FRAME PRESS KOUGYOU<7RZ> (B)	8-97223-748-0	02	1	0612-0703			●	●
103	07.420 STOPPER; SUB SPR 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97223-748-0	02	1	0704-			●	●
103	07.420 STOPPER; SUB SPR 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ>,FRAME PRESS KOUGYOU<7RZ> (D)	8-97223-750-0	02	1	0612-0703			●	●
103	07.420 STOPPER; SUB SPR 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-97223-750-0	02	1	0704-			●	●
140	07.112 BRACKET; S/ABS,RR 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> 07.395 (D)	8-97302-511-0	02	1	0612-	●	●	●	●
140	07.112 BRACKET; S/ABS,RR 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> (C)	8-97080-884-0	02	1	0612-	●	●	●	●
140	07.112 BRACKET; S/ABS,RR 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ>,FRAME PRESS KOUGYOU<7RZ> 07.395 (B)	8-94101-303-0	01	1	0612-0703			●	●
140	07.112 BRACKET; S/ABS,RR 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> 07.395 (B)	8-94101-303-0	01	1	0704-			●	●
140	07.112 BRACKET; S/ABS,RR 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ>,FRAME PRESS KOUGYOU<7RZ> (A)	8-97012-285-0	01	1	0612-0703			●	●
140	07.112 BRACKET; S/ABS,RR 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97012-285-0	01	1	0704-			●	●
142	04.845 BRACKET; FLEX HOSE,BRAKE 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ>,FRAME PRESS KOUGYOU<7RZ>	8-97040-876-3	01	1	0612-0703			●	●
142	04.845 BRACKET; FLEX HOSE,BRAKE 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97040-876-3	01	1	0704-			●	●
217	07.535 BRACKET; HELPER RUBBER,RR SPRING EXC. FRAME PRESS KOUGYOU<7RZ>	8-97202-417-0	02	1	0612-0703	●	●	●	●
217	07.535 BRACKET; HELPER RUBBER,RR SPRING 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ>	8-97202-417-0	02	1	0704-	●	●
217	07.535 BRACKET; HELPER RUBBER,RR SPRING 4JJ1 ENG(LFB) FRAME STRAIGHT TYPE<7KJ>	8-97202-417-0	02	1	0704-			●	●
217	07.535 BRACKET; HELPER RUBBER,RR SPRING 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97202-417-0	02	1	0704-			●	●
217	07.535 BRACKET; HELPER RUBBER,RR SPRING 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> EXC. FRAME PRESS KOUGYOU<7RZ>, TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97202-417-0	02	1	0704-			●	●
217	07.535 BRACKET; HELPER RUBBER,RR SPRING 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> FRAME PRESS KOUGYOU<7RZ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-94258-963-0	02	1	0612-0703	●		●	●
217	07.535 BRACKET; HELPER RUBBER,RR SPRING 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> FRAME PRESS KOUGYOU<7RZ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-94258-963-0	02	1	0704-			●	●

331 331 437 2 2 219 219 17 17 24 20 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	07.010 MEMBER; CROSS,1ST 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> (B)	8-97080-862-4	01	1	0612-	●	●	●	●
2	07.010 MEMBER; CROSS,1ST 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ>,FRAME PRESS KOUGYOU<7RZ> 07.011 (A)	8-97100-041-1	01	1	0612-0703			●	●
2	07.010 MEMBER; CROSS,1ST 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> 07.011 (A)	8-97100-041-1	01	1	0704-			●	●
17	07.039 GUSSET; 1ST C/MBR 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ>,FRAME PRESS KOUGYOU<7RZ>	8-97088-205-1	02	1	0612-0703			●	●
17	07.039 GUSSET; 1ST C/MBR 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97088-205-1	02	1	0704-			●	●
20	07.012 MEMBER; CROSS,2ND 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ>,FRAME PRESS KOUGYOU<7RZ>	8-97351-103-0	01	1	0612-0703			●	●
20	07.012 MEMBER; CROSS,2ND 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97351-103-0	01	1	0704-			●	●
24	07.105 BRACKET; FRT SPR,FRT 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ>,FRAME PRESS KOUGYOU<7RZ>	8-97020-865-1	01	1	0612-0703			●	●
24	07.105 BRACKET; FRT SPR,FRT 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97020-865-1	01	1	0704-			●	●
24	07.105 BRACKET; FRT SPR,FRT 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ>,FRAME PRESS KOUGYOU<7RZ>	8-97020-864-1	01	1	0612-0703			●	●
24	07.105 BRACKET; FRT SPR,FRT 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97020-864-1	01	1	0704-			●	●
219	07.869 BRACKET; BACK BAR,FRT BUMPER,FRA 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ>,FRAME PRESS KOUGYOU<7RZ>	8-94129-569-1	01	1	0612-0703			●	●
219	07.869 BRACKET; BACK BAR,FRT BUMPER,FRA 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ>	8-94129-569-1	01	1	0704-			●	●
219	07.869 BRACKET; BACK BAR,FRT BUMPER,FRA 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ>,FRAME PRESS KOUGYOU<7RZ>	8-94129-568-1	01	1	0612-0703			●	●
219	07.869 BRACKET; BACK BAR,FRT BUMPER,FRA 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ>	8-94129-568-1	01	1	0704-			●	●
331	07.039 BRACKET; STRG UNIT 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ>	8-97096-865-1	01	1	0612-	●	●	●	●
331	07.039 BRACKET; STRG UNIT 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> 07.112	8-97096-864-0	01	1	0612-	●	●	●	●
437	07.010 MEMBER; CROSS,BUMPER 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> 07.011	8-97100-041-1	01	1	0612-	●	●	●	●

1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	07.003 FRAME ASM 4HK1-TCC ENG(RDV) M/T MZZ6F(RSR) EXC. FRAME PRESS KOUGYOU<7RZ>, TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98067-975-0	01	1	0612-	●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) FRAME PRESS KOUGYOU<7RZ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98073-760-0	01	1	0704-		●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) FRAME PRESS KOUGYOU<7RZ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98073-755-0	01	1	0704-		●
1	07.003 FRAME ASM 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) FRAME PRESS KOUGYOU<7RZ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (F)	8-98073-769-0	01	1	0704-			●
1	07.003 FRAME ASM 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) FRAME PRESS KOUGYOU<7RZ> EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) (F)	8-98073-768-0	01	1	0704-			●
1	07.003 FRAME ASM 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) FRAME PRESS KOUGYOU<7RZ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (G)	8-98073-772-0	01	1	0704-				●
1	07.003 FRAME ASM 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) FRAME PRESS KOUGYOU<7RZ> EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) (G)	8-98073-771-0	01	1	0704-				●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) EXC. FRAME PRESS KOUGYOU<7RZ>, TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98003-441-0	01	1	0612-		●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME PRESS KOUGYOU<7RZ> (A)	8-98043-403-0	01	1	0612-		●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME PRESS KOUGYOU<7RZ> (B)	8-97376-790-0	01	1	0612-			●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> FRAME PRESS KOUGYOU<7RZ> TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97384-991-2	01	1	0612-			●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> EXC. FRAME PRESS KOUGYOU<7RZ>, TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98003-449-0	01	1	0612-			●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> FRAME PRESS KOUGYOU<7RZ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98003-500-2	01	1	0612-			●
1	07.003 FRAME ASM 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ>,FRAME PRESS KOUGYOU<7RZ>,TRANSMISSION CONTROL-SM OOTHER(8GF) (F)	8-98020-575-0	01	1	0612-			●
1	07.003 FRAME ASM 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ>,FRAME PRESS KOUGYOU<7RZ> (F)	8-98020-580-0	01	1	0612-			●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> FRAME PRESS KOUGYOU<7RZ> TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97384-995-2	01	1	0612-				●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> FRAME PRESS KOUGYOU<7RZ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98003-506-2	01	1	0612-				●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> EXC. FRAME PRESS KOUGYOU<7RZ>, TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98003-463-0	01	1	0612-				●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME PRESS KOUGYOU<7RZ> (B)	8-97376-800-0	01	1	0612-				●
1	07.003 FRAME ASM 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ>,FRAME PRESS KOUGYOU<7RZ>,TRANSMISSION CONTROL-SM OOTHER(8GF) (G)	8-98020-628-0	01	1	0612-				●
1	07.003 FRAME ASM 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ>,FRAME PRESS KOUGYOU<7RZ> (G)	8-98020-633-0	01	1	0612-				●
1	07.003 FRAME ASM 4HK1-TCC ENG(RDV) M/T MZZ6F(RSR) FRAME PRESS KOUGYOU<7RZ> TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-97384-997-2	01	1	0612-	●
1	07.003 FRAME ASM 4HK1-TCC ENG(RDV) M/T MZZ6F(RSR) FRAME PRESS KOUGYOU<7RZ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98003-511-2	01	1	0612-0703	●
1	07.003 FRAME ASM 4HK1-TCC ENG(RDV) M/T MZZ6F(RSR) FRAME PRESS KOUGYOU<7RZ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98073-767-0	01	1	0704-	●
1	07.003 FRAME ASM 4HK1-TCC ENG(RDV) M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME PRESS KOUGYOU<7RZ> (E)	8-97376-804-0	01	1	0612-	●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	07.003 FRAME ASM 4HK1-TCC ENG(RDV) M/T MZZ6F(RSR) EXC. FRAME PRESS KOUGYOU<7RZ>, TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98067-975-0	01	1	0612-	●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) FRAME PRESS KOUGYOU<7RZ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98073-760-0	01	1	0704-		●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) FRAME PRESS KOUGYOU<7RZ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98073-755-0	01	1	0704-		●
1	07.003 FRAME ASM 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) FRAME PRESS KOUGYOU<7RZ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (F)	8-98073-769-0	01	1	0704-			●
1	07.003 FRAME ASM 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) FRAME PRESS KOUGYOU<7RZ> EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) (F)	8-98073-768-0	01	1	0704-			●
1	07.003 FRAME ASM 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) FRAME PRESS KOUGYOU<7RZ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (G)	8-98073-772-0	01	1	0704-				●
1	07.003 FRAME ASM 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) FRAME PRESS KOUGYOU<7RZ> EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) (G)	8-98073-771-0	01	1	0704-				●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) EXC. FRAME PRESS KOUGYOU<7RZ>, TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98003-441-0	01	1	0612-		●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME PRESS KOUGYOU<7RZ> (A)	8-98043-403-0	01	1	0612-		●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME PRESS KOUGYOU<7RZ> (B)	8-97376-790-0	01	1	0612-			●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> FRAME PRESS KOUGYOU<7RZ> TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97384-991-2	01	1	0612-			●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> EXC. FRAME PRESS KOUGYOU<7RZ>, TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98003-449-0	01	1	0612-			●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> FRAME PRESS KOUGYOU<7RZ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98003-500-2	01	1	0612-			●
1	07.003 FRAME ASM 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ>,FRAME PRESS KOUGYOU<7RZ>,TRANSMISSION CONTROL-SM OOTHER(8GF) (F)	8-98020-575-0	01	1	0612-			●
1	07.003 FRAME ASM 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ>,FRAME PRESS KOUGYOU<7RZ> (F)	8-98020-580-0	01	1	0612-			●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> FRAME PRESS KOUGYOU<7RZ> TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97384-995-2	01	1	0612-				●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> FRAME PRESS KOUGYOU<7RZ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98003-506-2	01	1	0612-				●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> EXC. FRAME PRESS KOUGYOU<7RZ>, TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98003-463-0	01	1	0612-				●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME PRESS KOUGYOU<7RZ> (B)	8-97376-800-0	01	1	0612-				●
1	07.003 FRAME ASM 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ>,FRAME PRESS KOUGYOU<7RZ>,TRANSMISSION CONTROL-SM OOTHER(8GF) (G)	8-98020-628-0	01	1	0612-				●
1	07.003 FRAME ASM 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ>,FRAME PRESS KOUGYOU<7RZ> (G)	8-98020-633-0	01	1	0612-				●
1	07.003 FRAME ASM 4HK1-TCC ENG(RDV) M/T MZZ6F(RSR) FRAME PRESS KOUGYOU<7RZ> TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-97384-997-2	01	1	0612-	●
1	07.003 FRAME ASM 4HK1-TCC ENG(RDV) M/T MZZ6F(RSR) FRAME PRESS KOUGYOU<7RZ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98003-511-2	01	1	0612-0703	●
1	07.003 FRAME ASM 4HK1-TCC ENG(RDV) M/T MZZ6F(RSR) FRAME PRESS KOUGYOU<7RZ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98073-767-0	01	1	0704-	●
1	07.003 FRAME ASM 4HK1-TCC ENG(RDV) M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME PRESS KOUGYOU<7RZ> (E)	8-97376-804-0	01	1	0612-	●

42 42 34 372 34 372 188 74 344 74 74 344 74

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D

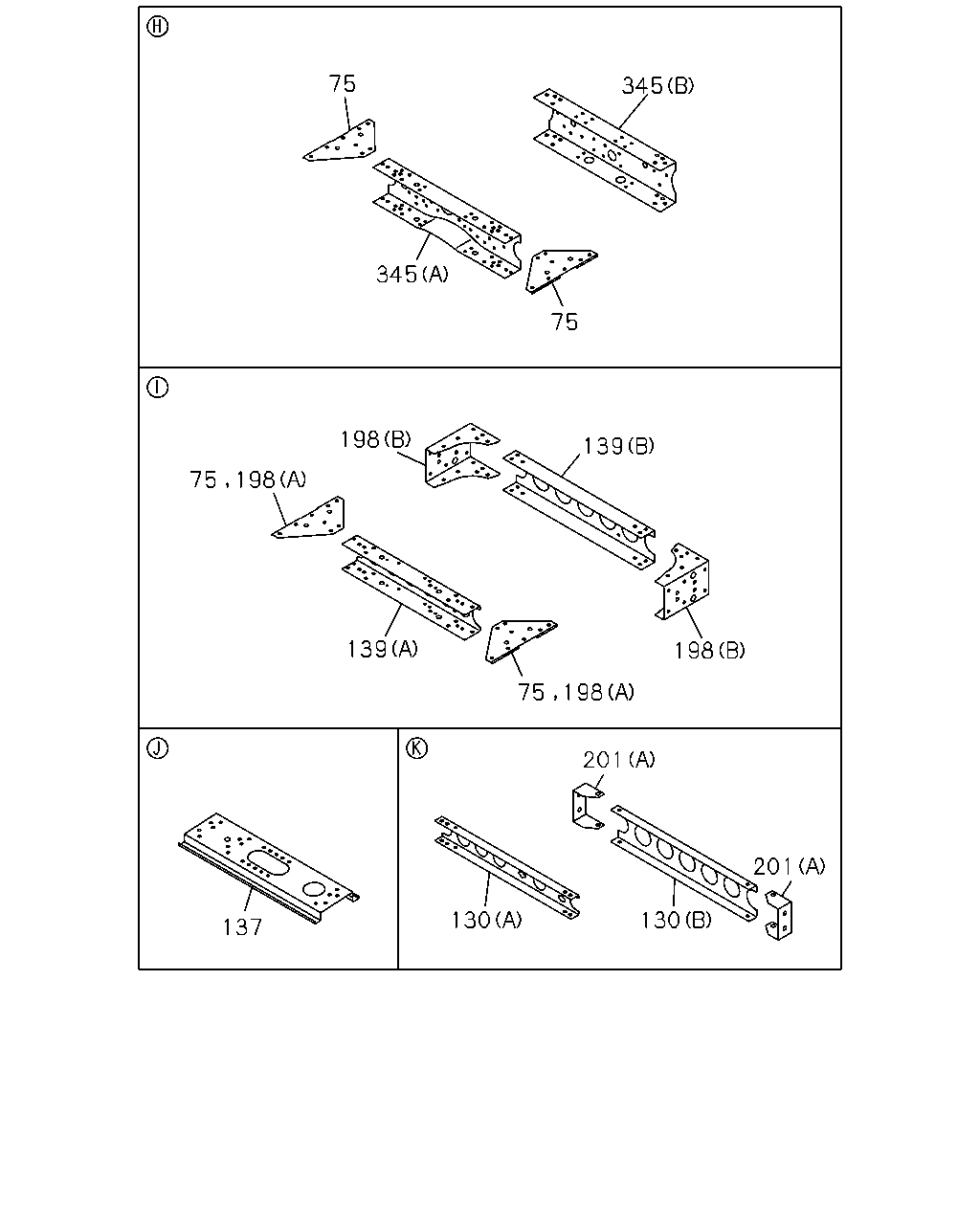

34	07.012 MEMBER; CROSS,3RD 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> 07.010 (B)	8-97096-875-2	01	1	0612-	●	●	●	●
34	07.012 MEMBER; CROSS,3RD 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ>,FRAME PRESS KOUGYOU<7RZ> (A)	8-97042-818-0	01	1	0612-0703			●	●
34	07.012 MEMBER; CROSS,3RD 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97042-818-0	01	1	0704-			●	●
42	07.011 MEMBER; CROSS,ENG MTG 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> (B)	8-97080-868-0	01	1	0612-	●	●	●	●
42	07.011 MEMBER; CROSS,ENG MTG 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ>,FRAME PRESS KOUGYOU<7RZ> (A)	8-98011-486-1	01	1	0612-0703			●	●
42	07.011 MEMBER; CROSS,ENG MTG 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98011-486-1	01	1	0704-			●	●
74	07.039 GUSSET; 4TH C/MBR 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ>,FRAME PRESS KOUGYOU<7RZ> (B) RH UPPER,LH LOWER	8-97083-107-1	02	1	0612-0703			●	●
74	07.039 GUSSET; 4TH C/MBR 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> (B) RH UPPER,LH LOWER	8-97083-107-1	02	1	0704-			●	●
74	07.039 GUSSET; 4TH C/MBR 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ>,FRAME PRESS KOUGYOU<7RZ> (B) RH LOWER,LH UPPER	8-97083-108-1	02	1	0612-0703			●	●
74	07.039 GUSSET; 4TH C/MBR 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> (B) RH LOWER,LH UPPER	8-97083-108-1	02	1	0704-			●	●
74	07.039 GUSSET; 4TH C/MBR 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> (A) UPPER	8-97080-878-0	01	1	0612-	●		●	●
74	07.039 GUSSET; 4TH C/MBR 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> (A) LOWER	8-97118-876-1	01	1	0612-	●		●	●
74	07.039 GUSSET; 4TH C/MBR 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> (A) UPPER	8-97109-777-0	01	1	0612-	●		●	●
74	07.039 GUSSET; 4TH C/MBR 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> (A) LOWER	8-97118-875-1	01	1	0612-	●		●	●
188	07.039 BRACKET; SUPPORT,CTR BRG 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ>,FRAME PRESS KOUGYOU<7RZ>	8-97083-157-1	01	1	0612-0703			●	●
188	07.039 BRACKET; SUPPORT,CTR BRG 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97083-157-1	01	1	0704-			●	●
344	07.012 MEMBER; CROSS,4TH 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ>,FRAME PRESS KOUGYOU<7RZ> (A)	8-97083-106-3	01	1	0612-0703			●	●
344	07.012 MEMBER; CROSS,4TH 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97083-106-3	01	1	0704-			●	●
344	07.012 MEMBER; CROSS,4TH 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> (B)	8-97175-993-3	01	1	0612-	●		●	●
372	07.039 BRACKET 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ>	8-97139-128-0	02	1	0612-	●	●	●	●

1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	07.003 FRAME ASM 4HK1-TCC ENG(RDV) M/T MZZ6F(RSR) EXC. FRAME PRESS KOUGYOU<7RZ>, TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98067-975-0	01	1	0612-	●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) FRAME PRESS KOUGYOU<7RZ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98073-760-0	01	1	0704-		●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) FRAME PRESS KOUGYOU<7RZ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98073-755-0	01	1	0704-		●
1	07.003 FRAME ASM 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) FRAME PRESS KOUGYOU<7RZ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (F)	8-98073-769-0	01	1	0704-			●
1	07.003 FRAME ASM 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) FRAME PRESS KOUGYOU<7RZ> EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) (F)	8-98073-768-0	01	1	0704-			●
1	07.003 FRAME ASM 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) FRAME PRESS KOUGYOU<7RZ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (G)	8-98073-772-0	01	1	0704-				●
1	07.003 FRAME ASM 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) FRAME PRESS KOUGYOU<7RZ> EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) (G)	8-98073-771-0	01	1	0704-				●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) EXC. FRAME PRESS KOUGYOU<7RZ>, TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98003-441-0	01	1	0612-		●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME PRESS KOUGYOU<7RZ> (A)	8-98043-403-0	01	1	0612-		●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME PRESS KOUGYOU<7RZ> (B)	8-97376-790-0	01	1	0612-			●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> FRAME PRESS KOUGYOU<7RZ> TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97384-991-2	01	1	0612-			●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> EXC. FRAME PRESS KOUGYOU<7RZ>, TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98003-449-0	01	1	0612-			●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> FRAME PRESS KOUGYOU<7RZ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98003-500-2	01	1	0612-			●
1	07.003 FRAME ASM 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ>,FRAME PRESS KOUGYOU<7RZ>,TRANSMISSION CONTROL-SM OOTHER(8GF) (F)	8-98020-575-0	01	1	0612-			●
1	07.003 FRAME ASM 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ>,FRAME PRESS KOUGYOU<7RZ> (F)	8-98020-580-0	01	1	0612-			●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> FRAME PRESS KOUGYOU<7RZ> TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97384-995-2	01	1	0612-				●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> FRAME PRESS KOUGYOU<7RZ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98003-506-2	01	1	0612-				●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> EXC. FRAME PRESS KOUGYOU<7RZ>, TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98003-463-0	01	1	0612-				●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME PRESS KOUGYOU<7RZ> (B)	8-97376-800-0	01	1	0612-				●
1	07.003 FRAME ASM 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ>,FRAME PRESS KOUGYOU<7RZ>,TRANSMISSION CONTROL-SM OOTHER(8GF) (G)	8-98020-628-0	01	1	0612-				●
1	07.003 FRAME ASM 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ>,FRAME PRESS KOUGYOU<7RZ> (G)	8-98020-633-0	01	1	0612-				●
1	07.003 FRAME ASM 4HK1-TCC ENG(RDV) M/T MZZ6F(RSR) FRAME PRESS KOUGYOU<7RZ> TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-97384-997-2	01	1	0612-	●
1	07.003 FRAME ASM 4HK1-TCC ENG(RDV) M/T MZZ6F(RSR) FRAME PRESS KOUGYOU<7RZ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98003-511-2	01	1	0612-0703	●
1	07.003 FRAME ASM 4HK1-TCC ENG(RDV) M/T MZZ6F(RSR) FRAME PRESS KOUGYOU<7RZ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98073-767-0	01	1	0704-	●
1	07.003 FRAME ASM 4HK1-TCC ENG(RDV) M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME PRESS KOUGYOU<7RZ> (E)	8-97376-804-0	01	1	0612-	●

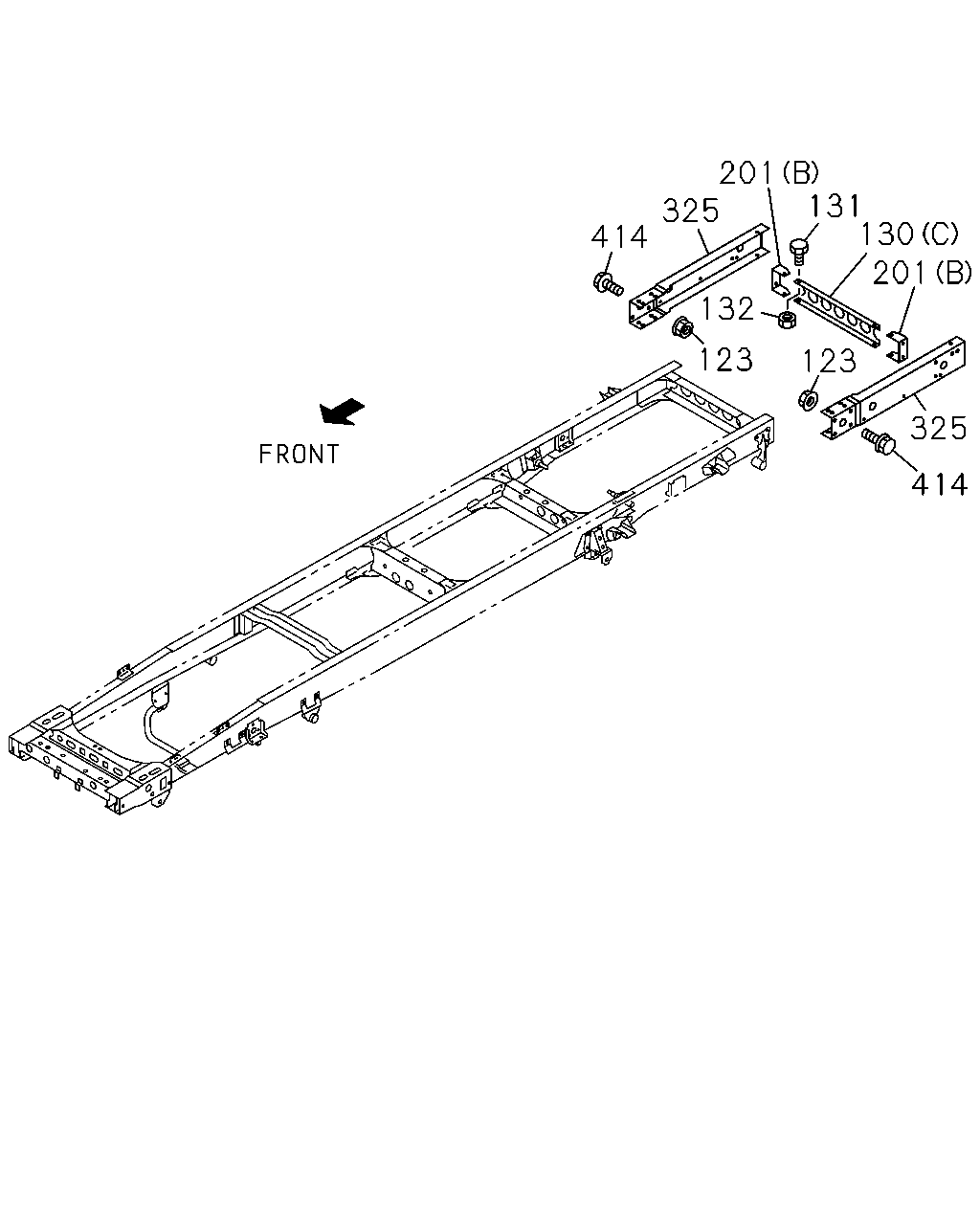

201 325 131 414 130 201 132 123 123 325 414

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	C	D
123	07.039 NUT 07.395 M12	8-97360-126-0	16	1	0612-	●
130	07.014 MEMBER; CROSS,END 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> (B)	8-97080-872-0	01	1	0612-		●	●
130	07.014 MEMBER; CROSS,END 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ>,FRAME PRESS KOUGYOU<7RZ> (A)	8-97179-414-0	01	1	0612-0703		●	●
130	07.014 MEMBER; CROSS,END 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97179-414-0	01	1	0704-		●	●
130	07.014 MEMBER; CROSS,END (C)	8-97205-394-0	01	1	0612-	●
131	07.014 BOLT; END C/MBR 07.833 M10X25 FLANGE	0-28661-025-0	08	1	0612-	●
132	07.014 NUT; END C/MBR 03.162 M10 FLANGE	0-91180-110-0	08	1	0612-	●
201	07.039 GUSSET; C/MBR 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> (A)	8-97096-871-0	02	1	0612-0709		●	●
201	07.039 GUSSET; C/MBR 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> (A)	8-97096-871-0	02	1	0710-		●	●
201	07.039 GUSSET; C/MBR (A)	8-97096-871-0	02	1	0710-	●
201	07.039 GUSSET; C/MBR (A)	8-97096-871-0	04	1	0612-0709	●
201	07.039 GUSSET; C/MBR (B)	8-97128-805-0	02	1	0612-	●
325	07.039 EXTENSION; FRAME	8-97222-892-1	01	1	0612-	●
325	07.039 EXTENSION; FRAME	8-97222-891-1	01	1	0612-	●
414	07.011 BOLT 06.509 M12X30 FLANGE	0-28661-230-0	12	1	0612-	●

446 446 103 446 140 446 147 140 103 446 140 147 446 103 173 103 173 173 147 173 147 215 140 215 215 105 215

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
103	07.420 STOPPER; SUB SPR 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> 07.524 (C)	8-97079-659-1	02	1	0612-	●	●	●	●
103	07.420 STOPPER; SUB SPR 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> (B)	8-97223-748-0	04	1	0612-	●	●	●	●
103	07.420 STOPPER; SUB SPR 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ>,FRAME PRESS KOUGYOU<7RZ> 07.112 (A)	8-94101-392-0	02	1	0612-0703			●	●
103	07.420 STOPPER; SUB SPR 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> 07.112 (A)	8-94101-392-0	02	1	0704-			●	●
103	07.420 STOPPER; SUB SPR 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ>,FRAME PRESS KOUGYOU<7RZ> (B)	8-97223-748-0	02	1	0612-0703			●	●
103	07.420 STOPPER; SUB SPR 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97223-748-0	02	1	0704-			●	●
103	07.420 STOPPER; SUB SPR 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ>,FRAME PRESS KOUGYOU<7RZ> (D)	8-97223-750-0	02	1	0612-0703			●	●
103	07.420 STOPPER; SUB SPR 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-97223-750-0	02	1	0704-			●	●
105	07.112 BRACKET; RR SPR,RR (B)	8-94459-512-1	01	1	0612-	●	●	●	●
105	07.112 BRACKET; RR SPR,RR (A)	8-94459-511-1	01	1	0612-	●	●	●	●
140	07.112 BRACKET; S/ABS,RR 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> 07.395 (D)	8-97302-511-0	02	1	0612-	●	●	●	●
140	07.112 BRACKET; S/ABS,RR 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> (C)	8-97080-884-0	02	1	0612-	●	●	●	●
140	07.112 BRACKET; S/ABS,RR 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ>,FRAME PRESS KOUGYOU<7RZ> 07.395 (B)	8-94101-303-0	01	1	0612-0703			●	●
140	07.112 BRACKET; S/ABS,RR 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> 07.395 (B)	8-94101-303-0	01	1	0704-			●	●
140	07.112 BRACKET; S/ABS,RR 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ>,FRAME PRESS KOUGYOU<7RZ> (A)	8-97012-285-0	01	1	0612-0703			●	●
140	07.112 BRACKET; S/ABS,RR 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97012-285-0	01	1	0704-			●	●
147	07.535 RUBBER; SUB SPRING	8-97254-387-0	04	1	0612-	●	●	●	●
173	07.112 STIFFENER; RR SPRING 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ>,FRAME PRESS KOUGYOU<7RZ> (B)	8-94372-324-1	02	1	0612-0703			●	●
173	07.112 STIFFENER; RR SPRING 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-94372-324-1	02	1	0704-			●	●
173	07.112 STIFFENER; RR SPRING 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ>,FRAME PRESS KOUGYOU<7RZ> (A)	8-94408-191-2	01	1	0612-0703			●	●
173	07.112 STIFFENER; RR SPRING 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-94408-191-2	01	1	0704-			●	●
173	07.112 STIFFENER; RR SPRING 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ>,FRAME PRESS KOUGYOU<7RZ> (A)	8-94403-508-2	01	1	0612-0703			●	●
173	07.112 STIFFENER; RR SPRING 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-94403-508-2	01	1	0704-			●	●
215	07.524 BUSHING; BRKT,RR SPRING	8-97184-699-1	04	1	0612-	●	●	●	●
446	07.112 STIFFENER; SPRING STOPPER 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) EXC. FRAME PRESS KOUGYOU<7RZ> (B) REAR	8-97122-173-0	02	1	0612-0703		●
446	07.112 STIFFENER; SPRING STOPPER 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) (B) REAR	8-97122-173-0	02	1	0704-		●
446	07.112 STIFFENER; SPRING STOPPER 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> (A) FRONT	8-97180-433-0	02	1	0612-	●	●	●	●
446	07.112 STIFFENER; SPRING STOPPER 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> (C)	8-97170-790-0	02	1	0612-	●		●	●

75 345 345 75 198 139 139 198 201 201 130 130 137 75 198 75 198

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
75	07.039 GUSSET; 5TH C/MBR 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> LOWER	8-97080-878-0	01	1	0612-	●	●	●	●
75	07.039 GUSSET; 5TH C/MBR 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> UPPER	8-97118-876-1	01	1	0612-	●	●	●	●
75	07.039 GUSSET; 5TH C/MBR 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> LOWER	8-97109-777-0	01	1	0612-	●	●	●	●
75	07.039 GUSSET; 5TH C/MBR 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> UPPER	8-97118-875-1	01	1	0612-	●	●	●	●
75	07.039 GUSSET; 5TH C/MBR 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ>,FRAME PRESS KOUGYOU<7RZ> RH-UPPER,LH-LOWER	8-94258-068-1	02	1	0612-0703			●	●
75	07.039 GUSSET; 5TH C/MBR 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> RH-UPPER,LH-LOWER	8-94258-068-1	02	1	0704-			●	●
75	07.039 GUSSET; 5TH C/MBR 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ>,FRAME PRESS KOUGYOU<7RZ> RH-LOWER,LH-UPPER	8-94258-069-1	02	1	0612-0703			●	●
75	07.039 GUSSET; 5TH C/MBR 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> RH-LOWER,LH-UPPER	8-94258-069-1	02	1	0704-			●	●
130	07.014 MEMBER; CROSS,END 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> (B)	8-97080-872-0	01	1	0612-			●	●
130	07.014 MEMBER; CROSS,END 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ>,FRAME PRESS KOUGYOU<7RZ> (A)	8-97179-414-0	01	1	0612-0703			●	●
130	07.014 MEMBER; CROSS,END 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97179-414-0	01	1	0704-			●	●
130	07.014 MEMBER; CROSS,END (C)	8-97205-394-0	01	1	0612-	●
137	07.629 BRACKET; SPARE TIRE 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ>,FRAME PRESS KOUGYOU<7RZ>	8-97076-885-1	01	1	0612-0703			●	●
137	07.629 BRACKET; SPARE TIRE 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97076-885-1	01	1	0704-			●	●
139	07.012 MEMBER; CROSS,6TH 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> (B)	8-97107-384-0	01	1	0612-	●	●	●	●
139	07.012 MEMBER; CROSS,6TH 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ>,FRAME PRESS KOUGYOU<7RZ> (A)	8-94101-290-1	01	1	0612-0703			●	●
139	07.012 MEMBER; CROSS,6TH 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-94101-290-1	01	1	0704-			●	●
198	07.039 GUSSET; 6TH C/MBR 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> (B)	8-97080-882-1	02	1	0612-	●	●	●	●
198	07.039 GUSSET; 6TH C/MBR 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ>,FRAME PRESS KOUGYOU<7RZ> (A) RH-LOWER,LH-UPPER	8-94258-068-1	02	1	0612-0703			●	●
198	07.039 GUSSET; 6TH C/MBR 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> (A) RH-LOWER,LH-UPPER	8-94258-068-1	02	1	0704-			●	●
198	07.039 GUSSET; 6TH C/MBR 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ>,FRAME PRESS KOUGYOU<7RZ> (A) RH-UPPER,LH-LOWER	8-94258-069-1	02	1	0612-0703			●	●
198	07.039 GUSSET; 6TH C/MBR 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> (A) RH-UPPER,LH-LOWER	8-94258-069-1	02	1	0704-			●	●
201	07.039 GUSSET; C/MBR 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> (A)	8-97096-871-0	02	1	0612-0709			●	●
201	07.039 GUSSET; C/MBR 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> (A)	8-97096-871-0	02	1	0710-			●	●
201	07.039 GUSSET; C/MBR (A)	8-97096-871-0	02	1	0710-	●
201	07.039 GUSSET; C/MBR (A)	8-97096-871-0	04	1	0612-0709	●
201	07.039 GUSSET; C/MBR (B)	8-97128-805-0	02	1	0612-	●
345	07.012 MEMBER; CROSS,5TH 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> (B)	8-97175-993-3	01	1	0612-	●	●	●	●
345	07.012 MEMBER; CROSS,5TH 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ>,FRAME PRESS KOUGYOU<7RZ> (A)	8-97095-654-1	01	1	0612-0703			●	●
345	07.012 MEMBER; CROSS,5TH 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97095-654-1	01	1	0704-			●	●

376 376 376 376 376 376 376 376 376 376 376 376 376 376 376 376 176 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
118	07.529 NUT; STOPPER M8 LOCK NUT	0-91370-008-0	02	1	0612-	●	●	●	●
176	04.085 BOLT; C/MBR,ENG MTG 09.171 M10X25 FLANGE	0-28051-025-0	08	1	0612-	●	●	●	●
376	07.039 RIVET; FRAME 07.011 (A) D8X22 TAPER END	9-06750-822-0	AR	1	0612-	●	●	●	●
376	07.039 RIVET; FRAME 07.395 (B) D8X26 TAPER END	9-06750-826-0	AR	1	0612-	●	●	●	●
376	07.039 RIVET; FRAME 07.011 (C) D8X30 TAPER END	9-06750-830-0	AR	1	0612-	●	●	●	●
376	07.039 RIVET; FRAME (D) D10X24 TAPER END	9-06751-024-0	AR	1	0612-	●	●	●	●
376	07.039 RIVET; FRAME (E) D10X26 TAPER END	9-06751-026-0	AR	1	0612-	●	●	●	●
376	07.039 RIVET; FRAME (F) D10X28 TAPER END	9-06751-028-0	AR	1	0612-	●	●	●	●
376	07.039 RIVET; FRAME (G) D10X30 TAPER END	9-06751-030-0	AR	1	0612-	●	●	●	●
376	07.039 RIVET; FRAME (H) D10X32 TAPER END	9-06751-032-0	AR	1	0612-	●	●	●	●
376	07.039 RIVET; FRAME (I) D10X36 TAPER END	9-06751-036-0	AR	1	0612-	●	●	●	●
376	07.039 RIVET; FRAME (J) D11X26 TAPER END	9-06751-126-0	AR	1	0612-	●	●	●	●
376	07.039 RIVET; FRAME (K) D11X30 TAPER END	9-06751-130-0	AR	1	0612-	●	●	●	●
376	07.039 RIVET; FRAME 07.105 (L) D12X30 TAPER END	9-06751-230-0	AR	1	0612-	●	●	●	●
376	07.039 RIVET; FRAME 07.535 (M) D12X34 TAPER END	9-06751-234-0	AR	1	0612-	●	●	●	●
376	07.039 RIVET; FRAME 07.428 (N) D12X36 TAPER END	9-06751-236-0	AR	1	0612-	●	●	●	●
376	07.039 RIVET; FRAME 07.112 (O) D12X38 TAPER END	9-06751-238-0	AR	1	0612-	●	●	●	●
376	07.039 RIVET; FRAME 07.112 (P) D12X40 TAPER END	9-06751-240-0	AR	1	0612-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
