4-65B — REAR LEAF SPRING (#32556) — 48 parça

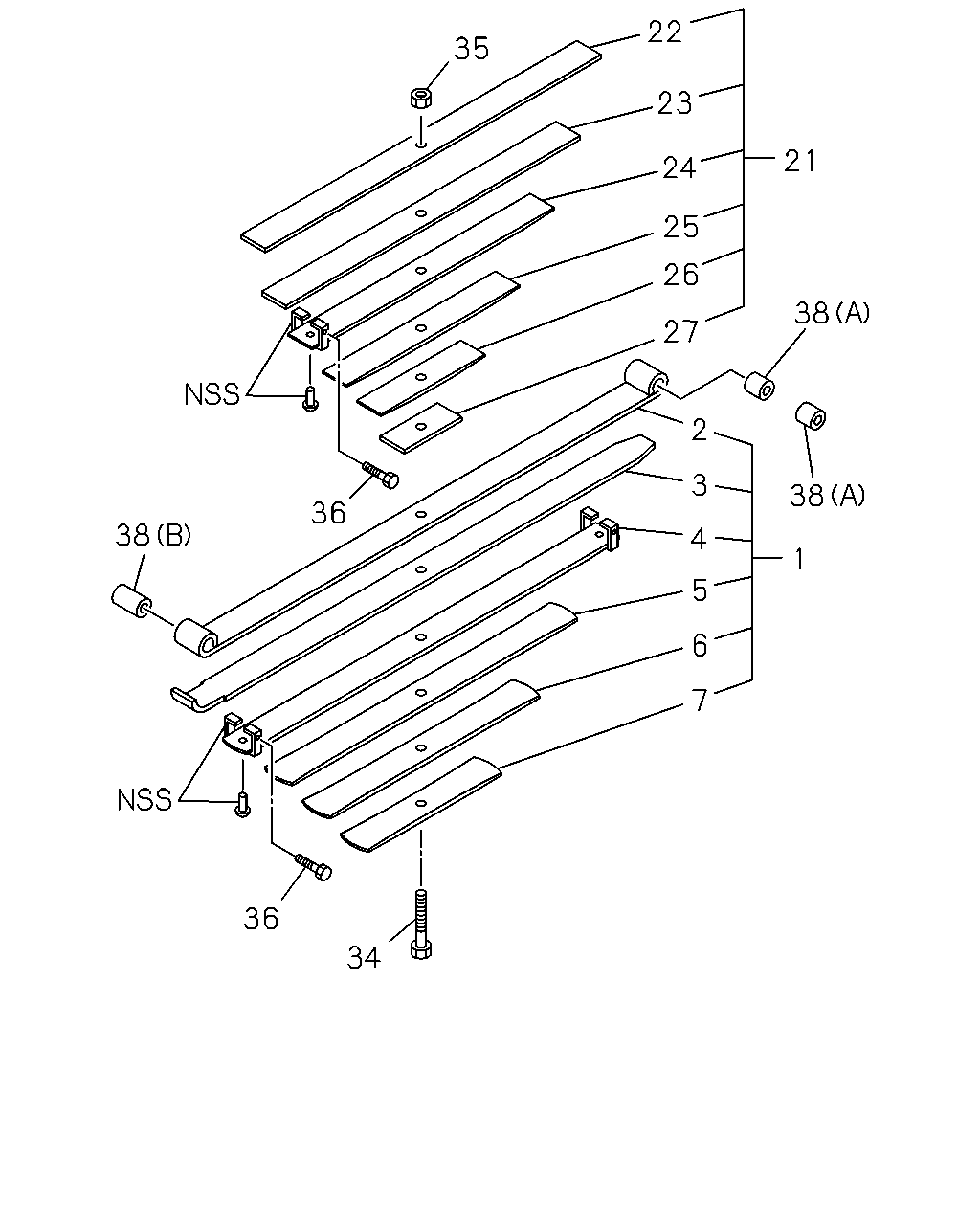

çizim 58709
22 35 23 21 24 25 26 38 27 2 3 38 36 38 4 1 5 6 7 36 34
BalonParca AdiParca NoAdetTipApplied Date
1 07.503 SPRING ASM; LEAF,RR MAIN
ASM PART: B = 8-97122-382-0, 97122382 		8-97135-077-0 01 1 -
1 07.503 SPRING ASM; LEAF,RR MAIN
ASM PART: A = 8-97096-576-0, 97096576 		8-97135-465-0 01 1 -
1 07.503 SPRING ASM; LEAF,RR MAIN
ASM PART: C = 8-97174-307-0, 97174307 		8-97178-589-0 01 1 -
2 07.505 SPRING; LEAF,NO 1,RR MAIN
ASM PART: B = 8-97122-382-0, 97122382 		8-97130-493-0 01 1 -
2 07.505 SPRING; LEAF,NO 1,RR MAIN
ASM PART: A = 8-97096-576-0, 97096576 		8-97135-459-0 01 1 -
2 07.505 SPRING; LEAF,NO 1,RR MAIN
ASM PART: C = 8-97174-307-0, 97174307 		8-97178-592-0 01 1 -
3 07.505 SPRING; LEAF,NO 2,RR MAIN
ASM PART: B = 8-97122-382-0, 97122382 		8-97130-494-0 01 1 -
3 07.505 SPRING; LEAF,NO 2,RR MAIN
ASM PART: A = 8-97096-576-0, 97096576 		8-97135-460-0 01 1 -
3 07.505 SPRING; LEAF,NO 2,RR MAIN
ASM PART: C = 8-97174-307-0, 97174307 		8-97178-593-0 01 1 -
4 07.505 SPRING; LEAF,NO 3,RR MAIN
ASM PART: B = 8-97122-382-0, 97122382 		8-97130-495-0 01 1 -
4 07.505 SPRING; LEAF,NO 3,RR MAIN
ASM PART: A = 8-97096-576-0, 97096576 		8-97135-461-0 01 1 -
4 07.505 SPRING; LEAF,NO 3,RR MAIN
ASM PART: C = 8-97174-307-0, 97174307 		8-97178-594-0 01 1 -
5 07.505 SPRING; LEAF,NO 4,RR MAIN
ASM PART: B = 8-97122-382-0, 97122382 		8-97130-496-0 01 1 -
5 07.505 SPRING; LEAF,NO 4,RR MAIN
ASM PART: A = 8-97096-576-0, 97096576 		8-97135-462-0 01 1 -
5 07.505 SPRING; LEAF,NO 4,RR MAIN
ASM PART: C = 8-97174-307-0, 97174307 		8-97178-595-0 01 1 -
6 07.505 SPRING; LEAF,NO 5,RR MAIN
ASM PART: B = 8-97122-382-0, 97122382 		8-97130-497-0 01 1 -
6 07.505 SPRING; LEAF,NO 5,RR MAIN
ASM PART: A = 8-97096-576-0, 97096576 		8-97135-463-0 01 1 -
6 07.505 SPRING; LEAF,NO 5,RR MAIN
ASM PART: C = 8-97174-307-0, 97174307 		8-97178-596-0 01 1 -
7 07.505 SPRING; LEAF,NO 6,RR MAIN
ASM PART: B = 8-97122-382-0, 97122382 		8-97130-498-0 01 1 -
7 07.505 SPRING; LEAF,NO 6,RR MAIN
ASM PART: A = 8-97096-576-0, 97096576 		8-97135-464-0 01 1 -
7 07.505 SPRING; LEAF,NO 6,RR MAIN
ASM PART: C = 8-97174-307-0, 97174307 		8-97178-597-0 01 1 -
21 07.503 SPRING ASM; LEAF,RR SUB
ASM PART: B = 8-97122-382-0, 97122382 		8-97135-078-0 01 1 -
21 07.503 SPRING ASM; LEAF,RR SUB
ASM PART: A = 8-97096-576-0, 97096576 		8-97135-472-0 01 1 -
21 07.503 SPRING ASM; LEAF,RR SUB
ASM PART: C = 8-97174-307-0, 97174307 		8-97178-590-0 01 1 -
22 07.505 SPRING; LEAF,NO 1,RR SUB
ASM PART: B = 8-97122-382-0, 97122382 		8-97130-499-0 01 1 -
22 07.505 SPRING; LEAF,NO 1,RR SUB
ASM PART: A = 8-97096-576-0, 97096576 		8-97135-466-0 01 1 -
22 07.505 SPRING; LEAF,NO 1,RR SUB
ASM PART: C = 8-97174-307-0, 97174307 		8-97178-598-0 01 1 -
23 07.505 SPRING; LEAF,NO 2,RR SUB
ASM PART: B = 8-97122-382-0, 97122382 		8-97130-500-0 01 1 -
23 07.505 SPRING; LEAF,NO 2,RR SUB
ASM PART: A = 8-97096-576-0, 97096576 		8-97135-467-0 01 1 -
23 07.505 SPRING; LEAF,NO 2,RR SUB
ASM PART: C = 8-97174-307-0, 97174307 		8-97178-599-0 01 1 -
24 07.505 SPRING; LEAF,NO 3,RR SUB
ASM PART: B = 8-97122-382-0, 97122382 		8-97130-501-0 01 1 -
24 07.505 SPRING; LEAF,NO 3,RR SUB
ASM PART: A = 8-97096-576-0, 97096576 		8-97135-468-0 01 1 -
24 07.505 SPRING; LEAF,NO 3,RR SUB
ASM PART: C = 8-97174-307-0, 97174307 		8-97178-600-0 01 1 -
25 07.505 SPRING; LEAF,NO 4,RR SUB
ASM PART: B = 8-97122-382-0, 97122382 		8-97130-502-0 01 1 -
25 07.505 SPRING; LEAF,NO 4,RR SUB
ASM PART: A = 8-97096-576-0, 97096576 		8-97135-469-0 01 1 -
25 07.505 SPRING; LEAF,NO 4,RR SUB
ASM PART: C = 8-97174-307-0, 97174307 		8-97178-601-0 01 1 -
26 07.505 SPRING; LEAF,NO 5,RR SUB
ASM PART: B = 8-97122-382-0, 97122382 		8-97130-503-0 01 1 -
26 07.505 SPRING; LEAF,NO 5,RR SUB
ASM PART: A = 8-97096-576-0, 97096576 		8-97135-470-0 01 1 -
26 07.505 SPRING; LEAF,NO 5,RR SUB
ASM PART: C = 8-97174-307-0, 97174307 		8-97178-602-0 01 1 -
27 07.505 SPRING; LEAF,NO 6,RR SUB
ASM PART: B = 8-97122-382-0, 97122382 		8-97130-504-0 01 1 -
27 07.505 SPRING; LEAF,NO 6,RR SUB
ASM PART: A = 8-97096-576-0, 97096576 		8-97135-471-0 01 1 -
27 07.505 SPRING; LEAF,NO 6,RR SUB
ASM PART: C = 8-97174-307-0, 97174307 		8-97178-603-0 01 1 -
34 07.506 BOLT; CENTER,LEAF SPR,RR MAIN
L=135 ASM PART: C = 8-97174-307-0, 97174307 		8-94165-313-0 01 1 -
34 07.506 BOLT; CENTER,LEAF SPR,RR MAIN
L=150 ASM PART: A = 8-97096-576-0, 97096576, B = 8-97122-382-0, 97122382 		8-94165-316-0 01 1 -
35 07.506 NUT; CENTER BOLT,LEAF SPR,RR
04.634, M12 ASM PART: A = 8-97096-576-0, 97096576, B = 8-97122-382-0, 97122382, C = 8-97174-307-0, 97174307 		9-99110-512-0 01 1 -
36 07.506 BOLT; CLIP,LEAF SPR,RR
M8X90.5 ASM PART: A = 8-97096-576-0, 97096576, B = 8-97122-382-0, 97122382, C = 8-97174-307-0, 97174307 		8-94407-133-0 03 1 -
38 07.505 BUSHING; LEAF SPR,RR
07.524, (A) ASM PART: A = 8-97096-576-0, 97096576, B = 8-97122-382-0, 97122382, C = 8-97174-307-0, 97174307 		8-94118-588-1 02 1 -
38 07.505 BUSHING; LEAF SPR,RR
(B), OD=42 L=81 ASM PART: A = 8-97096-576-0, 97096576, B = 8-97122-382-0, 97122382, C = 8-97174-307-0, 97174307 		8-97074-826-0 01 1 -
