4-60 — REAR SUSPENSION (#32553) — 41 parça
çizim 13595
227 225 225
BalonParca AdiParca NoAdetTipApplied Date A B C D
225 07.535 RUBBER; CUSHION,RR SPR
(B) 		8-94379-470-1 02 1 0612-1103 ● ●
225 07.535 RUBBER; CUSHION,RR SPR
FRAME STRAIGHT TYPE<7KJ> (B) 		8-94379-470-1 02 1 0612-1103 ● ●
225 07.535 RUBBER; CUSHION,RR SPR
(B) 		8-98187-342-0 02 1 1104- ● ●
225 07.535 RUBBER; CUSHION,RR SPR
FRAME STRAIGHT TYPE<7KJ> (B) 		8-98187-342-0 02 1 1104- ● ●
225 07.535 RUBBER; CUSHION,RR SPR
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-94118-510-5 02 1 0612- ● ●
227 07.535 NUT; CUSHION RUBBER
02.042 M12 FLANGE 		0-91180-112-0 02 1 0612- ● ● ● ●

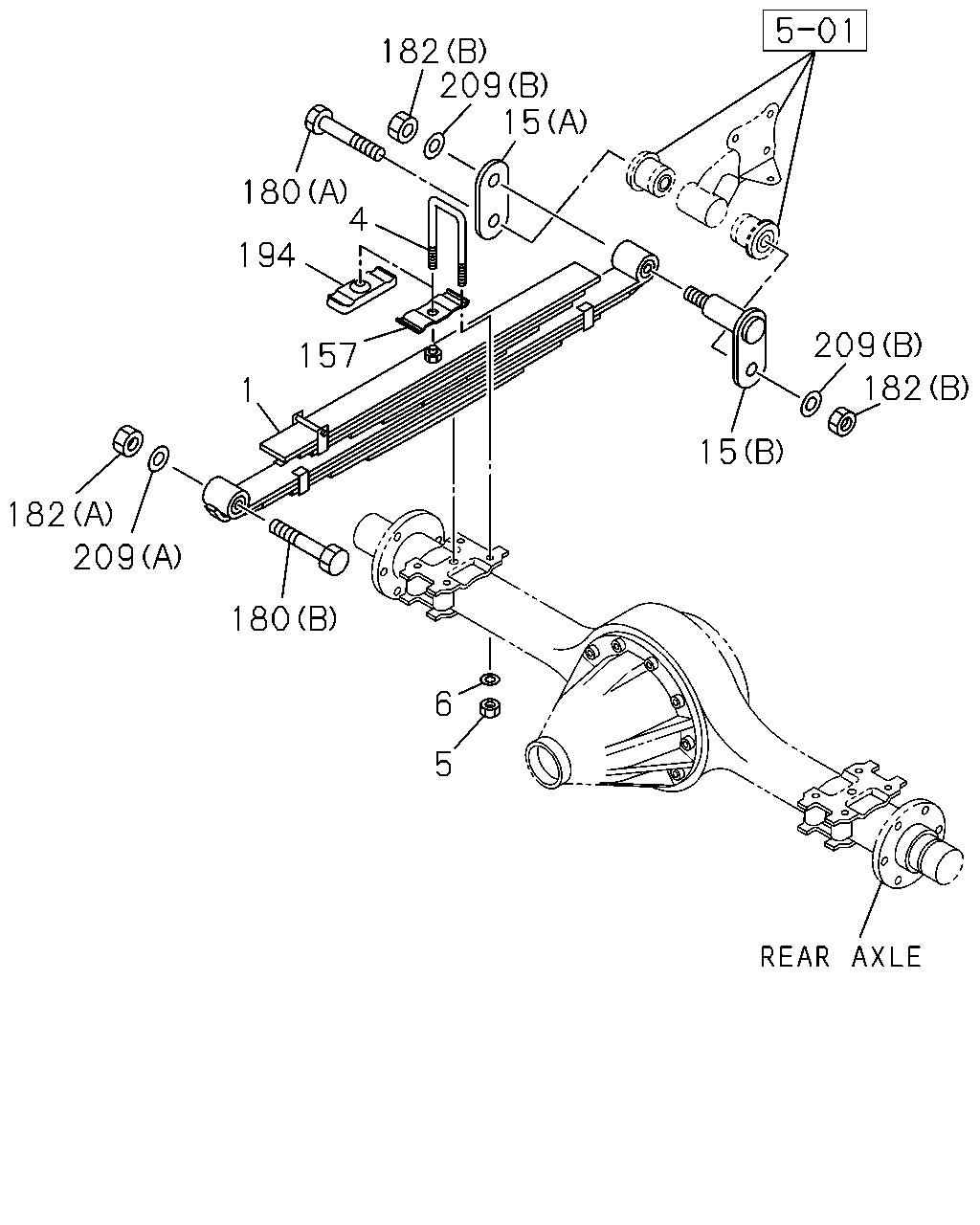

çizim 58579
182 209 15 180 4 194 209 157 182 1 15 182 209 180 6 5
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 		8-97122-382-0 02 1 0612- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 12-LEAF 		8-97122-382-0 02 1 0612- ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 12-LEAF 		8-97174-307-0 02 1 0612- ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> 10-LEAF 		8-97073-224-1 02 1 0612- ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> 12-LEAF 		8-97096-576-0 02 1 0612- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 12-LEAF 		8-97096-576-0 02 1 0612- ●
4 07.516 U-BOLT; RR SPR
L=345 		1-51371-195-2 04 1 0612- ● ●
4 07.516 U-BOLT; RR SPR
G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> L=345 		1-51371-195-2 04 1 0612- ●
4 07.516 U-BOLT; RR SPR
G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> L=345 		1-51371-195-2 04 1 0612- ●
4 07.516 U-BOLT; RR SPR
G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> L=315 		1-51371-194-2 04 1 0612- ● ●
4 07.516 U-BOLT; RR SPR
G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> L=285 		8-97141-874-0 04 1 0612- ● ●
5 07.529 NUT; U-BOLT,RR SPR
EXC. FRAME STRAIGHT TYPE<7KJ> 07.516 M16 		8-94107-767-0 08 1 0612-0612 ● ●
5 07.529 NUT; U-BOLT,RR SPR
EXC. FRAME STRAIGHT TYPE<7KJ> 07.417 M16 		8-97360-121-0 08 1 0612- ● ●
5 07.529 NUT; U-BOLT,RR SPR
M18 FLANGE 		1-09440-039-1 08 1 0612- ● ●
5 07.529 NUT; U-BOLT,RR SPR
FRAME STRAIGHT TYPE<7KJ> M18 FLANGE 		1-09440-039-1 08 1 0612- ● ●
6 07.516 WASHER; PL,U-BOLT
EXC. FRAME STRAIGHT TYPE<7KJ> ID=16.4 		8-97360-118-0 08 1 0612- ● ●
15 07.523 SHACKLE; RR SPR
(B) 		8-94118-512-4 02 1 0612-0612 ● ● ● ●
15 07.523 SHACKLE; RR SPR
(B) 		8-97360-011-0 02 1 0612- ● ● ● ●
15 07.523 SHACKLE; RR SPR
(A) 		8-94118-511-3 02 1 0612- ● ● ● ●
157 07.518 CLAMP; UPR,RR SPR
G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> L=140 T=4.5 		8-94118-509-1 02 1 0612- ● ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> (B) M18X130 		8-97033-967-0 02 1 0612-0612 ● ● ● ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 		8-98011-487-0 02 1 0612- ● ● ● ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 		9-51361-602-2 02 1 0612-0612 ● ● ● ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> (B) M18X130 		8-98011-488-0 02 1 0612- ● ● ● ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 FLANGE 		8-97360-110-0 02 1 0612- ● ● ● ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (B) M18X130 FLANGE 		8-97360-112-0 02 1 0612- ● ● ● ●
182 07.529 NUT; PIN,RR SPR
(A) M18 		0-91110-518-0 02 1 0612- ● ● ● ●
182 07.529 NUT; PIN,RR SPR
KD PREPARATORY PACK<6HF> 06.509 (B) M16 		0-91110-516-0 04 1 0612- ● ● ● ●
182 07.529 NUT; PIN,RR SPR
EXC. KD PREPARATORY PACK<6HF> 07.427 (B) M16 FLANGE 		8-97360-125-0 04 1 0612- ● ● ● ●
194 07.158 PAD; CONTACT
07.518 		1-51372-059-0 02 1 0612- ● ●
194 07.158 PAD; CONTACT
FRAME STRAIGHT TYPE<7KJ> 07.518 		1-51372-059-0 02 1 0612- ● ●
209 07.529 WASHER; PL
KD PREPARATORY PACK<6HF> 07.172 (B) ID=16.5 		8-97070-925-1 04 1 0612-0612 ● ● ● ●
209 07.529 WASHER; PL
KD PREPARATORY PACK<6HF> 07.427 (B) ID=16.5 		8-98011-489-0 04 1 0612- ● ● ● ●
209 07.529 WASHER; PL
(A) ID=19 		8-97073-435-1 02 1 0612-0612 ● ● ● ●
209 07.529 WASHER; PL
(A) ID=19 		8-97360-119-0 02 1 0612- ● ● ● ●
