0-39 — AIR COMPRESSOR; BRAKE (#3255) — 25 parça

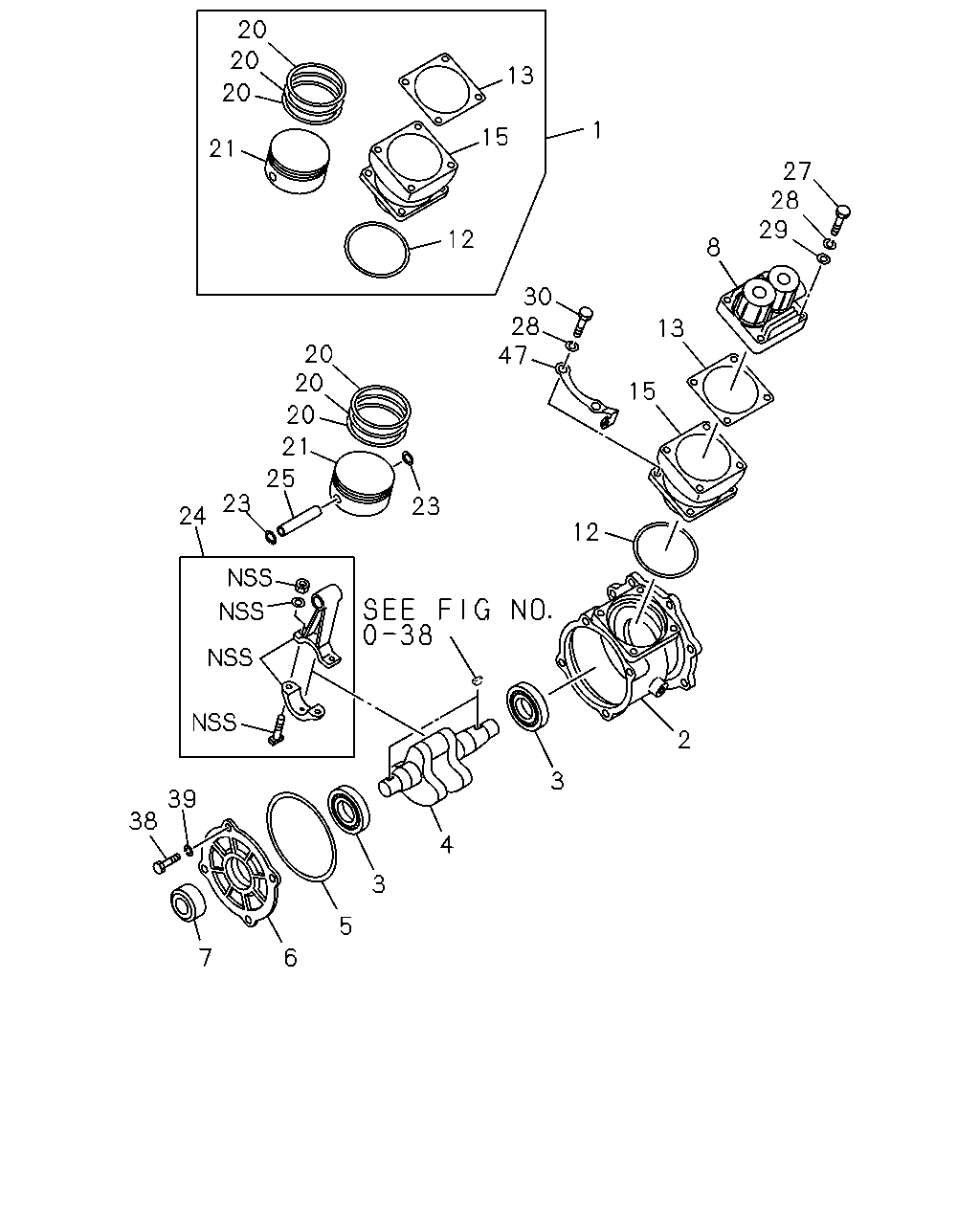

çizim 5264
20 20 13 20 1 15 21 27 28 29 12 8 30 28 47 13 20 20 15 20 21 25 23 23 24 12 2 3 39 38 4 3 5 7 6
BalonParca AdiParca NoAdetTipApplied Date A B
1 LINER KIT; CYL,AIR CMPR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-19163-048-0 01 1 9101- ● ●
2 CRANKCASE; AIR CMPR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-19151-241-0 01 1 9101- ● ●
3 BEARING; AIR CMPR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		9-00006-206-0 02 1 9101- ● ●
4 CRANKSHAFT; AIR CMPR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-19171-037-0 01 1 9101-9911 ● ●
4 CRANKSHAFT; AIR CMPR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-19171-083-0 01 1 9912- ● ●
5 GASKET; AIR CMPR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-19158-019-0 01 1 9101- ● ●
6 COVER ASM; BRG,AIR CMPR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-19156-040-0 01 1 9101- ● ●
7 SEAL; OIL,BRG COVER,AIR CMPR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-19158-018-1 01 1 9101- ● ●
8 HEAD ASM; CYL,AIR CMPR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-19110-019-0 01 1 9101- ● ●
12 GASKET; AIR CMPR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-19158-020-0 01 1 9101- ● ●
13 GASKET; AIR CMPR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-19115-006-0 01 1 9101- ● ●
15 CYLINDER; AIR CMPR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-19151-222-0 01 1 9101- ● ●
20 RING KIT; PISTON,AIR CMPR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-19163-043-0 01 1 9101- ● ●
21 PISTON; AIR CMPR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-19161-021-0 01 1 9101- ● ●
23 RING; SNAP,PISTON,AIR CMPR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		9-19168-003-0 02 1 9101- ● ●
24 ROD ASM; CONN,AIR CMPR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-19173-011-0 01 1 9101- ● ●
25 PIN; PISTON,AIR CMPR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		9-19167-006-0 01 1 9101- ● ●
27 BOLT; HD
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		9-02061-030-0 04 1 9101- ● ●
28 WASHER; LK,HD BOLT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		9-09150-610-0 08 1 9101- ● ●
29 WASHER; PL,HD BOLT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		9-09164-510-0 04 1 9101-9911 ● ●
29 WASHER; PL,HD BOLT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=10.5 OD=22 		9-09164-610-0 04 1 9912- ● ●
30 BOLT; CYL TO CRANKCASE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-09000-332-0 04 1 9101- ● ●
38 BOLT; COVER FIX
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-09000-331-0 04 1 9101- ● ●
39 WASHER; LK,COVER FIX
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		9-09150-608-0 04 1 9101- ● ●
47 BRACKET; PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-19156-057-0 01 1 9101- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
