◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51103 - NPR/NQR(LHD) EURO4 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-36 - POWER STEERING CONTROL; ENGINE SIDE ▶
4-36 — POWER STEERING CONTROL; ENGINE SIDE (#32548) — 16 parça

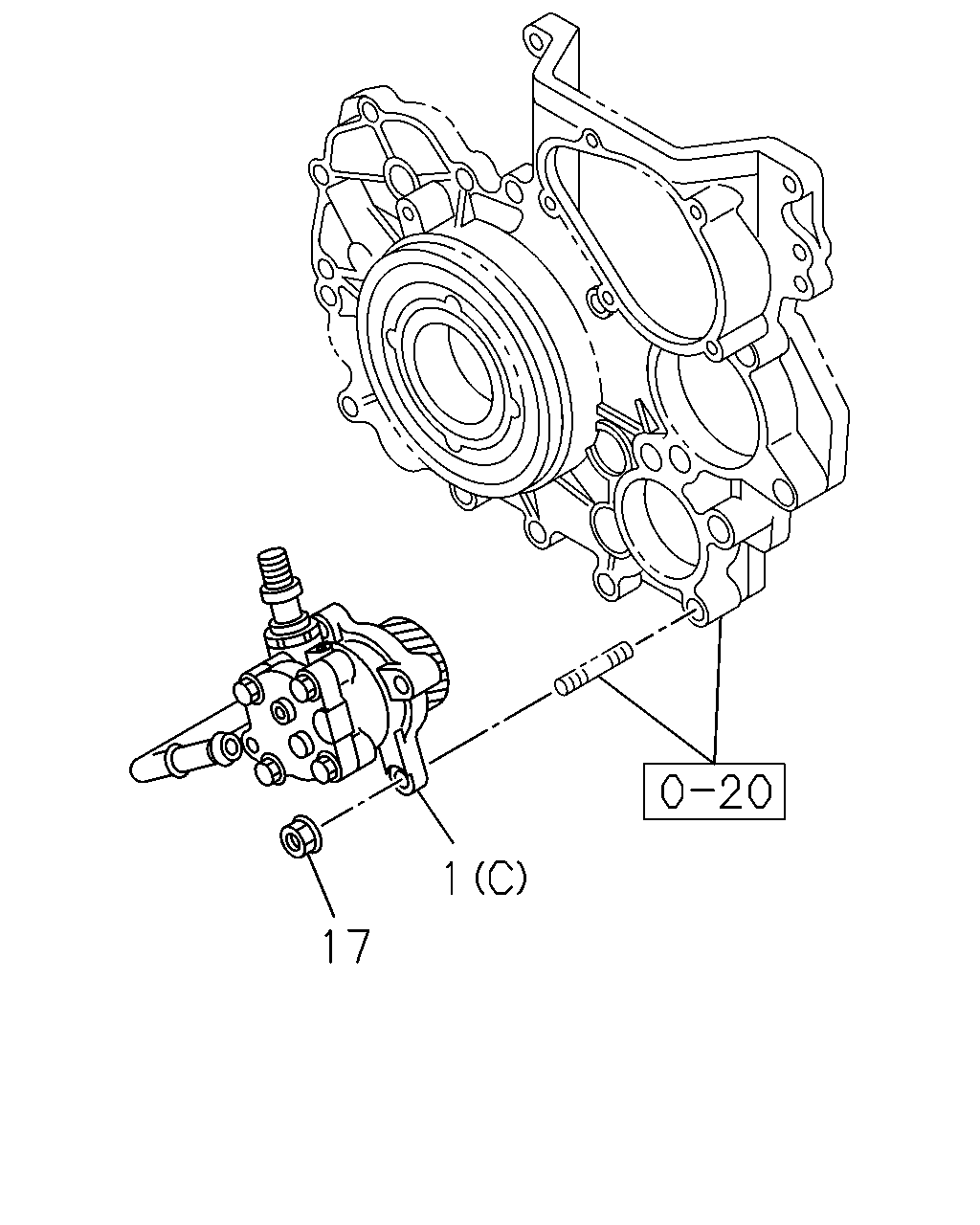

çizim 56470
1 17
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) EXC. HYDRO BRAKE BOOSTER<7QQ> (A) 		8-98041-669-2 01 1 0612- ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JJ1 ENG(LFB) (C) 		8-98006-825-3 01 1 0612- ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) HYDRO BRAKE BOOSTER<7QQ> (B) 		8-97258-461-3 01 1 0612- ● ●
17 06.606 NUT; POWER STRG PUMP
4JJ1 ENG(LFB) 01.540 M8 FLANGE 		0-91180-208-0 03 1 0612- ● ●

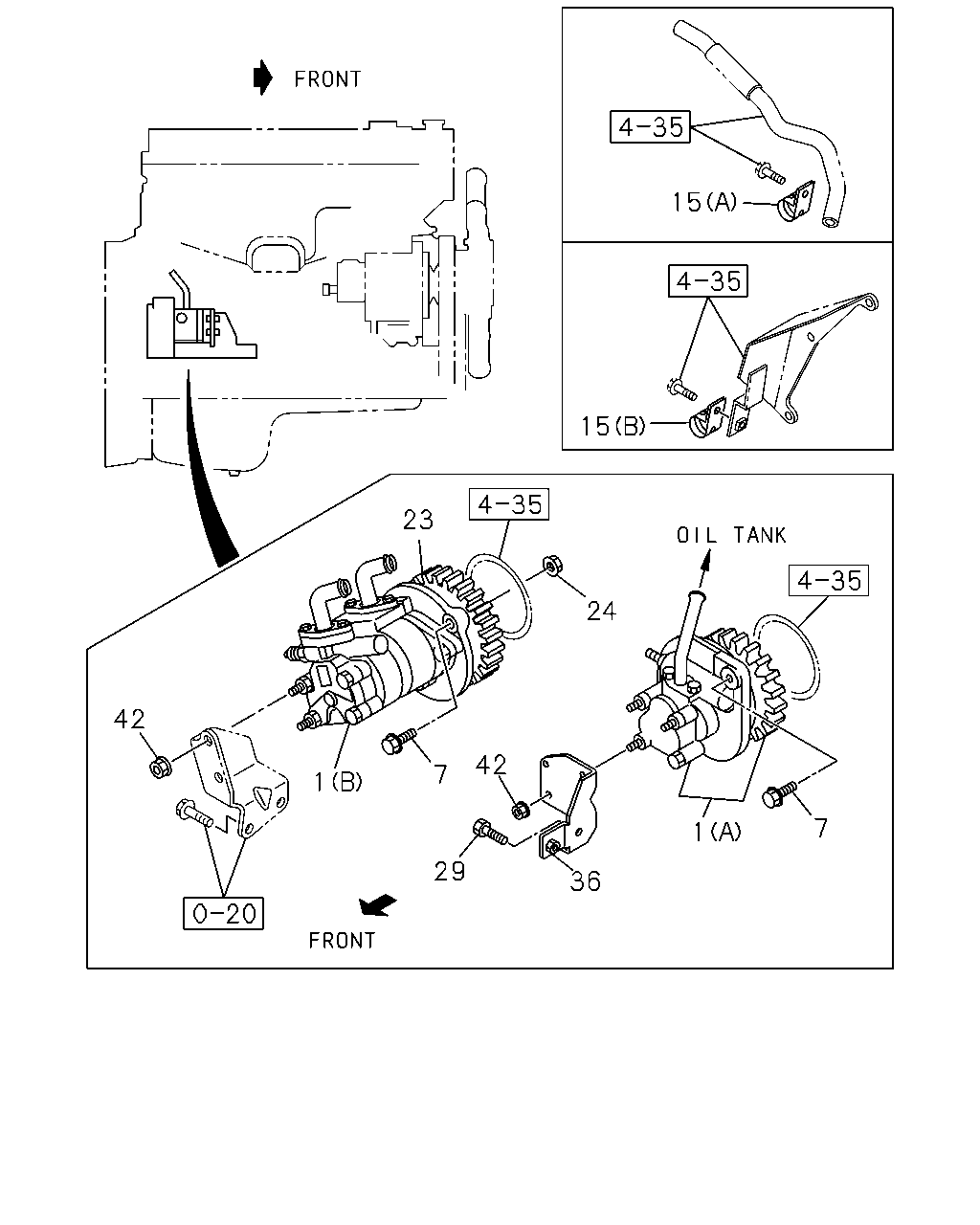

çizim 56713
15 15 23 24 42 42 7 1 7 1 29 36
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) EXC. HYDRO BRAKE BOOSTER<7QQ> (A) 		8-98041-669-2 01 1 0612- ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JJ1 ENG(LFB) (C) 		8-98006-825-3 01 1 0612- ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) HYDRO BRAKE BOOSTER<7QQ> (B) 		8-97258-461-3 01 1 0612- ● ●
7 09.181 BOLT; OIL PUMP,P/S
4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) 00.780 M10X30 FLANGE 		0-28751-030-0 02 1 0612- ● ● ● ●
15 06.672 CLIP; OIL PIPE SUCTION
4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> 01.762 (A) ID=26 L=26 		1-09701-236-0 01 1 0612- ● ● ● ●
15 06.672 CLIP; OIL PIPE SUCTION
4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> 02.559 (B) ID=32 L=35 		1-09701-244-0 01 1 0612- ● ● ● ●
23 06.660 GEAR; OIL PUMP
4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) HYDRO BRAKE BOOSTER<7QQ> 		8-97114-550-1 01 1 0612- ● ●
24 06.673 NUT; GEAR,P/S PUMP
4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) HYDRO BRAKE BOOSTER<7QQ> 05.816 M12 FLANGE 		0-91180-212-0 01 1 0612- ● ●
29 09.171 BOLT; BRKT,POWER STRG
4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) EXC. HYDRO BRAKE BOOSTER<7QQ> M14X20 FLANGE 		0-28851-420-0 01 1 0612- ● ● ●
36 06.606 BRACKET; PLATE,P/S PUMP
4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97112-866-0 01 1 0612- ● ● ●
42 06.672 NUT; ADJ PLATE
4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) EXC. HYDRO BRAKE BOOSTER<7QQ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0612- ● ● ●
42 06.672 NUT; ADJ PLATE
4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0612- ● ● ● ●
