Sayfa 4-35 - Isuzu EPC

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#32547) — 143 parça

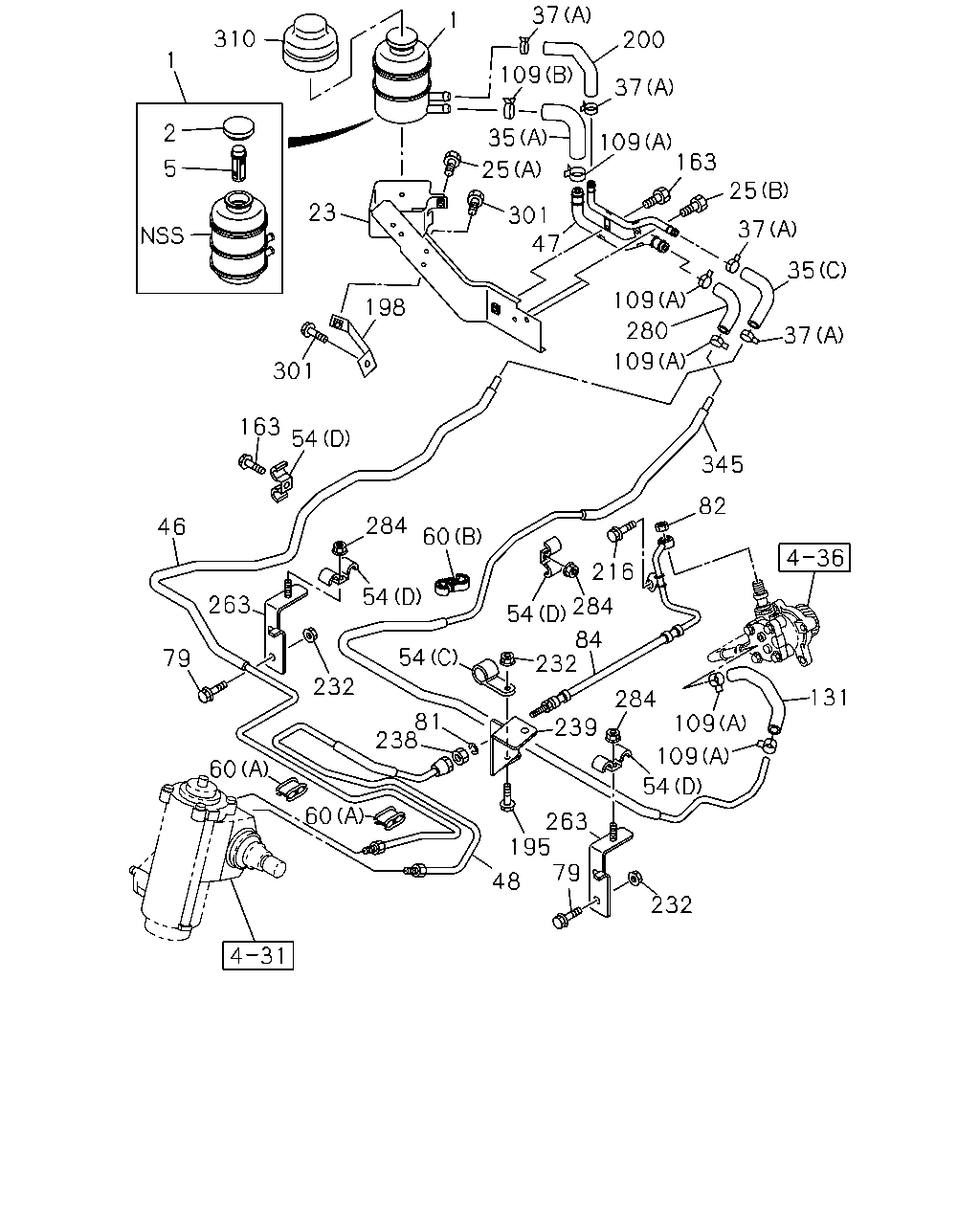

37 1 310 200 1 109 37 2 35 109 163 5 25 25 23 301 47 37 35 109 198 280 37 109 301 163 54 345 82 284 46 60 216 54 263 284 54 84 232 54 79 232 131 284 81 238 109 239 109 60 54 60 263 195 79 48 232

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	06.635 TANK ASM; OIL,P/S	8-97107-987-0	01	1	0612-	●	●	●	●
2	06.672 CAP; OIL TANK,P/S 06.635	8-94146-153-2	01	1	0612-	●	●	●	●
5	06.600 STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	0612-	●	●	●	●
23	06.672 BRACKET; OIL TANK,P/S	8-97101-040-1	01	1	0612-	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT 00.785 (A) M6X20 FLANGE	0-28450-620-0	01	1	0612-	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	0612-	●	●	●	●
35	06.671 HOSE; RETURN,P/S TANK 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> (A)	8-97080-108-1	01	1	0612-	●	●	●	●
35	06.671 HOSE; RETURN,P/S TANK 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97080-108-1	01	1	0612-		●	●
35	06.671 HOSE; RETURN,P/S TANK 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> (B)	8-98011-721-1	01	1	0612-	●	●	●	●
35	06.671 HOSE; RETURN,P/S TANK 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98000-701-1	01	1	0612-		●	●
37	01.762 CLIP; HOSE,P/S 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> 02.589 (B) ID=27	5-09700-323-0	01	1	0612-	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16	8-94238-568-0	04	1	0612-0911	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16	8-94238-568-0	04	1	0612-0911		●	●
37	01.762 CLIP; HOSE,P/S 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> 03.162 (A) ID=16	8-98008-098-0	04	1	0912-	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (A) ID=16	8-98008-098-0	04	1	0912-		●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ>	8-98025-822-0	01	1	0612-	●	●	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98006-491-4	01	1	0612-		●	●
47	06.671 PIPE; RETURN 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ>	8-98011-640-1	01	1	0612-	●	●	●	●
47	06.671 PIPE; RETURN 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97378-860-0	01	1	0612-		●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ>	8-97376-091-1	01	1	0612-	●	●	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98006-489-1	01	1	0612-		●	●
54	06.672 CLIP; OIL PIPE 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=10 H=40	8-94462-219-0	01	1	0612-	●	●	●	●
54	06.672 CLIP; OIL PIPE 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=10X2 H=37.5	8-97018-546-0	04	1	0612-	●	●	●	●
54	06.672 CLIP; OIL PIPE 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=16 L=28	0-95235-556-0	01	1	0612-		●	●
54	06.672 CLIP; OIL PIPE 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (D) ID=13 & 18 L=17 & 19	8-98008-128-1	04	1	0612-		●	●
60	06.672 CLAMP; PIPE,RETURN 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> (A) ID=10X2 H=22	8-94252-455-2	02	1	0612-	●	●	●	●
60	06.672 CLAMP; PIPE,RETURN 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=10X2 H=22	8-94252-455-2	02	1	0612-		●	●
60	06.672 CLAMP; PIPE,RETURN 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=12 & 15	1-09709-281-1	01	1	0612-		●	●
79	06.672 BOLT; BRKT 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0612-		●	●
81	06.672 WASHER; LK,FLEX HOSE 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	0612-	●	●	●	●
81	06.672 WASHER; LK,FLEX HOSE 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	0612-		●	●
82	06.672 NUT; FLEX HOSE,P/S 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> 06.606 M12 SELF LOCK	8-97028-390-1	01	1	0612-	●	●	●	●
82	06.672 NUT; FLEX HOSE,P/S 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 06.606 M12 SELF LOCK	8-97028-390-1	01	1	0612-		●	●
84	06.670 HOSE; FLEX,P/S 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ>	8-98027-930-4	01	1	0612-	●	●	●	●
84	06.670 HOSE; FLEX,P/S 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98019-991-2	01	1	0612-		●	●
109	06.672 CLIP; RUBBER HOSE 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> 02.559 (C) ID=30X2 L=28	1-09701-266-0	02	1	0612-	●	●	●	●
109	06.672 CLIP; RUBBER HOSE 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> 17.505 (D) ID=29 L=35	1-09701-301-0	01	1	0612-	●	●	●	●
109	06.672 CLIP; RUBBER HOSE 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> (A) ID=21	8-94242-034-0	03	1	0612-0911	●	●	●	●
109	06.672 CLIP; RUBBER HOSE 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> 04.681 (A) ID=21	8-98150-355-0	01	1	0912-	●	●	●	●
109	06.672 CLIP; RUBBER HOSE 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> 08.846 (B) ID=22	8-94382-401-0	01	1	0612-1003	●	●	●	●
109	06.672 CLIP; RUBBER HOSE 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 08.846 (B) ID=22	8-94382-401-0	01	1	0612-1003		●	●
109	06.672 CLIP; RUBBER HOSE 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> 03.278 (B) ID=22	8-97359-141-0	01	1	1004-	●	●	●	●
109	06.672 CLIP; RUBBER HOSE 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 03.278 (B) ID=22	8-97359-141-0	01	1	1004-		●	●
109	06.672 CLIP; RUBBER HOSE 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=21	8-94242-034-0	05	1	0612-0911		●	●
109	06.672 CLIP; RUBBER HOSE 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 04.681 (A) ID=21	8-98150-355-0	05	1	0912-		●	●
131	06.673 HOSE; RUBBER,P/S 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98030-736-2	01	1	0612-		●	●
163	06.671 BOLT; OIL PIPE 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0612-	●	●	●	●
163	06.671 BOLT; OIL PIPE 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M6X20 FLANGE	0-28650-620-0	01	1	0612-		●	●
163	06.671 BOLT; OIL PIPE 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0612-		●	●
195	06.635 BOLT; BRKT 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0612-	●	●	●	●
195	06.635 BOLT; BRKT 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> 00.029 M10X25 FLANGE	0-28651-025-0	01	1	0612-	●	●	●	●
195	06.635 BOLT; BRKT 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0612-		●	●
198	06.672 STAY; OIL TANK,POWER STEERING	8-97081-778-2	01	1	0612-	●	●	●	●
200	06.670 HOSE; RUBBER,RETURN 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ>	8-97080-109-0	01	1	0612-	●	●	●	●
200	06.670 HOSE; RUBBER,RETURN 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97080-109-0	01	1	0612-		●	●
216	06.672 BOLT; FLEX HOSE 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0612-		●	●
232	06.672 NUT; BRKT 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	01	1	0612-	●	●	●	●
232	06.672 NUT; BRKT 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	03	1	0612-		●	●
238	06.670 NUT; FLEX HOSE 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> 06.897 M16	8-94370-339-0	01	1	0612-	●	●	●	●
238	06.670 NUT; FLEX HOSE 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 06.897 M16	8-94370-339-0	01	1	0612-		●	●
239	06.606 BRACKET; FLEX HOSE 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ>	8-97033-926-2	01	1	0612-	●	●	●	●
239	06.606 BRACKET; FLEX HOSE 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98000-616-1	01	1	0612-		●	●
263	06.672 BRACKET; P/S PIPE 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98000-497-2	02	1	0612-		●	●
280	06.672 HOSE; P/S OIL PUMP,INL 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ>	8-98038-857-1	01	1	0612-	●	●	●
280	06.672 HOSE; P/S OIL PUMP,INL 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98000-700-0	01	1	0612-1008		●	●
280	06.672 HOSE; P/S OIL PUMP,INL 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98171-278-0	01	1	1009-		●	●
280	06.672 HOSE; P/S OIL PUMP,INL 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ>	8-98011-720-1	01	1	0612-			●	●
284	06.670 NUT; PIPE 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M6 FLANGE	0-91180-106-0	03	1	0612-		●	●
301	06.672 BOLT; STAY,OIL TANK 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0612-	●	●	●	●
310	06.672 COVER; OIL TANK	8-97103-394-0	01	1	0612-	●	●	●	●
345	06.671 PIPE; OIL,FLEX HOSE TO PUMP 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 06.670	8-98004-738-5	01	1	0612-0712		●	●
345	06.671 PIPE; OIL,FLEX HOSE TO PUMP 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98087-846-0	01	1	0801-		●	●

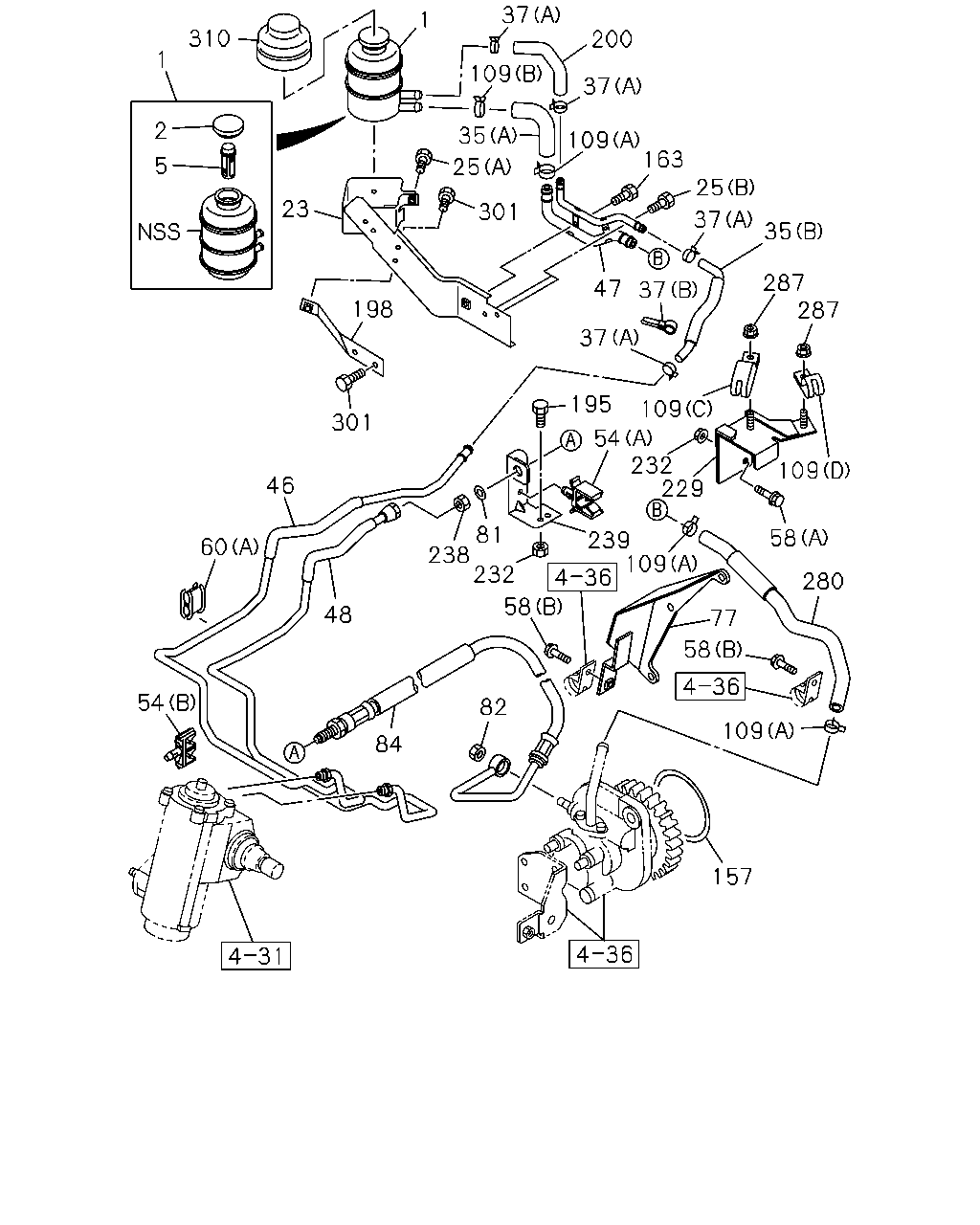

37 1 310 200 1 109 37 2 35 109 163 5 25 25 23 301 37 35 287 287 47 37 198 37 195 109 301 54 232 229 109 46 81 238 232 58 239 109 60 280 58 48 77 58 54 82 109 84 157

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	06.635 TANK ASM; OIL,P/S	8-97107-987-0	01	1	0612-	●	●	●	●
2	06.672 CAP; OIL TANK,P/S 06.635	8-94146-153-2	01	1	0612-	●	●	●	●
5	06.600 STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	0612-	●	●	●	●
23	06.672 BRACKET; OIL TANK,P/S	8-97101-040-1	01	1	0612-	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT 00.785 (A) M6X20 FLANGE	0-28450-620-0	01	1	0612-	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	0612-	●	●	●	●
35	06.671 HOSE; RETURN,P/S TANK 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> (A)	8-97080-108-1	01	1	0612-	●	●	●	●
35	06.671 HOSE; RETURN,P/S TANK 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97080-108-1	01	1	0612-		●	●
35	06.671 HOSE; RETURN,P/S TANK 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> (B)	8-98011-721-1	01	1	0612-	●	●	●	●
35	06.671 HOSE; RETURN,P/S TANK 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98000-701-1	01	1	0612-		●	●
37	01.762 CLIP; HOSE,P/S 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> 02.589 (B) ID=27	5-09700-323-0	01	1	0612-	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16	8-94238-568-0	04	1	0612-0911	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16	8-94238-568-0	04	1	0612-0911		●	●
37	01.762 CLIP; HOSE,P/S 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> 03.162 (A) ID=16	8-98008-098-0	04	1	0912-	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (A) ID=16	8-98008-098-0	04	1	0912-		●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ>	8-98025-822-0	01	1	0612-	●	●	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98006-491-4	01	1	0612-		●	●
47	06.671 PIPE; RETURN 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ>	8-98011-640-1	01	1	0612-	●	●	●	●
47	06.671 PIPE; RETURN 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97378-860-0	01	1	0612-		●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ>	8-97376-091-1	01	1	0612-	●	●	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98006-489-1	01	1	0612-		●	●
54	06.672 CLIP; OIL PIPE 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=10 H=40	8-94462-219-0	01	1	0612-	●	●	●	●
54	06.672 CLIP; OIL PIPE 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=10X2 H=37.5	8-97018-546-0	04	1	0612-	●	●	●	●
54	06.672 CLIP; OIL PIPE 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=16 L=28	0-95235-556-0	01	1	0612-		●	●
54	06.672 CLIP; OIL PIPE 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (D) ID=13 & 18 L=17 & 19	8-98008-128-1	04	1	0612-		●	●
58	06.672 BOLT; CLIP 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	03	1	0612-	●	●	●	●
58	06.672 BOLT; CLIP 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE	0-28680-825-0	02	1	0612-	●	●	●	●
60	06.672 CLAMP; PIPE,RETURN 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> (A) ID=10X2 H=22	8-94252-455-2	02	1	0612-	●	●	●	●
60	06.672 CLAMP; PIPE,RETURN 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=10X2 H=22	8-94252-455-2	02	1	0612-		●	●
60	06.672 CLAMP; PIPE,RETURN 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=12 & 15	1-09709-281-1	01	1	0612-		●	●
77	06.672 BRACKET; POWER STEERING HOSE 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98011-639-0	01	1	0612-	●	●	●	●
81	06.672 WASHER; LK,FLEX HOSE 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	0612-	●	●	●	●
81	06.672 WASHER; LK,FLEX HOSE 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	0612-		●	●
82	06.672 NUT; FLEX HOSE,P/S 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> 06.606 M12 SELF LOCK	8-97028-390-1	01	1	0612-	●	●	●	●
82	06.672 NUT; FLEX HOSE,P/S 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 06.606 M12 SELF LOCK	8-97028-390-1	01	1	0612-		●	●
84	06.670 HOSE; FLEX,P/S 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ>	8-98027-930-4	01	1	0612-	●	●	●	●
84	06.670 HOSE; FLEX,P/S 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98019-991-2	01	1	0612-		●	●
109	06.672 CLIP; RUBBER HOSE 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> 02.559 (C) ID=30X2 L=28	1-09701-266-0	02	1	0612-	●	●	●	●
109	06.672 CLIP; RUBBER HOSE 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> 17.505 (D) ID=29 L=35	1-09701-301-0	01	1	0612-	●	●	●	●
109	06.672 CLIP; RUBBER HOSE 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> (A) ID=21	8-94242-034-0	03	1	0612-0911	●	●	●	●
109	06.672 CLIP; RUBBER HOSE 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> 04.681 (A) ID=21	8-98150-355-0	01	1	0912-	●	●	●	●
109	06.672 CLIP; RUBBER HOSE 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> 08.846 (B) ID=22	8-94382-401-0	01	1	0612-1003	●	●	●	●
109	06.672 CLIP; RUBBER HOSE 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 08.846 (B) ID=22	8-94382-401-0	01	1	0612-1003		●	●
109	06.672 CLIP; RUBBER HOSE 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> 03.278 (B) ID=22	8-97359-141-0	01	1	1004-	●	●	●	●
109	06.672 CLIP; RUBBER HOSE 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 03.278 (B) ID=22	8-97359-141-0	01	1	1004-		●	●
109	06.672 CLIP; RUBBER HOSE 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=21	8-94242-034-0	05	1	0612-0911		●	●
109	06.672 CLIP; RUBBER HOSE 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 04.681 (A) ID=21	8-98150-355-0	05	1	0912-		●	●
157	06.673 GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV)	8-97101-875-2	01	1	0612-	●	●	●	●
163	06.671 BOLT; OIL PIPE 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0612-	●	●	●	●
163	06.671 BOLT; OIL PIPE 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M6X20 FLANGE	0-28650-620-0	01	1	0612-		●	●
163	06.671 BOLT; OIL PIPE 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0612-		●	●
195	06.635 BOLT; BRKT 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0612-	●	●	●	●
195	06.635 BOLT; BRKT 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> 00.029 M10X25 FLANGE	0-28651-025-0	01	1	0612-	●	●	●	●
195	06.635 BOLT; BRKT 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0612-		●	●
198	06.672 STAY; OIL TANK,POWER STEERING	8-97081-778-2	01	1	0612-	●	●	●	●
200	06.670 HOSE; RUBBER,RETURN 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ>	8-97080-109-0	01	1	0612-	●	●	●	●
200	06.670 HOSE; RUBBER,RETURN 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97080-109-0	01	1	0612-		●	●
229	06.606 BRACKET; HOSE,POWER STRG 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ>	8-98011-860-3	01	1	0612-	●	●	●	●
232	06.672 NUT; BRKT 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	01	1	0612-	●	●	●	●
232	06.672 NUT; BRKT 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	03	1	0612-		●	●
238	06.670 NUT; FLEX HOSE 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> 06.897 M16	8-94370-339-0	01	1	0612-	●	●	●	●
238	06.670 NUT; FLEX HOSE 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 06.897 M16	8-94370-339-0	01	1	0612-		●	●
239	06.606 BRACKET; FLEX HOSE 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ>	8-97033-926-2	01	1	0612-	●	●	●	●
239	06.606 BRACKET; FLEX HOSE 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98000-616-1	01	1	0612-		●	●
280	06.672 HOSE; P/S OIL PUMP,INL 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ>	8-98038-857-1	01	1	0612-	●	●	●
280	06.672 HOSE; P/S OIL PUMP,INL 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98000-700-0	01	1	0612-1008		●	●
280	06.672 HOSE; P/S OIL PUMP,INL 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98171-278-0	01	1	1009-		●	●
280	06.672 HOSE; P/S OIL PUMP,INL 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ>	8-98011-720-1	01	1	0612-			●	●
287	06.672 NUT; CLIP 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	03	1	0612-	●	●	●	●
301	06.672 BOLT; STAY,OIL TANK 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0612-	●	●	●	●
310	06.672 COVER; OIL TANK	8-97103-394-0	01	1	0612-	●	●	●	●
