Sayfa 4-25 - Isuzu EPC

4-25 — REAR FINAL DRIVE (#32543) — 286 parça

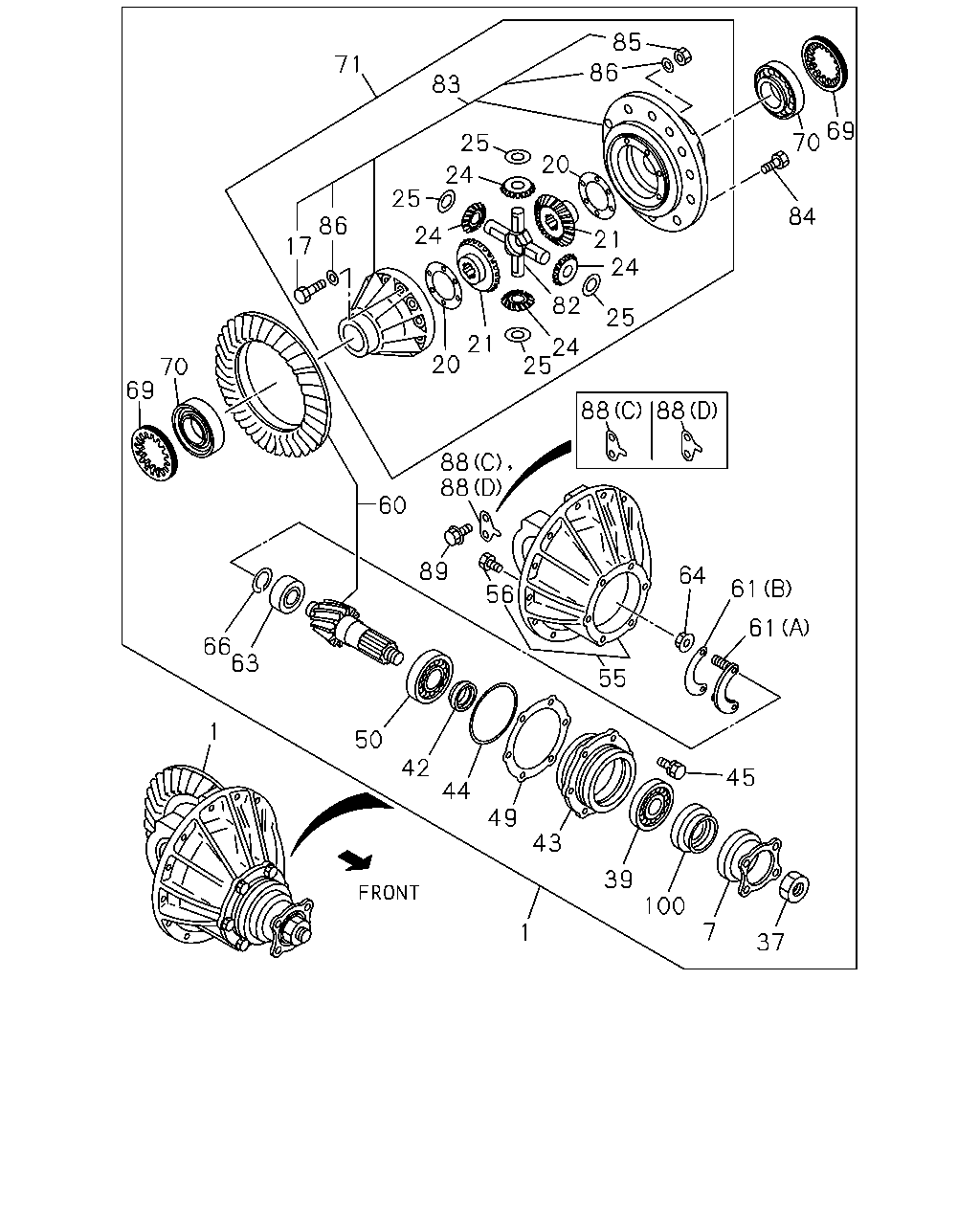

85 71 86 83 69 70 25 20 24 25 84 86 17 24 21 24 82 25 21 20 24 25 70 69 88 88 88 88 60 89 64 61 56 61 66 63 55 1 50 42 45 44 49 43 39 100 7 1 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	05.505 DRIVE ASM; FINAL,RR 43/10	8-97094-679-0	01	1	0612-	●
1	05.505 DRIVE ASM; FINAL,RR G.V.W. 7.0-7.5TON(RPX) 43/10	8-97094-679-0	01	1	0612-		●	●
1	05.505 DRIVE ASM; FINAL,RR G.V.W. 6.0-6.5TON(RPV) 43/10	8-98015-123-0	01	1	0612-		●	●
1	05.505 DRIVE ASM; FINAL,RR G.V.W. 8.0-8.5TON(RPZ) 41/10	8-97367-506-0	01	1	0612-			●
1	05.505 DRIVE ASM; FINAL,RR 41/10	8-97367-506-0	01	1	0612-				●
7	05.545 FLANGE; FINAL	8-97047-095-2	01	1	0612-	●			●
7	05.545 FLANGE; FINAL G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ)	8-97047-095-2	01	1	0612-		●	●
7	05.545 FLANGE; FINAL G.V.W. 6.0-6.5TON(RPV)	8-94477-723-4	01	1	0612-		●	●
17	05.510 BOLT; DIFF CAGE SETTING	8-97047-295-0	12	1	0612-	●			●
17	05.510 BOLT; DIFF CAGE SETTING G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ)	8-97047-295-0	12	1	0612-		●	●
17	05.510 BOLT; DIFF CAGE SETTING G.V.W. 6.0-6.5TON(RPV) M10X75 FLANGE	8-97232-161-0	12	1	0612-		●	●
20	05.543 WASHER; THRUST,SIDE GEAR T=2.80	1-41562-073-0	AR	1	0612-	●			●
20	05.543 WASHER; THRUST,SIDE GEAR G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) T=2.80	1-41562-073-0	AR	1	0612-		●	●
20	05.543 WASHER; THRUST,SIDE GEAR T=2.90	1-41562-074-0	AR	1	0612-	●			●
20	05.543 WASHER; THRUST,SIDE GEAR G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) T=2.90	1-41562-074-0	AR	1	0612-		●	●
20	05.543 WASHER; THRUST,SIDE GEAR T=3.00	1-41562-075-0	AR	1	0612-	●			●
20	05.543 WASHER; THRUST,SIDE GEAR G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) T=3.00	1-41562-075-0	AR	1	0612-		●	●
20	05.543 WASHER; THRUST,SIDE GEAR T=3.10	1-41562-076-0	AR	1	0612-	●			●
20	05.543 WASHER; THRUST,SIDE GEAR G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) T=3.10	1-41562-076-0	AR	1	0612-		●	●
20	05.543 WASHER; THRUST,SIDE GEAR T=3.20	1-41562-077-0	AR	1	0612-	●			●
20	05.543 WASHER; THRUST,SIDE GEAR G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) T=3.20	1-41562-077-0	AR	1	0612-		●	●
20	05.543 WASHER; THRUST,SIDE GEAR T=3.30	1-41562-078-0	AR	1	0612-	●			●
20	05.543 WASHER; THRUST,SIDE GEAR G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) T=3.30	1-41562-078-0	AR	1	0612-		●	●
20	05.543 WASHER; THRUST,SIDE GEAR T=3.40	1-41562-079-0	AR	1	0612-	●			●
20	05.543 WASHER; THRUST,SIDE GEAR G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) T=3.40	1-41562-079-0	AR	1	0612-		●	●
20	05.543 WASHER; THRUST,SIDE GEAR G.V.W. 6.0-6.5TON(RPV) T=1.40	9-41562-601-0	02	1	0612-		●	●
21	05.528 GEAR; SIDE,DIFF Z=16	1-41561-093-0	02	1	0612-1004	●			●
21	05.528 GEAR; SIDE,DIFF G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) Z=16	1-41561-093-0	02	1	0612-1004		●	●
21	05.528 GEAR; SIDE,DIFF Z=16	8-98165-935-0	02	1	1005-	●			●
21	05.528 GEAR; SIDE,DIFF G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) Z=16	8-98165-935-0	02	1	1005-		●	●
21	05.528 GEAR; SIDE,DIFF G.V.W. 6.0-6.5TON(RPV) Z=20	8-97362-598-0	02	1	0612-		●	●
24	05.526 GEAR; PINION,DIFF Z=10	1-41551-024-0	04	1	0612-1004	●			●
24	05.526 GEAR; PINION,DIFF G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) Z=10	1-41551-024-0	04	1	0612-1004		●	●
24	05.526 GEAR; PINION,DIFF Z=10	1-41551-050-0	04	1	1005-	●			●
24	05.526 GEAR; PINION,DIFF G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) Z=10	1-41551-050-0	04	1	1005-		●	●
24	05.526 GEAR; PINION,DIFF G.V.W. 6.0-6.5TON(RPV) Z=10	8-98015-202-0	04	1	0612-		●	●
25	05.528 WASHER; THRUST,PINION	1-41552-020-0	04	1	0612-	●			●
25	05.528 WASHER; THRUST,PINION G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ)	1-41552-020-0	04	1	0612-		●	●
37	05.595 NUT; DRIVING PINION M30 FLANGE	8-97047-146-0	01	1	0612-	●			●
37	05.595 NUT; DRIVING PINION G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) M30 FLANGE	8-97047-146-0	01	1	0612-		●	●
37	05.595 NUT; DRIVING PINION G.V.W. 6.0-6.5TON(RPV) M24 FLANGE	8-94329-526-1	01	1	0612-		●	●
39	05.484 BEARING; FINAL PINION JTEKT	5-09812-062-1	01	1	0612-	●			●
39	05.484 BEARING; FINAL PINION G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) JTEKT	5-09812-062-1	01	1	0612-		●	●
39	05.484 BEARING; FINAL PINION NSK	5-09812-063-0	01	1	0612-	●			●
39	05.484 BEARING; FINAL PINION G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) NSK	5-09812-063-0	01	1	0612-		●	●
42	05.453 COLLAR; DIST,COLLAPSIBLE	8-97047-097-0	01	1	0612-	●			●
42	05.453 COLLAR; DIST,COLLAPSIBLE G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ)	8-97047-097-0	01	1	0612-		●	●
42	05.453 COLLAR; DIST,COLLAPSIBLE G.V.W. 6.0-6.5TON(RPV) L=19.6	9-41219-603-1	01	1	0612-		●	●
43	05.453 CAGE; FINAL PINION	8-97047-098-0	01	1	0612-	●			●
43	05.453 CAGE; FINAL PINION G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ)	8-97047-098-0	01	1	0612-		●	●
43	05.453 CAGE; FINAL PINION G.V.W. 6.0-6.5TON(RPV)	8-94400-890-0	01	1	0612-		●	●
44	05.476 GASKET; PINION CAGE	8-97048-053-0	01	1	0612-	●			●
44	05.476 GASKET; PINION CAGE G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ)	8-97048-053-0	01	1	0612-		●	●
44	05.476 GASKET; PINION CAGE G.V.W. 6.0-6.5TON(RPV) 05.458	9-09720-505-0	01	1	0612-		●	●
45	05.453 BOLT; FINAL PINION CAGE M12X40 W/LK WASHER	0-50071-240-0	06	1	0612-0909	●			●
45	05.453 BOLT; FINAL PINION CAGE G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) M12X40 W/LK WASHER	0-50071-240-0	06	1	0612-0909		●	●
45	05.453 BOLT; FINAL PINION CAGE 16.545 M12X40 W/LK WASHER	0-50571-240-0	06	1	0910-	●			●
45	05.453 BOLT; FINAL PINION CAGE G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) 16.545 M12X40 W/LK WASHER	0-50571-240-0	06	1	0910-		●	●
45	05.453 BOLT; FINAL PINION CAGE G.V.W. 6.0-6.5TON(RPV) M12X38 W/LK WASHER	0-50051-238-0	05	1	0612-0909		●	●
45	05.453 BOLT; FINAL PINION CAGE G.V.W. 6.0-6.5TON(RPV) M12X38 W/LK WASHER	0-50551-238-0	05	1	0910-		●	●
49	05.458 SHIM; FINAL PINION CAGE ID=142 T=0.12	8-97047-298-0	AR	1	0612-	●			●
49	05.458 SHIM; FINAL PINION CAGE G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) ID=142 T=0.12	8-97047-298-0	AR	1	0612-		●	●
49	05.458 SHIM; FINAL PINION CAGE ID=142 T=0.15	8-97047-299-0	AR	1	0612-	●			●
49	05.458 SHIM; FINAL PINION CAGE G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) ID=142 T=0.15	8-97047-299-0	AR	1	0612-		●	●
49	05.458 SHIM; FINAL PINION CAGE ID=142 T=0.20	8-97047-300-0	AR	1	0612-	●			●
49	05.458 SHIM; FINAL PINION CAGE G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) ID=142 T=0.20	8-97047-300-0	AR	1	0612-		●	●
49	05.458 SHIM; FINAL PINION CAGE ID=142 T=0.25	8-97048-418-0	AR	1	0612-	●			●
49	05.458 SHIM; FINAL PINION CAGE G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) ID=142 T=0.25	8-97048-418-0	AR	1	0612-		●	●
49	05.458 SHIM; FINAL PINION CAGE 05.528 ID=142 T=0.50	8-97048-419-0	AR	1	0612-	●			●
49	05.458 SHIM; FINAL PINION CAGE G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) 05.528 ID=142 T=0.50	8-97048-419-0	AR	1	0612-		●	●
49	05.458 SHIM; FINAL PINION CAGE G.V.W. 6.0-6.5TON(RPV) ID=132 T=0.10	8-94401-335-0	AR	1	0612-		●	●
49	05.458 SHIM; FINAL PINION CAGE G.V.W. 6.0-6.5TON(RPV) ID=132 T=0.12	8-94401-336-0	AR	1	0612-		●	●
49	05.458 SHIM; FINAL PINION CAGE G.V.W. 6.0-6.5TON(RPV) ID=132 T=0.14	8-94401-337-0	AR	1	0612-		●	●
49	05.458 SHIM; FINAL PINION CAGE G.V.W. 6.0-6.5TON(RPV) ID=132 T=0.16	8-94401-338-0	AR	1	0612-		●	●
49	05.458 SHIM; FINAL PINION CAGE G.V.W. 6.0-6.5TON(RPV) ID=132 T=0.18	8-94401-339-0	AR	1	0612-		●	●
49	05.458 SHIM; FINAL PINION CAGE G.V.W. 6.0-6.5TON(RPV) ID=132 T=0.20	8-94401-340-0	AR	1	0612-		●	●
50	05.447 BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	0701-	●			●
50	05.447 BEARING; FINAL PINION G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) JTEKT	1-09812-042-1	01	1	0701-		●	●
50	05.447 BEARING; FINAL PINION 05.484 NSK	1-09812-041-2	01	1	0612-	●			●
50	05.447 BEARING; FINAL PINION G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) 05.484 NSK	1-09812-041-2	01	1	0612-		●	●
50	05.447 BEARING; FINAL PINION G.V.W. 6.0-6.5TON(RPV) 05.484 JTEKT	5-09812-062-1	02	1	0612-		●	●
50	05.447 BEARING; FINAL PINION G.V.W. 6.0-6.5TON(RPV) 05.484 NSK	5-09812-063-0	02	1	0612-		●	●
55	05.505 CARRIER; DIFF	8-97094-637-0	01	1	0612-	●			●
55	05.505 CARRIER; DIFF G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ)	8-97094-637-0	01	1	0612-		●	●
55	05.505 CARRIER; DIFF G.V.W. 6.0-6.5TON(RPV)	8-97307-760-0	01	1	0612-		●	●
56	05.506 BOLT; BRG CAP M14X95 FLANGE	1-09070-027-0	04	1	0612-	●			●
56	05.506 BOLT; BRG CAP G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) M14X95 FLANGE	1-09070-027-0	04	1	0612-		●	●
56	05.506 BOLT; BRG CAP G.V.W. 6.0-6.5TON(RPV) 05.387 M14X80	8-94365-377-3	04	1	0612-		●	●
60	05.529 GEAR SET; FINAL DRIVE,RR 43/10	8-97047-115-0	01	1	0612-	●
60	05.529 GEAR SET; FINAL DRIVE,RR G.V.W. 7.0-7.5TON(RPX) 43/10	8-97047-115-0	01	1	0612-		●	●
60	05.529 GEAR SET; FINAL DRIVE,RR G.V.W. 6.0-6.5TON(RPV) 43/10	8-97319-155-0	01	1	0612-		●	●
60	05.529 GEAR SET; FINAL DRIVE,RR G.V.W. 8.0-8.5TON(RPZ) 41/10	8-97061-846-0	01	1	0612-			●
60	05.529 GEAR SET; FINAL DRIVE,RR 41/10	8-97061-846-0	01	1	0612-				●
61	05.476 RETAINER; PILOT BRG,PINION (A) W/STUD	8-97047-149-0	01	1	0612-	●			●
61	05.476 RETAINER; PILOT BRG,PINION G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) (A) W/STUD	8-97047-149-0	01	1	0612-		●	●
61	05.476 RETAINER; PILOT BRG,PINION (B)	8-97047-150-0	01	1	0612-	●			●
61	05.476 RETAINER; PILOT BRG,PINION G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) (B)	8-97047-150-0	01	1	0612-		●	●
61	05.476 RETAINER; PILOT BRG,PINION G.V.W. 6.0-6.5TON(RPV) (A) W/STUD	5-41227-001-0	01	1	0612-		●	●
61	05.476 RETAINER; PILOT BRG,PINION G.V.W. 6.0-6.5TON(RPV) (B)	9-41227-601-0	01	1	0612-		●	●
63	05.447 BEARING; PINION PILOT NSK	8-97047-296-0	01	1	0612-	●			●
63	05.447 BEARING; PINION PILOT G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) NSK	8-97047-296-0	01	1	0612-		●	●
63	05.447 BEARING; PINION PILOT JTEKT	8-97047-928-0	01	1	0612-	●			●
63	05.447 BEARING; PINION PILOT G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) JTEKT	8-97047-928-0	01	1	0612-		●	●
63	05.447 BEARING; PINION PILOT G.V.W. 6.0-6.5TON(RPV) NSK	5-09810-008-1	01	1	0612-		●	●
63	05.447 BEARING; PINION PILOT G.V.W. 6.0-6.5TON(RPV) JTEKT	8-97107-548-0	01	1	0612-		●	●
64	05.476 NUT; RET 01.062 M6 FLANGE	0-91180-106-0	02	1	0612-	●	●	●	●
66	05.476 RING; SNAP,PILOT BRG	8-97047-297-0	01	1	0612-	●			●
66	05.476 RING; SNAP,PILOT BRG G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ)	8-97047-297-0	01	1	0612-		●	●
66	05.476 RING; SNAP,PILOT BRG G.V.W. 6.0-6.5TON(RPV)	9-09752-002-0	01	1	0612-		●	●
69	05.506 NUT; ADJ,DIFF CAGE M115 H=20	1-41121-039-0	02	1	0612-	●			●
69	05.506 NUT; ADJ,DIFF CAGE G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) M115 H=20	1-41121-039-0	02	1	0612-		●	●
69	05.506 NUT; ADJ,DIFF CAGE G.V.W. 6.0-6.5TON(RPV) M110 H=10	5-41121-001-0	02	1	0612-		●	●
70	05.536 BEARING; DIFF CAGE JTEKT ID=66.7 OD=113 T=30	9-00093-130-0	02	1	0612-	●			●
70	05.536 BEARING; DIFF CAGE G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) JTEKT ID=66.7 OD=113 T=30	9-00093-130-0	02	1	0612-		●	●
70	05.536 BEARING; DIFF CAGE G.V.W. 6.0-6.5TON(RPV) NSK	9-00093-602-0	02	1	0612-		●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE	8-97047-099-1	01	1	0612-	●			●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ)	8-97047-099-1	01	1	0612-		●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE G.V.W. 6.0-6.5TON(RPV)	8-98015-178-0	01	1	0612-		●	●
82	05.517 SPIDER; DIFF PINION 05.520	1-41521-035-2	01	1	0612-1004	●			●
82	05.517 SPIDER; DIFF PINION G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) 05.520	1-41521-035-2	01	1	0612-1004		●	●
82	05.517 SPIDER; DIFF PINION	1-41521-062-0	01	1	1005-	●			●
82	05.517 SPIDER; DIFF PINION G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ)	1-41521-062-0	01	1	1005-		●	●
82	05.517 SPIDER; DIFF PINION G.V.W. 6.0-6.5TON(RPV) 05.520	5-41521-008-0	01	1	0612-		●	●
83	05.510 CAGE ASM; DIFF	8-97047-101-1	01	1	0612-	●			●
83	05.510 CAGE ASM; DIFF G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ)	8-97047-101-1	01	1	0612-		●	●
83	05.510 CAGE ASM; DIFF G.V.W. 6.0-6.5TON(RPV)	8-97319-398-1	01	1	0612-		●	●
84	05.531 BOLT; FINAL DRIVE GEAR M16X30	8-97047-147-0	12	1	0612-	●			●
84	05.531 BOLT; FINAL DRIVE GEAR G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) M16X30	8-97047-147-0	12	1	0612-		●	●
84	05.531 BOLT; FINAL DRIVE GEAR G.V.W. 6.0-6.5TON(RPV) M14X25	8-97318-938-1	12	1	0612-		●	●
85	05.510 NUT; DIFF CAGE SETTING M12	8-97065-214-0	12	1	0612-	●			●
85	05.510 NUT; DIFF CAGE SETTING G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) M12	8-97065-214-0	12	1	0612-		●	●
85	05.510 NUT; DIFF CAGE SETTING G.V.W. 6.0-6.5TON(RPV) 04.085 M10 FLANGE	0-91180-210-0	12	1	0612-		●	●
86	05.510 WASHER; PL,DIFF CAGE SETTING ID=12.5 OD=22 T=2	8-97047-294-0	24	1	0612-	●			●
86	05.510 WASHER; PL,DIFF CAGE SETTING G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) ID=12.5 OD=22 T=2	8-97047-294-0	24	1	0612-		●	●
88	05.506 PLATE; LK,ADJ NUT (D)	8-97087-821-0	AR	1	0612-	●			●
88	05.506 PLATE; LK,ADJ NUT G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) (D)	8-97087-821-0	AR	1	0612-		●	●
88	05.506 PLATE; LK,ADJ NUT (C) T=2.3	9-41124-015-0	AR	1	0612-	●			●
88	05.506 PLATE; LK,ADJ NUT G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) (C) T=2.3	9-41124-015-0	AR	1	0612-		●	●
88	05.506 PLATE; LK,ADJ NUT G.V.W. 6.0-6.5TON(RPV) (A)	8-97027-281-0	AR	1	0612-		●	●
88	05.506 PLATE; LK,ADJ NUT G.V.W. 6.0-6.5TON(RPV) (B)	8-97027-282-0	AR	1	0612-		●	●
89	05.506 BOLT; LK PLATE 02.343 M8X16 FLANGE	0-28050-816-0	04	1	0612-	●			●
89	05.506 BOLT; LK PLATE G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) 02.343 M8X16 FLANGE	0-28050-816-0	04	1	0612-		●	●
89	05.506 BOLT; LK PLATE G.V.W. 6.0-6.5TON(RPV) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0612-		●	●
100	05.469 SEAL; OIL,FINAL PINION NOK	1-09625-484-1	01	1	0612-	●			●
100	05.469 SEAL; OIL,FINAL PINION G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) NOK	1-09625-484-1	01	1	0612-		●	●
100	05.469 SEAL; OIL,FINAL PINION G.V.W. 6.0-6.5TON(RPV) OD=103	8-94408-083-0	01	1	0612-		●	●

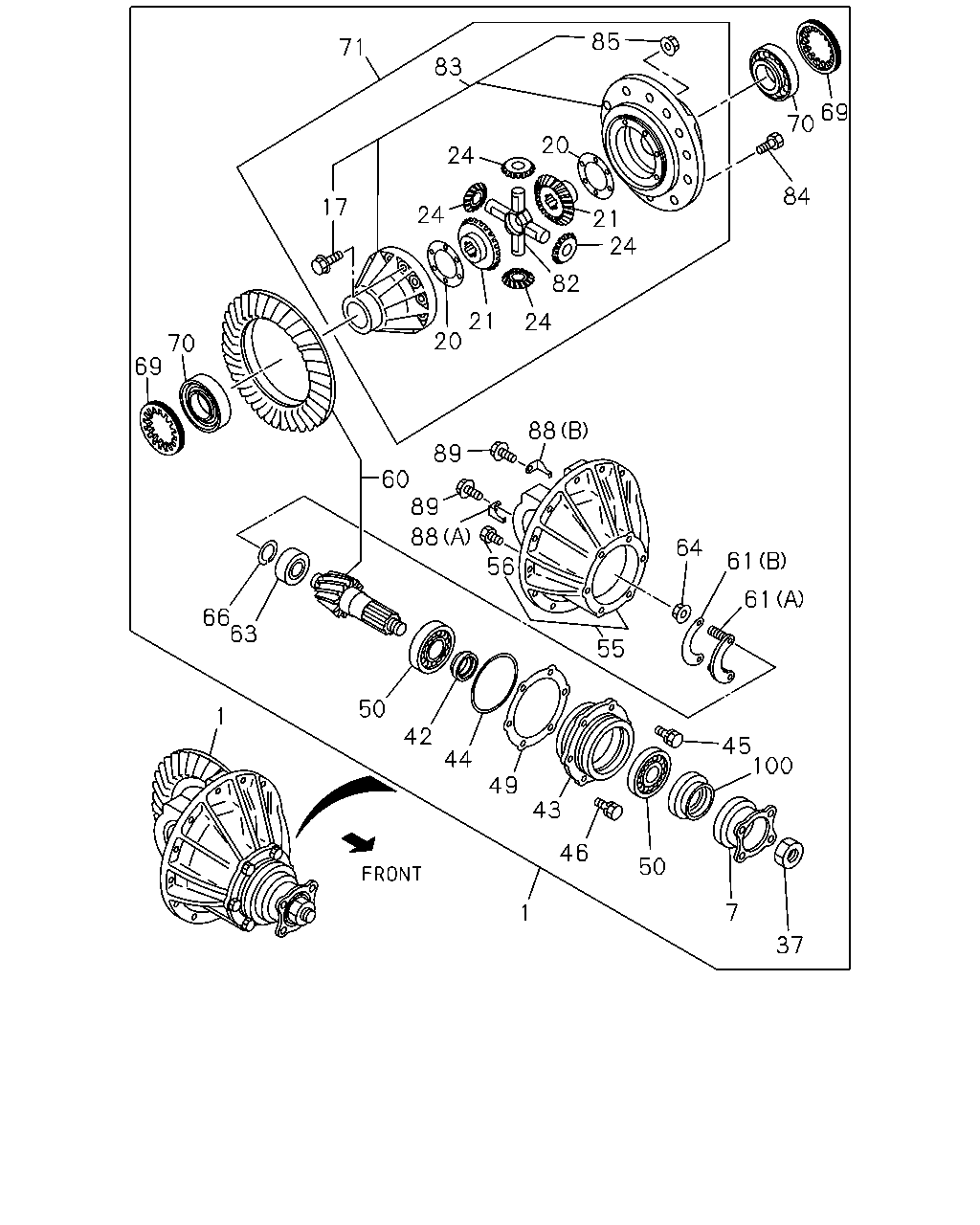

85 71 83 69 70 20 24 84 17 24 21 24 82 21 20 24 70 69 88 89 60 89 88 64 61 56 61 66 63 55 50 1 42 45 100 44 49 43 46 50 7 1 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	05.505 DRIVE ASM; FINAL,RR 43/10	8-97094-679-0	01	1	0612-	●
1	05.505 DRIVE ASM; FINAL,RR G.V.W. 7.0-7.5TON(RPX) 43/10	8-97094-679-0	01	1	0612-		●	●
1	05.505 DRIVE ASM; FINAL,RR G.V.W. 6.0-6.5TON(RPV) 43/10	8-98015-123-0	01	1	0612-		●	●
1	05.505 DRIVE ASM; FINAL,RR G.V.W. 8.0-8.5TON(RPZ) 41/10	8-97367-506-0	01	1	0612-			●
1	05.505 DRIVE ASM; FINAL,RR 41/10	8-97367-506-0	01	1	0612-				●
7	05.545 FLANGE; FINAL	8-97047-095-2	01	1	0612-	●			●
7	05.545 FLANGE; FINAL G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ)	8-97047-095-2	01	1	0612-		●	●
7	05.545 FLANGE; FINAL G.V.W. 6.0-6.5TON(RPV)	8-94477-723-4	01	1	0612-		●	●
17	05.510 BOLT; DIFF CAGE SETTING	8-97047-295-0	12	1	0612-	●			●
17	05.510 BOLT; DIFF CAGE SETTING G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ)	8-97047-295-0	12	1	0612-		●	●
17	05.510 BOLT; DIFF CAGE SETTING G.V.W. 6.0-6.5TON(RPV) M10X75 FLANGE	8-97232-161-0	12	1	0612-		●	●
20	05.543 WASHER; THRUST,SIDE GEAR T=2.80	1-41562-073-0	AR	1	0612-	●			●
20	05.543 WASHER; THRUST,SIDE GEAR G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) T=2.80	1-41562-073-0	AR	1	0612-		●	●
20	05.543 WASHER; THRUST,SIDE GEAR T=2.90	1-41562-074-0	AR	1	0612-	●			●
20	05.543 WASHER; THRUST,SIDE GEAR G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) T=2.90	1-41562-074-0	AR	1	0612-		●	●
20	05.543 WASHER; THRUST,SIDE GEAR T=3.00	1-41562-075-0	AR	1	0612-	●			●
20	05.543 WASHER; THRUST,SIDE GEAR G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) T=3.00	1-41562-075-0	AR	1	0612-		●	●
20	05.543 WASHER; THRUST,SIDE GEAR T=3.10	1-41562-076-0	AR	1	0612-	●			●
20	05.543 WASHER; THRUST,SIDE GEAR G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) T=3.10	1-41562-076-0	AR	1	0612-		●	●
20	05.543 WASHER; THRUST,SIDE GEAR T=3.20	1-41562-077-0	AR	1	0612-	●			●
20	05.543 WASHER; THRUST,SIDE GEAR G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) T=3.20	1-41562-077-0	AR	1	0612-		●	●
20	05.543 WASHER; THRUST,SIDE GEAR T=3.30	1-41562-078-0	AR	1	0612-	●			●
20	05.543 WASHER; THRUST,SIDE GEAR G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) T=3.30	1-41562-078-0	AR	1	0612-		●	●
20	05.543 WASHER; THRUST,SIDE GEAR T=3.40	1-41562-079-0	AR	1	0612-	●			●
20	05.543 WASHER; THRUST,SIDE GEAR G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) T=3.40	1-41562-079-0	AR	1	0612-		●	●
20	05.543 WASHER; THRUST,SIDE GEAR G.V.W. 6.0-6.5TON(RPV) T=1.40	9-41562-601-0	02	1	0612-		●	●
21	05.528 GEAR; SIDE,DIFF Z=16	1-41561-093-0	02	1	0612-1004	●			●
21	05.528 GEAR; SIDE,DIFF G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) Z=16	1-41561-093-0	02	1	0612-1004		●	●
21	05.528 GEAR; SIDE,DIFF Z=16	8-98165-935-0	02	1	1005-	●			●
21	05.528 GEAR; SIDE,DIFF G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) Z=16	8-98165-935-0	02	1	1005-		●	●
21	05.528 GEAR; SIDE,DIFF G.V.W. 6.0-6.5TON(RPV) Z=20	8-97362-598-0	02	1	0612-		●	●
24	05.526 GEAR; PINION,DIFF Z=10	1-41551-024-0	04	1	0612-1004	●			●
24	05.526 GEAR; PINION,DIFF G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) Z=10	1-41551-024-0	04	1	0612-1004		●	●
24	05.526 GEAR; PINION,DIFF Z=10	1-41551-050-0	04	1	1005-	●			●
24	05.526 GEAR; PINION,DIFF G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) Z=10	1-41551-050-0	04	1	1005-		●	●
24	05.526 GEAR; PINION,DIFF G.V.W. 6.0-6.5TON(RPV) Z=10	8-98015-202-0	04	1	0612-		●	●
37	05.595 NUT; DRIVING PINION M30 FLANGE	8-97047-146-0	01	1	0612-	●			●
37	05.595 NUT; DRIVING PINION G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) M30 FLANGE	8-97047-146-0	01	1	0612-		●	●
37	05.595 NUT; DRIVING PINION G.V.W. 6.0-6.5TON(RPV) M24 FLANGE	8-94329-526-1	01	1	0612-		●	●
42	05.453 COLLAR; DIST,COLLAPSIBLE	8-97047-097-0	01	1	0612-	●			●
42	05.453 COLLAR; DIST,COLLAPSIBLE G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ)	8-97047-097-0	01	1	0612-		●	●
42	05.453 COLLAR; DIST,COLLAPSIBLE G.V.W. 6.0-6.5TON(RPV) L=19.6	9-41219-603-1	01	1	0612-		●	●
43	05.453 CAGE; FINAL PINION	8-97047-098-0	01	1	0612-	●			●
43	05.453 CAGE; FINAL PINION G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ)	8-97047-098-0	01	1	0612-		●	●
43	05.453 CAGE; FINAL PINION G.V.W. 6.0-6.5TON(RPV)	8-94400-890-0	01	1	0612-		●	●
44	05.476 GASKET; PINION CAGE	8-97048-053-0	01	1	0612-	●			●
44	05.476 GASKET; PINION CAGE G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ)	8-97048-053-0	01	1	0612-		●	●
44	05.476 GASKET; PINION CAGE G.V.W. 6.0-6.5TON(RPV) 05.458	9-09720-505-0	01	1	0612-		●	●
45	05.453 BOLT; FINAL PINION CAGE M12X40 W/LK WASHER	0-50071-240-0	06	1	0612-0909	●			●
45	05.453 BOLT; FINAL PINION CAGE G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) M12X40 W/LK WASHER	0-50071-240-0	06	1	0612-0909		●	●
45	05.453 BOLT; FINAL PINION CAGE 16.545 M12X40 W/LK WASHER	0-50571-240-0	06	1	0910-	●			●
45	05.453 BOLT; FINAL PINION CAGE G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) 16.545 M12X40 W/LK WASHER	0-50571-240-0	06	1	0910-		●	●
45	05.453 BOLT; FINAL PINION CAGE G.V.W. 6.0-6.5TON(RPV) M12X38 W/LK WASHER	0-50051-238-0	05	1	0612-0909		●	●
45	05.453 BOLT; FINAL PINION CAGE G.V.W. 6.0-6.5TON(RPV) M12X38 W/LK WASHER	0-50551-238-0	05	1	0910-		●	●
46	05.453 BOLT G.V.W. 6.0-6.5TON(RPV) M14X35 W/LK WASHER	0-50051-435-0	01	1	0612-0909		●	●
46	05.453 BOLT G.V.W. 6.0-6.5TON(RPV) M14X35 W/LK WASHER	0-50551-435-0	01	1	0910-		●	●
49	05.458 SHIM; FINAL PINION CAGE ID=142 T=0.12	8-97047-298-0	AR	1	0612-	●			●
49	05.458 SHIM; FINAL PINION CAGE G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) ID=142 T=0.12	8-97047-298-0	AR	1	0612-		●	●
49	05.458 SHIM; FINAL PINION CAGE ID=142 T=0.15	8-97047-299-0	AR	1	0612-	●			●
49	05.458 SHIM; FINAL PINION CAGE G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) ID=142 T=0.15	8-97047-299-0	AR	1	0612-		●	●
49	05.458 SHIM; FINAL PINION CAGE ID=142 T=0.20	8-97047-300-0	AR	1	0612-	●			●
49	05.458 SHIM; FINAL PINION CAGE G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) ID=142 T=0.20	8-97047-300-0	AR	1	0612-		●	●
49	05.458 SHIM; FINAL PINION CAGE ID=142 T=0.25	8-97048-418-0	AR	1	0612-	●			●
49	05.458 SHIM; FINAL PINION CAGE G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) ID=142 T=0.25	8-97048-418-0	AR	1	0612-		●	●
49	05.458 SHIM; FINAL PINION CAGE 05.528 ID=142 T=0.50	8-97048-419-0	AR	1	0612-	●			●
49	05.458 SHIM; FINAL PINION CAGE G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) 05.528 ID=142 T=0.50	8-97048-419-0	AR	1	0612-		●	●
49	05.458 SHIM; FINAL PINION CAGE G.V.W. 6.0-6.5TON(RPV) ID=132 T=0.10	8-94401-335-0	AR	1	0612-		●	●
49	05.458 SHIM; FINAL PINION CAGE G.V.W. 6.0-6.5TON(RPV) ID=132 T=0.12	8-94401-336-0	AR	1	0612-		●	●
49	05.458 SHIM; FINAL PINION CAGE G.V.W. 6.0-6.5TON(RPV) ID=132 T=0.14	8-94401-337-0	AR	1	0612-		●	●
49	05.458 SHIM; FINAL PINION CAGE G.V.W. 6.0-6.5TON(RPV) ID=132 T=0.16	8-94401-338-0	AR	1	0612-		●	●
49	05.458 SHIM; FINAL PINION CAGE G.V.W. 6.0-6.5TON(RPV) ID=132 T=0.18	8-94401-339-0	AR	1	0612-		●	●
49	05.458 SHIM; FINAL PINION CAGE G.V.W. 6.0-6.5TON(RPV) ID=132 T=0.20	8-94401-340-0	AR	1	0612-		●	●
50	05.447 BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	0701-	●			●
50	05.447 BEARING; FINAL PINION G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) JTEKT	1-09812-042-1	01	1	0701-		●	●
50	05.447 BEARING; FINAL PINION 05.484 NSK	1-09812-041-2	01	1	0612-	●			●
50	05.447 BEARING; FINAL PINION G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) 05.484 NSK	1-09812-041-2	01	1	0612-		●	●
50	05.447 BEARING; FINAL PINION G.V.W. 6.0-6.5TON(RPV) 05.484 JTEKT	5-09812-062-1	02	1	0612-		●	●
50	05.447 BEARING; FINAL PINION G.V.W. 6.0-6.5TON(RPV) 05.484 NSK	5-09812-063-0	02	1	0612-		●	●
55	05.505 CARRIER; DIFF	8-97094-637-0	01	1	0612-	●			●
55	05.505 CARRIER; DIFF G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ)	8-97094-637-0	01	1	0612-		●	●
55	05.505 CARRIER; DIFF G.V.W. 6.0-6.5TON(RPV)	8-97307-760-0	01	1	0612-		●	●
56	05.506 BOLT; BRG CAP M14X95 FLANGE	1-09070-027-0	04	1	0612-	●			●
56	05.506 BOLT; BRG CAP G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) M14X95 FLANGE	1-09070-027-0	04	1	0612-		●	●
56	05.506 BOLT; BRG CAP G.V.W. 6.0-6.5TON(RPV) 05.387 M14X80	8-94365-377-3	04	1	0612-		●	●
60	05.529 GEAR SET; FINAL DRIVE,RR 43/10	8-97047-115-0	01	1	0612-	●
60	05.529 GEAR SET; FINAL DRIVE,RR G.V.W. 7.0-7.5TON(RPX) 43/10	8-97047-115-0	01	1	0612-		●	●
60	05.529 GEAR SET; FINAL DRIVE,RR G.V.W. 6.0-6.5TON(RPV) 43/10	8-97319-155-0	01	1	0612-		●	●
60	05.529 GEAR SET; FINAL DRIVE,RR G.V.W. 8.0-8.5TON(RPZ) 41/10	8-97061-846-0	01	1	0612-			●
60	05.529 GEAR SET; FINAL DRIVE,RR 41/10	8-97061-846-0	01	1	0612-				●
61	05.476 RETAINER; PILOT BRG,PINION (A) W/STUD	8-97047-149-0	01	1	0612-	●			●
61	05.476 RETAINER; PILOT BRG,PINION G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) (A) W/STUD	8-97047-149-0	01	1	0612-		●	●
61	05.476 RETAINER; PILOT BRG,PINION (B)	8-97047-150-0	01	1	0612-	●			●
61	05.476 RETAINER; PILOT BRG,PINION G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) (B)	8-97047-150-0	01	1	0612-		●	●
61	05.476 RETAINER; PILOT BRG,PINION G.V.W. 6.0-6.5TON(RPV) (A) W/STUD	5-41227-001-0	01	1	0612-		●	●
61	05.476 RETAINER; PILOT BRG,PINION G.V.W. 6.0-6.5TON(RPV) (B)	9-41227-601-0	01	1	0612-		●	●
63	05.447 BEARING; PINION PILOT NSK	8-97047-296-0	01	1	0612-	●			●
63	05.447 BEARING; PINION PILOT G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) NSK	8-97047-296-0	01	1	0612-		●	●
63	05.447 BEARING; PINION PILOT JTEKT	8-97047-928-0	01	1	0612-	●			●
63	05.447 BEARING; PINION PILOT G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) JTEKT	8-97047-928-0	01	1	0612-		●	●
63	05.447 BEARING; PINION PILOT G.V.W. 6.0-6.5TON(RPV) NSK	5-09810-008-1	01	1	0612-		●	●
63	05.447 BEARING; PINION PILOT G.V.W. 6.0-6.5TON(RPV) JTEKT	8-97107-548-0	01	1	0612-		●	●
64	05.476 NUT; RET 01.062 M6 FLANGE	0-91180-106-0	02	1	0612-	●	●	●	●
66	05.476 RING; SNAP,PILOT BRG	8-97047-297-0	01	1	0612-	●			●
66	05.476 RING; SNAP,PILOT BRG G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ)	8-97047-297-0	01	1	0612-		●	●
66	05.476 RING; SNAP,PILOT BRG G.V.W. 6.0-6.5TON(RPV)	9-09752-002-0	01	1	0612-		●	●
69	05.506 NUT; ADJ,DIFF CAGE M115 H=20	1-41121-039-0	02	1	0612-	●			●
69	05.506 NUT; ADJ,DIFF CAGE G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) M115 H=20	1-41121-039-0	02	1	0612-		●	●
69	05.506 NUT; ADJ,DIFF CAGE G.V.W. 6.0-6.5TON(RPV) M110 H=10	5-41121-001-0	02	1	0612-		●	●
70	05.536 BEARING; DIFF CAGE JTEKT ID=66.7 OD=113 T=30	9-00093-130-0	02	1	0612-	●			●
70	05.536 BEARING; DIFF CAGE G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) JTEKT ID=66.7 OD=113 T=30	9-00093-130-0	02	1	0612-		●	●
70	05.536 BEARING; DIFF CAGE G.V.W. 6.0-6.5TON(RPV) NSK	9-00093-602-0	02	1	0612-		●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE	8-97047-099-1	01	1	0612-	●			●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ)	8-97047-099-1	01	1	0612-		●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE G.V.W. 6.0-6.5TON(RPV)	8-98015-178-0	01	1	0612-		●	●
82	05.517 SPIDER; DIFF PINION 05.520	1-41521-035-2	01	1	0612-1004	●			●
82	05.517 SPIDER; DIFF PINION G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) 05.520	1-41521-035-2	01	1	0612-1004		●	●
82	05.517 SPIDER; DIFF PINION	1-41521-062-0	01	1	1005-	●			●
82	05.517 SPIDER; DIFF PINION G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ)	1-41521-062-0	01	1	1005-		●	●
82	05.517 SPIDER; DIFF PINION G.V.W. 6.0-6.5TON(RPV) 05.520	5-41521-008-0	01	1	0612-		●	●
83	05.510 CAGE ASM; DIFF	8-97047-101-1	01	1	0612-	●			●
83	05.510 CAGE ASM; DIFF G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ)	8-97047-101-1	01	1	0612-		●	●
83	05.510 CAGE ASM; DIFF G.V.W. 6.0-6.5TON(RPV)	8-97319-398-1	01	1	0612-		●	●
84	05.531 BOLT; FINAL DRIVE GEAR M16X30	8-97047-147-0	12	1	0612-	●			●
84	05.531 BOLT; FINAL DRIVE GEAR G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) M16X30	8-97047-147-0	12	1	0612-		●	●
84	05.531 BOLT; FINAL DRIVE GEAR G.V.W. 6.0-6.5TON(RPV) M14X25	8-97318-938-1	12	1	0612-		●	●
85	05.510 NUT; DIFF CAGE SETTING M12	8-97065-214-0	12	1	0612-	●			●
85	05.510 NUT; DIFF CAGE SETTING G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) M12	8-97065-214-0	12	1	0612-		●	●
85	05.510 NUT; DIFF CAGE SETTING G.V.W. 6.0-6.5TON(RPV) 04.085 M10 FLANGE	0-91180-210-0	12	1	0612-		●	●
88	05.506 PLATE; LK,ADJ NUT (D)	8-97087-821-0	AR	1	0612-	●			●
88	05.506 PLATE; LK,ADJ NUT G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) (D)	8-97087-821-0	AR	1	0612-		●	●
88	05.506 PLATE; LK,ADJ NUT (C) T=2.3	9-41124-015-0	AR	1	0612-	●			●
88	05.506 PLATE; LK,ADJ NUT G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) (C) T=2.3	9-41124-015-0	AR	1	0612-		●	●
88	05.506 PLATE; LK,ADJ NUT G.V.W. 6.0-6.5TON(RPV) (A)	8-97027-281-0	AR	1	0612-		●	●
88	05.506 PLATE; LK,ADJ NUT G.V.W. 6.0-6.5TON(RPV) (B)	8-97027-282-0	AR	1	0612-		●	●
89	05.506 BOLT; LK PLATE 02.343 M8X16 FLANGE	0-28050-816-0	04	1	0612-	●			●
89	05.506 BOLT; LK PLATE G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) 02.343 M8X16 FLANGE	0-28050-816-0	04	1	0612-		●	●
89	05.506 BOLT; LK PLATE G.V.W. 6.0-6.5TON(RPV) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0612-		●	●
100	05.469 SEAL; OIL,FINAL PINION NOK	1-09625-484-1	01	1	0612-	●			●
100	05.469 SEAL; OIL,FINAL PINION G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) NOK	1-09625-484-1	01	1	0612-		●	●
100	05.469 SEAL; OIL,FINAL PINION G.V.W. 6.0-6.5TON(RPV) OD=103	8-94408-083-0	01	1	0612-		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
